PA692t
Android Rugged Tablet
PA692t is the perfect choice for a full day's work; easy to store, carry and operate. It offers abundant features for the ultimate experience
-
Android 7.1
-
2D
-
7 inch screen
-
UHF RFID
-
NFC
-
1.2M
-
4G LTE
-
Bluetooth
-
Field Service
-
Manufacturing

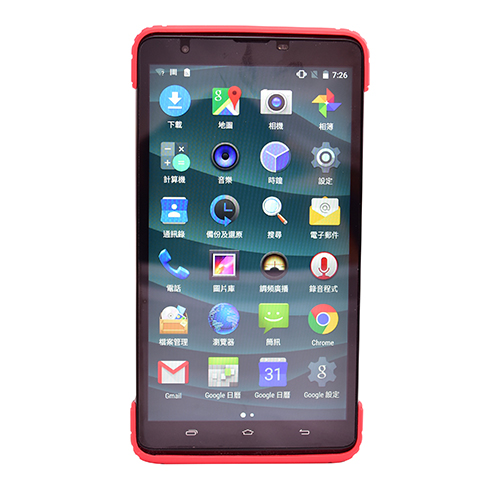

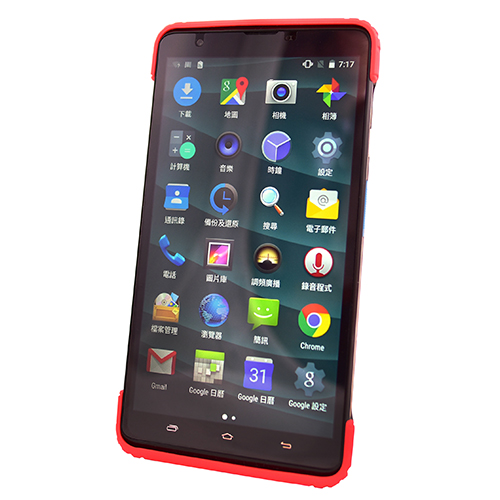

The Unitech PA692t is also known as TB560 in other part of the world is a rugged industrial tablet with groundbreakng super lightweight design; breaking away from the traditional bulky and heavy industrial tablet designs. It is the perfect choice for a full day's work; easy to store, carry and operate. It offers abundant features for the ultimate experience. It features an
extensive 7200mAh battery capacity, effectively lasting for 16 hours on full function mode and 120 hours on stand-by mode.
Features
• Android 7.1 , OS, Quad-Core Processor
• 7200mAh Battery Capacity, 16 Hrs Operating Time
• Built-In NFC reader, optional 1D, 2D & UHF modules
• Front & Rear Dual Camera
• IP 55 Sealing & Withstand Multiple Drops to Concrete from 1.2 Meters

Android 7.1
TB560 features Android 7.1operating system and support Android studio developer tool. It is compatible with most of
the latest software technology and a simple platform to develop new softwares on. A 7" capactive touch screen display
provides ease of device nagivation. TB560 features built-in NFC reader, and to meet a wider industrial requirement, it also
offers optional 1D Laser, 2D Imager and UHF RFID readers; effectively increasing its functionality and choices of data
collection. TB560 is effectively the most productive rugged tablet choice to meet today's industrial needs.
Specification
Operation System
- OS Android 7.1
- CPU 64-bit 2.5GHz Quad-Core Processor
- Memory RAM : 2GB; Flash ROM 16GB
- Languages support Multi-Language Support
Display
-
Touchpanel
Gorilla Glass III with Capacitive
Touch Pannel, 7" Color Transmissive
1280x720 dots LCD
Buttons / Keypad
- Buttons / Keypad Two Scan Keys, Two Volume Keys, Power Button
Camera/Photos/Video
-
Camera
2M Pixels Front Camera, 8M Pixels
Rear Camera, Auto Focus, LED Light
Communication
- Bluetooth® Bluetooth 4.0
- WLAN IEEE 802.11a/b/g/n
- WWAN 4G LTE, Dual-SIM
-
Sensors
GPS, e-compass, G-sensor, Light &
Proximity Sensor
RFID
-
UHF
Standard: NFC ; ISO14443A/B ;
ISO15693
Optional : UHF EPC C1/G2, ISO
18000-6C
I/O Interfaces
- USB USB 2.0 OTG
- Audio Built-In Microphone & Speaker
Enclosure
- Dimensions ( H x W x D ) L188 x W99 x H14 mm
-
Weight
398g (Including Battery)
452g (Full Standard Package)
Durability
- Drop Specification 1.2 meters
- Sealing IP55
Power Source
-
Main battery
3.7V @7200mAh with Operating
Duration at Full Function 16 hrs and
Stand-By 1 week
Symbologies
-
1D Barcodes
UPC/EAN,Bookland EAN,UCC Coupon Code, ISSN
EAN,Code 128, GS1-128, ISBT128, Code39,
Trioptic Code39, Code32,Code93, Code11,
Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI,
Chinese 2 of 5, Korean 3 of 5, Matrix 2 of 5,
Inverse 1D, GS 1 DataBar, Composite Codes, etc -
2D Barcodes
PDF417, MicroPDF417, Data Matrix, Data Matrix
Inverse, Maxicode, QR Code, MicroQR, QR
Inverse, Aztec, Aztec Inverse, Han Xin, Han Xin
Inverse, etc
Regulatory Approvals
- Regulatory Approvals NCC
