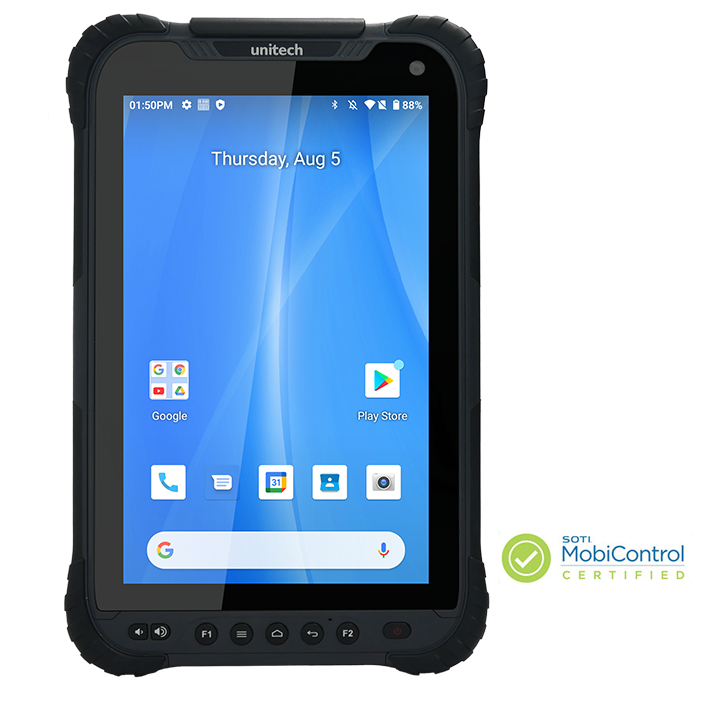

PA720T

Android Rugged Tablet

Powered by Android 10 OS with GMS Certified, PA720T is an 8” rugged tablet.

  • Android 10

  • 2D

  • 8 inch screen

  • 13Million Pixel

  • IP67

  • 1.2M

  • 4G LTE

  • WLAN

  • GMS certified

  • Retail

  • Hospitality

  • Warehousing

  • Field Service

  • Manufacturing

Your business requires you to be flexible, tough, and extremely versatile and that's exactly how we engineered the Unitech PA720T. With an attractive, slim case for easy portability, and fortified with a tough outer casing and environmental seal, this workhorse doesn't cut corners on durability or form factor.

Features

• Android 10.0 GMS with Octa-core CPU.
• Google Enterprise Device certified
• 8” display with Gorilla Glass 3 (450 nits)
• Lightweight but durable: weighs 630g
• Flexible design: 14-pin POGO extension for modules
• 8200 mAh changeable Li-ION battery
• 4G/LTE, WLAN 802.11 a/b/g/n/ac and NFC
• Ultra-Rugged Construction: IP67 rated, 1.2M drop and MIL-STD-810G certified

Powerful Android 10.0 OS & GMS Certified



Intuitive usability combines with the most up-to-date Android experience and Google Mobile Services (GMS). Experience the newest improvements from the Android 10 operating system as well as the reliable backing of GMS. With all the features of a consumer-grade smartphone like Google Maps, Gmail, Photos, Drive, and Play Store, your abilities on the TB85 plus smart device are practically limitless.

14-Pin Modular Extensions



The PA720T tablet is an extremely scalable product as the 14-pin POGO connector allows you to add devices that optimize your business and workflow. Insert a magnetic stripe reader for efficient check-out with credit and debit cards in retail or swap out the 2D scanner for a 1D scanner for easy inventory and asset tracking. The PA720T's interchangeability makes this a truly versatile device.

8-Inch Screen with GFF



Lots of room to roam with the PA720T's spacious 8-inch touch display panel! The large screen allows for more accurate and easier viewing while a GFF (glass film + film) layer resists scratches and reinforces durability. Whether collecting data in the warehouse, making deliveries on the field, or scanning tickets at an event, the capacitive display encourages fast transactions and application running.

Specification

Operation System

  • OS Android 10
  • GMS certified GMS certified
  • CPU 2.2 Ghz,Qualcomm MSM8953 PRO Octa-Core
  • Memory 4GB RAM / 64GB Flash
  • Languages support English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
  • Others Input Chinese/ English

Display

  • Screen Size 8 inch color (1280 x 800) LCD display 450nits
  • Touchpanel Gorilla Glass III with capacitive touch pannel.
    Support Capacitive Touch Screen.

Buttons / Keypad

  • Buttons / Keypad 8 Function Keys: Power key, volume +/-, return key, home key, menu key and 2 customizable keys.

Camera/Photos/Video

  • Camera 5MP front camera
    13M rear camera, AF with LED flash

Indicator Type

  • Type LEDs, Vibrator

Communication

  • Bluetooth® Bluetooth® 4.2 + BR/EDR + BLE
  • WLAN 802.11 a/b/g/n/ac
  • WWAN GSM: 850 / 900 / 1800 / 1900
    TD-SCDMA: B34, 39
    WCDMA: B1, 2, 5, 8
    CDMA/EVDO: BC0
    LTE-TDD: B38, 39, 40, 41
    LTE-FDD: B1, 2, 3, 4, 5, 7, 8, 12 ,13, 17, 20, 25, 28
  • GPS GNSS-GLONASS (Global Navigation Satellite System)
  • Sensors Ambient light sensor,
    Hall sensor support for accessory,
    Acceleration sensor,
    Atmosphere pressure sensor

RFID

  • HF Support HF/NFC
    Frequency 13.56Mhz
    Support: ISO14443A/B, ISO15693 standard

I/O Interfaces

  • USB USB TYPE-C
  • POGO PIN POGO pin
  • SIM Slot Nano SIMx1
  • Expansion Slot MicroSD x 1
  • Audio Microphone, speaker and 3.5mm audio jack

Enclosure

  • Dimensions ( H x W x D ) 241.9 x 152 x 17.76 mm
  • Weight 630g

Durability

  • Drop Specification 1.2m
  • Sealing IP67
  • Vibration and Shock test MIL-STD-810G

Power Source

  • Main battery 8200 mAh changeable Li-ION battery

Symbologies

  • 2D Barcodes 2D / 1D barcode scan module with triggers

Environmental

  • Operating temperature -4˚ to 140˚ F (-20˚ to 60 ˚C)
  • Storage temperature -40˚ to 158˚ F (-40˚C to 70 ˚C)
  • Relative Humidity 5% ~ 95% (Non-Condensing)

Software

  • MDM Software Airwatch, SOTI

Regulatory Approvals

  • Regulatory Approvals GMS, CE, RED, FCC, BSMI, NCC, RoHS,

Accessories

  • Accessories ■ Glass Screen Protector (PN# 401536G)
    ■ Power Adapter (PN#1010-085001G)
    ■ Rotatable Hand-Strap (PN# AH3220UA)
    ■ Shoulder Strap Case (PN#TB85-HOLSTER)
    ■ X-Hand Strap (PN#5500-085001G)
    ■ 2D Engine Module (PN# 4080-085003G)
    ■ 8200mAH Battery Pack (PN# 5100-085001G)
    ■ Type C Cable (PN# 1550-085001G)
    ■ Ethernet Cradle (PN#5000-900051G)
    ■ Vehicle Cradle (PN#5000-085001G)
    ■ 2D Gun Grip (PN#5500-900084G)*by project based
    ■ 2 Bay Battery Charger with Power Cords (PN# 5100-900027G)
    ■ Stylus (PN#384896G)
    ■ RP902 Bluetooth UHF RFID Pocket Reader (PN#RP902-33E8S0G (EU), PN#RP902-43A8S0G (US), PN#RP902-43F8S0G (JP))

Accessories

Type-C Cable

TB85 Glass Screen Protector

Shoulder Strap Case

TB85 2D Engine Module

TB85 X Hand Strap

TB85 Ethernet Cradle

TB85 8200mAh Battery
