Powered by Android 10 OS with GMS & AER Certified, it is a 5.45” rugged PDA with barcode function.

Android 10
2D
5.45 inch screen
IP67
1.5M
MIMO
Retail
Hospitality
Logistics
Field Service
Healthcare
Government

The PA760 also comes with the Google GMS license, makes your toughest work days easier. It is ideal for inventory control in the warehouse, facilities inspection in field service, and shipment management in transportations.

Features

• 5.45 inch Android 10.0 rugged mobile computer with split screen design.
• Google Certification: Android Compatibility Test Suite (CTS ) / Google Mobile Service（GMS）/ Google Enterprise Device Certified
• Multi-Scan function: Available to read 10 barcodes at one time
• Superior barcode engine : 1D/2D/DPM(optional)/ DOT code / barcodes on screens
• 1.5M drop-resistant housing (1.8M with bumper)
• IP67 heavy-duty protection against water and dust
• Leading 4G dual SIM card enterprise handheld computer
• Support Bluetooth® 5

• Support WLAN: WIFI MIMO Dual Bands with fast roaming
& WWAN: 2G/3G/4G LTE with full bands

• Easy Hot-swap battery design without downtime
• Support MDM Software Solutions and utilities such as Airwatch, SOTI, and MoboLink.

Powered by Android 10 OS with AER Certified

• 5.45(18:9) inch Android 10 rugged mobile computer with Split Screen function
• Advanced 64-bit octa-core CPU (2.2GHz) with 4GB RAM and 64GB ROM
• Google Certification: Google Mobile Service（GMS）/ Android Enterprise Recommended (AER)

• Dual charging interfaces: Rugged pogo-pin design protects the handheld from the wear and tear of frequent charging and docking / USB Type C Connector for maximum flexibility
• Multi-Scan function: Available to read 10 barcodes at one time
• Convenience one piece battery cover that helps to change the battery more quickly

• Advanced barcode scanning performance for special materials barcodes
- Read 1D / 2D / DPM(optional)/ DOT code / Barcodes displayed on smartphone screens
• 5MP front camera and 16MP (PDAF) rear camera with LED flash and auto-focus function
• NFC & Finger Print (optional) for security checking or identity recognition

• 1.5M drop-resistant housing (1.8M drop-resistance with bumper)
• IP67 heavy-duty protection against water and dust
• Gorilla Glass 3 touchscreen with 7H hardness to keep it scratch-free
• Better sunlight viewability and operation with wet resistance and glove

Multiple Connectivity

• Leading 4G dual SIM card enterprise handheld computer
• Support Bluetooth® 5, WLAN: WIFI MIMO Dual Bands with fast roaming & WWAN: 2G/3G/4G LTE with full band

User-Friendly Functionality

• Easy Hot-swap battery design without downtime
• Ergonomic handle design for long time use with a durable trigger key
• Various Accessories for customer needs
• Support MDM Software Solutions and utilities such as Airwatch, SOTI, and MoboLink.

Operation System

OS Android 10
GMS certified GMS certified / EEA certified
CPU 2.2 GHz, Qualcomm Snapdragon™ 660 Octa Core Processor, 64bits
Memory 4 GB RAM / 64GB Flash
Languages support English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian,
Portuguese, Korean and multiple languages
Others Input Chinese/ English
Supports handwriting and soft keyboard

Display

Screen Size 5.45” Color LCD 1440x720 High Resolution Display
Touchpanel Gorilla Glass 3 with 5-point Capacitive Touch Panel,
High sunlight visibility- LCD backlight up to 500nits with optical direct bounding

Buttons / Keypad

Buttons / Keypad Programmable key, Volume up/down key, Left/right
scan key, Power key

Camera

Camera 5 MP Front camera
16 MP Rear with LED flash and auto-focus function

Indicator Type

Type LEDs, Vibrator

Symbologies

1D Barcodes 1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code
128, Code 32, Code 93, Codabar/NW7, Interleaved 2
of 5, Matrix 2 of 5, MSI, Trioptic,
2D Barcodes 2D : PDF417, MicroPDF417, GS1 Composite ,
Code11, Aztec Code, Data Matrix, QR Code, Micro
QR Code, MaxiCode, Han Xin Code, DOT Code

Postal : Intelligent Mail Barcode, Postal-4i, Australian
Post, Japanese Post, Netherlands (KIX) Post,
Postnet, Planet Code

OCR : OCR-A, OCR-B, E13B (MICR)

RFID

HF RFID Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard

Communication

Bluetooth® Bluetooth® 5
WLAN IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v, IPv4, IPv6
Security of WLAN : WEP, WPA/WPA2 PSK, 802.1x EAP,
OWE, SAE
Fast Roaming : PMKID caching, 802.11r, OKC
MIMO(2x2)
WWAN 4G LTE
FDD: Band 1(2100), Band 2(1900), Band 3(1800),
Band 4(1700), Band 5(850), Band 7(2600),
Band 8(900), Band 17(700bc), Band 20(800),
Band 28(700)
TDD: Band 38(2600), Band 39(1900), Band 41(2500)
*Support Dual Sim Dual 4G VoLTE (Nano SIM Slot*2)
GPS GPS/GLONASS/Gallileo/Beidou
Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor
Fingerprint Fingerprint (optional)

I/O Interfaces

USB USB Type-C
OTG Yes, over USB Type-C
POGO PIN POGO PIN connector for Cradle
SIM Slot Nano SIM Slot x 2
Expansion Slot Micro SD x 1, up to 256 GB
Audio 1 W output ,95 dB at 10cm, Dual-Microphone, support noise cancellation

Enclosure

Weight 163mm x 79.9mm x 17.4mm
Anti-microbial Housing 300g (with standard battery)

Durability

Drop Specification 1.5 meter without bumper
1.8 meter with bumper
Sealing IP67

Environmental

Operating temperature -4°F to 122°F (-20°C to 50°C)
Storage temperature -22°F to 140°F (-30°C to 60°C)
Relative Humidity 5% ~ 95% (Non-Condensing)

Power Source

Main battery Standard 4000mAh / battery with cover in one piece
Extended battery Extended 6000mAh / battery with cover in one piece
(optional)

Software

MDM Software SOTI, AirWatch, 42Gears, 12Manage, and MoboLink

Regulatory Approvals

Regulatory Approvals CE, FCC, NCC, BSMI, VCCI, CCC, RoHS, CEC, BQB, GMS, N-Mark

Accessories

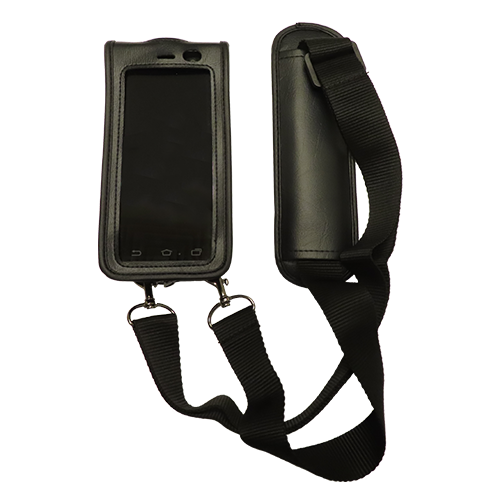

Accessories ■ Hand Strap
■ Adapter (with US, EU, UK plugs)
■ USB type C cable
■ Tray Ejector tool
■ Bumper (by model selection)
■ 9H glass screen protector
■ 1-Slot Terminal & Battery Charging cradle
■ 1-Slot Ethernet cradle with USB host

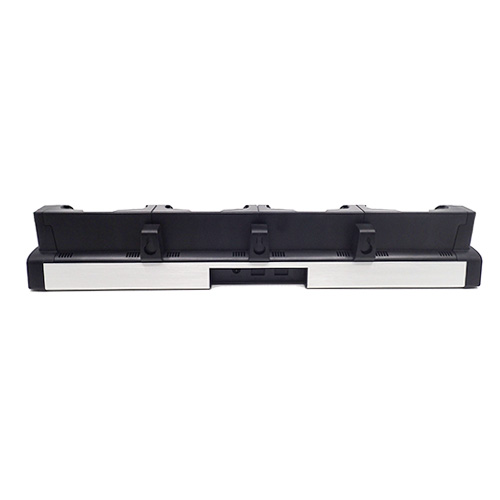

■ 4-Slot Terminal Charging cradle
■ 4-Slot Ethernet cradle
■ 4-Slot battery charger
■ Standard gun grip
■ 2D long-range gun grip
■ UHF gun grip
■ Stylus & Coiled strap
