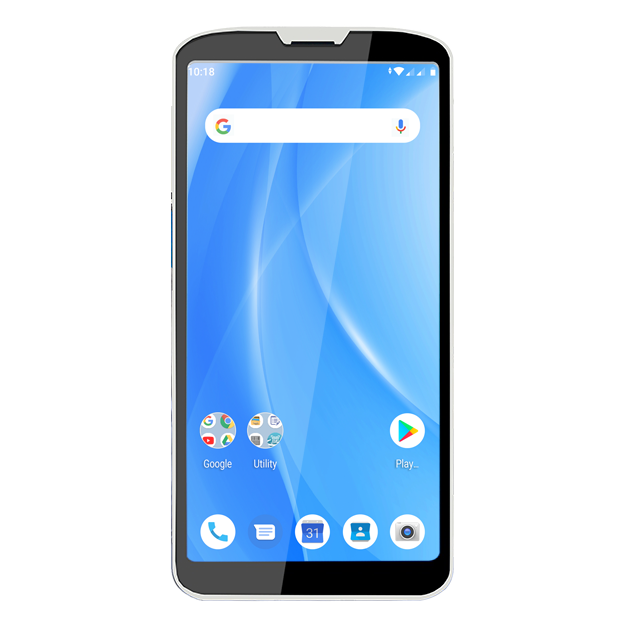

EA630HC
Healthcare Rugged Smartphone
Following the hygienic guidelines for data collection and cleanliness, the EA630HC has the ability to withstand repeated cleaning and disinfecting that can prevent the spread of germs and viruses. Running on Android 10 OS, the EA630HC is a GMS and AER certified device that ensures users experience the best reliability and performance.
-
Android 10
-
2D
-
6"
-
.svg)
NFC
-
.svg)
16MP
-
IP65
-
1.2 m
-
Bluetooth
-
GMS certified
-
AER certified
-
Retail
-
Hospitality
-
Field Service
-
Healthcare
Equipped stylish compact size, unitech EA630HC rugged smartphone is specially to be used friendly in healthcare environments following high hygienic regulations. The EA630HC is not only built with a high-performance 1D/2D barcode scanner, but possess durable functions and can operate with gloves and wet fingers that increases efficiency and patient safety for seamless Point of Care.
Features
• Following Ethanol safe standards to withstand repeated cleaning and disinfecting
• 6-inch rugged smartphone with a screen-to-body ratio of over 80%
• Android 10 OS with GMS & AER Certification
• All-In-One functionality: 2D Imager, HF/NFC, and 16MP camera
• Rugged: Corning® Gorilla® Glass 6 touch display, IP65 rated, and 1.2M drop (1.5M with boot case)
• Long-lasting removable 4000mAh battery (Up to 16 hours working time)
• Support Bluetooth® 5 / dual-band WLAN, fast roaming / 4G LTE
• Support MDM Software Solutions and utilities such as AirWatch, SOTI, and MoboLink.
Keep Staff and Patient Safety
EA630HC healthcare smartphone are employed with the best preventative features to keep staff and patient safety.
As we proceed amidst the COVID-19 pandemic, unitech ensure these products are built following the most stringent hygienic guidelines for data collection and cleanliness.
|
|
|
||||
Ethanol Safe Devices |
|||||
|
"Ethanol safe” allows a device or equipment to be cleaned by non-condensed alcohol (75% to 90%) to kill or remove the germs and viruses from surfaces.
|
|||||
Healthcare Rugged Smartphone
|
For the healthcare organizations, workers on the front lines need the safety tool to support them to deliver efficient service with best care. The EA630HC healthcare rugged smartphone enables nursing staff to move freely and easily to manage patient data and electronic medication records. Following the hygienic guidelines for data collection and cleanliness, the EA630HC has the ability to withstand repeated cleaning and disinfecting that can prevent the spread of germs and viruses. It delivers better protection for front line workers and streamlines the work process in patient identification, treatment verification, and asset tracking. |
|
|
|||
| Nursing Care Solutions |
Disinfectant-Ready Housing | Ethanol Safe Standards |
ISO11737-1
|
Powered by Android 10 OS with AER Certified
| • Advanced 64-bit Octa-core CPU (1.8 GHz) with 3 GB RAM / 32 GB Flash • Google Certification: Google Mobile Service（GMS）/ Android Enterprise Recommended (AER) |
|||
|
|
|||
| Android 10 Operation System |
GMS & AER Certification |
Octa-Core CPU |
3 GB RAM
|
Note: Learn more about Android Security bulletin information |
|||
|
|
 |
|||||
High Performance 2D Scanner |
||||||
|
|
||||||
|
The EA630HC is built-in a megapixel 2D scanning engine (Honeywell N3603) featuring a laser aimer that enables the reading of high-resolution codes (down to 3 mils on Code 39 1D barcode) and it is available to read EAN 100% at 541 mm distance (typical read range). Moreover, it enhances the visibility to capture most 1D / 2D barcodes even in low light or bright light environments. |
||||||
|
Megapixel |
Laser Aimer |
Low Light Visible |
||||
High Screen to Body Ratios
|
Featuring a 6-inch 18:9 display, Corning Gorilla Glass 6 as offering 80% screen to body ratio, the EA630HC is designed with durable protection for screen from damages and scratches along with the 450nits brightness for easy viewing in outdoor environment. |
|
|
||||
|
|
||||
| 6" Display |
18:9
Ratio |
80 %
Screen to body ratio |
450 nits
Brightness |
Gorilla® Glass 6Touch Display |
|
|
||||
|
|
  |
|||
Specially Designed for Portability |
||||
|
|
||||
|
The EA630HC is combined with a compact and durable design that makes it an ideal tool to increase higher efficiency for applications in the retail, hospitality, and light-duty field service. |
||||
|
13.9mm |
230g |
|||
|
|
|||||
Long-Lasting Battery Life |
|||||
|
The EA630HC's powerful 4000mAh* battery is designed to have up to 16 hours operating time, giving you the flexibility to work through the day. |
|||||
| Up to16 hours Operating Time |
4000 mAh Battery |
||||
Durable Design
|
The EA630HC rugged smartphone is durable enough to drop from 1.5 meters (with boot case) onto concrete and available to survive through harsh environments with its IP65 waterproof and dustproof rating. |
|
|
|||||
|
IP65 |
1.2 m
Drop Protection |
1.5 m
Drop Protection |
|||
|
|
|||||
|
|
|||||||||
All-In-One Functionality |
|||||||||
|
|
Running on Android 9 OS, the EA630HC is a GMS certified device that ensures users experience the best reliability and performance. With its advanced 2D barcode scanner, the EA630HC enhances the visibility to capture most 1D / 2D barcodes even in low light or bright light environments, as well as an integrated HF/NFC RFID reader/writer, GPS localization, and a high-resolution 16MP camera in a compact device. Featuring Bluetooth® 5, WiFi dual bands with fast roaming and 4G connectivity, the EA630HC is an excellent mobility device with seamless connections. | ||||||||
| 1D/2D Barcode Scanning |
16 MP
Rear Camera |
4G LTE | WLAN
Dual Bands |
Bluetooth® 5 | NFC RFID reader / Writer |
||||
.png)
|
|
  |
|||||
Ergonomic Gun Grip Design |
||||||
|
|
||||||
|
It allows users to add values to your device with the unique UHF RFID gun grip or 2D long-range gun grip (optional). Just simply attaches it and it delivers a convenient way to support standard barcode scanning, RFID scanning or 2D long-range scanning in inventory tracking and taking solutions. |
||||||
|
------- Unique Gun Grips for Optional Choice ------- |
||||||
| Standard Easy to hold |
2D LR
- 25 m distance |
RFID - 6 m distance - 750 tags / second |
||||
|
|
|
|||||
|
|
|||||
SmartPA: Better Audio Output |
|||||
|
|
|||||
|
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.
|
|||||
|
|
|||||
|
Power Amplifier Better Audio Output |
Built-in Algorithm Lessen Circuit / Temperature Damage |
||||
Improve Patient Safety with unitech UDI Solutions
Unitech offers the USS scan service application to decrease development time through easy configuration to identify UDI information. Integrated with unitech AIDC devices, users just do a simple scan that decodes UDI data to the right fields in your database. This USS application delivers an efficient way for developers to get ready for UDI solutions.
Following ethanol safe standards to withstand repeated cleaning and disinfecting, unitech EA630HC healthcare rugged smartphone allows medical users to easily capture UDI barcodes accurately with USS applications. The unitech UDI solutions help to showcase all levels of critical information for both the hospital and all suppliers. Besides, it improves the patient safety by helping identify counterfeit products or managing recalls.
✔ Decrease development time
✔ Accurate data collections
✔ Ensure full traceability and improve patient safety
What is Unique Device Identification (UDI) ?
The FDA established the unique device identification system to adequately identify medical devices sold in the United States. The system for Unique Device Identification (UDI) delivers a standardized identifier that shares critical information about medical devices and allows manufacturers, distributors and healthcare facilities to easily track and trace devices on the market.
Specification
Operation System
- OS Android 10
- GMS certified GMS Certified
- Android Enterprise AER Certified (Guaranteed security updates to June., 2024)
-
CPU
1.8GHz, Qualcomm® Snapdragon™ 636,
64bits Octa-core Processor - Memory 3 GB RAM / 32 GB Flash
-
Languages support
English, Simplified Chinese, Traditional Chinese, Japanese,
Spanish, German, French, Italian, Portuguese, Korean and
multiple languages
Display
- Screen Size 6”, 18:9 Full-HD ( 2160 x 1080 ) color screen (450nits)
- Touch Panel Gorilla® 6 Glass with 5-point Capacitive Touch Panel, compatible with gloves and supports wet resistance
Camera
- Camera 16 MP Rear and Flash Light
Indicator Type
- Type LED, Speaker, Vibrator
Symbologies
-
2D Barcodes
1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code
128, Code 32, Code 93, Codabar/NW7, Interleaved 2
of 5, Matrix 2 of 5, MSI, Trioptic,
2D : PDF417, MicroPDF417, GS1 Composite ,
Code11, Aztec Code, Data Matrix, QR Code, Micro
QR Code, MaxiCode, Han Xin Code, DOT Code
Postal : Intelligent Mail Barcode, Postal-4i, Australian
Post, Japanese Post, Netherlands (KIX) Post,
Postnet, Planet Code
OCR : OCR-A, OCR-B, E13B (MICR)
RFID
-
HF RFID
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard
Communication
- Bluetooth® Bluetooth® 5
-
WLAN
Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz
Support 802.11d/e/h/i/k/r/v, fast roaming
Compliant with WEP, WPA and IEEE 802.11i WPA2 -
WWAN
GSM: 850,900,1800,1900 MHz
WCDMA: Band 1, Band 2, Band 5, Band 8
LTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B
12/B17/B19/B20/B28)
TDD-LTE (B38/B39/B40/B41)
Dual nano SIM Slot - GPS AGPS, GPS, GLONASS, Beidou, Galileo, QZSS, SBAS
-
Sensors
Gyroscope, Light sensor, e-Compress, Proximity sensor,
Accelerometer sensor
I/O Interfaces
-
USB
USB 3.0 Type-C (support quick charge and display port alternate mode)
- POGO PIN Yes, over USB Type-C
- Expansion Slot MicroSD, up to 256 GB
-
Audio
One speaker with Smart PA (95±3dB @ 10cm), One receiver ,
Dual noise-cancelling microphones
Enclosure
- Housing Ethanol safe standards ISO 11737-1 / -2
- Dimensions ( W x H x D ) 157mm x 76.4mm x 13.9mm
- Weight 230g
Durability
- Drop Specification 1.2m, 1.5m with boot case
- Sealing IP65
- Tumble test MIL-STD 810G
Environmental
- Operating temperature -10°C to 50°C
- Storage temperature - 30°C to 70°C (without battery)
- Relative Humidity 10% ~ 90% (Non-Condensing)
Power Source
- Main battery 3.85V, 4000mAH Li-polymer battery
Software
- MDM Software SOTI, AirWatch and MoboLink
Regulatory Approvals
-
Regulatory Approvals
CE, FCC, NCC, BSMI, VCCI, CCC, RoHS, CEC, BQB, N-Mark
compliance.
Accessories
-
Accessories
■ USB 3.0 type-C cable(Support Quick Charge) (PN#1550-905896G)
■ Quick charge adaptor via USB type-C cable (PN#1010-900054G US plug/ #1010-900055G EU plug)
■ HC hand strap (PN#5400-900039G)
■ Boot case (PN# 3210-900023G)
■ 9H glass screen protector (PN#401546G)
■ Battery 3.85V 4000mAh (PN#1400-900057G)
■ Stylus (PN# 384896G)
■ Coiled strap (PN# 383642G)
■ Single Slot Charging Cradle(PN# 5000-900072G)
■ Single Slot USB Cradle(PN# 5000-900070G)
■ Single Slot Ethernet Cradle(PN# 5000-900071G)
■ Adaptor with plugs for 1-slot cradle (PN#1010-900057G)
■ 4-slot Terminal Charging Cradle(PN# 5000-900084G (with power supply)
■ 4-slot Terminal Charging Cradle(PN# 5000-900085G (with power supply &US power cord)
■ Power supply for 4-slot cradle (PN# 1010-900032G(US), PN#1010-900031G(EU)
■ Standard gun grip (PN# 5500-900075G)
■ Standard gun grip for terminal with boot case (PN#5500-900076G)
■ 2D long-range gun grip (PN# 5500-900077G)
■ 2D long-range gun grip for terminal with boot case (PN# 5500-900078G)
■ RG630 UHF gun grip (PN# 5500-900079G (US), PN# 5500-900080G (EU)
■ RG630 UHF gun grip for terminal with boot case (PN# 5500-900081G (US), PN# 5500-900082G (EU)
