MS852 Plus HC

Anti-microbial 2D barcode scanner

The MS852+ HC Series healthcare scanner delivers a simple way to Identify a patient with the barcoded wristband and prescription orders that reduce medical errors and enhance the efficiency of the hospital environment.

  • 2D

  • USB

  • IP42

  • 2.1 m

  • Healthcare



Featuring anti-microbial housing design, the unitech MS852+ HC 2D barcode scanner is especially to be used friendly in healthcare environments following high hygienic regulations. Delivering the high-performance barcode scanning engine, the device delivers a simple way to identify a patient with the barcoded wristband and prescription orders that reduce medical errors and enhance the efficiency of the hospital environment.



Features

•  Anti-microbial housing design

•  Medical Certifications: ISO 22196, ISO 11737-1, ISO 11737-2

•  Lightweight design: Only 155g without cable
•  Support most 1D / 2D barcode on mobile screens, even damaged or poorly printed barcodes
•  Long lifecycle trigger design: Up to 10,000,000 times.
•  Ultra-rugged design: IP42 and 2.1m drop spec


Keep Staff and Patient Safety


MS852 HC Series Scanners are employed with the best preventative features to keep staff and patient safety. As we proceed amidst the COVID-19 pandemic, unitech ensure these products are built following the most stringent hygienic guidelines for data collection and cleanliness.

  Ethanol Safe and Anti-Microbial Devices




   “Ethanol safe” allows a device or equipment to be cleaned by non-condensed alcohol (75% to 90%) to kill or remove the germs and viruses from surfaces. Despite disinfecting equipment regularly, anti-microbial housing provides extra protection in-between each disinfection cycle. Anti-microbial housing was often omitted, and
considered not critical, in the past because of the regular disinfection process that was required.

However, Covid-19 makes us understand that the virus can contaminate, stay on the surface, and be spread to the next person who will touch the device before disinfect cleaning. “Anti-microbial housing” is the answer and this material can minimize or prevent the germs and viruses from staying on the surface.

There are devices in the market, under a healthcare banner, that will offer either ethanol safe or anti-microbial housing; but not both. Unitech Healthcare devices use both housings at the same time.


Accurate Barcode Scanning for Healthcare Solutions



Featuring anti-microbial housing design, the MS852+HC is especially to be used friendly in healthcare environments following high hygienic regulations. Specially designed for nursing care in hospitals and healthcare institutes, the devices are medically certified by ISO 22196, ISO 11737-1, ISO 11737-2. Delivering the high-performance barcode scanning engine, the healthcare givers may use this device to check patient identification and prescription orders through bar codes that reduce medical errors and enhance the efficiency of the hospital environment.


Anti-Microbial
ISO 22196 standard

Ethanol Safe

ISO 11737-1, ISO 11737-2 standard


Superior Industrial Barcode Scanner



Specially built for challenging work environment, the MS852+HC is built-in megapixel barcode sensor that enhances the maximum compatibility to capture most 1D / 2D barcodes on mobile screens, even damaged or poorly printed barcodes. With excellent motion tolerance design, the MS852+HC increased scan speed and operational effectiveness even while moving.








Megapixel
Image Resolution

Up to 60 fps

Frame Rate

 600 cm/s
Maximum Motion Tolerance






Intuitive and User-Friendly


The MS852+HC is combined with an ergonomic design that allows users can easily to operate through the day.




Ergonomic
Design

155 g

Lightweight Design



Ultra-Durability



While sustaining a 2.1 meter drop to concrete, MS852+HC incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for the best reliability. This scanner can be used in the most practical way depending on the scanning task in various solutions in the hospital environment.




IP42
Certification		 2.1m
Drop Protection


Increase Productivity for Healthcare Environment



The MS852+HC handheld scanner is a highly reliable tool to increase productivity and efficiency in hospital point of care, specimen collection, pharmacy inventory control, and materials management.








TAA Compliant Barcode Scanners




TAA refers to the Trade Agreements Act, which is a law that was passed for the purpose of making international trade more open and fair. One of the main requirements of the TAA is products purchased by the United States government can only be made in the U.S. or by a designated country such as Taiwan.



Founded in 1979 in Taiwan, Unitech is a global provider of AIDC technologies with over 40 years of experience. Our factories were built in Taiwan, and all the SMT and assembly are done in Taiwan as well. We offer a series of quality barcode scanner products to comply with the Trade Agreements Act (TAA) for U.S. government GSA (General Services Administration) Schedule contracts



Learn more about Unitech TAA Compliant Product List :



Wired Barcode Scanners

- MS852

- MS852+

- MS851

- MS852 N
- MS852 LR


Wireless Barcode Scanners

- MS851B

- MS852B

- MS852B+

- MS852B LR


ESD Safe Barcode Scanners

- MS852+ ESD

- MS851 ESD

- MS851B ESD

- MS852B+ ESD


Anti-microbial 2D barcode scanner

- MS852B+ HC

- MS852+ HC



Specification

Optical & Performance

  • Sensor 1280 X 800 global shutter
  • Aiming Element Red laser
  • Illumination White LED (exempt risk group)
  • Ambient Light 100,000 Lux (Sunlight)
  • Skew Angle ±60°
  • Pitch Angle Sensor ±60°
  • Roll Angle 0 - 360°
  • Optical Resolution 2,5 mils C39 (1D), 5 mils Data
    Matrix, 5 mils QR (2D), 4 mils PDF417 (2D stacked)
  • Printing Contrast Scale 20% minimum print contrast ratio
  • Depth of Field SYMBOLOGY / X-DIM TYPICAL RANGE* Near Far
    13 mil UPC 1.5 in / 3.8 cm 15.9 in / 40.5 cm
    3 mil Code 39 2.6 in / 6.6 cm 7.2 in / 18.3 cm
    5 mil Code 39 2.1 in / 5.3 cm 10.4 in / 26.5 cm
    6.7 mil DM 2.84 in / 7.2 cm 7.1 in / 18.0 cm
    10 mil DM 2.3 in / 5.9 cm 9.8 in / 24.8 cm
    5 mil PDF417 2.9 in / 7.4 cm 7.3 in / 18.6 cm
    6,7 mil PDF417 2.3 in / 5.9 cm 9.4 in / 23.8 cm
    6.7 mil QR Code 2.8 in / 7.2 cm 6.4 in / 16.3 cm
    15 mil QR Code 1.1 in / 2.7 cm 12.1 in / 30.8 cm

Communication

  • Radio Corded
  • Host Interface supported USB

Mechanical

  • Dimension 87.8 L x 71.6 W x 177.7 H (mm)
  • Weight 155g without cable
  • Trigger Switch Life 10 million times

Functionality

  • Operation Mode Trigger Mode, Presentation Mode

Symbologies

  • 1D Barcodes Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar, TLC39
  • 2D Barcodes 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
    2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code
    Postal:Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
  • Special Barcodes Support OCR barcodes
  • Data Formatting Prefix, Suffix, Code ID, Reformatting Date

Electrical

  • Operation Voltage 4 VDC to 5.5 VDC
  • Current Consumption Operating: 252mA
    Standby: 77mA
  • Indicator Buzzer, LED

Environmental

  • ESD Protection Functional after 8K Contact and 15K Air
  • Mechanical Shock 2.1M onto concrete (scanner only)
  • Operating Temperature -10°C to 50°C (14°F to 122°F)
  • Storage Temperature -40°C to +70°C (-40°F to +158°F)
  • Relative Humidity 95% non-condensing
  • IP Rating IP42

Accessories

  • Items ■ Standard Hands Free Stand (Optional) )(PN#5200-900009G)
    ■ USB Cable (PN#1550-905903G)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI, ISO22196, ISO11737-1/-2, TAA Compliant

What comes in the box

  • The standard package contents ■ MS852+HC Scanner
    ■ Interface cable

Accessories

Hand Free Stand

PN#5200-900009G

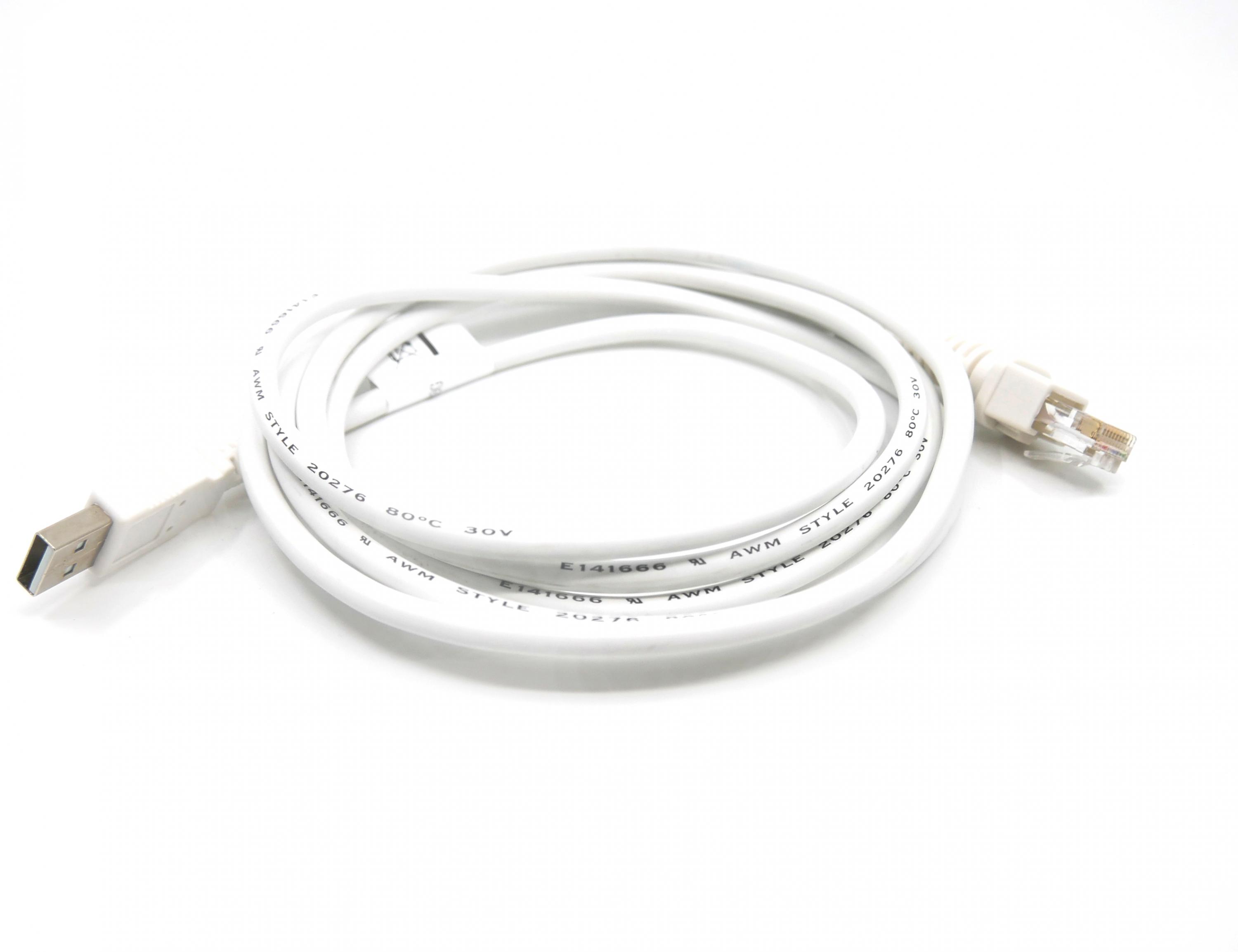

USB Cable

PN#1550-905903G
