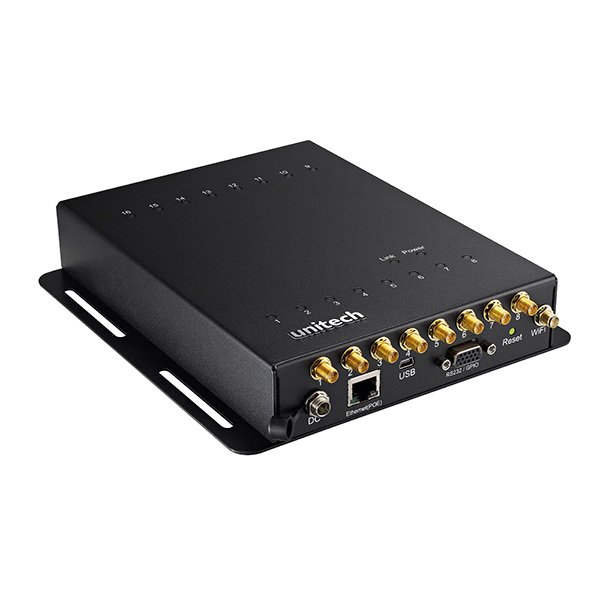

unitech RS816 is the enterprise grade UHF RFID Fixed Reader which supports 16 reading antenna ports for mass data collection that enhances working efficiency for various RFID applications. Featuring a high-speed antenna switch and multiple isolation ports design, users can separately controlled and adjusted from a place which makes it suitable for high density multiport operations such as multi-lanes reading or smart-shelf applications.
The RS816 Power over Ethernet (PoE) and offers flexible installations by bypassing the usual need for AC power, allowing user to easily deploy RFID system quickly. Supporting a global frequency range of 860MHz - 960MHz, this device is capable of reading and writing all tags that conform to EPC global Class1 Gen2, ISO/IEC 18000-63:2013 standards. Besides, housed in a black metal chassis, this RFID reader is rugged enough to meet various environments with its IP52 water resistance for industrial and dustproof rating. The RS816 is highly reliability to meet the needs in a wide range of RFID applications.
Integrated RFID Middleware with remote control capability, the RS816 supports communications protocol and useful software tool including LLRP and software development kit (SDK) from different platforms. The RS816 also comes with an open Application Programming Interface (API) that can be used by the users to integrate RS816 to do accurate data transmission from client to host in a total RFID solution. In addition, it supports multiple interface including Ethernet, USB and RS232.
Built in 16 ports antenna connectors, the RS816 UHF RFID readers deliver the performance, cost effective and quality for enterprise environments to create compact RFID application system easily with affordable deployment cost.
‧ 16 antenna ports configurations to enhance working efficiency and RF coverage
‧ Support UHF tags read/write functions
‧ Multiple interface for transmitting data with Ethernet, USB and RS232
‧ Rugged and compact design by IP52 and could be easily installed everywhere
‧ Complaint with EPC C1 Gen2 / ISO 18000-63:2013
‧ Real time and easy way of configuration with SDK
‧ Built-in LLRP standard middleware
‧ Transmit level control from 10dBm to 30dBm in 0.1dB step
‧ Great sensitivity to report weaker tag signals
