EA510HC
High performance Anti-Microbial Device
Healthcare workers on the front lines deserve the best tools to deliver the best care. With an Android 9 OS + GMS and impressive large 5.7” screen, the EA510HC delivers more efficiency in one smart Anti-Microbial device. It is even a safe device for retail or logistics usage!
-
Android 9
-
1D
-
2D
-
.svg)
UHF RFID
-
HF/NFC
-
5.7"
-
Pogo pins
-
Type-C
-
IP67
-
1.5M
-
4G LTE
-
Wireless
-
MIMO
-
Bluetooth
-
GMS certified
-
Healthcare
The EA510HC is an excellent tool, it increases mobility and improves efficiency in Point of Care. It is even a safe device for retail or logistics usage. Armed with a snappy Qualcomm 660 Octa-core 64bits 2.2 GHz processor you will be able to upgrade the Android OS through to R.
Stylish and intuitive along with an integrated high-performance 1D/2D barcode scanner, healthcare workers may use this device to check patient identification and prescription orders through barcode and RFID tag technology to ensure correct medication, dosage, and patient identification before medicines are administrated to patients.
Features
• All-in-one function: 2D Imager, HF/NFC and 16MP camera
• Android 9 OS with GMS, Compatible through R
• Optional Ethanol and anti-microbial safe housing charging cradles
• Supports: Multi-reading, Picklist reading, Center decode, OCR function, DOT code.
• Support Bluetooth® 5.0
• Support WLAN: WIFI MIMO Dual Bands with fast roaming & 4G LTE
• Support Vo-LTE HD video voice call
• Dual Scanning Buttons (left and right side) and programmable key
• Anti-Microbial and Ethanol safe standards ISO11737-1/-2 and ISO 22196

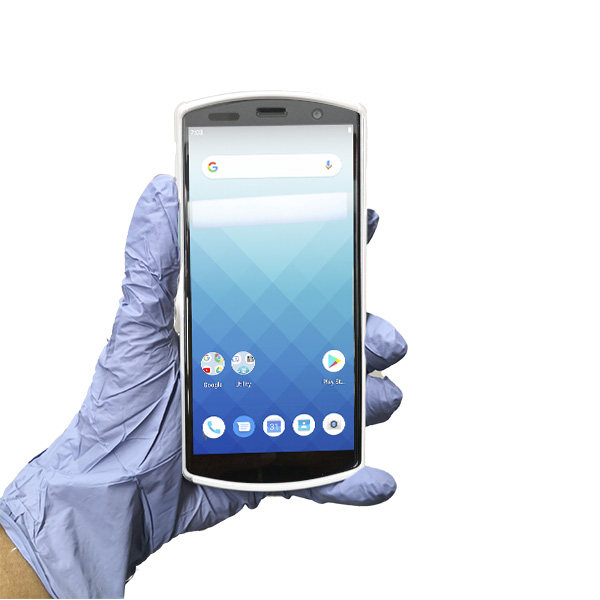

5.7” screen & compact body
Medical personnel can grab all information in a glance by its large and vivid HD display. The Ultra-high brightness touch screen delivers clear vision even under sunlight. The 5.7” sized screen combined with a small body size
will give an excellent ergonomic feeling.
Fingerprint reader
After safe cleaning the EA510HC you can instantly unlock the device with a slightest touch. The fingerprint reader is located on the
back for easy access.
Quick charge
Thanks to the Quick Charge 4.0 technology, you will spend less time charging - fully charged within 3 hours.
Anti-Microbial and Disinfectant-Ready
The EA510HC housing material meets the Anti-Microbial ISO 22196 and Ethanol safe material ISO11737-1/-2 standard. The housing can be cleaned with alcohol (ethanol safe) and sterilized water by wiping the surfaces of the device.
Removable battery & advanced charging
For the Healthcare smartphone, long battery life is essential. The EA510HC comes with a swappable 4300mAh battery - long-time usage without any concerns. Thanks to the Quick Charge 4.0 technology, you will spend less time charging - fully charged within 3 hours.

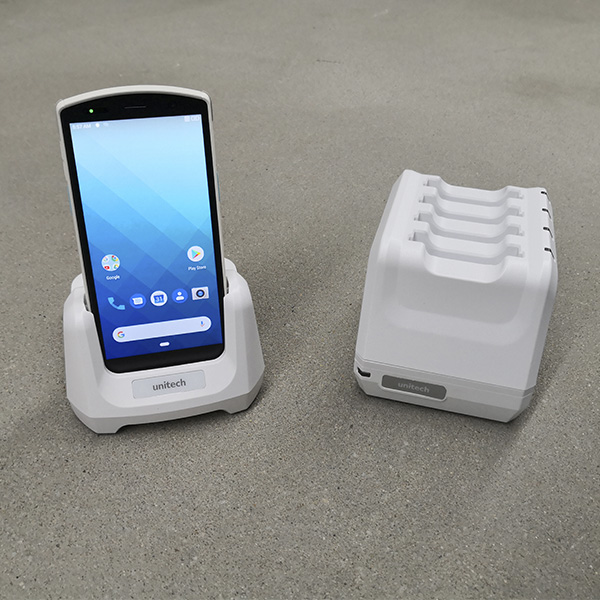

In addition the EA510HC offers a diverse range of charging cradles that also have ethanol and anti-microbial safe housing.
Removable battery
For the enterprise smartphone, long battery life is essential. The EA510 comes with a swappable 42000mAh battery - long time usage without any concerns.
Data collection and Full communication
The EA510HC integrates a 2D imager, HF/NFC reader and support Dual band fast roaming WiFi (MIMO antenna design) and 4G dual nano-sim. In addition the EA510HC offers a pre-installed network-based voice intercom
system. Teamwork is accessible by anyone,anywhere at any time by voice command and TTS (text-to-speech).
Specification
Operation System
- OS Android 9
- GMS certified GMS Compatible through R
- CPU Qualcomm 660 Octa-core 64bits 2.2 GHz
- Memory 4GB DDR4, ROM: 64GB
- Languages support Multiple languages supported
Display
- Screen Size 5.7” (18:9) TFT-LCD HD colour (720 x 1440 pixels) display
-
Touchpanel
1.1mm thick Corning Gorilla Glass III.
Multi-touch and ultra sensitive capacitive touch screen, compatible with gloves and supports wet resistance.
Buttons / Keypad
-
Buttons / Keypad
Side SCAN button x 2 (Left / Right), Power button, User-defined function button (programmable key),
Volume switch button (+ / -), ON / OFF button, Touch keys x 3 (Home / Back / Recent)
Camera
-
Camera
Front: 5MP camera
Rear: 16MP camera, Auto Focus, LED flash light
Indicator Type
- Type LED, speaker and vibration
Symbologies
- 1D Barcodes Support all major 1D barcodes
-
2D Barcodes
Scanner (Engine: N6603)
Reads all major 1D and 2D codes
Supports; multi-reading, Picklist reading, Center decode, OCR function, DOT code.
RFID
- HF RFID RFID/NFC/Mifare: IFrequency 13.56Mhz (NXP NQ553) ISO 14443 Type A&B; FeliCa/Mifare and ISO 15693; Reader mode P2P mode, Card Emulation mode
Communication
- Bluetooth® Bluetooth: Bluetooth 5.0 + BR/EDR + BLE with up to 240* meters distance (*Depends on environment and application). Increased range and bandwidth Multiple devices connection supported
-
WLAN
2.4G/5G Dual frequency WIFI IEEE 802.11a/b/g/n/ac/d/e/f/h/o/k/r/v/w IPV4, IPV6,
Data rates 5Ghz: 802.11a/n/ac > up to 866.7Mbps 2.4Ghz: 802.11b/g/n/ > up to 300Mbps
Operation channels 2.4Gh: 1-13 (depends on regulatory rules & certification agency 5Ghrz: 36,38,40,42,44,46,48,52,56,60,64,100, 104,108,112,116,120,124,128,132,136,140,149, 153,157,161,165.
Security and encryption 802.1x(EAP): EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, PEAP-TLS, PEAP-GTC, PWD, SIM, AKA Encryption: WEP, WPA / WPA2-PSK
MIMO: 2x2 MU-MIMO for faster uploading and downloading speeds
Fast roaming: PMKID caching, 802.11r, OKC -
WWAN
WWAN 4G LTE: TD-LTE (B34/B38/B39/B40) FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B12/B19/B220/ B28A/B28B) WCDMA (B1/B2/B4/B5/B8), TD-SCDMA (B34/B39), CDMA2000 1xEV-DO Rev.A BC0 (800MHz), CDMA 1x GSM/EDGE/GPRS (850/900/1800/1900MHz)
Optional model: 4G data communication only version is also available (no voice feature).
- GPS GPS; GLONASS; Gallileo; and BeiDou and A-GPS
- Sensors Acceleration sensor, Motion sensor, light sensor, Proximity sensor & Gyroscope.
-
Fingerprint
Chip-based sensor
112x88 sensing array
Support finger wake-up function
One user enrollment per device
I/O Interfaces
- USB USB Type-C
- OTG Yes, over USB Type-C
- POGO PIN USB Type C (Host/Client) Expansion I/O Pogo Pin
- SIM Slot Dual Nano-SIM
- Expansion Slot Micro SD/TF (max. 128GB)
- Audio Dual-microphone supports with noice cancellation, hight quality speaker, PTT headset support, cellular circuit switch voice, earphone jack.
Enclosure
-
Anti-microbial Housing
Anti-Microbial and Ethanol safe standards:
■ ISO11737-1/-2
■ ISO 22196
- Dimensions ( H x W x D ) 162.6 mm x 76 mm x 13.6 mm
- Weight 250g (with battery)
Durability
- Drop Specification 1.5m drop to concrete at room temperature per MIL-STD810G
- Sealing IP67
Environmental
- Operating temperature -20˚C to 60˚C
- Storage temperature -40˚C to 70˚C
- Charging temperature 0˚C to 45˚C
- Relative Humidity 5% ~ 95% (non-condensing)
Power Source
-
Main battery
Main battery: Swappable and rechargeable 3.8V 4300mAh Li-polymer battery pack.
Operation: Typical operation Time 10 hours (depending on the specific environment)
Quick charging: Support QC4.0 with separate power adapter over USB type-C port only
Charging time: <3 hours (supports QC4.0 quick charge)
Software
- MDM Software SOTI, AirWatch, Teamviewer, MoboLink, StageGo
Regulatory Approvals
- Regulatory Approvals CE, RED, RoHS, BQB
What comes in the box
-
The standard package contents
■ EA510HC Terminal (White)
White: Ethanol and anti-microbial safe housing.
■ USB Cable (Type C)
■ Hand strap
**Not included but optional accessory: Quick charge PSU (USB)**
Accessories
-
Accessories
■ Quick charge PSU EU (USB)
■ Quick charge PSU UK (USB)
■ USB Cable (Type C)
■ 3.85V, 4300mAH battery pack
■ 1-slot desktop terminal charger with battery charging slot*
(*White: Ethanol and anti-microbial safe housing.)
■ PSU EU for 1-slot charging cradle
■ PSU UK for 1-slot charging cradle
■ 4-slot battery charging cradle*
(*White: Ethanol and anti-microbial safe housing.)
■ 5-slot terminal charging cradle*
(*White: Ethanol and anti-microbial safe housing.)
■ Power adapter for multi-slot charging cradle
■ 3-pins power cord UK
■ 3-pins power cord EU
