MS622

Wired 2D Ring Scanner

Single finger wearable design | Hight scan rate 2D scanner: 60FPS | Lightweight 14g

  • 2D

  • Wearable

  • USB

  • IP42

  • 1.5 m

  • Retail

  • Hospitality

  • Warehousing

  • Field Service

The MS622 is a single finger wearable scanner, combining lightweight design with superior 2D scanning performance that transforms the way you work and empowers you to verify tasks accuracy with hands-free scanning. It streamlines the workflow for a wide range of applications such as retail, pharmacy, transportation and warehouse.



Features

 • Flexibility hands-free scanning experience: single finger wearable design

 • Compact and lightweight: weighs 14 g

 • Allows right and left hand operation

 • Rugged and durable design with IP42 and 1.5m drops

 • Plug and play, convenient to use

 • Instant decoding feedback: LED, Buzzer indicators.

Single Finger Wearable design



Featuring flexible and lightweight wearable design, the MS622 ring scanner gives users freedom of movement to perform barcode scanning tasks comfortably while keeping both hands free. It’s suitable for left and right hands, which is not only suitable for the operation of right hands, but also meets the handedness requirement on left-handers and fully embodies people orientation.








Single Finger
2D Ring Scanner

Wearable
Design

Both Hands
Operation













Superior 2D Scanning Performance


Built in the high-speed decoder paired with an aggressive scanning engine, the MS622 ring scanner delivers great performance up to 60 fps per second as well as capturing high density with a 5 mil resolution and a scanning width up to 146mm. The MS622 increased scan speed and operational effectiveness even while moving and also supports most 1D / 2D barcodes on mobile screens.


1D / 2D
Support

Up to 60 fps

Frame Rate

Lightweight, Convenient to Use



It is ergonomic and lightweight design, only about 14g that provides users with all-day superior comfort. By wearing the MS622 ring scanner on fingers and combining it with a WD200 wearable mobile computer, warehouse and retail workers are available to keep their hands on the items they are moving, increasing their productivity.







Ergonomic
Design

14 g
Lightweight Design











Compatible with Gloves

Featuring sensitive touch-activated trigger Key, the MS622 is compatible with gloves that allows users to wear glove to operate it.


Durable



Furthermore, it has an IP42 rating for dust and water resistance as well as a 1.5 meter drop spec that provides superior durability and reliability. Combining high performance and compact design, MS622 gives mobile worker conveniently and safely while on the go.


1.5 m
Drop Spec

IP42

Rating



TAA Compliant Barcode Scanners



Learn more about Unitech TAA Compliant Product List :


Wired Barcode Scanners

- MS852

- MS852+

- MS851

- MS852 N
- MS852 LR

- MS282e

- MS340

- MS250


Wireless Barcode Scanners

- MS851B

- MS852B

- MS852B+

- MS852B LR

- MS842P DPM

- MS842P

- MS840P



Wearable Scanners

- MS622

- MS652+
- MS650



Pocket Scanners

- MS925HC

- MS926
- MS916

- MS912+

- MS910+



ESD Safe Barcode Scanners

- MS852+ ESD

- MS851 ESD

- MS851B ESD

- MS852B+ ESD

- MS842P ESD

- MS840P ESD


Anti-microbial 2D barcode scanner

- MS852B+ HC

- MS852+ HC

- MS925 HC

Specification

Optical & Performance

  • Sensor CMOS Sensor (640 x 480 pixels)
  • Aiming Element White LED Red LED (625nm )
  • Ambient Light 100,000 Lux (Sunlight)
  • Scan Rate 60 Frames/Sec
  • Skew Angle ± 60°
  • Pitch Angle Sensor ± 60°
  • Roll Angle 360°
  • Optical Resolution ≥ 5mil
  • Printing Contrast Scale 40%
  • Depth of Field (Environment : 800 lux)
    5 Mil Code 39 : 45 ~ 145 mm
    13 Mil UPC/EAN: 65 ~ 345 mm
    6.67 Mil PDF417 : 55 ~ 120 mm
    15 Mil QR Code : 35 ~ 165 mm
    10 Mil Data Matrix : 50 ~ 115 mm

Communication

  • Host Interface supported USB VCP
    USB HID

Mechanical

  • Dimension 27.6 x 46.2 x 26.8 mm
  • Weight 14g (w/o cable)
  • Trigger Switch Life 100000

Symbologies

  • 1D Barcodes UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessey Code, UK Plessey Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar
  • 2D Barcodes QR Code, Micro QR Code, PDF417, Data Matrix, Aztec

Electrical

  • Operation Voltage DC 5 V± 5%
  • Current Consumption working current: < 135mA ; standby current: < 15mA
  • Indicator LED, Buzzer

Environmental

  • ESD Protection Functional after 4KV contact, 8KV Air discharge
  • Mechanical Shock 1.5M onto concrete (scanner only)
  • Operating Temperature -20 ~ 55˚C
  • Storage Temperature -40 ~ 70˚C
  • Relative Humidity 0% ~ 95%RH (Non-condensing)
  • IP Rating IP42

Accessories

  • Items ■ USB Micro to USB Type C Cable (PN#1550-905916G)

Regulatory Approvals

  • Regulatory Approvals FCC, CE, TAA Compliant

What comes in the box

  • The standard package contents ■ MS622 Scanner with Velcro Strap
    ■ Micro USB to USB Type C Cable (90nm)
    ■ Spare Velcro Strap
    ■ Quick Guide

Warranty

  • Hardware Up to 1 year
  • Statement The warranty covers natural failures due to regular usage. Damages caused by drops or other incidents are not covered. And different regions may have varying warranty terms. Please contact your local representative for further extended information.

Accessories

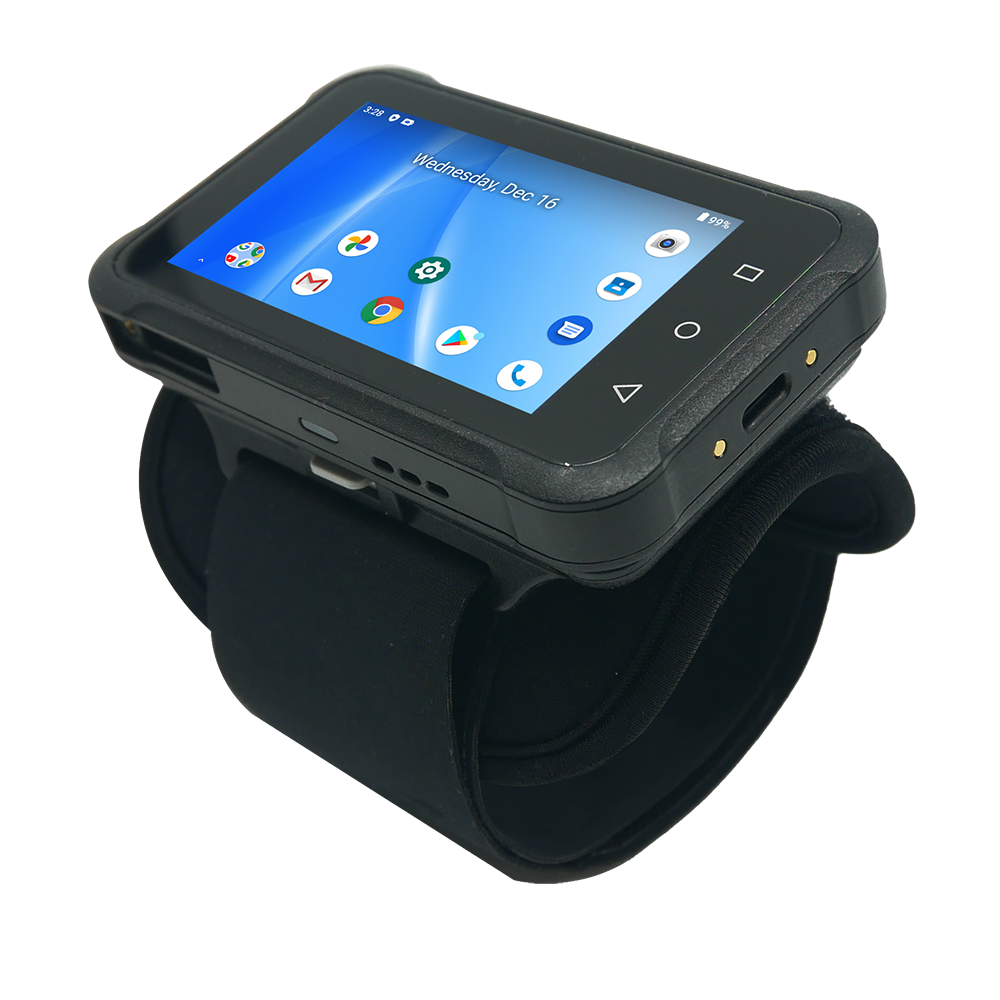

WD200 3.1 inch Wearable Computer

PN#WD200-0A6FUM3G

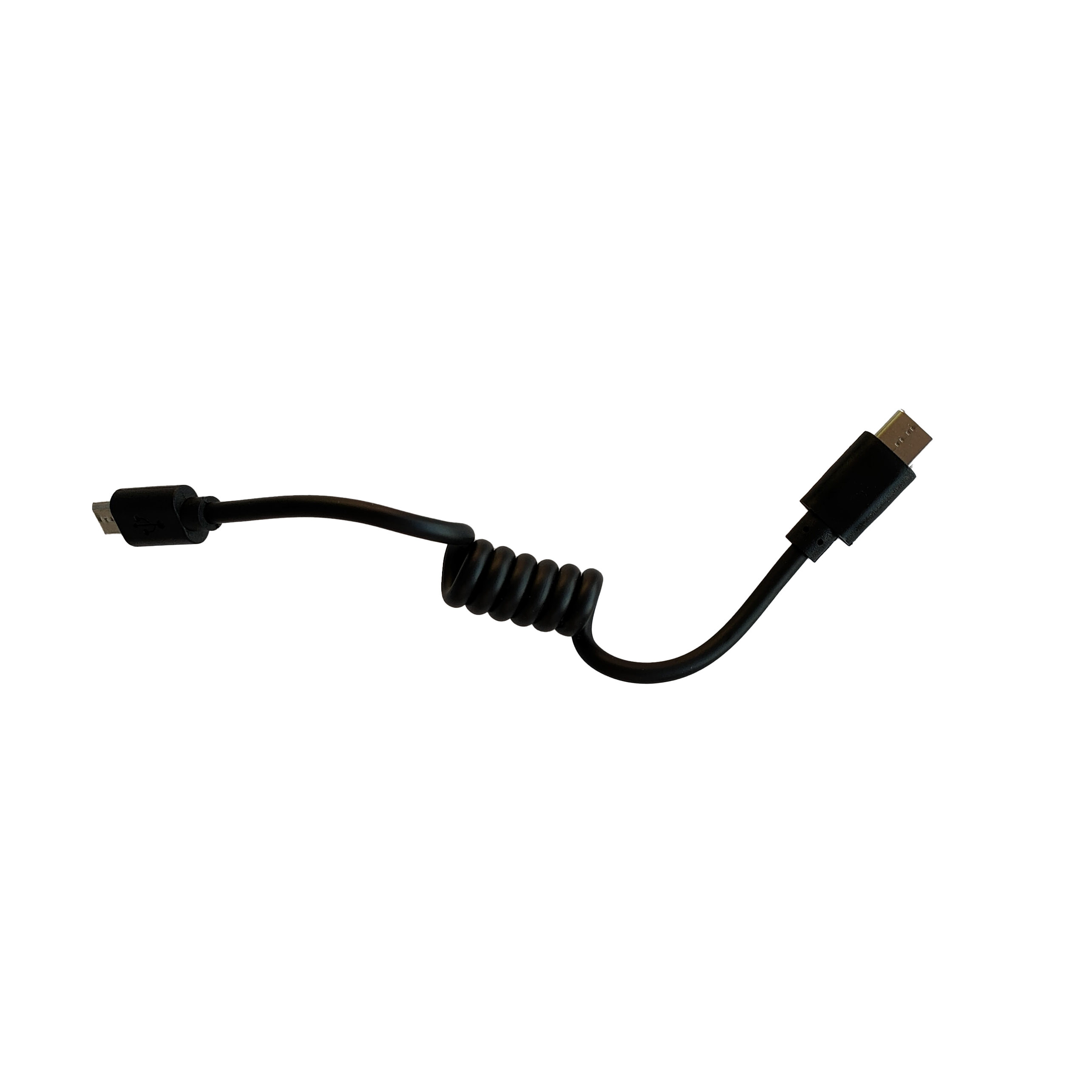

USB Micro to USB Type C CABLE (90mm)

PN#1550-905916G

Velcro Strap

PN#385122G
