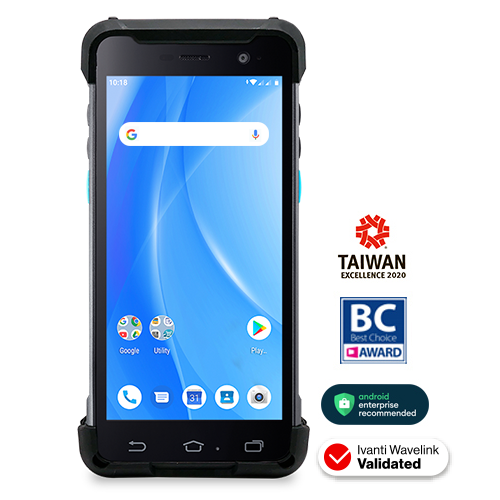

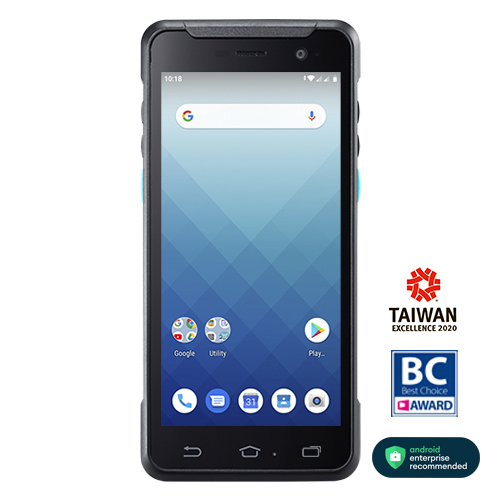

PA760

Rugged Handheld Computer

Powered by Android 9 (upgradable) or Android 10 - with GMS Certified, it is a 5.45” rugged PDA with barcode function.

  • Android 10

  • Android 9

  • 1D

  • 2D

  • Long range reading

  • UHF RFID

  • HF/NFC

  • DPM Code

  • 5.45"

  • Pogo pins

  • Type-C

  • IP67

  • IP65

  • 1.8M

  • 1.5M

  • 4G LTE

  • Wireless

  • MIMO

  • GMS certified

  • AER certified

Offering the latest OS of Android 9 (upgradable to 10 ) or Android 10, a robust processor, and a rugged scanner, the PA760 also comes with the Google GMS license, makes your toughest work days easier. It is ideal for a variety of applications including inventory control in warehouse, inbound and outbound management in the retail industry, parking management and facilities inspection in field service, and flight ticket checking and mobile POS system in transportations.



Features


• 5.45 inch mobile computer with split screen design.

• Android 9 (upgradable) or Android 10 rugged.
• Google Certification: Android Compatibility Test Suite (CTS )

• Google Certification: Google Mobile Service (GMS）

• Google Certification: Google Enterprise Device Certified

• Google Certification: AER Android Enterprise Recommended Certified
• Multi-Scan function: Available to read 10 barcodes at one time
• Superior barcode engine : 1D/2D/DPM*/ DOT code / barcodes on screens
• 1.5M drop-resistant housing (1.8M with bumper)
• IP67 & IP65 heavy-duty protection against water and dust
• Leading 4G dual SIM card enterprise handheld computer
• Support Bluetooth® 5

• Support WLAN: WIFI MIMO Dual Bands with fast roaming & WWAN: 2G/3G/4G LTE with full bands

• Easy Hot-swap battery design without downtime

• Optional standard trigger mode, 2D Long Range or UHF RFID  Gun grip accessory

• Support MDM Software Solutions and utilities such as Airwatch, SOTI, Ivanti Wavelink, MoboLink and Clyd.
(*Supports DPM reading - High resolution DPM not supported).

Wide-angle and high bright LCD


The 5.5” high brightness sunlight readable LCD display (18:9) with High Resolution makes the PA760 extremely well readable in any environment - 500 nits display with direct bonding.

Extreme durability


Easy hot-swap battery design without downtime. The 4000mAh or 6000mAh capacity mono battery (cover and battery as one) for quick swap to keep stay as efficient as possible. Lose little time charging because the PA760 is fully charged within 3 hours thanks to QC3.0.

All-in-one function

• Advanced barcode scanning performance for special materials barcodes
• Read 1D / 2D / DPM*/ DOT code / Barcodes displayed on smartphone screens
• 5MP front camera and 16MP (PDAF) rear camera with LED flash and auto-focus function
• NFC & Finger Print (optional)  for security checking or identity recognition
• Optional standard trigger mode, 2D Long Range or UHF RFID Gun grip accessory

(*Supports DPM reading - High resolution DPM not supported).

Industrial strength exterior


The Unitech PA760 is fitted with a drop resistant (1.5m) and dual IP67 + IP65 rated body to withstand the most rugged environments out there.

Scalability and Extensibility


Thanks to POGO pins on rear- and bottom side,the PA760 has limitless salability options for future accessories such as gun grips and docking stations.

Unitech Shield delivers value-added service for up-to-date support





PA760 Unitech Premier Products

✓ Free OS upgrade

  • ✓ 5 years of Google security patch support
        with frequency : Quarterly or half-yearly
  • ✓ Extend 3 years of patch updates


Click here for more information about Unitech Shield.





Specification

Operation System

  • OS Android 9 (upgradable) or Android 10 version
    zero-touch support
  • GMS certified GMS certified / EEA certified
  • AER Certified Android Enterprise Recommended (AER)
  • CPU 2.2 GHz, Qualcomm Snapdragon™ 660 Octa Core Processor, 64bits
  • Memory 4 GB RAM / 64GB Flash
  • Languages support English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian,
    Portuguese, Korean and multiple languages
  • Others Supports handwriting and soft keyboard

Display

  • Screen Size 5.45” Color LCD 1440x720 High Resolution Display
  • Touchpanel Gorilla Glass 3 with 5-point Capacitive Touch Panel,
    High sunlight visibility- LCD backlight up to 500nits with optical direct bounding

Buttons / Keypad

  • Buttons / Keypad Programmable key, Volume up/down key, Left/right
    scan key, Power key

Camera

  • Camera 5 MP Front camera
    16 MP Rear with LED flash and auto-focus function

Indicator Type

  • Type LEDs, Vibrator

Symbologies

  • 1D Barcodes 1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code
    128, Code 32, Code 93, Codabar/NW7, Interleaved 2
    of 5, Matrix 2 of 5, MSI, Trioptic,
  • 2D Barcodes 2D : PDF417, MicroPDF417, GS1 Composite ,
    Code11, Aztec Code, Data Matrix, QR Code,
    Micro QR Code, MaxiCode, Han Xin Code,
    DOT Code, Digimarc, DPM*
    (*Supports DPM reading - High resolution DPM not supported).

    Postal : Intelligent Mail Barcode, Postal-4i, Australian
    Post, Japanese Post, Netherlands (KIX) Post,
    Postnet, Planet Code

    OCR : OCR-A, OCR-B, E13B (MICR)
  • 2D Long Range 2D Long range Gun Grip (Accessory)

    Scan Angle: 14° (Horizontal), 8.7° (Vertical)
    Resolution: 1280 (H) x 800 (V) pixels / 1D codes 0.075 mm (3 mils) / 2D codes 0.167mm (6.6 mils)
    Maximum Reading Distance: At least 10m depends on symbology length and angle:
    Code 39 (100mils) - 12m
    Code 128 (100mils) - 13m
    DataMatrix (300mils) - 15m

RFID

  • UHF RFID The RG760 - UHF Gun Grip (Accessory)

    Standards Supported: EPC Class1 Gen2 V2
    RFID Engine: M6e-Micro (RAIN RFID supported)
    RFID Chip: Impinj R2000
    Read Rate: 750 tags/sec
    Read Distance: 6m (Circular antenna) or 8m Circular antenna) depending on SKU version
    Frequency Range: TW: 922-928 MHz / US: 902-928 MHz / EU: 865-868 MHz / Japan: 916-921 MHz
  • HF RFID Support HF/NFC
    Frequency 13.56Mhz
    Support: ISO14443A/B, ISO15693 standard

Communication

  • Bluetooth® Bluetooth® 5
  • WLAN IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v, IPv4, IPv6
    Security of WLAN : WEP, WPA/WPA2 PSK, 802.1x EAP,
    OWE, SAE
    Fast Roaming : PMKID caching, 802.11r, OKC
    MIMO(2x2)
  • WWAN 4G LTE
    FDD: Band 1(2100), Band 2(1900), Band 3(1800),
    Band 4(1700), Band 5(850), Band 7(2600),
    Band 8(900), Band 17(700bc), Band 20(800),
    Band 28(700)
    TDD: Band 38(2600), Band 39(1900), Band 41(2500)
    *Support Dual Sim Dual 4G VoLTE (Nano SIM Slot*2)
  • GPS GPS/GLONASS/Gallileo/Beidou
  • Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor

I/O Interfaces

  • USB USB Type-C
  • OTG Yes, over USB Type-C
  • POGO PIN POGO PIN connector for Cradle
  • SIM Slot Nano SIM Slot x 2
  • Expansion Slot Micro SD x 1, up to 256 GB
  • Audio 1 W output ,95 dB at 10cm, Dual-Microphone, support noise cancellation

Enclosure

  • Dimensions ( H x W x D ) 163mm x 75mm x 17.4mm
  • Weight 300g (with standard battery)

Durability

  • Drop Specification 1.5 meter without bumper
    1.8 meter with bumper
  • Sealing Double certificated: IP67 & IP65

Environmental

  • Operating temperature -4°F to 122°F (-20°C to 50°C)
  • Storage temperature -22°F to 140°F (-30°C to 60°C)
  • Relative Humidity 5% ~ 95% (Non-Condensing)

Power Source

  • Main battery Standard 4000mAh / battery with cover in one piece
  • Extended battery Extended 6000mAh / battery with cover in one piece (optional)
  • Hot Swap Hot-swap battery

Software

  • MDM Software SOTI, AirWatch, 42Gears, 12Manage and MoboLink

Regulatory Approvals

  • Regulatory Approvals CE, FCC, NCC, IC, VCCI, TELEC, CCC, SRRC, RoHS, CEC, BQB, GMS, N-Mark

What comes in the box

  • The standard package contents ■ PA760 Terminal
    ■ Battery
    ■ Hand Strap
    ■ SIM Tray ejector tool

    Not included but optional accessory:
    ■ USB type C cable
    ■ Adaptor with plugs

Accessories

  • Accessories ■ USB Power adapter for PA760 (with US, EU, UK, AU plugs)
    ■ USB type C cable
    ■ 1-Slot Terminal & Battery Charging cradle
    ■ 1-Slot Ethernet cradle with USB host
    ■ Adapter for 1-slot cradle (with US, EU, UK plugs)
    ■ 12-Slot Terminal Charging cradle
    ■ 4-Slot Terminal Charging cradle
    ■ 4-Slot Ethernet cradle
    ■ 3-pins power cord UK
    ■ 3-pins power cord EU
    ■ Power adapter for 4-slot cradle
    ■ 9H glass screen protector
    ■ Hand-strap
    ■ Stylus
    ■ Coiled strap for stylus
    ■ 4000mAh battery
    ■ 6000mAh battery
    ■ Standard gun grip (IP54)
    ■ 2D long-range gun grip (IP54)
    ■ RG760 UHF/RFID gun grip (IP52) EU antenna
    ■ RG760 UHF/RFID gun grip (IP54) US antenna
    ■ Tray Ejector tool
    ■ Vehicle cradle
    ■ Screw-mount kit
    ■ Suction-mount kit
    ■ Heavy duty suction-mount kit
    ■ Soft belt holster
    ■ DT3710-M holster only compatible with 5500-900062G an 5500-900062G
    ■ DT3710-L-R holster only compatible with 5500-900062G an 5500-900062G
    ■ Retainer mount 100-160mm for vehicle cradle

Accessories

USB Type-C Cable

1550-900112G

1-slot terminal & battery charging cradle

5000-900058G

1-slot terminal & battery charging cradle

5000-900058G

1-slot terminal & battery charging cradle

5000-900058G

1-slot ethernet / USB host cradle

5000-900059G

1-slot ethernet / USB host cradle

5000-900059G

1-slot ethernet / USB host cradle

5000-900059G

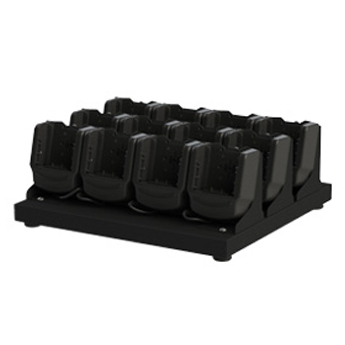

12-slot terminal charging cradle

5000-760002G

4-slot terminal charging cradle

5000-900061G

4-slot terminal charging cradle

5000-900061G

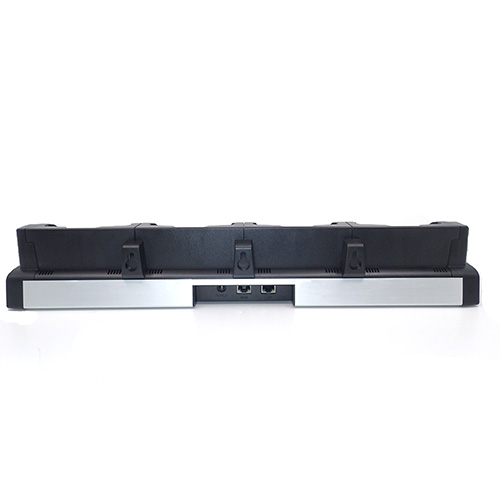

4-slot terminal ethernet cradle

5000-900063G

4-slot terminal ethernet cradle

5000-900063G

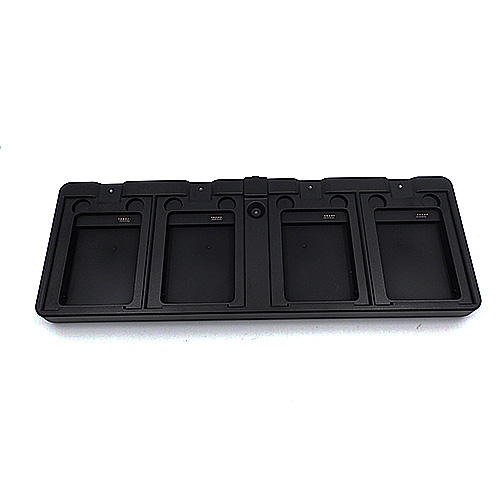

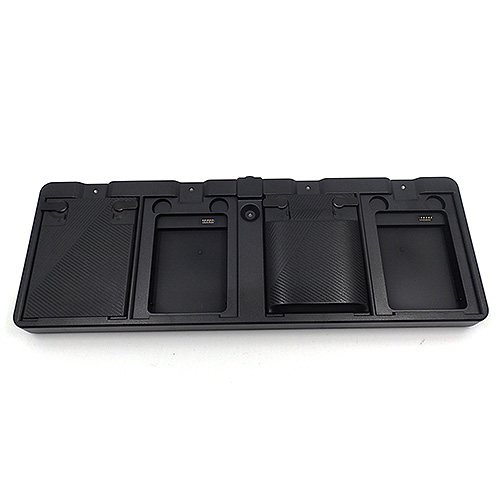

4-slot battery charging cradle

5100-900026G

4-slot battery charging cradle

5100-900026G

3-Pins power cord (EU) for power adaptor

1550-602333G

3-Pins power cord (UK) for power adaptor

1550-602689G

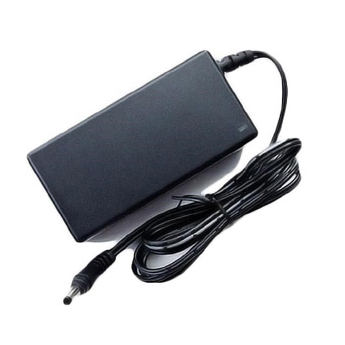

Power adapter 12V/5A for 4-slot cradle

1010-900031G

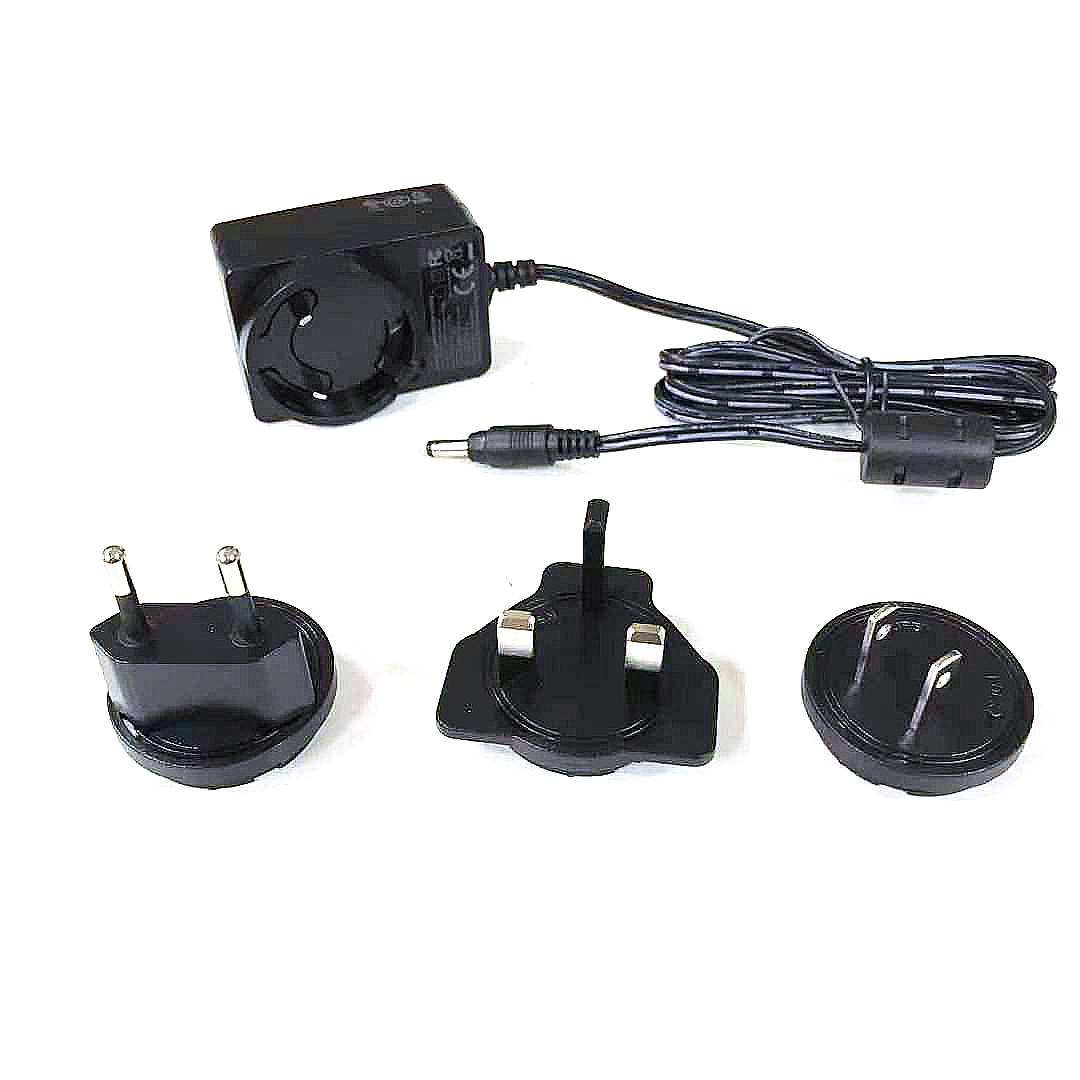

Power Adapter with US,EU and UK plugs for 1-slot cradle

1010-900057G

9H glass screen protector

401434G

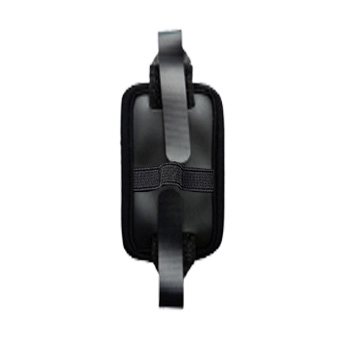

Hand strap with stylus holder

384469G

Stylus, with clip and hole

384896G

Coiled strap / generic stylus bungee cord

383642G

3.8V 4000mAH battery with cover in one piece

1400-900052G

3.8V 6000mAH battery with cover in one piece

1400-900053G

Standard trigger gun grip (IP54) for PA760 with bumper

5500-900062G

Standard trigger gun grip (IP54) for PA760 with bumper

5500-900062G

Standard trigger gun grip (IP54) for PA760 with bumper

5500-900062G

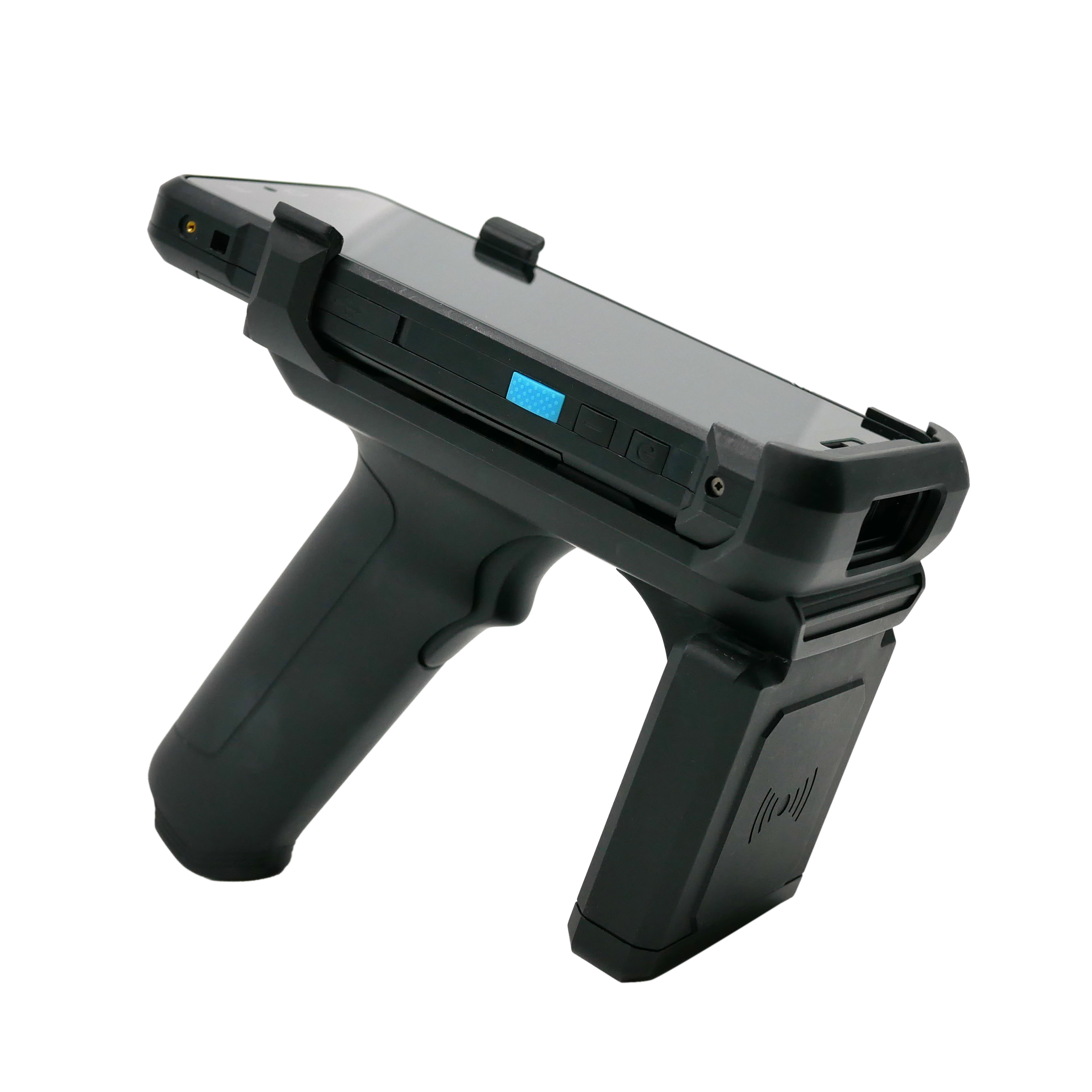

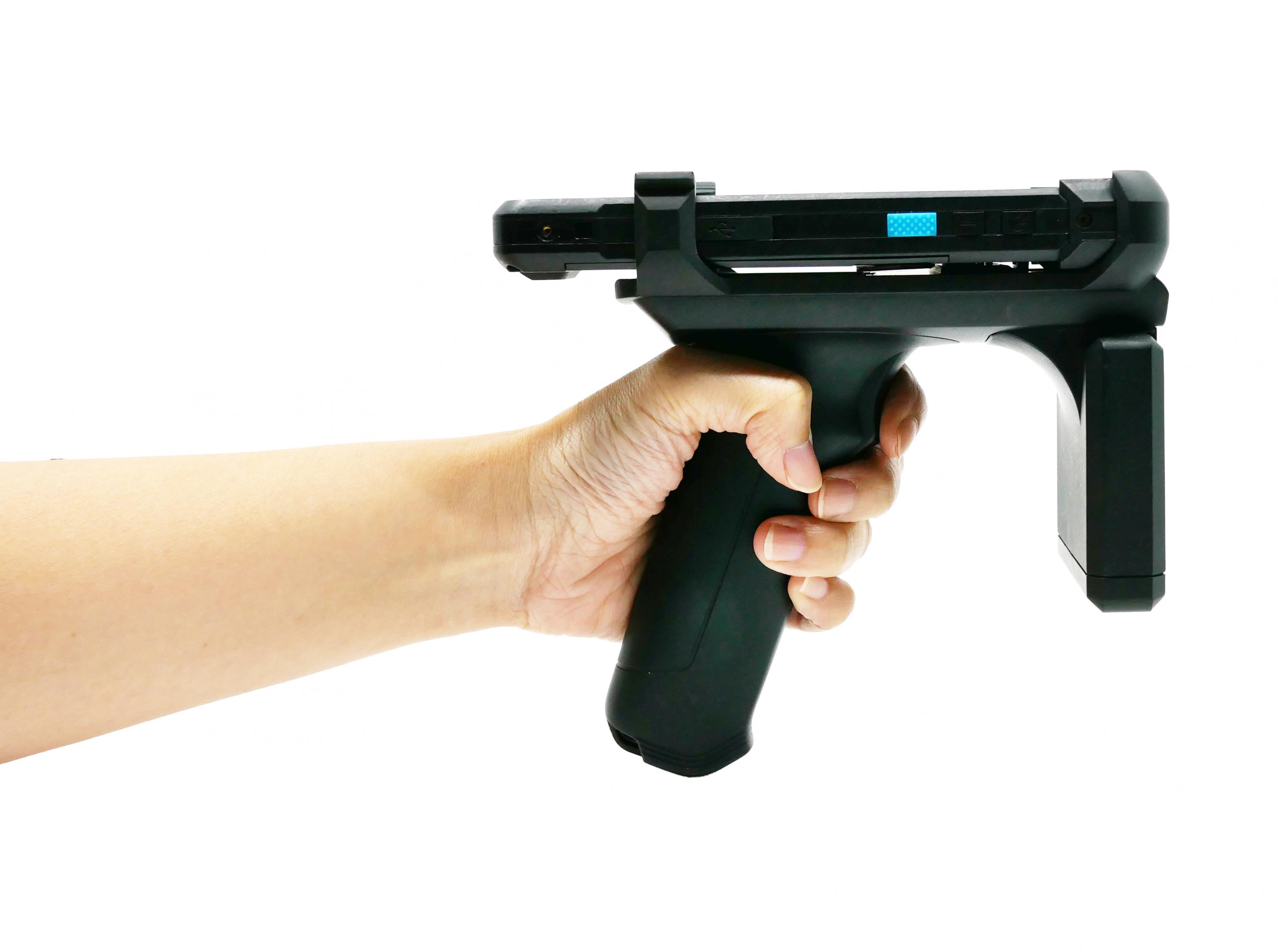

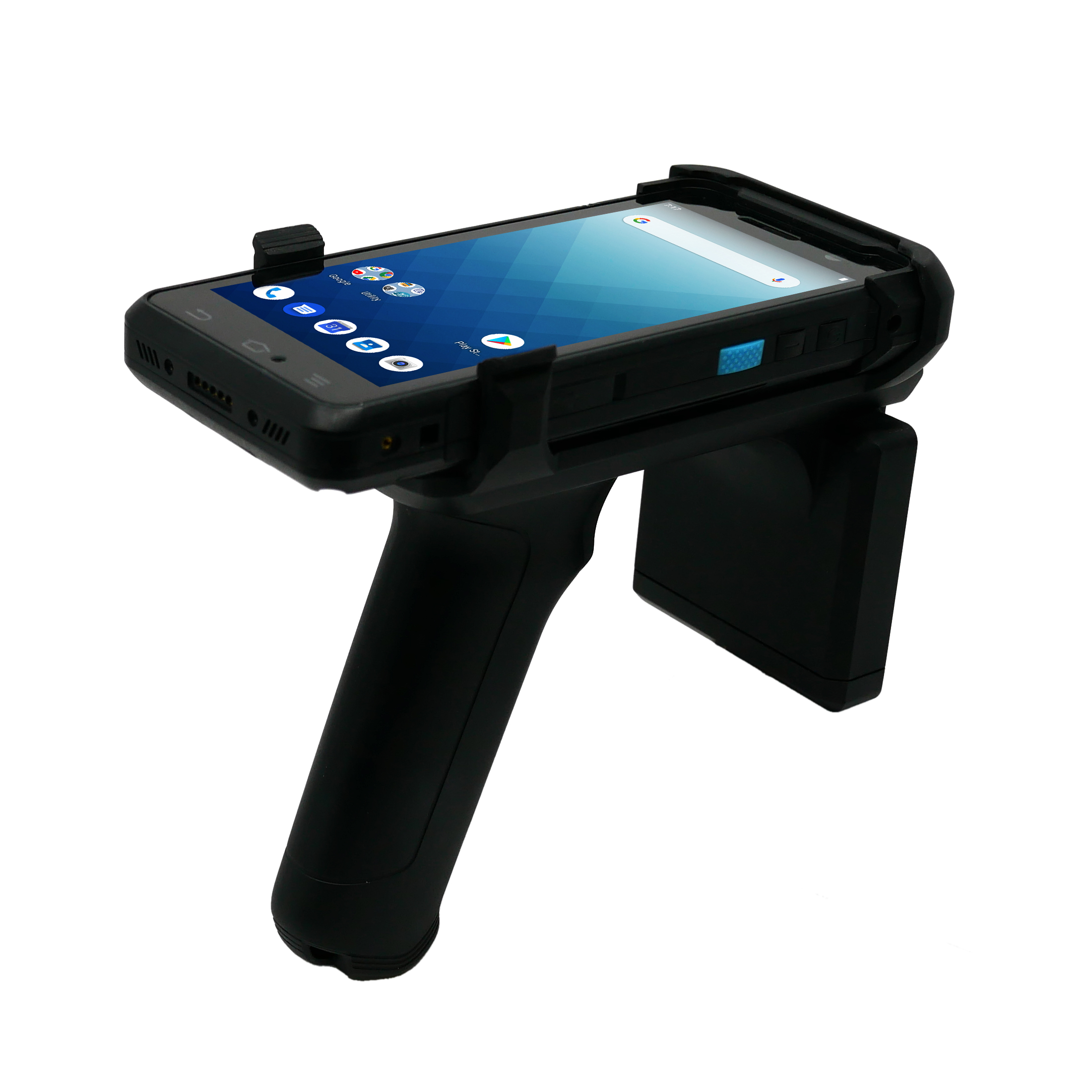

RG760 UHF/RFID reader gun grip (IP54) EU ANTENNA for PA760 with bumper

5500-900064G

RG760 UHF/RFID reader gun grip (IP54) EU ANTENNA for PA760 with bumper

5500-900064G

RG760 UHF/RFID reader gun grip (IP54) EU ANTENNA for PA760 with bumper

5500-900064G

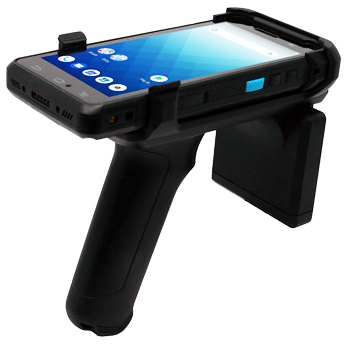

2D long range gun grip (IP54) for PA760 with bumper

5500-900065G

2D long range gun grip (IP54) for PA760 with bumper

5500-900065G

2D long range gun grip (IP54) for PA760 with bumper

5500-900065G

SIM Tray ejector tool

1979-900002G

Active car kit / vehicle cradle

5000-760001G

Screw-mount kit

RAM-B-101U

Suction-mount kit

RAM-B-166-202U

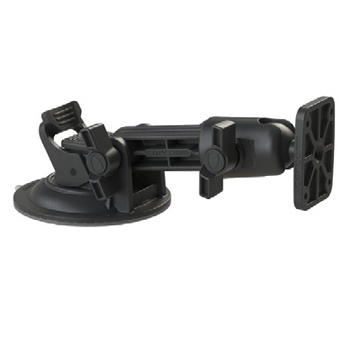

Heavy duty suction mount

CSC-20

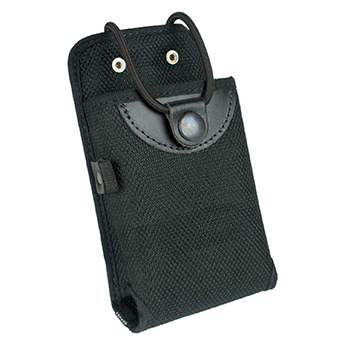

Soft Belt holster with belt clip

DT3669

Belt holster for device with gun grip (one knob in the middle)

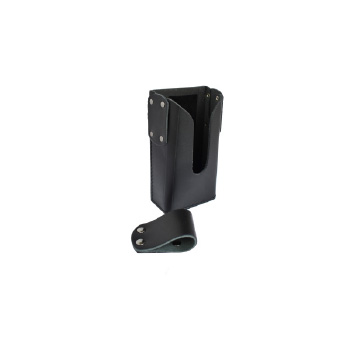

DT3710-M

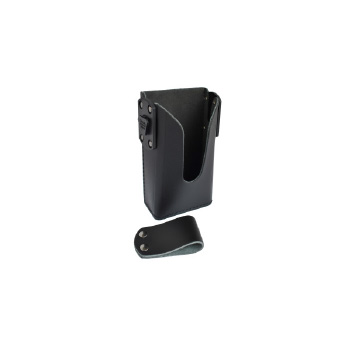

Belt holster for device with gun grip (knobs (2x) on both sides)

DT3710-LR

RG760 UHF/RFID reader gun grip (IP54) US ANTENNA for PA760 with bumper

5500-900063G

RG760 UHF/RFID reader gun grip (IP54) US ANTENNA for PA760 without bumper

5500-900072G

PSU 5v/3A QC3 (EU,UK,US,AU)

1010-085001G

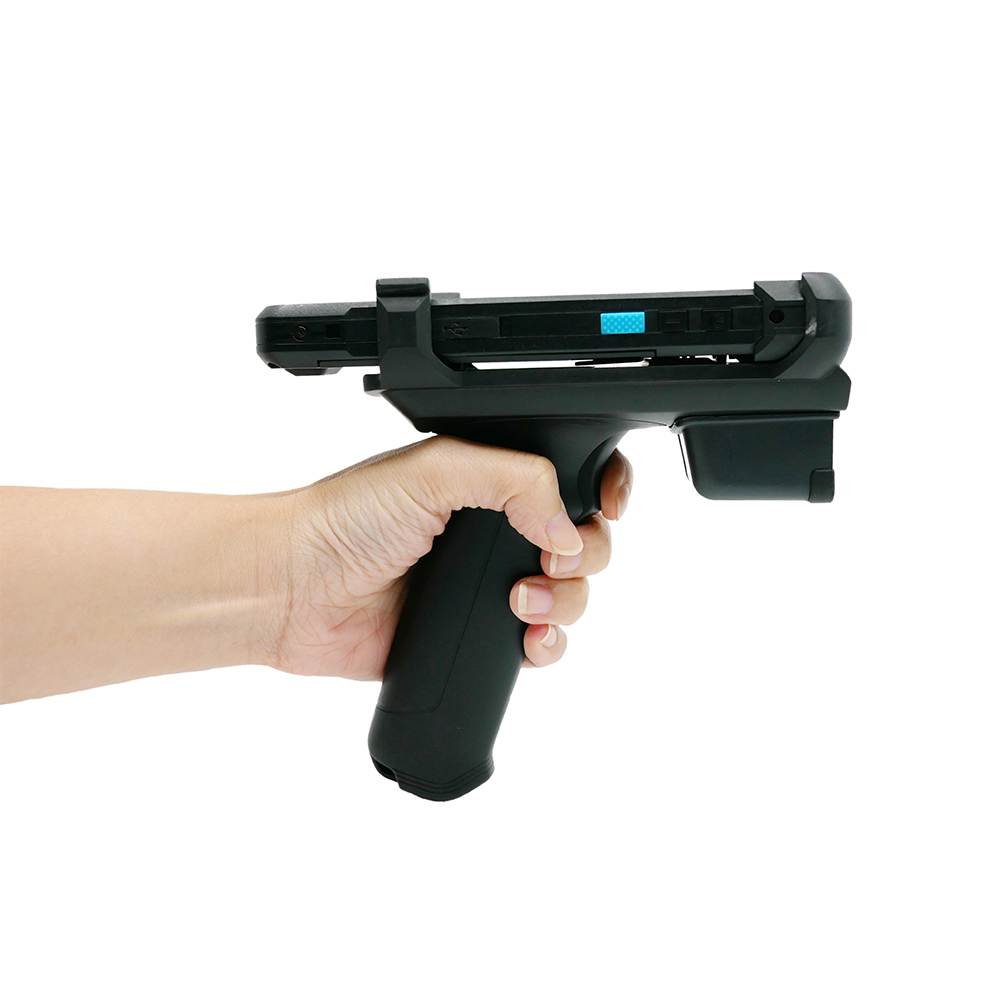

2D long range gun grip (IP54) for PA760 without bumper

5500-900074G

RG760 UHF/RFID reader gun grip (4dBi) EU ANTENNA for PA760 without bumper

5500-900091G

Retainer mount 100-160mm for vehicle cradle

CRM-11

5V/2A USB power adaptor with US/EU/UK/AU plugs

1010-900067G

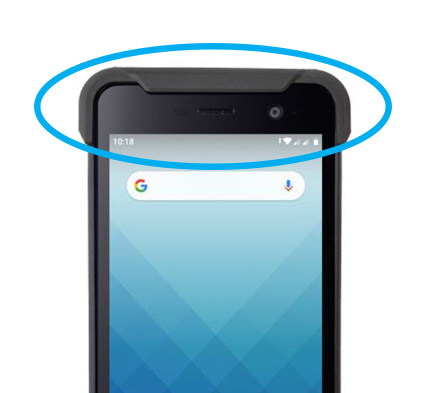

PA760 Plastic bumper top (PA760 not included)

385667G

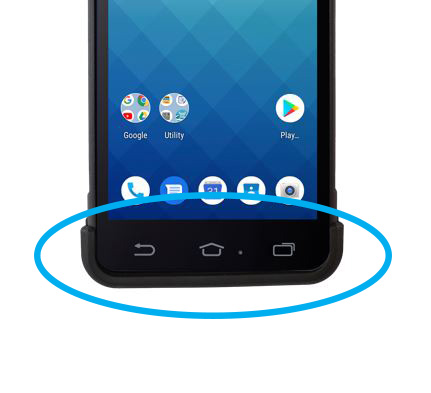

PA760 Plastic bumper bottom (PA760 not included)

385668G

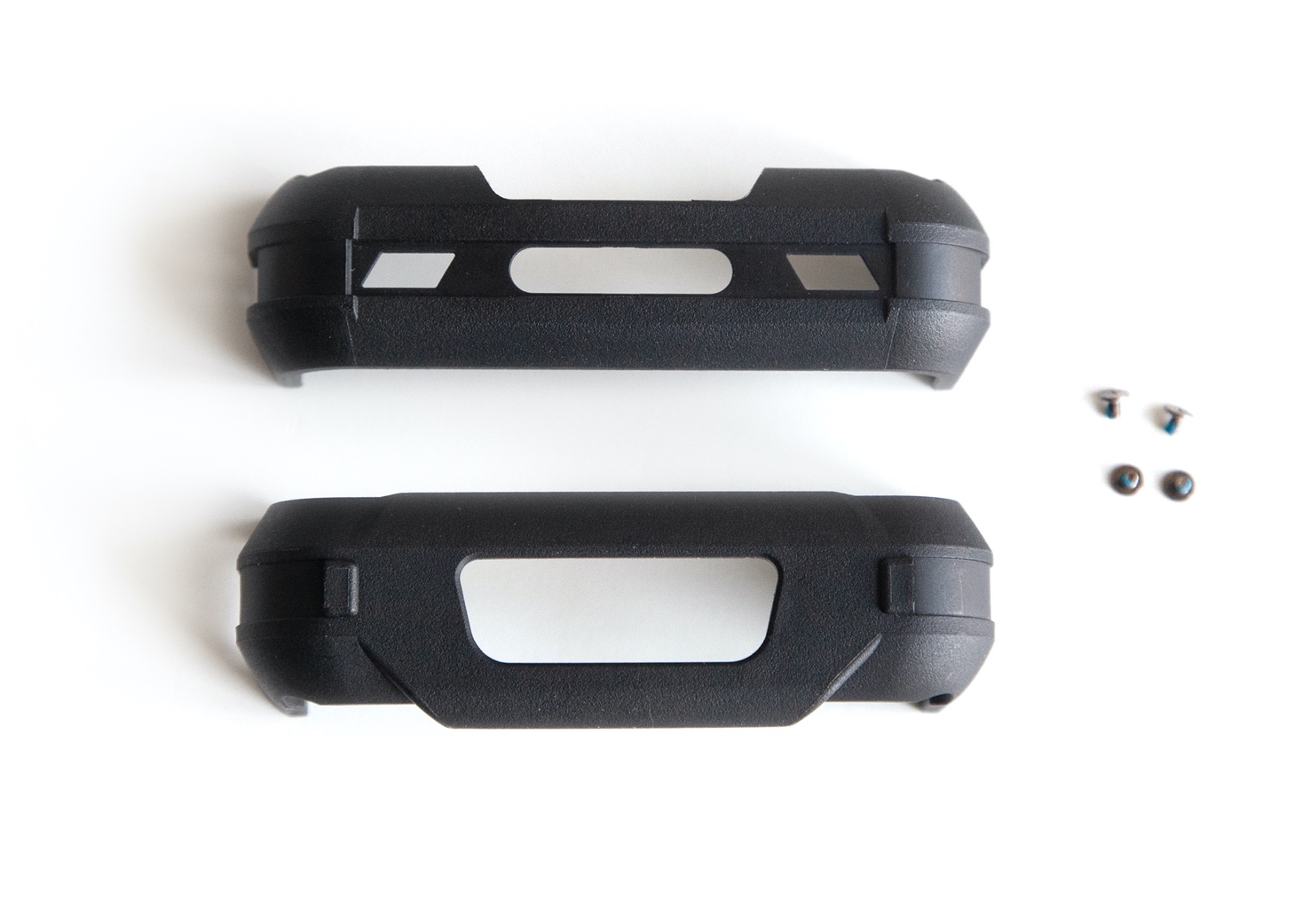

Bumper protection pack with screw for PA760

5400-900033G
