PS800R

Affordable 2D High Performance On-Counter Scanner

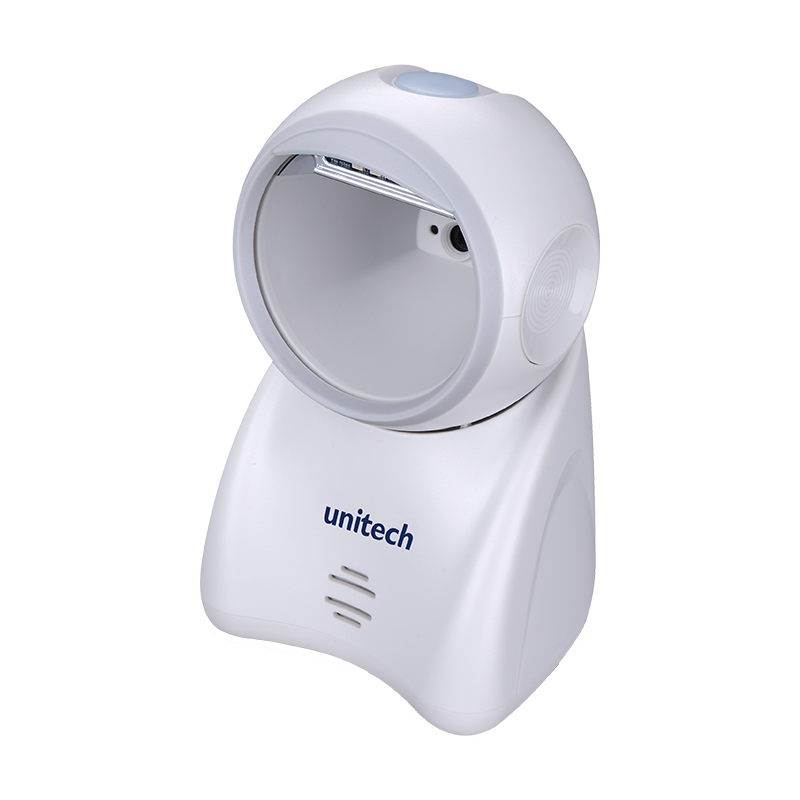

The Unitech PS800R (Retail) is the ideal on-counter imager for retailers who require high performance in a compact design.

  • 1D Laser

  • 2D

  • USB

  • IP50

  • 1.5M

  • Retail

  • Hospitality

The Unitech PS800R (Retail) is the ideal on-counter imager for retailers who require high performance in a compact design. Supporting all common 1D, QR code and DataMatrix barcodes, the PS800R is specially designed with retail in mind and can be used in a wide variety of applications such as point-of-sale, customer loyalty application, couponing, at affordable price!



• High performance on-counter imager with 5 years warranty* at competitive price!
• Special designed for retail applications.
• Support most common 1D, QR code and DataMatrix barcodes.
• Versatile scanning mode and adjustable scanning head.
• Compact design - fitting most confined spaces
• On-counter and handheld design.
• Supports USB/HID, USB/SPP and OPOS*(* Additional software driver needed)
• Reads digital barcodes displayed on the screen of a mobile phone, tablet or computer.
• Rugged and durable design with IP50 and 1.5m drops.
• Very cost-efficient investment with worry-free warranty program (5-year easy swap warranty).

Smart and Compact Design

When space is limited but high performance is required, its compact size and footprint makes it the ideal solution for space-constrained environments. The PS800 is equipped with an adjustable omni-directional scanning head, you can move its head forward and backward to adjust the scanner to the most convenient hands-free scanning position meeting your needs. Ingegrated with an image auto-induction function effectively reduces power consumption and subsequent core components abrasion. Moreover; the PS800 is designed with an ergonomic finishing grip, suitable for handheld operation (trigger mode).

Specification

Optical & Performance

  • Sensor Technology 2D imager, 752 x 480 pixels
  • Illumination Light level Max 100.000 LUX
  • Skew / Pitch / Roll Angle Scan Skew ± 58°
    Scan Pitch ± 73°
    Scan Roll 360°
  • Depth Of Field Depth of Field 1D: 0mm to 255mm
    Depth of Field QRCode: 0mm to 220mm

    5 mil Code 39 (3 chars): 10 – 60 mm
    13 mil UPC (6 chars): 0 – 170 mm
    20 mil Code 39 (1 char): 0 – 255 mm
    10 mil QR (20 chars): 0 – 95 mm
    20 mil QR (20 chars): 0 – 220 mm
    * = dependents on width, type and quality of barcode.

Communication

  • Connectivity Interface USB/HID (USB/SPP, OPOS*)

Mechanical

  • Dimension Scanner dimension 157mm x 93mm x 95mm
  • Weight Scanner weight 287g (without cable)

Operation Mode

  • Operation Mode Auto-detection Mode / Trigger Mode

Symbologies

  • 1D Barcodes 1D:
    UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN
    (Bookland EAN), ISSN, Code 39, Code 39 full
    ASCII, Code 32, Trioptic Code 39, Interleaved
    2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix
    2 of 5, Codabar (NW7), Code 128, UCC/EAN
    128, ISBT 128, Code 93, Code 11 (USD-8),
    MSI/Plessey, UK/Plessey, China Post, China
    Finance, Telepen, GS1 DataBar (formerly RSS)
    variants.
  • 2D Barcodes 2D:
    QR Code, DataMatrix

Electrical

  • Operation Voltage 5 DC ± 0.25 V
  • Current Consumption Power: Working: 420 mA
    Standby: 90 mA
  • Indicator Indicator Beeper, LED

Environmental

  • Mechanical Shock 1.5m onto concrete*
  • Operating Temperature -20°C to 55°C
  • Storage Temperature -20°C to 75°C
  • Relative Humidity 5% to 95% non-condensing
  • IP Rating IP50

Safety & EMC

  • Safety & EMC EMC: EN55022, EN55024
    Electrical: EN60950-1
    Photobiological: EN62471:2008

Regulatory Approvals

  • Regulatory Approvals CE

Warranty

  • Warranty 5 Years scanner head only*
    1 Year USB cable
