TB85plus Android 10 │ Unitech

Powered by Android 10 OS with GMS Certified, TB85 is an 8” rugged tablet.

Android 10
HF/NFC
8
Pogo pins
Type-C
IP67
1.2M
4G LTE
Wireless
Bluetooth
GMS certified

Your business requires you to be flexible, tough, and extremely versatile and that's exactly how we engineered the Unitech TB85. With an attractive, slim case for easy portability, and fortified with a tough outer casing and environmental seal, this workhorse doesn't cut corners on durability or form factor.

Features

• Android 10.0 GMS with Octa-core CPU.
• Google Enterprise Device certified
• POGO Pin extension with QC3.0 (quick-charging)
• 14-pin POGO extension for modules (backside)

• 7-pin POGO extension charing and data (side)
• 8200 mAh changeable Li-ION battery
• 64 GB eMMC + 4 GB DDR3 memory
• 4G/LTE, WLAN 80211 a/b/g/n/ac and NFC
• 8” display with Gorilla Glass 3 and GFF touch panel - 450 nits LCD
• IP67 rated with a 1.2m drop spec

• Supports Soti, Airwatch and Clyd.

Powerful Android 10 OS & GMS Certified

Intuitive usability combines with the most up-to-date Android experience and Google Mobile Services (GMS). Experience the newest improvements and bug fixes from the Android 10 operating system as well as the reliable backing of GMS and Google Enterprise Device certified. With all the features of a consumer-grade smart phone like Google Maps, Gmail, Photos, Drive and Play Store, your abilities on the TB85+ smart device are practically limitless.

LTE for AT&T and T-Mobile

Dependable cellular service is becoming more vital in the workplace now than ever. The TB85+ offers AT&T and T-Mobile 4G LTE service; faster downloads and uploads are at your fingertips on the most reliable networks in the nation. Voice calls are clearer and downloads and streamed videos are speedier so you can make calls and obtain data with confidence.

14-Pin + 7 Pin Modular Extensions

The TB85+ tablet is an extremely scalable product as a 14-pin POGO and 7-pin POGO connector allow you to add devices that optimize your business and work-flow. Connect for high volume scanning a 2D reader module or 2D gun grip for easy inventory, picking and asset tracking. Or connect the TB85+ to a desktop or vehicle cradle and extend its functionality even further. Interchangeability makes this a truly versatile device.

Full touch and function buttons

Lots of room to roam with the TB85's spacious 8-inch touch display panel! The large screen allows for more accurate and easier viewing while a GFF (glass film + film) layer resists scratches and reinforces durability. Whether collecting data in the warehouse, making deliveries on the field, or scanning tickets at an event, the capacitive display encourages fast transactions and application running.

Usability of the tablet comes with the 8”(1280 x 800) Gorilla 3 Glass touch screen and 8 physical keys. You can designate 2 keys for different functions to improve productivity.

Unitech Shield delivers value-added service for up-to-date support

TB85+ Unitech Advantage Products

✓ 3 years of Google security patch support
with frequency : half-yearly or yearly
✓ Extend 3 years of patch updates

Click here for more information about Unitech Shield.

Operation System

OS Android 10
GMS certified GMS certified
Android Enterprise - Zero-touch support
CPU 2.2 Ghz,Qualcomm MSM8953 PRO Octa-Core
Memory 4GB RAM / 64GB Flash
Languages support English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Others Input Chinese/ English

Display

Screen Size 8 inch color (1280 x 800) LCD display 450nits
Touchpanel Gorilla Glass III with capacitive touch pannel.
Support Capacitive Touch Screen.

Buttons / Keypad

Buttons / Keypad 8 Function Keys: Power key, volume +/-, return key, home key, menu key and 2 customizable keys.

Camera

Camera 5MP front camera
13M rear camera, AF with LED flash

Indicator Type

Type LEDs, Vibrator

Symbologies

1D Barcodes Optional accessory for 1D/2D barcode reading:
■ 2D imager module with trigger buttons on both sides
■ Gun-grip with 2D imager
2D Barcodes Optional accessory for 1D/2D barcode reading:
■ 2D imager module with trigger buttons on both sides
■ Gun-grip with 2D imager

RFID

HF RFID Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard

Communication

Bluetooth® Bluetooth® 4.2 + BR/EDR + BLE
WLAN 802.11 a/b/g/n/ac (Qualcomm WCN3680B)
WWAN GSM: 850 / 900 / 1800 / 1900
TD-SCDMA: B34, 39
WCDMA: B1, 2, 5, 8
CDMA/EVDO: BC0
LTE-TDD: B38, 39, 40, 41
LTE-FDD: B1, 2, 3, 4, 5, 7, 8, 12 ,13, 17, 20, 25, 28
GPS U-Blox M8N module with extend MMCX connector for GNSS antenna
Sensors Ambient light sensor,
Hall sensor support for accessory,
Acceleration sensor,
Atmosphere pressure sensor

I/O Interfaces

USB USB TYPE-C
POGO PIN POGO pin
SIM Slot Nano SIMx1
Expansion Slot MicroSD x 1
SDcard, 256GB
Audio Microphone, speaker and 3.5mm audio jack

Enclosure

Dimensions ( H x W x D ) 241.9 x 152 x 17.76 mm
Weight 630g

Durability

Drop Specification 1.2m
Sealing IP67
Vibration and Shock test MIL-STD-810G

Environmental

Operating temperature (-20˚ to 60 ˚C)
Storage temperature (-40˚C to 70 ˚C)
Charging temperature 5% ~ 95% (Non-Condensing)

Power Source

Main battery 8200 mAh swappable & changeable Li-ION battery

Software

MDM Software Airwatch, SOTI, Clyd

Regulatory Approvals

Regulatory Approvals GMS, CE, RED, FCC, BSMI, NCC, RoHS,

What comes in the box

The standard package contents ■ TB85+ Tablet
■ Battery
■ USB-C cable
■ USB Power supply (EU, UK, US, AU plugs)

Accessories

Accessories ■ Type C Cable
■ USB Power supply (EU, UK, US, AU plugs)
■ Rotatable Hand-Strap (Not compatible with Vehicle cradle)
■ Hand-Strap V2 (Compatible with Vehicle cradle)
■ 2D Engine Module with buttons on both sides
■ 8200mAH Battery Pack

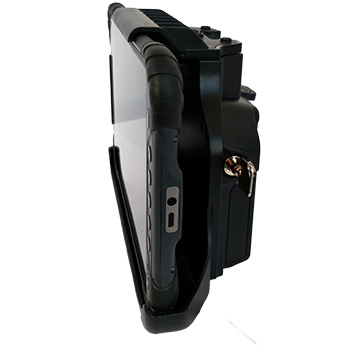

■ Vehicle Cradle

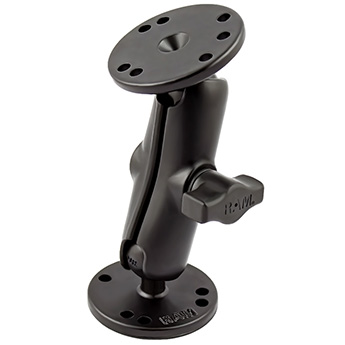

■ Screw-mount kit

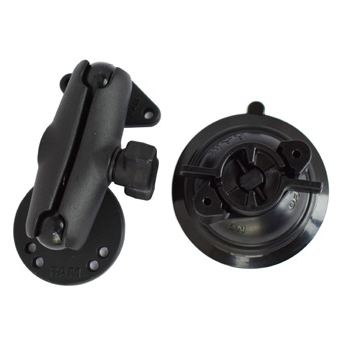

■ Suction-mount kit
■ Heavy duty suction-mount kit
■ 2D gun grip

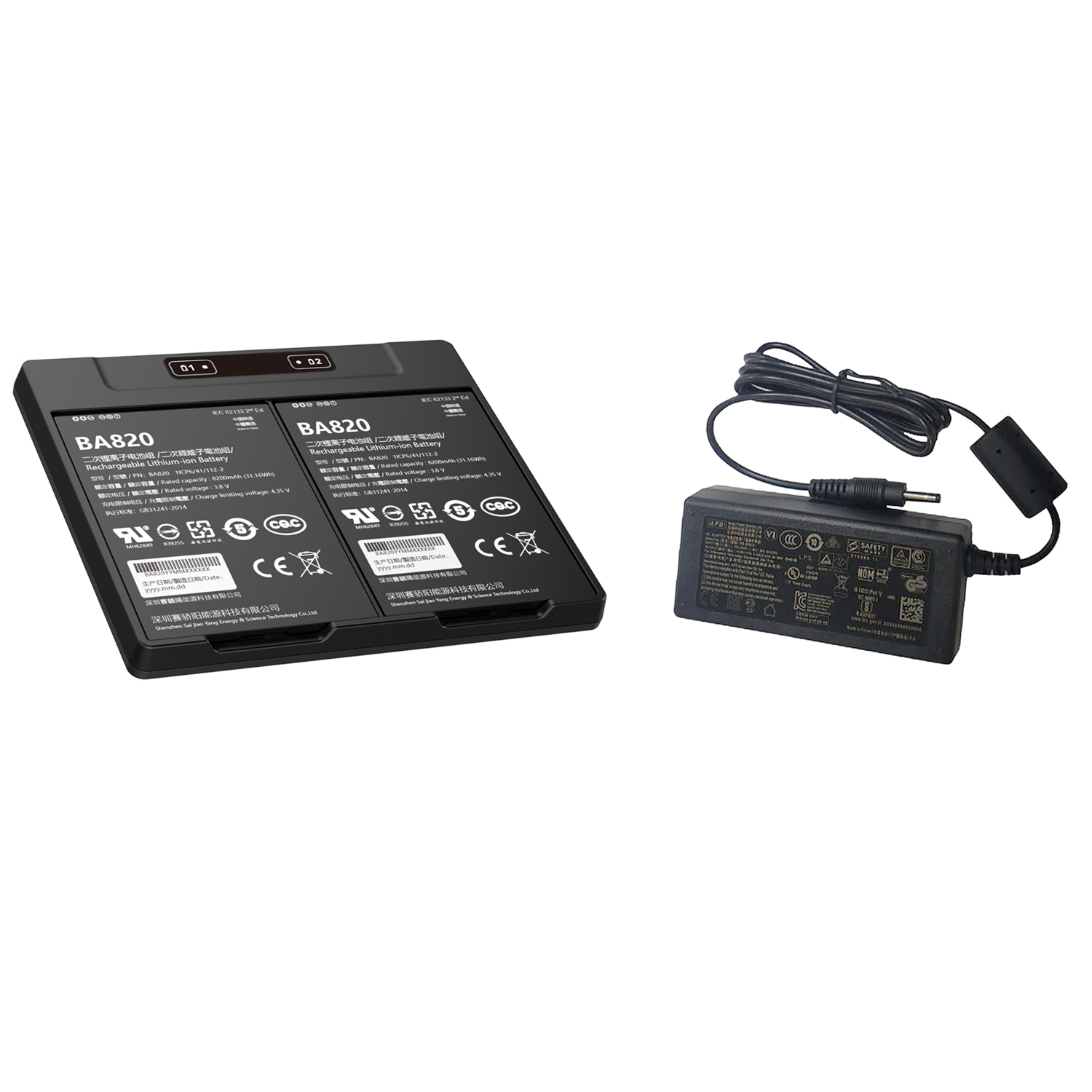

■ 2 Bay Battery Charger

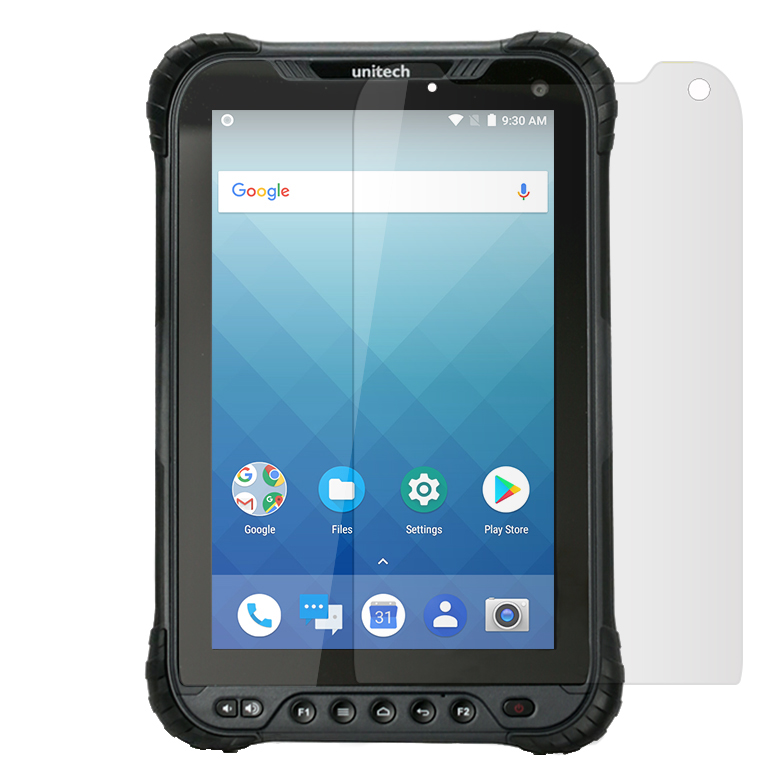

■ Glass Screen Protector (Retail pack - 10x)
■ Desktop charging and ethernet Cradle for TB85. This TB85 general desktop cradle (supports only TB85+ charging)
■ Desktop charging and ethernet cradle TB85+ desktop cradle (new cradle to be released)
