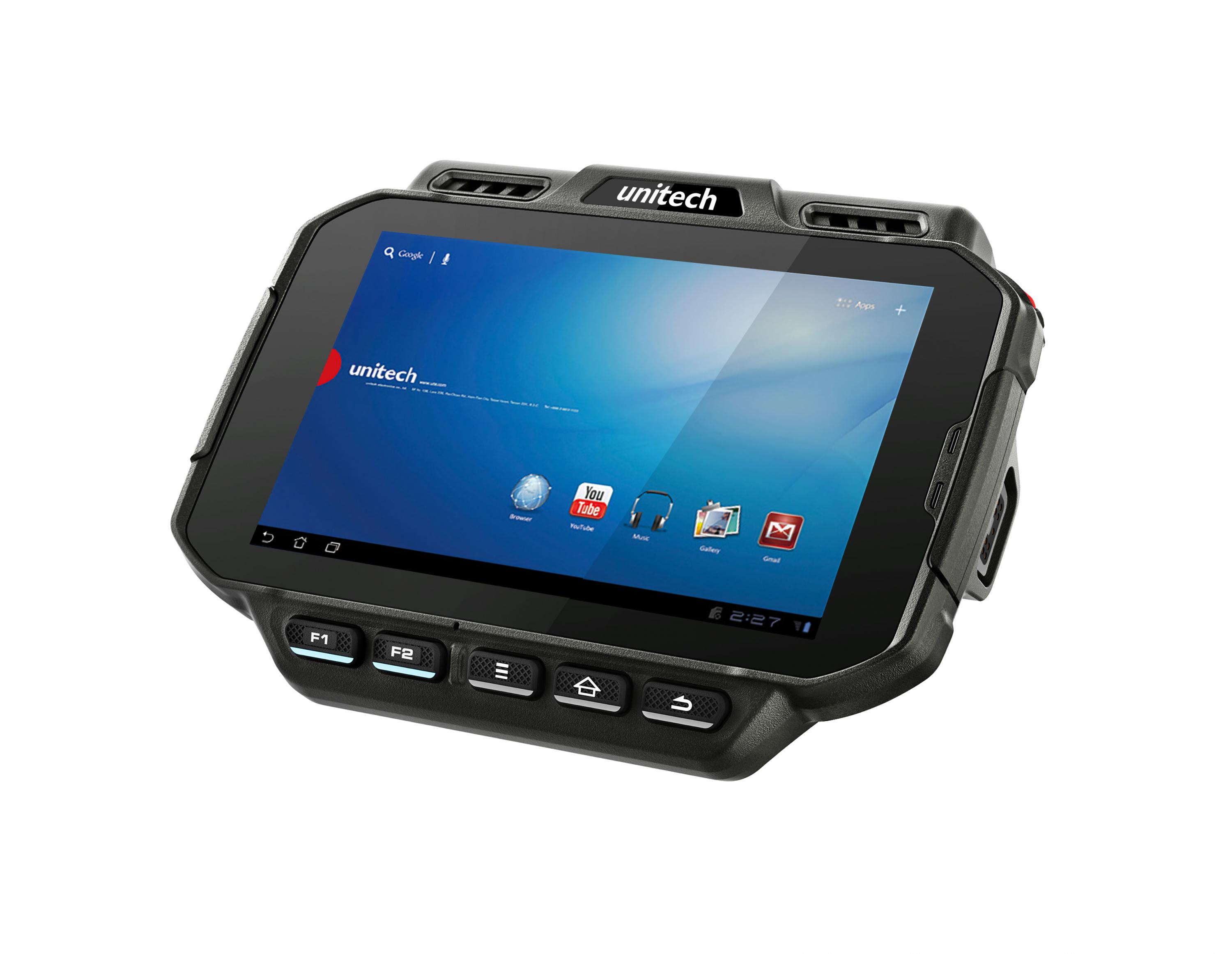

WD100

Smart, connective hands-free mobility

Powered by Android 7.1, the WD100 is a wearable PDA for total hands-free operations in logistics, warehousing and retail.

  • Android 7.1

  • 4

  • Wearable

  • IP65

  • 1.5M

  • 4G LTE

  • Wireless

  • Bluetooth

Working in an intensive picking environment requires all
hands to be free. Holding a terminal in your hands lowers the efficiency considerably. Our WD100 offers a cost-effective, practical and healthy solution to these issues.



Features

• Wearable Enterprise Level PDA
• Android 7.1
• 1.2 Ghz Qualcomm 8916 quad-core CPU with 2GB RAM

• Rechargeable 2950 mAh battery
• 4” display. Multiple point touch screen, Supports glove* touch

• IP65 rated, and 1.5m drop specification
• Device supported versatile: SOTI, AirWatch, 42Gears, and MoboLink

• WD100 can be combined with wearable MS632, MS650, MS652+, RP901, MS912+, MS916, MS926, MS925HC readers

Connective and mobile terminal

Want more efficiency without losing flexibility? The WD100 is designed to meet your expectations!



Working in an intensive picking environment requires all hands to be free. Holding a terminal in your hands lowers the efficiency considerably. But today’s solutions tend to be quite cost-ineffective and heavy to carry around. Whether you work in a warehouse, in transport and logistics or even a shipping yard, hands-free work ups your productivity. The terminal can be strapped to the user’s arm using an ergonomically designed strap with a total combined weight of only 273 grams. Combined with one of our featured ring scanners, both hands can remain free during work without interfering with the workflow. Together with extended connectivity, more than any other product in this market, you are only seconds away from your colleagues and completing the task at hand.

Ergonomic, user friendly and lightweight

The terminal features a lightweight design including a 4” touch screen, even suitable for jobs where gloves are needed. The WD100 design is suited for both left-handed and right-handed people. The fully adjustable arm strap with quick-release, combined with a total weight of only 273 grams (terminal, strap and battery included), makes it the lightest wearable in its class. The user-friendliness is also proven by the possible extension of a MicroSD memory card, a 8 MP camera with flash for barcode reading and a 2950 mAh battery and less than 4 hours charging time. This way, the work does not have to wait.

All-round connectivity and accessories!



Upping the efficiency with the lightweight and user-friendly design is increased even more by combining devices from
the Unitech compact scanner range, such as our MS652 ring scanner. Overall connectivity is strengthened by the addition
of WWAN capabilities with 4G-LTE support, Dual Band WLAN 802.11a/b/g/n and Bluetooth 4.0. This way, connecting devices and keeping the workflow intact is no problem whatsoever.

Specification

Operation System

  • OS Android 7.1
  • CPU 1.2GHz, Qualcomm 8916 Quad core processor
  • Memory RAM 2GB
    ROM 16GB
  • Languages support English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian,
    Portuguese, Korean and multiple languages
  • Others Input Chinese/ English
    Supports handwriting and soft keyboard

Display

  • Screen Size 4” LCD (800 x 480) color screen
    Nits: typical 250 nits and minimum 200 nits.
  • Touchpanel Multiple point touch screen, Supports glove* touch.
    (*Depending on actual material & thickness).

Buttons / Keypad

  • Buttons / Keypad Menu, Home, Return, Programmable F1 and F2 keys, Power button

Camera

  • Camera 8M rear camera with flash, auto-focus, video and barcode reading

Symbologies

  • 1D Barcodes Optional combination:
    • wearable 1D CCD MS650 ring scanner
    • wearable 1D CCD MS912+ pocket scanner
    • wearable 1D laser MS916 pocket scanner
  • 2D Barcodes Optional combination:
    • wearable 2D MS652+ ring scanner
    • wearable 2D MS632 ring scanner
    • wearable 2D MS926 pocket scanner
    • wearable 2D MS925HC pocket scanner

RFID

  • HF RFID Optional combination:
    • wearable UHF/RFID RP901 pocket reader

Communication

  • Bluetooth® Bluetooth 4.0 HS low energy
  • WLAN WLAN Supports 802.11a/b/g/n
    Dual-band WiFi 2.4GHz/5GHz
  • WWAN 2G: GSM/EDGE 850, 900, 1800MHz
    3G: UMTS (WCDMA) / HSPA+, DC-HSDPA 900, 1900, 2100MHz. CDMA EVDO Rev.A - Rev.B 800MHz
    4G: TDD-LTE: Band 38, 39, 40, 41 FDD-LTE: Band 1, 3
  • GPS High precision GPS, supports A-GPS

I/O Interfaces

  • USB Expansion slots

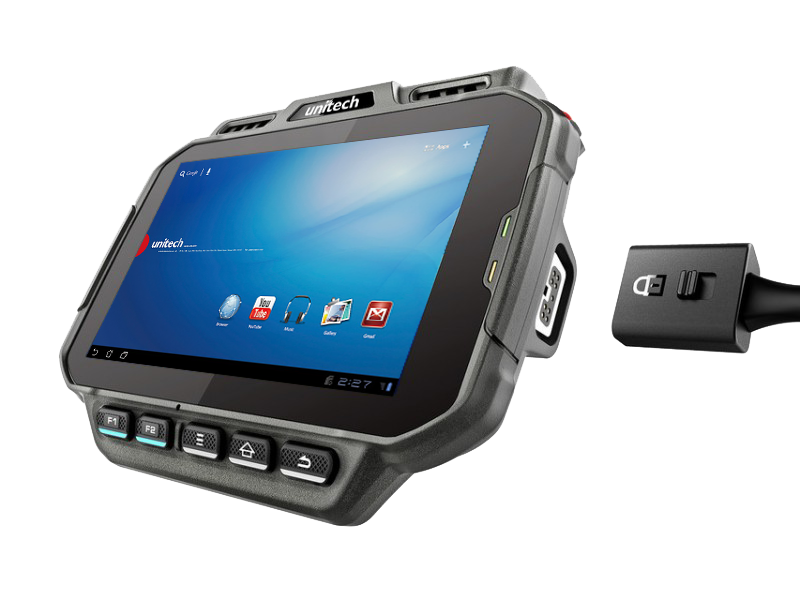

  • POGO PIN Magnetic 9-pin Pogo connector, for charging,
    USB communication
  • SIM Slot 1xMicro SIM
  • Expansion Slot 1xMicro SD/TF
  • Audio 2 Speakers@1W, Microphone, 3.5 mm Audio Jack

Enclosure

  • Dimensions ( H x W x D ) 118 mm x 91 mm x 33 mm
  • Weight 273g (including battery and armband strap)

Durability

  • Drop Specification 1.5m to concrete
  • Sealing IP65

Environmental

  • Operating temperature -10°C to +50°C
  • Storage temperature –20°C to +70°C
  • Charging temperature 0°C to 40°C
  • Relative Humidity 5% ~ 95% (non-condensing)

Power Source

  • Main battery Rechargeable and swappable (Non-hot-swappable )
    3.8V 2950mAh

    Operating time : 10-12 hours
    (depending on the specific environment)

    Fully charged in less than 4 hours

Software

  • MDM Software Airwatch, SOTI, MoboLink, 12 Solutions

Regulatory Approvals

  • Regulatory Approvals CE, R&TTE

What comes in the box

  • The basic package contents ■ WD100
    ■ Battery
    ■ 9-pin magetic with lock to USB cable
    ■ Standard Arm Strap
    ■ Power adapter

Accessories

  • Accessories ■ USB Power adaptor 5v/2A charging (EU,UK,US,AU plug).
    ■ Standard armband strap
    ■ Professional armband strap - Small size
    ■ Professional armband strap - Normal size
    ■ Professional armband strap - Large size
    ■ Battery Pack
    ■ 2-Slot WD100 charging cradle
    ■ 2-Slot battery charging cradle
    ■ 2-Slot battery & 2-slot MS632 charging cradle

Accessories

2950mAh battery

1400-100001G

USB Cable to Pogo pins

1550-100001G

2-Slot Battery and 2-slot MS632 (ring scanner) charger with PSU EU

5000-100001G

2-Slot Battery charger with PSU EU

5000-100003G

Armband strap standard

5500-100001G

Armband strap Professional - normal size

5500-100002G

Armband strap Professional - large size

5500-100003G

2-slot cradle with PSU (EU/UK/US)

5000-100002G

Armband strap Professional - small size

5500-100004G

Power Adaptor (USB) with universal plugs

1010-900026G
