PA760

Rugged Handheld Computer (Android)

Upgrade your work environment. The Unitech PA760 packs a powerful punch with its all-day battery, fast processor and Android 9 or 10 + GMS.

• Android Enterprise Recommended (AER) with Android 9 or 10 OS + GMS

• Disinfectant ready housing with harsh cleaning agents like isopropyl alcohol

• Power up, work, and reboot faster with a 64-bit Octa-Core processor



A full suite of tools and features allow you to customize and future-proof your device. Offering the latest OS of Android 9 or 10, a robust processor, fingerprint technology, a long-running 4000mAh battery, and a rugged IP rating, the PA760 makes your toughest work days easier. This handheld is disinfectant ready allowing harsh chemical cleaning products such as isopropyl/ethanol alcohol and bleach (bleach:water, 1:100).





Features

• Operating System: Android 9/Android 10
• NFC & fingerprint access

• Disinfectant ready housing

• Bleach safe (bleach/water solution)
• Quick charge type C USB cable
• Screen: 5.45" Gorilla Glass® 3
• Weight: 9.8 ounces
• Bluetooth® 5
• 16 MP rear camera / 5 MP front camera
• Warranty: 1 year

Android Enterprise Recommended (AER)


The PA760 is now Android Enterprise Recommended which means its been shortlisted by Google and approved as a reliable choice for rugged mobile devices for business. Take advantage of zero-touch enrollment to deploy ready-to-use AER devices right out of the box and enjoy certified updates every 90 days for 5 years.



Android 9.0 and Google Certification

• The First 5.45(18:9) inch Android 9.0 rugged mobile computer with Split Screen function
• Advanced 64-bit octa-core CPU (2.2GHz) with 4GB RAM and 64GB ROM
• Android Compatibility Test Suite (CTS ) / Google Mobile Service（GMS）/  Google Enterprise Device Certified



Built on the Latest Android 9 Platform
Applications run faster, downloads are speedier, and web pages load quickly on the newest operating system, created on the trusted Android platform.



Advanced Touch Screen Technology
Work tasks are completed simply with the PA760's large screen and capacitive touch screen.

Advanced Touch Screen Technology

Work tasks are completed simply with the PA760's large screen and capacitive touch screen.

• A generous 5.45" screen to read text and view images clearer
• 5-point capacitive touch screen with Gorilla Glass 3
• Fingerprint recognition technology allows users to unlock devices with ease

Superior Data Collection

Read barcodes efficiently with the PA760's agressive scan engine and snap photos for documentation in high definition.

• Integrated 1D/2D barcode scanner reads digital and printed barcodes
• High resolution 16MP full HD rear camera and 5 MP front camera

Sheer Durability

Falls, bumps, dirt, dust, water, and liquids can't stand up to the PA760's powerhouse protection.

• 5-foot drop-resistant housing / (6-foot drop-resistance with bumper)
• Dual tested: IP67 & IP65 heavy-duty protection against water and dust
• Rugged pogo-pin design protects the handheld from the wear and tear of frequent charging and docking



Multiple Connections

Get connected quickly and securely with PA760's fast-roaming WiFi, Bluetooth, 4G LTE, and GPS offerings.


• Leading 4G dual nano SIM slot
• Support WLAN : Dual Bands with fast roaming & WWAN: 2G/3G/4G LTE with full bands



Specification

Model Numbers

  • SKUs PA760-WALFRMDG:
    PA760, 2D Imager, Android 9, 4G LTE, Power Adapter and Battery (4000mAh), Bumper Protection

    PA760-WALFRMHG:
    PA760, 2D Imager, Android 9, 4G LTE, Power Adapter and Extended Battery (6000mAh), Bumper Protection

    PA760-W1LFRMDG:
    PA760,2D N6603, Octa-core OS, Android 10 with GMS, BT5.0, 4G LTE, Dual SIM, 16M PDAF camera GPS, HF, NFC, with Bumper, USB Charging Cable Adapter, and Battery (4000mAh)

    PA760-W100UMDG:
    PA760, 2D Imager, GMS, Android 10, No Communication, with USB Charging Cable, Power Adapter and Battery (4000mAh), Bumper Protection

Operating System

  • OS Android 9 or Android 10
  • GMS Certified GMS certified / EEA certified
  • CPU 2.2 GHz, Qualcomm Snapdragon™ 660 Octa Core Processor, 64bits
  • Memory 4 GB RAM / 64GB Flash
  • Languages Supported English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
  • Other Input Chinese/ English
    Supports handwriting and soft keyboard

Display

  • Screen Size 5.45” Color LCD 1440x720 High Resolution Display
  • Touchpanel Gorilla Glass 3 with 5-point Capacitive Touch Panel,
    High sunlight visibility- LCD backlight up to 500nits with optical direct bounding

Buttons / Keypad

  • Buttons / Keypad Programmable key, volume up/down key, left/right scan key, power key

Camera

  • Camera 5 MP Front camera
    16 MP Rear with LED flash and auto-focus function

Indicator Type

  • Type LEDs, Vibrator

Symbologies

  • 1D Barcodes 1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code
    128, Code 32, Code 93, Codabar/NW7, Interleaved 2
    of 5, Matrix 2 of 5, MSI, Trioptic,
  • 2D Barcodes 2D : ISBT 128, PDF417, MicroPDF417, GS1 Composite ,
    Code11, Aztec Code, Data Matrix, QR Code, Micro
    QR Code, MaxiCode, Han Xin Code, DOT Code

    Postal : Intelligent Mail Barcode, Postal-4i, Australian
    Post, Japanese Post, Netherlands (KIX) Post,
    Postnet, Planet Code

    OCR : OCR-A, OCR-B, E13B (MICR)

RFID

  • HF RFID Supports HF/NFC
    Frequency 13.56Mhz
    Support: ISO14443A/B, ISO15693 standard

Communication

  • Bluetooth® Bluetooth® 5
  • WLAN IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v, IPv4, IPv6
    Security of WLAN : WEP, WPA/WPA2 PSK, 802.1x EAP,
    OWE, SAE
    Fast Roaming : PMKID caching, 802.11r, OKC
    MIMO(2x2)
  • WWAN 4G LTE
    FDD: Band 1(2100), Band 2(1900), Band 3(1800),
    Band 4(1700), Band 5(850), Band 7(2600),
    Band 8(900), Band 17(700bc), Band 20(800),
    Band 28(700)
    TDD: Band 38(2600), Band 39(1900), Band 41(2500)
    *Support Dual Sim Dual 4G VoLTE (Nano SIM Slot*2)
  • GPS GPS/GLONASS/Gallileo/Beidou
  • Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor
  • Fingerprint Fingerprint (optional)

I/O Interfaces

  • USB USB Type-C
  • OTG Yes, over USB Type-C
  • POGO Pin POGO PIN connector for Cradle
  • SIM Slot Nano SIM Slot x 2
  • Expansion Slot Micro SD x 1, up to 256 GB
  • Audio 1 W output, 95 dB at 10cm, Dual-Microphone, support noise cancellation

Enclosure

  • Dimensions ( W x D x H ) 6.4 in. x 2.9 in. x 0.6 in.
    163 mm x 75 mm x 17.4 mm
  • Weight 10.5 oz (300g) with standard battery

Durability

  • Drop Specification 5 feet (1.5 meter) without bumper
    6 feet (1.8 meter) with bumper
  • Sealing IP65 & IP67
  • Tumble Test 1.6-ft (0.5m)

Environmental

  • Operating Temperature -4°F to 122°F (-20°C to 50°C)
  • Storage Temperature -22°F to 140°F (-30°C to 60°C)
  • Relative Humidity 5% ~ 95% (Non-Condensing)

Power Source

  • Main Battery Standard 4000mAh / battery with cover in one piece
  • Extended Battery Extended 6000mAh / battery with cover in one piece
    (optional)

Software

  • MDM Software Ivanti Wavelink, SOTI, AirWatch, 42Gears, 12Manage, and MoboLink

Regulatory Approvals

  • Regulatory Approvals CE, FCC, IC, NCC, BSMI, VCCI, CCC, RoHS, CEC, BQB, GMS, N-Mark

What's In the Box

  • Standard Package Contents PA760
    USB cable
    Power supply

Accessories

  • Accessories ■ Hand Strap
    ■ Adapter (with US, EU, UK plugs)
    ■ USB type C cable
    ■ Tray Ejector tool
    ■ Bumper (by model selection)
    ■ 9H glass screen protector
    ■ 1-Slot Terminal & Battery Charging cradle
    ■ 1-Slot Ethernet cradle with USB host
    ■ 4-Slot Terminal Charging cradle
    ■ 4-Slot Ethernet cradle
    ■ 4-Slot battery charger
    ■ Standard gun grip
    ■ 2D long-range gun grip
    ■ UHF gun grip
    ■ Stylus & Coiled strap

Warranty

  • Warranty 1 Year

Accessories

Stylus

PN# 384896G

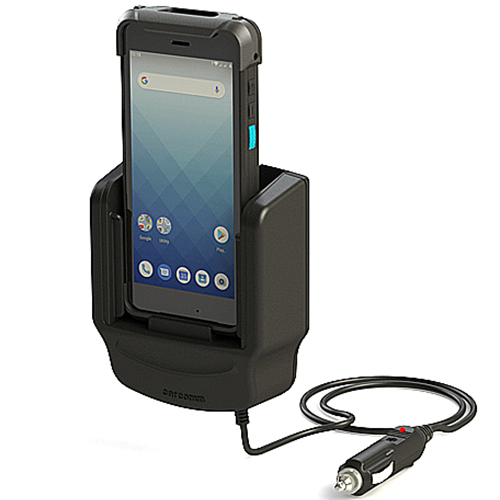

PA760 Vehicle Cradle Kit

PN# 5000-760001G

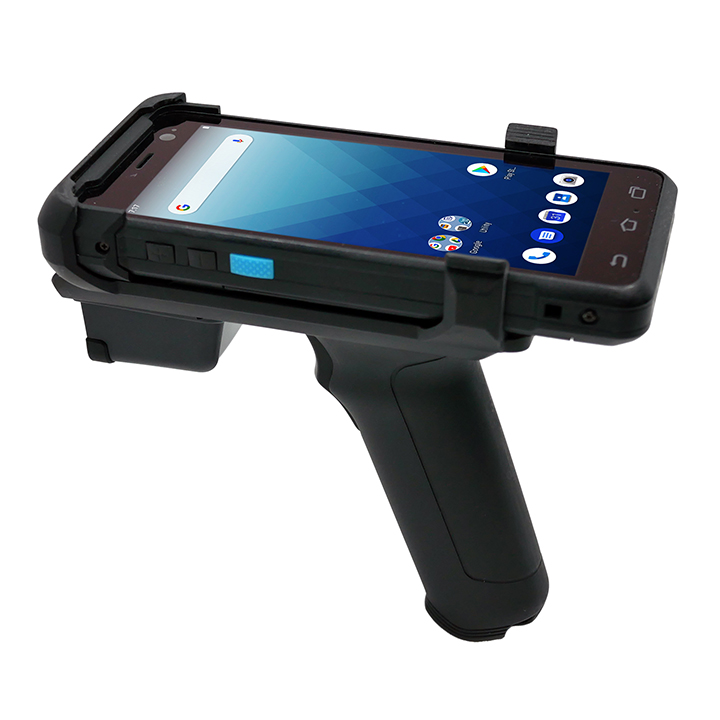

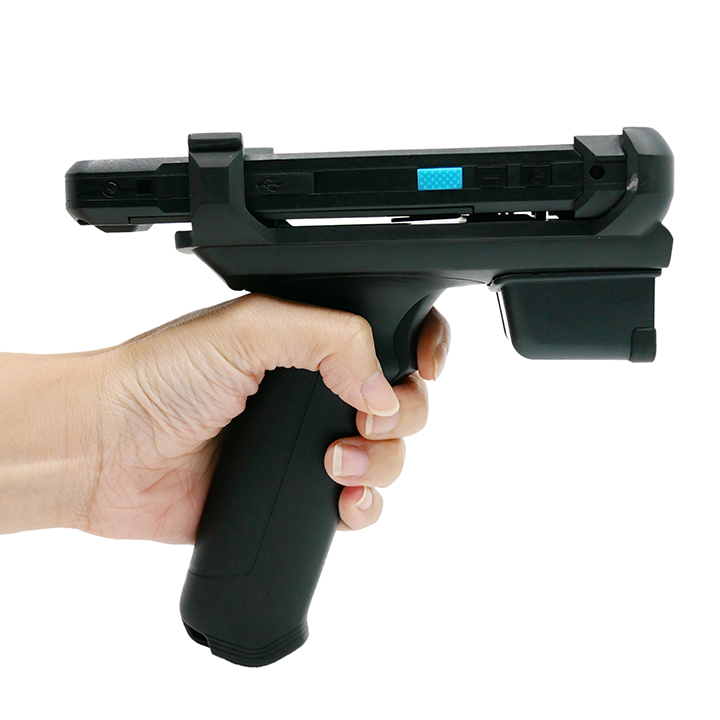

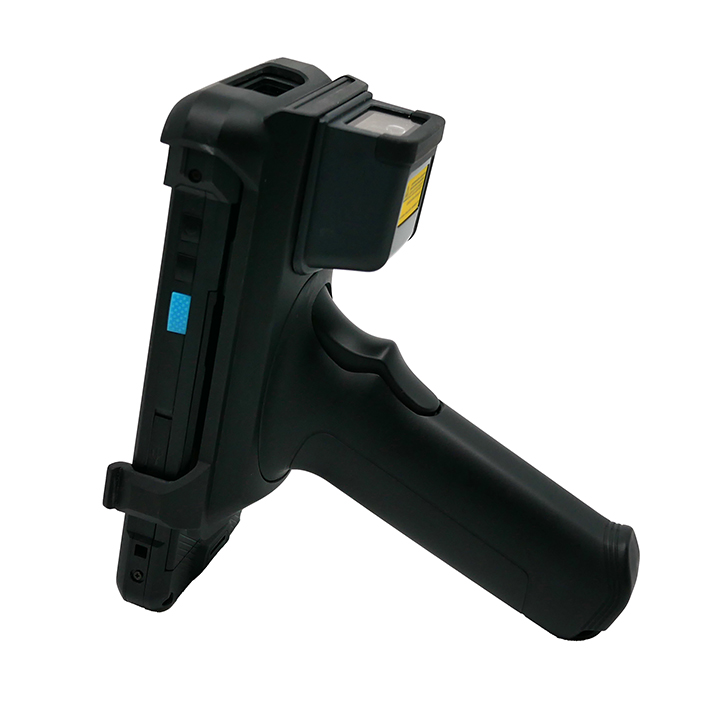

2D Long Range Gun Grip for PA760

5500-900065G

2D Long Range Gun Grip for PA760

5500-900065G

2D Long Range Gun Grip for PA760

5500-900065G

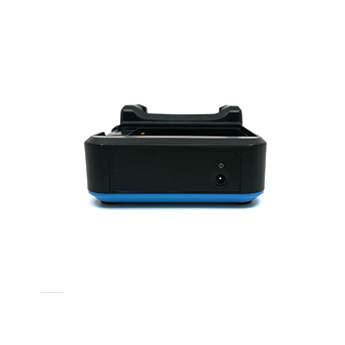

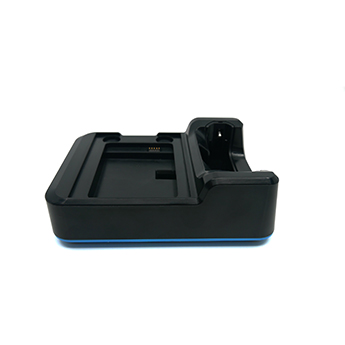

Single Slot Charging Cradle

PN# 5000-900058G

Single Slot Ethernet Cradle

PN# 5000-900059G

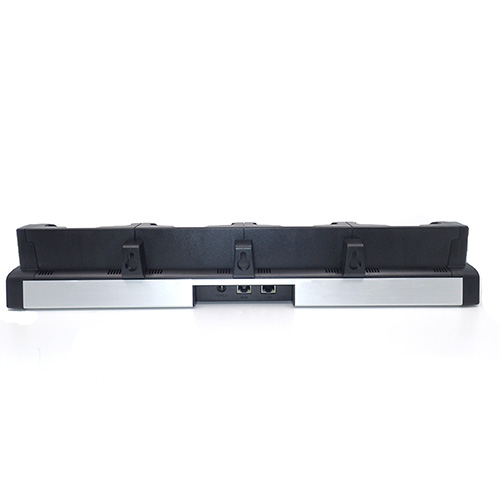

4-Slot Ethernet Cradle with Power Supply

PN# 5000-900062G

4-Slot Ethernet Cradle with Power Supply

PN# 5000-900062G

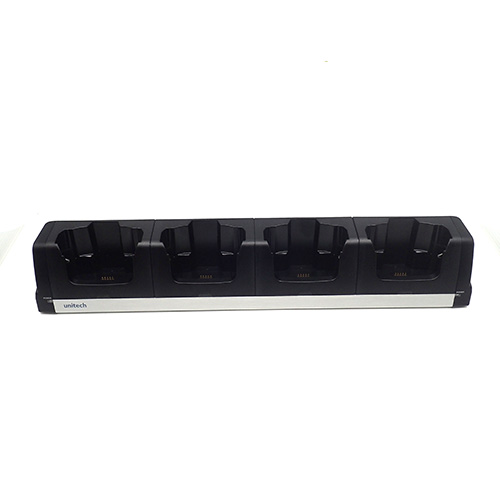

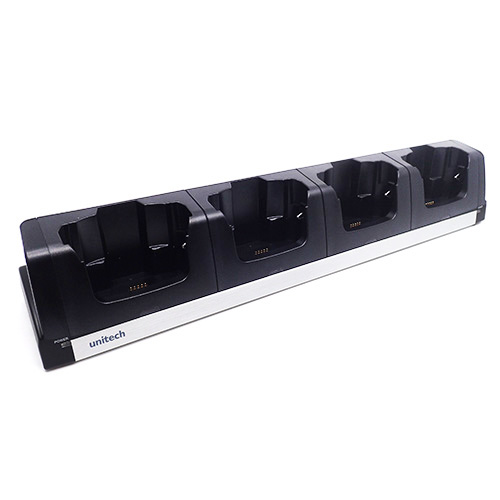

4-Slot Terminal Charging Cradle with Power Supply

PN# 5000-900060G

4-Slot Terminal Charging Cradle with Power Supply

PN# 5000-900060G

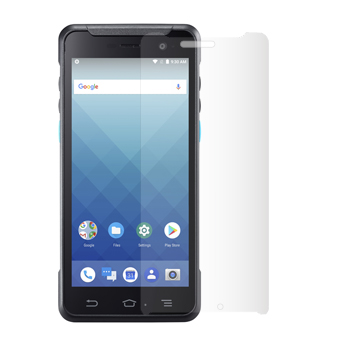

Screen Protector

PN# 401434G

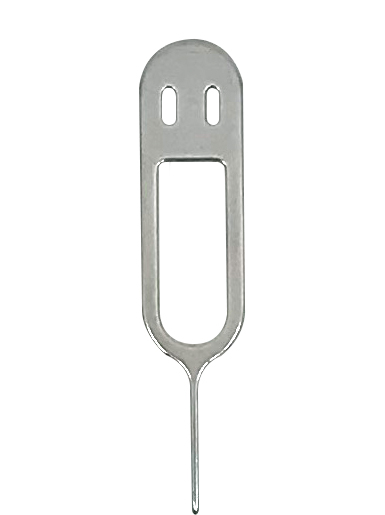

SIM Card Ejector Tool

PN# 1979-900002G

Battery with Cover 3.8V 4000mAh

PN# 1400-900052G

Extended Battery with Cover 3.8V 6000mAh

PN# 1400-900053G

Stylus Tether

PN# 383642G

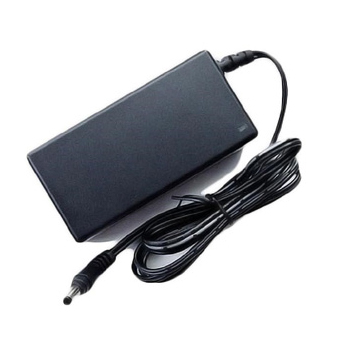

Power Supply for 4 slot cradle

PN# 1010-900032G

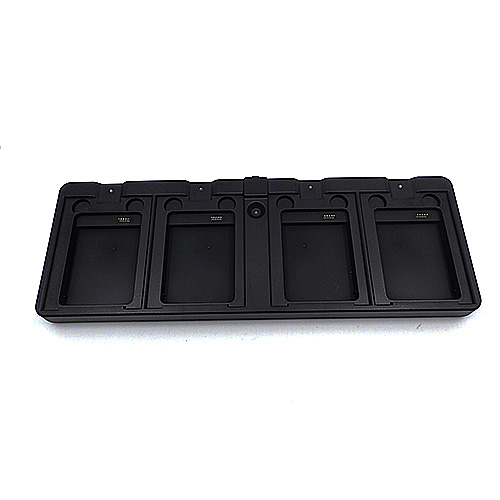

PA760 4-Slot Battery Charger with Power Supply & US Power Cord

5100-900023G

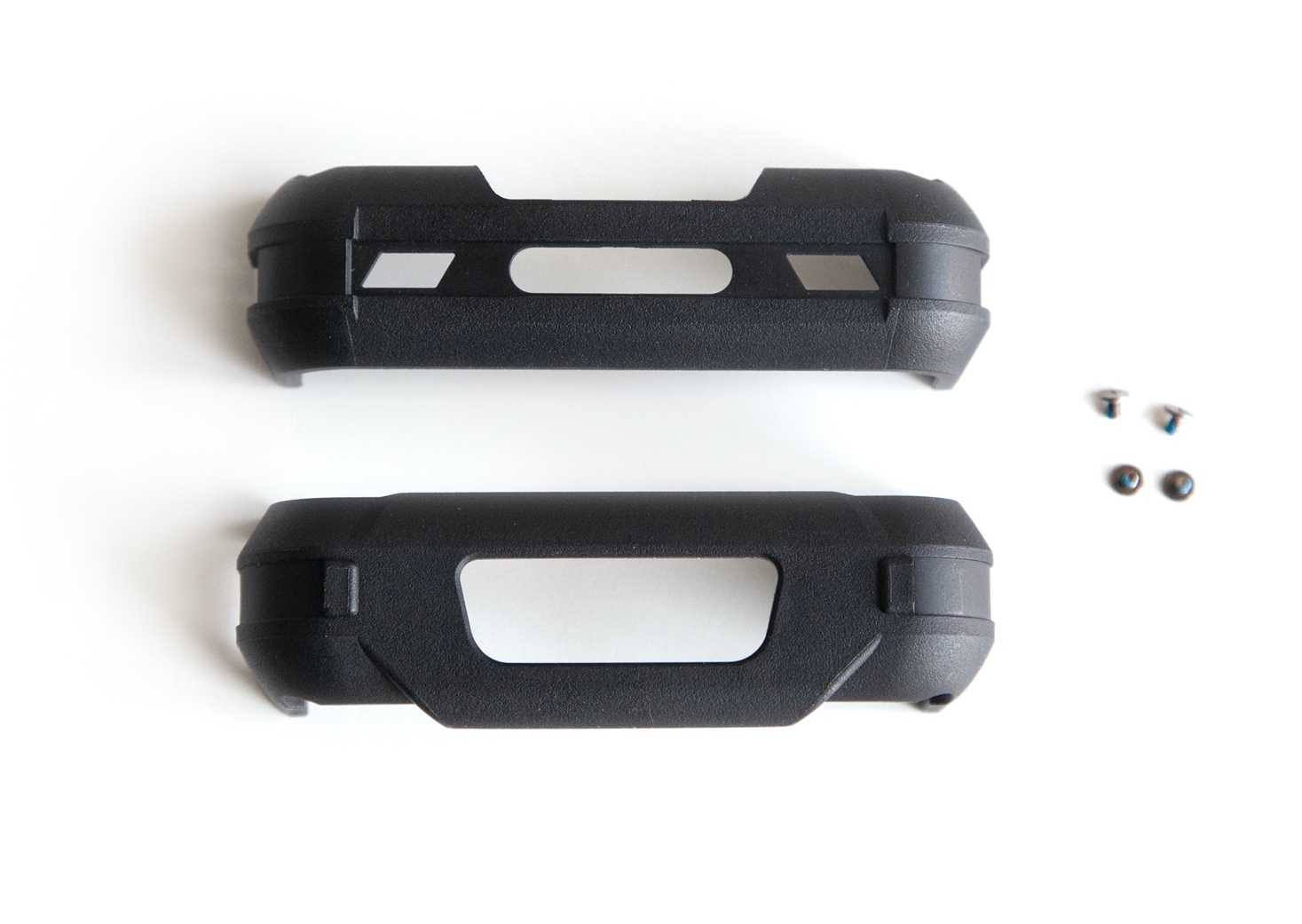

Bumper Protection Package with Screws for PA760

5400-900033G

UHF Gun Grip for PA760

5500-900088G

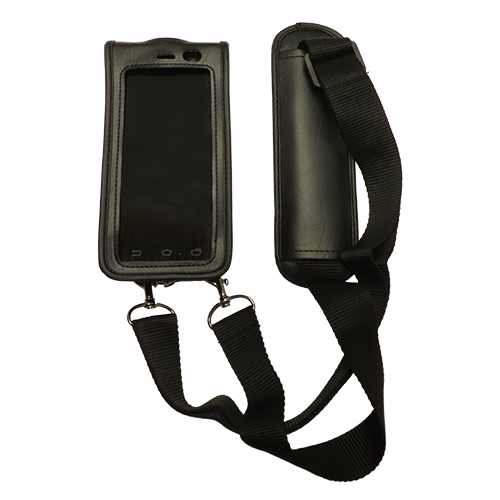

PA760 Holster (Hand/Belt Strap, Detachable Over-Shoulder Strap With Shoulder Pad)

PN# PA760-HOLSTER

PA760-WALFRMDG Comprehensive Coverage, 1 Year, 48-Hour Repair, 2-Day Shipping (not valid in Canada) (Use PN# for 1-Year Renewal)

PN# PA760-WALFRMDG-AZ1

PA760-WALFRMDG Comprehensive Coverage, 2 Years, 48-Hour Repair, 2-Day Shipping

PN# PA760-WALFRMDG-AZ2

PA760-WALFRMDG Comprehensive Coverage, 3 Years, 48-Hour Repair, 2-Day Shipping

PN# PA760-WALFRMDG-AZ3

PA760-WALFRMDG Comprehensive Coverage, 2 Years, 5-Day Repair, Ground Shipping

PN# PA760-WALFRMDG-Z2

PA760-WALFRMDG Comprehensive Coverage, 3 Years, 5-Day Repair, Ground Shipping

PN# PA760-WALFRMDG-Z3

PA760-WALFRMDG Comprehensive Coverage, 2 Years, 5-Day Repair, Ground Shipping

PN# PA760-WALFRMDG-Z1

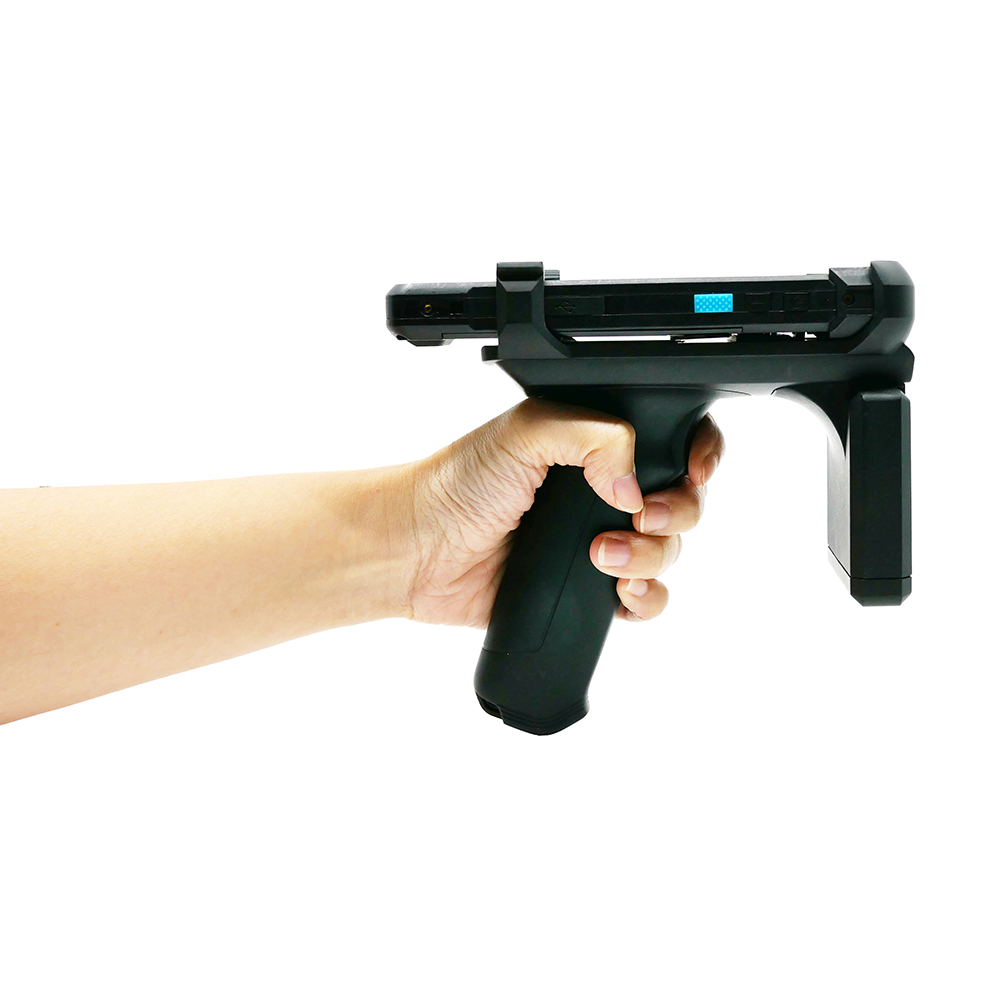

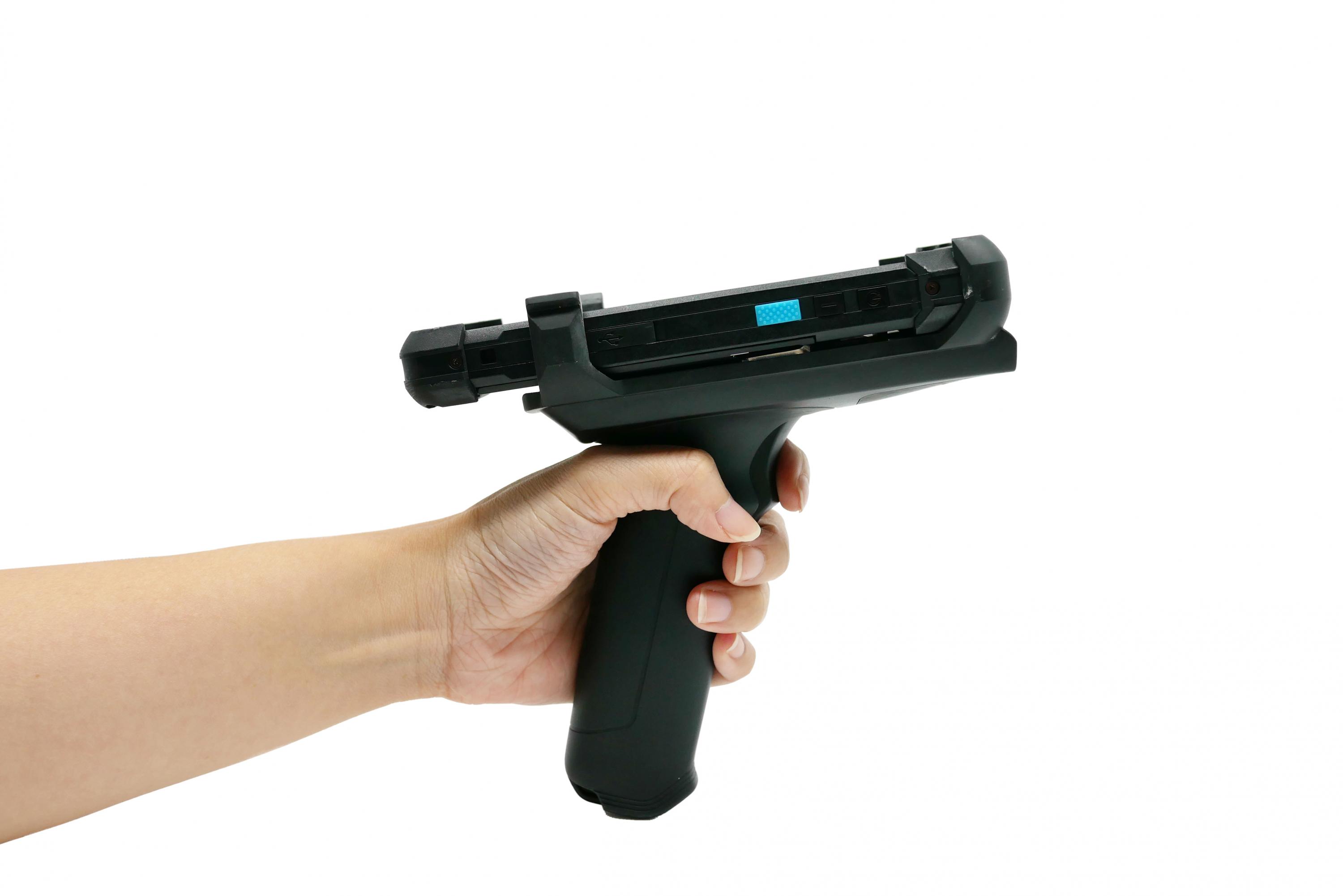

Standard Gun Grip for PA760

5500-900062G

Power Adapter (US)

PN# 1010-900058G

Mobolink Device Management, Mobolink Enterprise, Cloud, Yearly Fee

PN# SWMBL-ECC10400
