MS852+

Handheld Imager Scanner (2D)

Keep track of everything with the MS852+ barcode scanner. Lightweight and versatile, this 2D reader redefines productivity with one trigger pull.

• Reads all major 1D and 2D barcodes including printed and paper barcodes

• Long 10 million use lifecycle for a superior value

• Ultra tough device featuring IP42 and 6.8 foot drop specification

• Supports OPOS/JPOS

Delivering superior barcode scanning performance, the new Unitech MS852+ 2D barcode scanner is suitable for a wide range of markets and applications, from mobile ticketing in airports, point-of-sale system, or mobile coupons in retail store to industrial purpose manufacturing scanning.

Features

•  Megapixel barcode sensor that enhances the maximum compatibility
•  Support most 1D / 2D barcode on mobile screens, even damaged or poorly printed barcodes
•  Support OCR, Dot codes, and Digimarc barcodes
•  With excellent motion tolerance design suitable to read barcodes while moving
•  Long lifecycle trigger design: Up to 10,000,000 times.
•  Auto switching function between trigger mode and auto-sensing mode with its stand.
•  Ultra-rugged design: IP42 and 6.8-feet (2.1m) drop rated
•  Louder beep and brighter LED indicators for easily recognizing feedbacks







Superior Industrial Barcode Scanner



Specially designed for challenging work environments, the MS852+ offers a built in Megapixel barcode sensor that enhances maximum compatibility to capture most 1D / 2D barcodes on mobile screens, even damaged or poorly printed barcodes and special barcode symbologies such as OCR on passports, Dot codes on tires or cigarette packs, and Digimarc barcodes on special retail packages. The MS852+ also can automatically populate electronic forms in a single scan from US driver’s licenses or ID cards.  With its advanced barcode technology and durable design, the MS852+ handheld scanner is a highly reliable tool to increase productivity and efficiency.

Intuitive and User-Friendly



With excellent motion tolerance design, the MS852+ increases scan speed and operational effectiveness even while moving. Featuring an automatic switching function for best customer experience, the handheld device can be detected via the sensor on the stand to switch between auto-sensing mode and trigger mode. Equipped with a louder beep and brighter LED indicators, the MS852+ allows users to recognize feedback easily even in dark environments.

Ultra-Durability



Tough enough to sustain a 6.8 foot (2.1 meter) drop to concrete, the MS852+ is integrated with a rugged IP42 design for protection against dust and moisture.  Moreover, the built-in long lifecycle trigger of 10 million times guarantees continuous productivity and reliability. This scanner can be used in the most practical way depending on the scanning task in various solutions in retail, logistics, manufacturing, hospitality, and government.

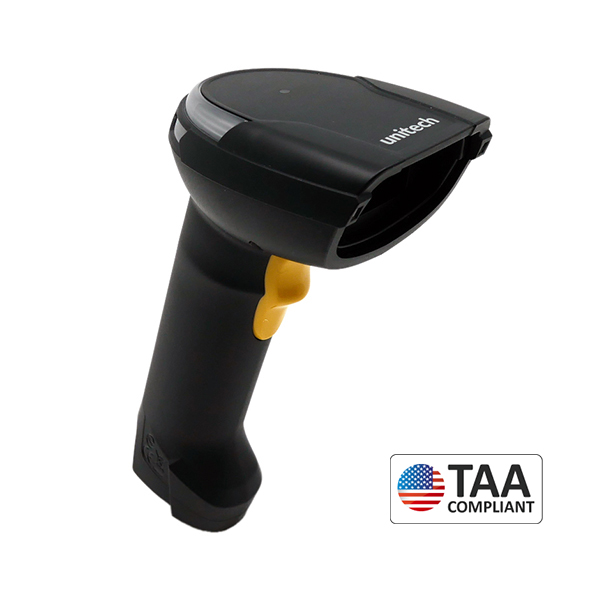

TAA Compliant Barcode Scanners



Learn more about Unitech TAA Compliant Product List :


Wired Barcode Scanners

- MS852

- MS852+

- MS851

- MS852 N
- MS852 LR

- MS282e

- MS340

- MS250


Wireless Barcode Scanners

- MS851B

- MS852B

- MS852B+

- MS852B LR

- MS842P DPM

- MS842P

- MS840P



Wearable Scanners

- MS622

- MS652+
- MS650



Pocket Scanners

- MS925HC

- MS926
- MS916

- MS912+

- MS910+



ESD Safe Barcode Scanners

- MS852+ ESD

- MS851 ESD

- MS851B ESD

- MS852B+ ESD

- MS842P ESD

- MS840P ESD


Anti-microbial 2D barcode scanner

- MS852B+ HC

- MS852+ HC

- MS925 HC

Specification

Model Numbers

  • SKUs MS852-2UCB00-SG:
    MS852, 2D Imager, Standard Range, USB Cable

    MS852-VUCB00-OG:
    MS852 Plus, 2D, Honeywell N6703, Standard Range, USB, Auto-Sensing, No Auto-Sensing Stand

    MS852-ZUCB00-SG:
    MS852 Plus, 2D High Density (Honeywell N6703), USB interface, with USB cable

Optical & Performance

  • Sensor 1280 X 800 pixels global shutter
  • Aiming Element 0–100,000 lux (total darkness to bright sunlight)
  • Skew Angle ±45⁰
  • Pitch Angle Sensor ±45⁰
  • Printing Contrast Scale 35% minimum print contrast ratio
  • Depth of Field (DOF PCS=80%)
    -------------------------------------------------------
    SR | Near | Far
    100% U.P.C. | 55mm | 280 mm
    Code 39, 5 mil | 61 mm | 130 mm
    Code 39, 20 mil | 60 mm | 380 mm
    PDF417, 6.7 mil | 60 mm | 125 mm
    Data Matrix, 10 mil | 60 mm | 130 mm
    QR, 20 mil | 50 mm | 230 mm
    -------------------------------------------------------

Mechanical

  • Dimension 3.4 x 2.8 x 6.9 in. (L x W H)
    87.8 x 71.6 x 177.7 mm
  • Weight 5.8 oz. (160 g) without cable
  • Trigger Switch Life 10 million times

Functionality

  • Operation Mode Trigger Mode, Presentation Mode

Symbologies

  • 1D Barcodes Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A,
    UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data bar
  • 2D Barcodes 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417

    2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible(Han Xin) code
    Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet

Electrical

  • Operation Voltage DC 5V
  • Current Consumption Operation mode: 400mA , Standby mode: 160mA

Environmental

  • ESD Protection Functional after 8K Contact and 12K Air
  • Mechanical Shock 6.8 feet (1.8 m) to concrete
  • Operating Temperature 32°F to 122°F (0°C to 50°C)
  • Storage Temperature 4°F to 158°F (-20°C to 70°C)
  • Relative Humidity 95% relative humidity
  • IP Rating IP42

Accessories

  • Items Hand-free stand
    Interface cable

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI

What comes in the box

  • The standard package contents ■ MS852+ Scanner
    ■ Interface cable

Warranty

  • Main Unit 60 months

Accessories

USB Cable

PN#1550-900127G

RS232 Cable

PN#1550-900060G

Hand Free Stand (Auto-Switching)

PN#5200-900010G

Hands-Free Stand

PN#5200-900009G

MS852-ZUCL00 Comprehensive Coverage, 3 Years, 48-Hour Repair, 2-Day Shipping (not valid in Canada)

MS852-ZUCL00-HG-AZ3

MS852-ZUCL00 Comprehensive Coverage, 3 Years, 5-Day Repair, Ground Shipping

MS852-ZUCL00-HG-Z3

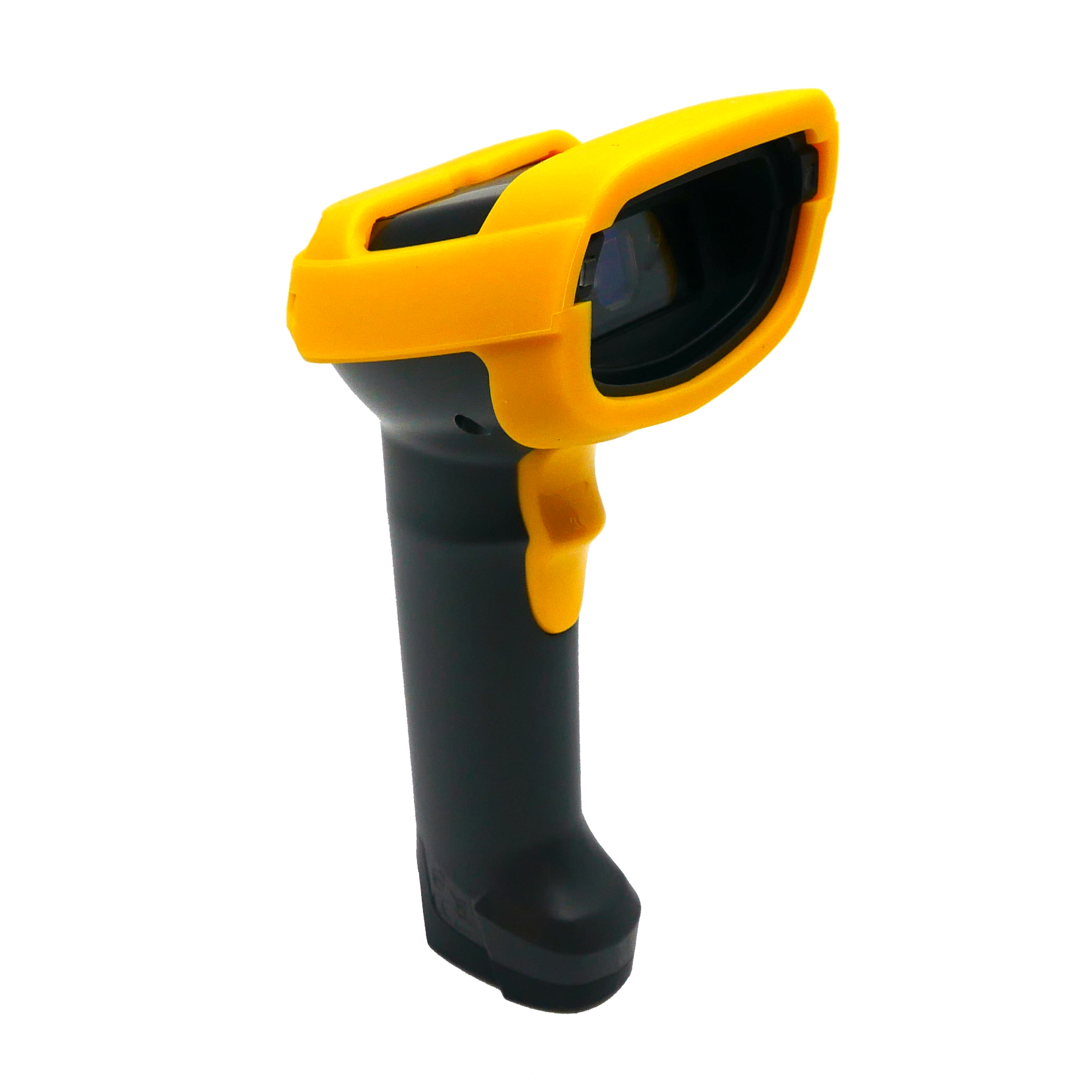

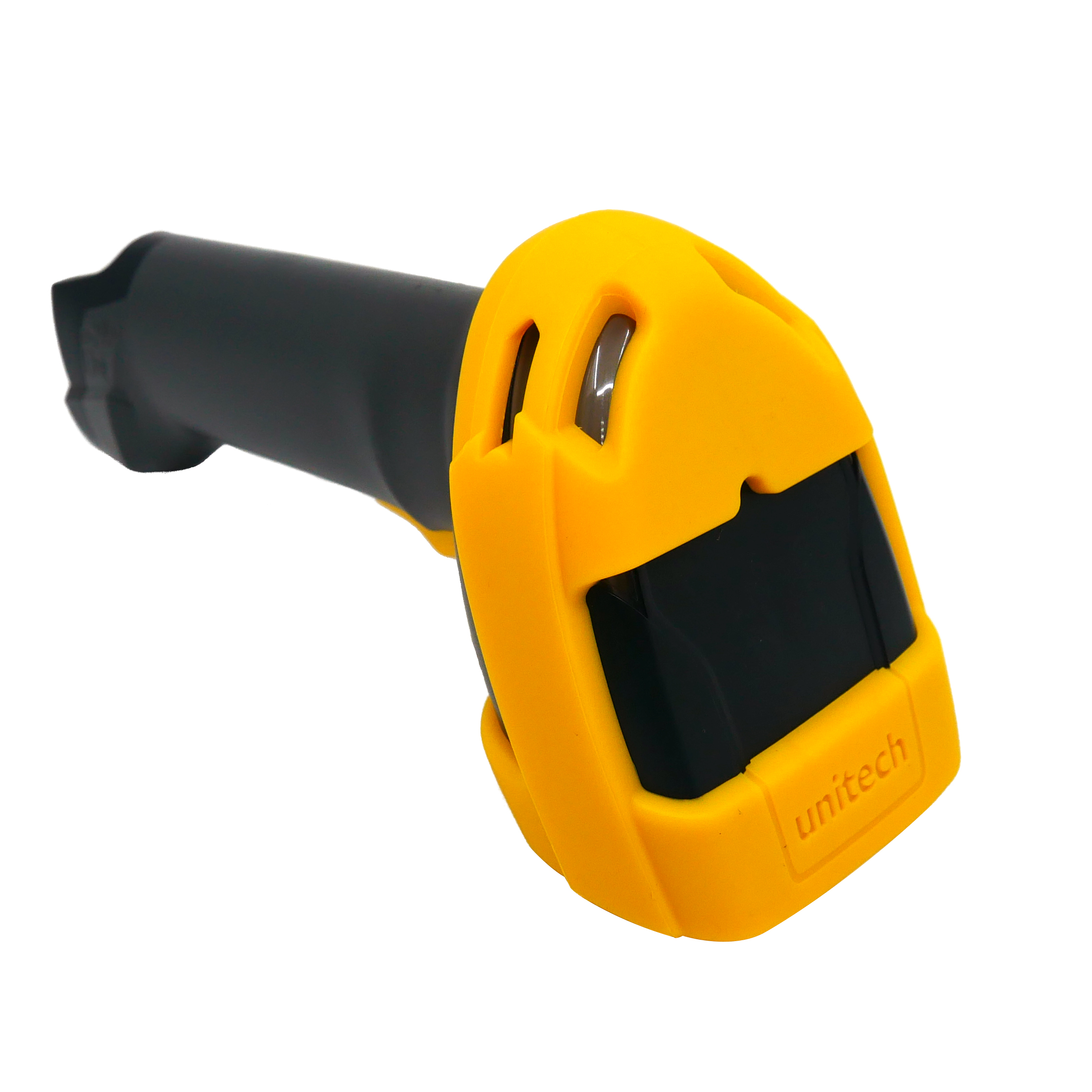

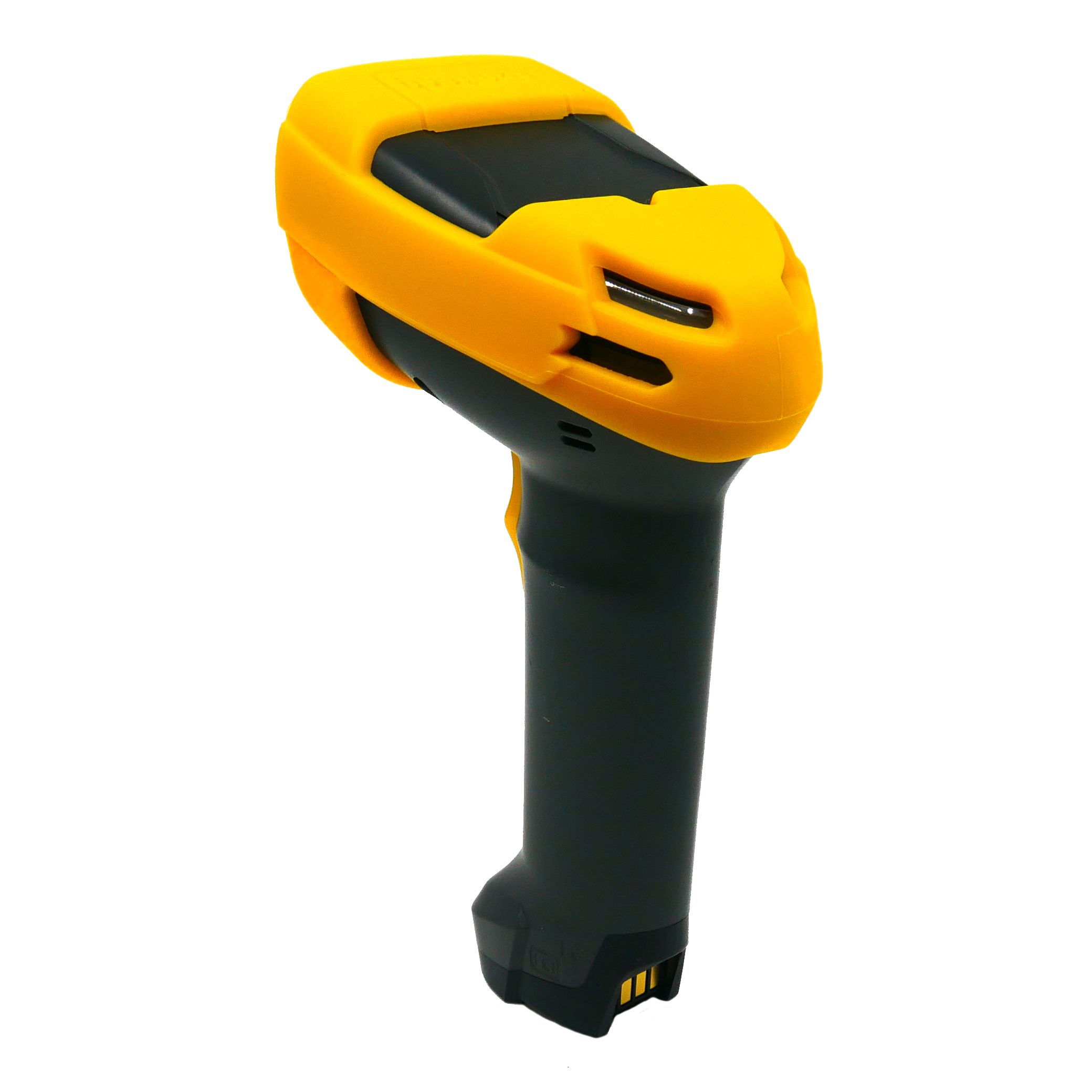

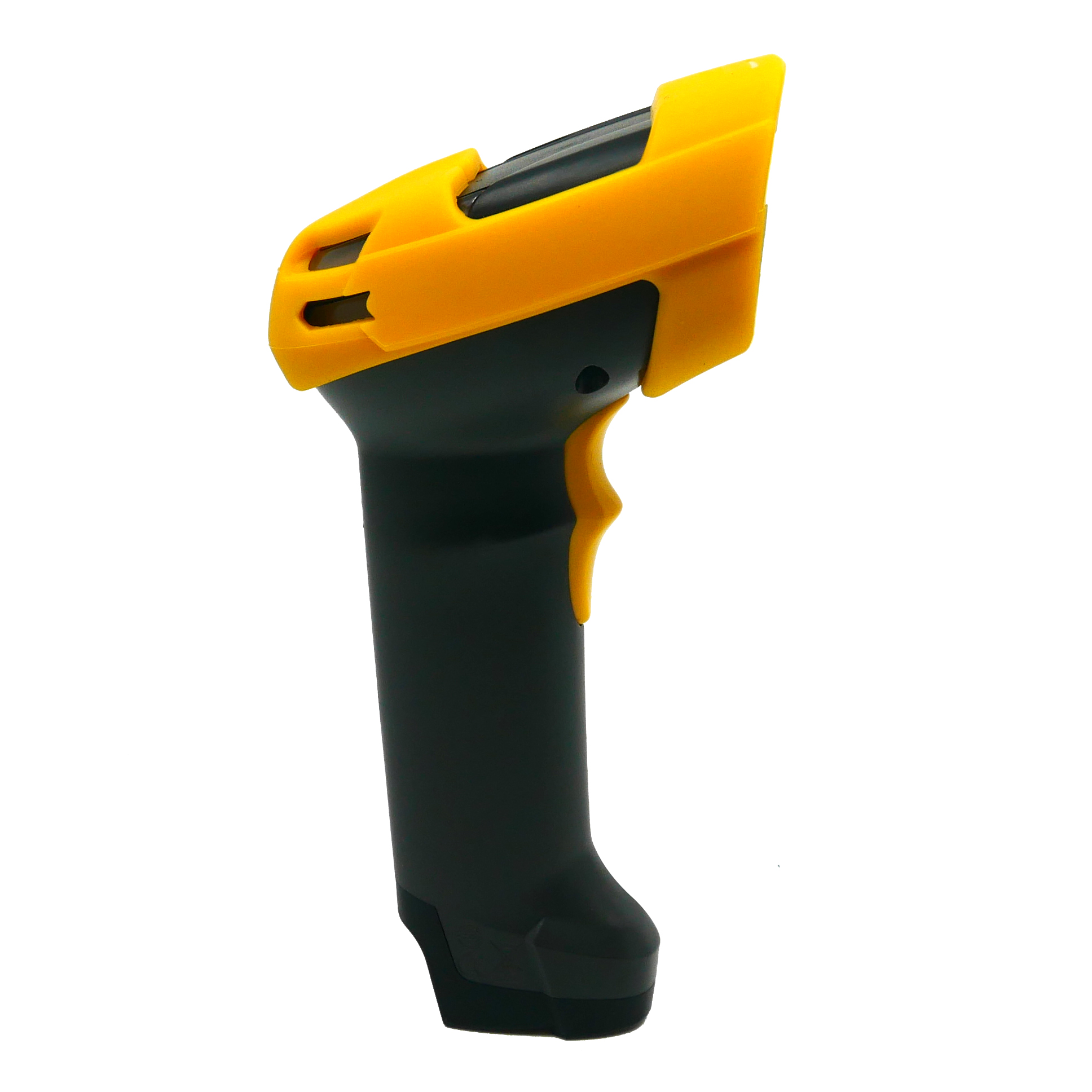

Protective case for MS852 Series

PN# 386124G

Protective case for MS852 Series

PN# 386124G

Protective case for MS852 Series

PN# 386124G

Protective case for MS852 Series

PN# 386124G

MS852-VUCB00 Comprehensive Coverage, 3 Years, 48-Hour Repair, 2-Day Shipping (not valid in Canada)

MS852-VUCB00-OG-AZ3

MS852-VUCB00 Comprehensive Coverage, 3 Years, 5-Day Repair, Ground Shipping

MS852-VUCB00-OG-Z3

MS852-VUCB0S Comprehensive Coverage, 3 Years, 48-Hour Repair, 2-Day Shipping (not valid in Canada)

MS852-VUCB0S-OG-AZ3

MS852-VUCB0S Comprehensive Coverage, 3 Years, 5-Day Repair, Ground Shipping

MS852-VUCB0S-OG-Z3

Desktop Stand For MS851 and MS852

PN# 5200-900011G
