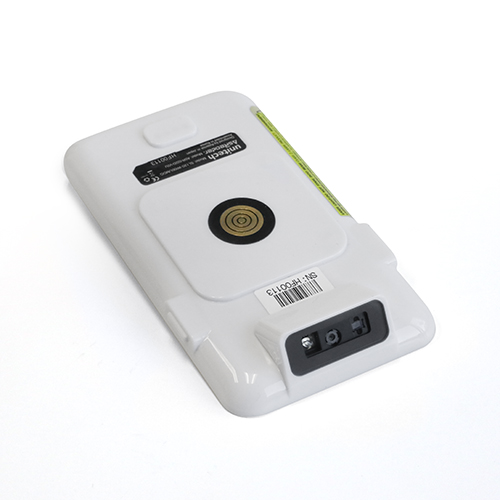

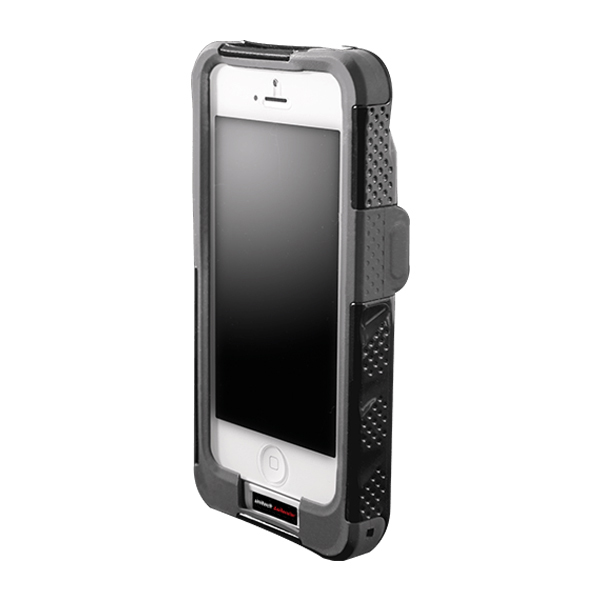

SL120 iPhone Scanner Sled

Rugged Barcode Sled (iPhone)

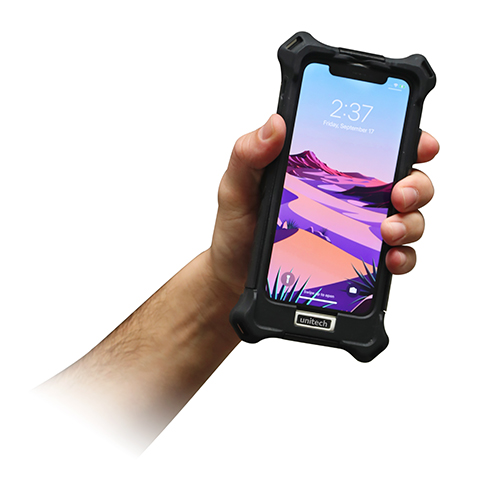

Bring your iPhone to the workplace with Unitech's SL120. A unique sled designed for iPhones converts your smartphone into a smart reader made for warehousing, retail, inventory, and asset tracking. Cases will fit iPhones 6S Plus, 7 Plus, 8 Plus, 11, and XR. iPhones SE, 12 & 12 Mini, 13, 13 Mini, 13 Pro & 13 Pro Max sleds available by project. Contact a Unitech representative for more information.

• Lightning cable connection offers more reliable and convenient connection than Bluetooth pairing

• 5-foot drop rated, optional Strong Case provides 10-foot drop protection

• No fuss, no plug charging! Magnetic Magconn charging system fuels sled and iOS devices simultaneously

Do more. The SL120 combines form and function to tackle the most grueling scan applications. Non-slip housing, rugged casing, and specially designed cutouts to provide unhindered access to all iPhone buttons and camera.



Features

• The SL120's Lightning cable connection offers direct connection and more reliability than Bluetooth

• MFi certification ensures product runs according to Apple product standards of quality

• Sled design does not interfere with camera or other device functions

• Magconn charging system provides simultaneous and simple charging

• 5-foot drop rating (10-feet with optional Strong Case) and IP54 environmental seal

Specification

Model Numbers

  • SKUs SL120-WI00UMDG
    (SL120 sled, 2D Honeywell N6603, iOS, direct Lightning connection, Unitech standard, with battery)

Optical & Performance

  • Sensor CMOS sensor with global shutter and 844 x 640 pixel resolution
  • Illumination White LED (exempt risk group)

    650 nm high-visibility red laser (class 2 laser safety)
  • Skew Angle Tilt: 360°, Pitch: ± 45, Skew: ± 60°
  • Pitch Angle ±45°
  • Depth of Field Symbology/X-Dim Typical Range*
    100% U.P.C. 46 mm – 419 mm (1.8” – 16.5”)
    5 mil Code 39 64 mm – 163 mm (2.5" – 6.4")
    10 mil Code 39 28 mm – 338 mm (1.1” – 13.3”)
    6.7 mil PDF417 46 mm – 185 mm (1.8" – 7.3")
    10 mil Data Matrix 53 mm – 203 mm (2.1” – 8.0”)

Mechanical

  • Dimension 2.51" x 0.38" x 4.61" (63.7 x 9.7 x 117.2mm) *excluding protrusions, case, and phone
  • Weight 4.5 oz *excluding phone

Buttons

  • Trigger 2 Buttons (Left/Right)
    Scanner can also be triggered by SDK

Functionality

  • Operation Mode Trigger Mode, Presentation Mode

Symbologies

  • 1D Barcodes UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code
    32, Code 93, Codabar/NW7, Interleaved 2 of 5,
    Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post
  • 2D Barcodes 2D Stacked: PDF417, MicroPDF417, GS1 Composite
    2D Matrix: Aztec Code, Data Matrix, QR Code, Micro QR Code,
    MaxiCode, Han Xin Code Postal: Intelligent Mail Barcode, Postal4i, Australian Post, British Post, Canadian Post, Japanese Post,
    Netherlands (KIX) Post, Postnet, Planet Code OCR Option: OCR-A,
    OCR-B, E13B (MICR)

I/O Interfaces

  • Connection Lightning Connector

Durability

  • Drop Specification 1.5m (5 feet) to concrete
    3.0m (10 feet) to concrete with custom strong case
  • Sealing IP54

Environmental

  • Operating Temperature 14 to 113 °F (-10~45 °C)
  • Storage Temperature -4 to 140 °F (-20~60 °C)
  • Relative Humidity 95%

Power Source

  • Main Battery Built-in rechargeable lithium-ion battery 700 mAh
    Withstands 34,000 scans scanning once per second for 9.4 hours

Regulatory Approvals

  • Regulatory Approvals FCC,CE,RoHS
  • MFi Certification Apple MFi Certification

Supported Devices

  • Devices iPhones 11 / XR, SE2/8/7/6, 8Plus/7Plus/6sPlus/6Plus, SE1/5s/5, iPod touch7th/6th/5th, iPad mini 3/2/1, Air2/Pro9.7
  • iOS Versions iOS8.1.1 and higher (up to and including current iOS13.5.1), excluding iOS9.2.x

What comes in the box

  • The standard package contents Magconn™ cable / Earphone extension cable / User manual

Accessories

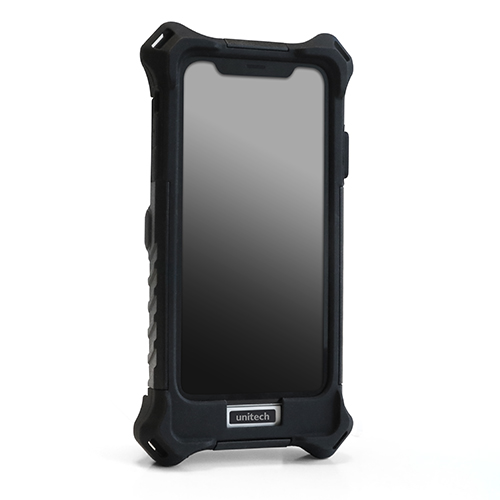

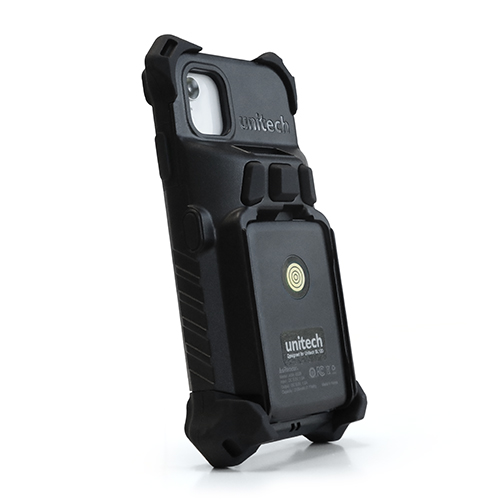

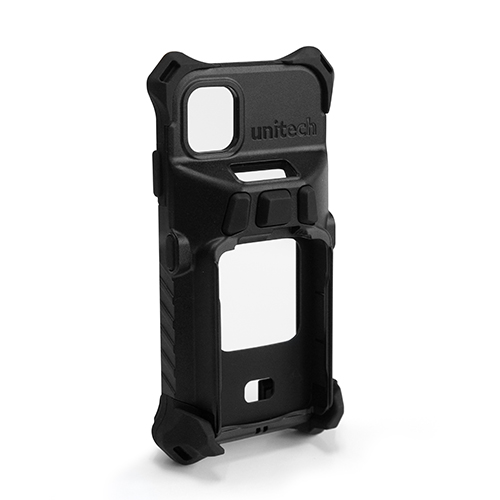

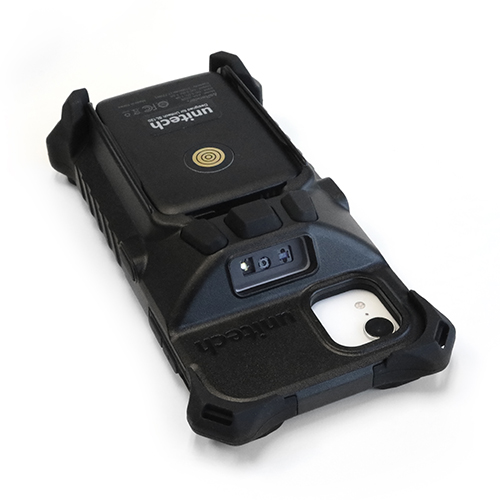

SL120 strong case for iPhone 7Plus

PN# SL120-SCPC7PLUS

SL120 strong case for iPhone 10XR

PN# SL120-SCPCXR

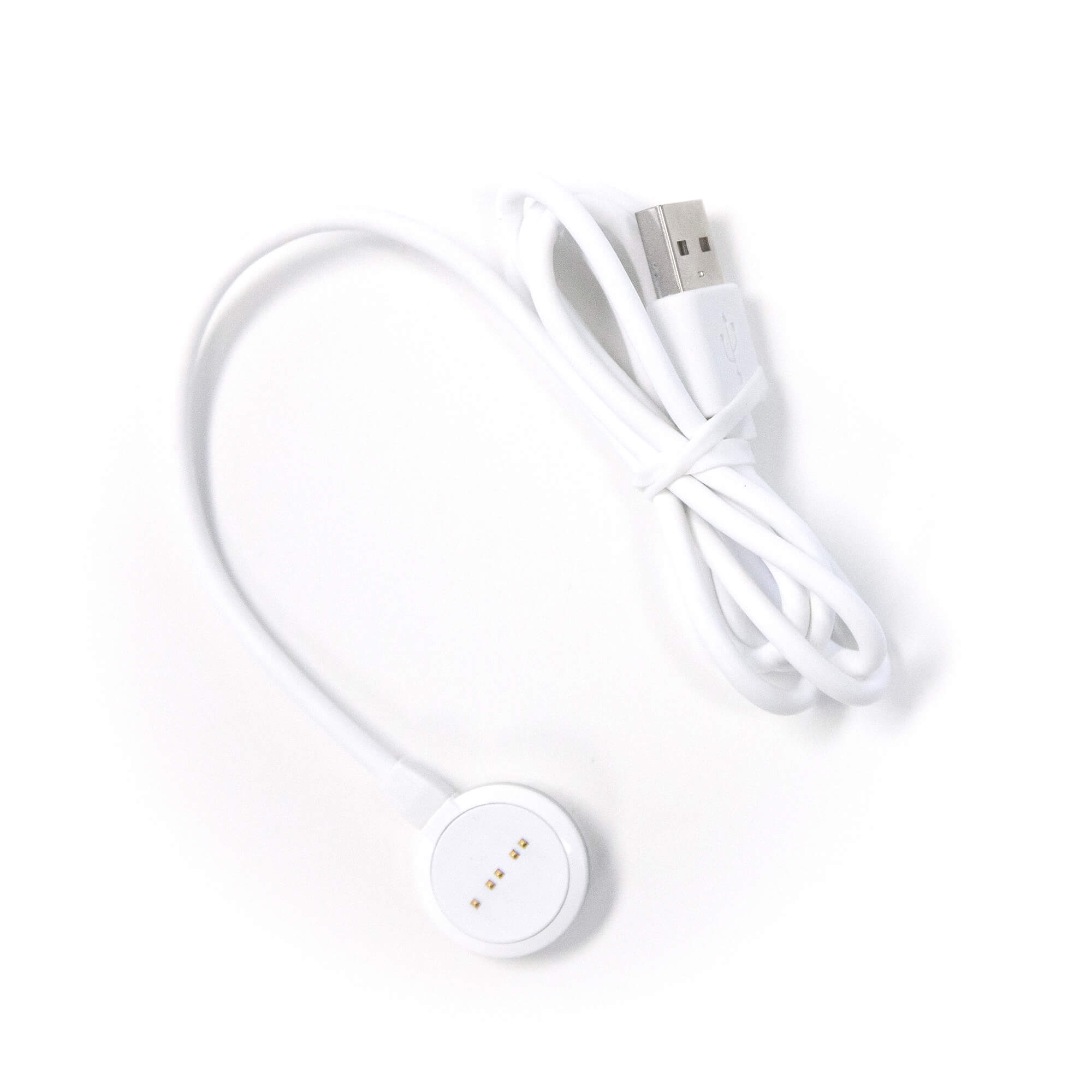

SL120 charging cable

PN# SL120-Cable

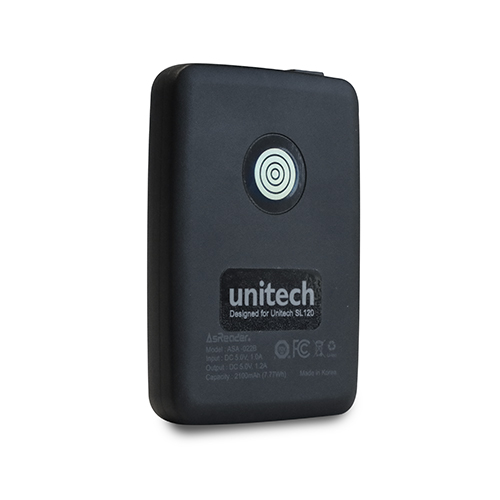

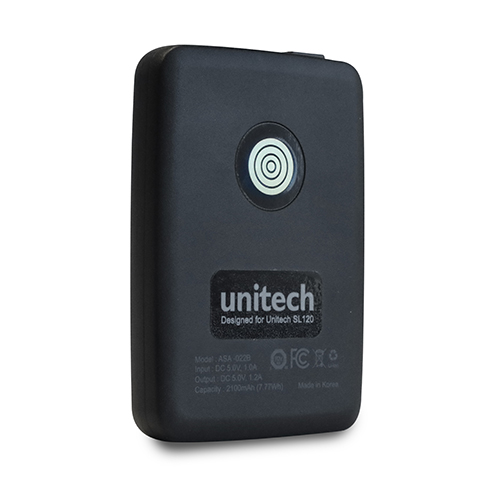

SL120 External Battery Pack

PN# SL120-Battery-B

Download

Marketing Material

Technical Material

  • icon-download Barcode Setting Manual
    Manual to change settings on barcode scanner (i.e. enabling/disabling symbologies, inter-character/scan delays, factory default, etc)
