Powered by Android 12 OS with GMS Certified, EA630 Plus is a 6” rugged smartphone.

Android 12
GMS certified
WLAN
Bluetooth
6 inch screen
2D
NFC
16million pixel
5Miilion Pixel
IP65
1.2M
Retail
Hospitality
Field Service

The unitech EA630Plus continues progressing with an advanced Android12 system to optimize high-performance 2D barcode experience,accelerating and improving labor productivity tremendously than ever. The full touch 6” Gorilla screen offers clear visibility up to 80% screen-to-body ratio. A bigger 4G/64G mobile storage mitigates the possibility of data missed. The Ultra Slim Rugged Smartphone drives up stock management more efficiently in the retail, hospitality, and health service industries.

Features

• 6 inch rugged smartphone with a screen-to-body ratio of over 80%
• Android 12 OS with GMS Certification
• All-In-One functionality: 2D Imager, NFC, 5MP front camera, and 16MP rear camera
• Rugged: Corning® Gorilla® Glass 5 touch display, IP65 rated, and 1.2M drop (1.5M with boot case)
• Long-lasting removable 4000mAh smart battery
• Dual bands WLAN with fast roaming / 4G LTE / Bluetooth® 5
• Support unitech software solutions, SDKs, MoboLink, and MDM solutions

Upgrade to Android 12 OS with GMS Certified

• Advanced 64-bit Octa-core CPU (2 GHz) with 4 GB RAM / 64 GB Flash
•Google Certification: Android Compatibility Test Suite (CTS ) / Google Mobile Service（GMS)


Android 12 Operation System	GMS Certification	Octa-Core CPU	4 GB RAM 64 GB Flash
Note: Learn more about Android Security bulletin information


High Performance 2D Scanner

The EA630Plus is built-in a Powerful 2D scanning engine featuring a laser aimer that enables the reading of high-resolution codes (down to 3 mils on Code 39 1D barcode) and it is available to read EAN 100% at 541 mm distance (typical read range). Moreover, it enhances the visibility to capture most 1D / 2D barcodes even in low light or bright light environments.


Powerful Laser Barcode Scanner Aimer		Low Light Visible

High Screen to Body Ratios

The EA630Plus rugged smartphone has a 6-inch 18:9 display as offering 80% screen to body ratio. It also provides the 450nits brightness for easy viewing in outdoor environment.



6" Display	18:9 Ratio	80 % Screen to body ratio	450 nits Brightness	Gorilla® Glass 5 Touch Display


Specially Designed for Portability

The EA630Plus is combined with a compact and durable design that makes it an ideal tool to increase higher efficiency for applications in the retail, hospitality, and healthcare service.


13.9mm Slim design		232g Lightweight



	Long-Lasting Battery Life

	The EA630 Plus' powerful 4000mAh battery is designed to have up to 14 hours operating time, giving you the flexibility to work through the day.


	Up to 14 hours Operating Time			4000 mAh Battery

Durable Design

It enhances the industrial durable protection with features including IP65 dustproof, waterproof and 1.2 meters resistant to fall protection. (1.5 meters with boot case))

IP65
Certification

1.2 m

Drop Protection

1.5 m

Drop Protection
(With Boot case)


			A Data Collector for All Your Need

			EA630 Plus not only fulfills superior 1D/2D scanning performance but surpasses end-user expectations. A wide series of practical features, including an NFC reader/writer, GPS, and a high-resolution 5MP front and 16MP rear camera, further strengthen traceability and functionality in a compact device. Featuring the fastest data speeds with fast roaming function on dual bands WLAN, 4G LTE connectivity, and Bluetooth® 5, the EA630 Plus bridges the gap between associates to ensure instant messages and alerts are received within teams.


1D/2D Barcode Scanning	16 MP Rear Camera	4G LTE	WLAN Dual Bands	Bluetooth® 5	NFC RFID reader / Writer


Ergonomic Gun Grip Design

It allows users to add values to your device with the unique UHF RFID gun grip or 2D long-range gun grip (optional). Just simply attaches it and it delivers a convenient way to support standard barcode scanning, RFID scanning or 2D long-range scanning in inventory tracking and taking solutions.

------- Unique Gun Grips for Optional Choice -------
Standard Easy to hold	2D LR - 25 m distance	RFID - 6 m distance - 750 tags / second


SmartPA: Better Audio Output

SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer.The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.


Power Amplifier Better Audio Output			Built-in Algorithm Lessen Circuit / Temperature Damage

Operation System

OS Android 12
GMS certified GMS certified
CPU 2GHz, Qualcomm® Snapdragon™ 662
64bits Octa-core Processor
Memory 4 GB RAM / 64 GB Flash
Languages support Multiple languages

Display

Screen Size 6”, 18:9 Full-HD (2160 x 1080) color screen (450nits)
Touchpanel Gorilla® Glass 5 with 5-point Capacitive Touch Panel, compatible with gloves and supports wet resistance

Buttons / Keypad

Buttons / Keypad 5 keys- Programmable function button; dual dedicated scan buttons; volume
up/down buttons; on/off button

Camera

Camera 5MP front camera
16 MP Rear with auto-focus function and Flash Light

Indicator Type

Type LED, Speaker, Vibrator

Symbologies

1D Barcodes UPC/EAN/JAN, GS1 DataBar, Code 39, Code
128, Code 11, Code 93, Codabar/NW7, Interleaved 2
of 5, Matrix 2 of 5, MSI, Trioptic, Code 32
2D Barcodes PDF417, MicroPDF417, GS1 Composite , Aztec Code,
Data Matrix, QR Code, Micro QR Code, MaxiCode, Han
Xin Code, DOT Code

RFID

HF RFID Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693, Mifare, Felica(ISO/IEC18092)
compliance

Communication

Bluetooth® Bluetooth® 5 supported
WLAN Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz
Support 802.11d/e/h/i/k/r/v, fast roaming
Compliant with WEP, WPA and IEEE 802.11i WPA2
WWAN GSM: 850,900,1800,1900 MHz
WCDMA: Band 1, Band 2, Band 5, Band 8
LTE:FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B28)
TDD-LTE (B38/B39/B40/B41)
GPS AGPS, GPS, GLONASS, Beidou, Galileo
Sensors Gyroscope, Light sensor, e-Compass, Proximity sensor,
Accelerometer sensor

I/O Interfaces

USB USB 3.1 (type-C) support USB OTG
Support Ethernet/USB-Host via cradle
POGO PIN PogoPin backside: Support Gun-grip, UHF reader
PogoPin bottom: Charging via cradle
SIM Slot Dual nano SIM Slot
Expansion Slot MicroSD, up to 256 GB
Audio One speaker with Smart PA (95±3dB @ 10cm), One receiver ,
Dual noise-cancelling microphones

Enclosure

Dimensions ( W x D x H ) 157mm x 76.4mm x 13.9mm ( H x W x D )
Weight 232g

Durability

Drop Specification 1.2m , 1.5m with boot case
Sealing IP65
Vibration and Shock test MIL-STD 810G
Tumble test MIL-STD 810G

Environmental

Operating temperature -10°C to 50°C
Storage temperature - 30°C to 70°C (without battery)
Charging temperature 0°C to 45°C
Relative Humidity 10% ~ 90% (Non-Condensing)

Power Source

Main battery 3.85V, 4000mAH Li-polymer battery

Regulatory Approvals

Regulatory Approvals CE, FCC, NCC, VCCI, TELEC, CCC, SRRC, RoHS, CEC, BQB, N-Mark

Accessories

Accessories ■ Stylus
■ Hand strap

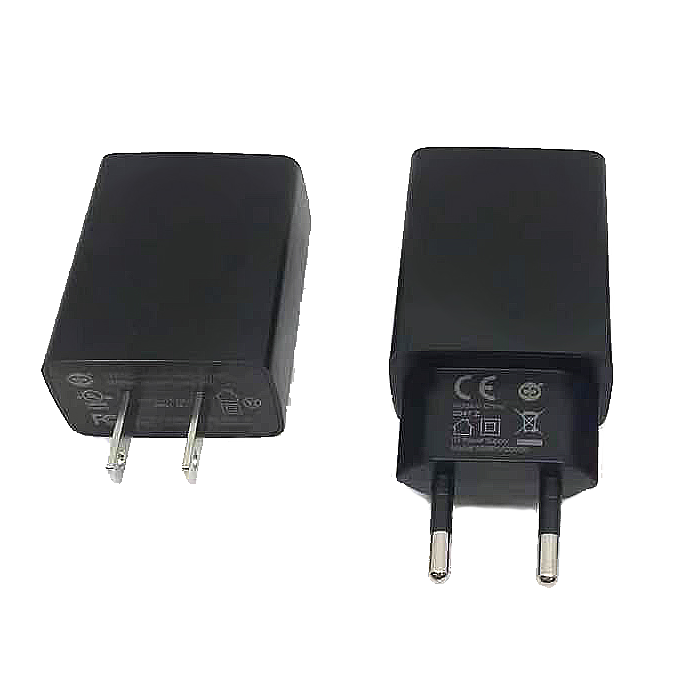

■ Quick charge adaptor (via USB type-C cable)
■ USB 3.0 type-C cable
■ 9H glass screen protector
■ Gun grip: standard/ UHF
■ Single Slot Charging cradle
■ Single Slot USB cradle
■ Single Slot Ethernet cradle
■ 4 Slots Ethernet cradle
■ 4 Slots Terminal Charging cradle
