MS588
Fixed 2D Barcode Scanner

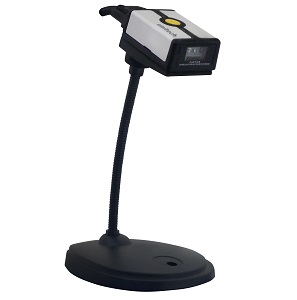

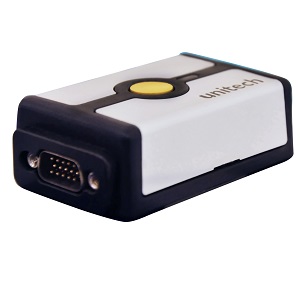

Unitech MS588 is the first industrial fixed 2D barcode scanner to join the Unitech scanner product range. MS588 is equipped with highly reliable and speedy decoding scan engine.
-
2D
-
ESD(Electrostatic Discharge)
-
RS232
-
USB
-
IP53
-
1.5M
-
Manufacturing
The unitech MS588 has excellent reading performance on low to high resolution barcodes, low print contrast barcodes and various types of surface materials such as reflective paper/sticker and mobile /computer screen displays.
It supports USB and RS232 interface; meeting your requirements across various fixated or mobile platforms. It supports Digital I/O integrated control, enabling ease of activating multiple scanning mode; ensuring speed and accuracy and significantly increasing work efficiency.
Features
• Withstands ESD up to 105~1011 ohms per square
• High Performance 2D Barcode Reader
• Supports Digital I/O Integrated Control
• Supports USB & RS232 Interface
• IP53 Rating
• Withstand multiple drops to concrete from 1.5 meters
• Full compliance with Electrostatic Discharge protection including cable
Smart choice for industrial applications
It is the brilliant convenient choice for various industrial applications,
it can be fixated onto any platforms with ease or integrated with
Kiosk systems; an effective multipurpose barcode scanner.
MS588 design meets the industrial standard; featuring IP53 rating
and withstanding multiple drops to concrete from 1.5 meters,
ensuring reliability and increasing production efficiency. MS588 is a
value-added, cost-efficient choice for business operations.
Specification
Communication
- Host Interface supported USB, RS232
Optical & Performance
- Sensor 2D Imager (1280 x 960 pixel)
- Aiming Element 655 nm VLD
- Illumination 2*Warm white LEDs
- Skew Angle ±60°
- Pitch Angle Sensor ±60°
-
Optical Resolution
1D: 2mil
2D: 5mil - Printing Contrast Scale 15%
- Depth of Field 7~92cm
Mechanical
- Dimension L74 mm x W47 mm x H26 mm
-
Weight
60g (without cradle)
Functionality
- Operation Mode Trigger Mode, Presentation Mode
Symbologies
-
1D Barcodes
Code 39, Full ASCII Code39, Interleave 2 of 5, Standard 2 of 5, UPC A/E, Delta Code, Label Code, MSI/ Plessy, Codabar, Code 11, EAN8/13, Code 93, Code 128, EAN128, Code32,Toshiba Code, GS1 databar Code.
-
2D Barcodes
PDF417, MicroPDF417, Datamatrix, QR Code, Micro QR Code, Aztec, RSS , Composite, TLC -39, MaxiCode.
Postal: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX)
Electrical
- Operation Voltage DC 5V
- Current Consumption < 500 mA
- Indicator Buzzer, Indicator
Environmental
- Operating temperature 0°C to 70°C
- Storage temperature -30°C to 70°C
- Relative Humidity 5% to 95% (non-condensing)
-
ESD Protection
Functional after 8K Contact and 15K Air
Withstands ESD up to 10^5 ≦ X < 10^11 ohm/square - Mechanical Shock 1.5M
- IP Rating IP53
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI
