MS822B

Wireless 2D Imager Scanner

100M operation range | IP42 and 1.5m drop | Up to 40 hours operation time

  • 2.4GHz

  • IP42

  • 1.5M

Utilizing a megapixel 2D barcode scanning engine and the freedom of wireless  technology, the MS822B offers highly accurate performance and affordable price for the demands of a wide range of market applications, such as point-of-sale, loyalty, coupons checking, personal data identification, inventory control, and field service sectors.

Features

•  Support most 1D / 2D barcodes on mobile screens: up to 3 mil resolutions

•  Support 2.4G wireless technology

•  2.4G wireless transmission range up to 100m in the line of open sight.

•  Up to 40 hours of operation time per a fully charged battery

•  Rugged design: IP42 and 1.5 m drop spec

•  Offline inventory with 4 MB Memory flash

2.4G Wireless Technology



The MS822B wireless 2D scanner combines superior 1D and 2D barcode scanning with the freedom of wireless technology. The MS822B supports a 2.4G USB cradle receiver and wireless connection modes, it allows users to transmit data to the host up to 100 meters from the base.

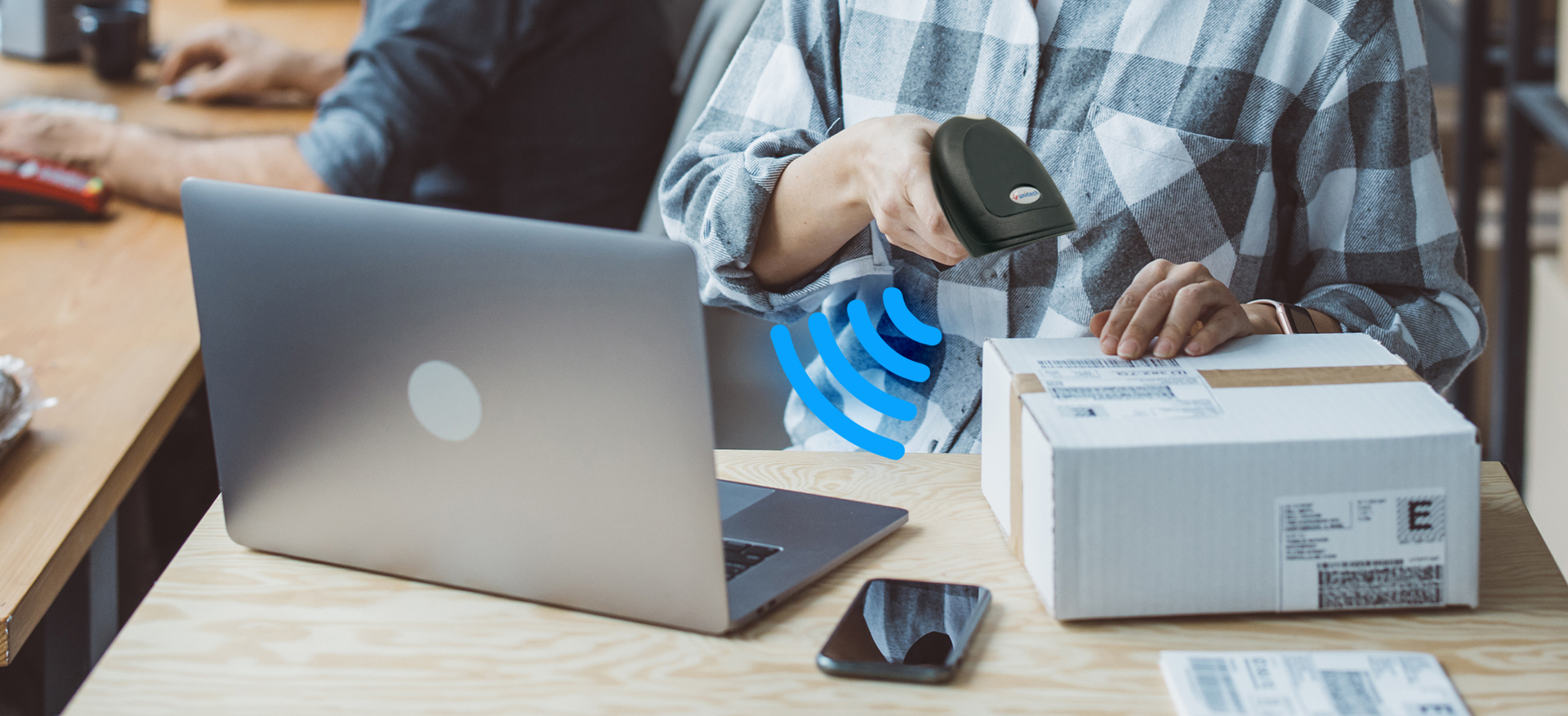

Simple and Easy Pairing

It is compatible with any smartphone, tablet, or computer–the MS822B pairs easily with any mobile devices or PCs. When the  MS822B is out of range reading in auto mode, all scanned barcode data will be stored into the memory storage and transmitted to the host automatically when back to the wireless coverage. It gives mobility and flexibility for inventory control in retail and warehousing solutions.





Long-Lasting Battery for All Day


With a long-lasting 2600 mAh removable battery, the MS822B can continue to capture barcodes for 40 hours, supporting all-day operation and featuring an easy battery-replaced design while reducing the total cost of ownership.

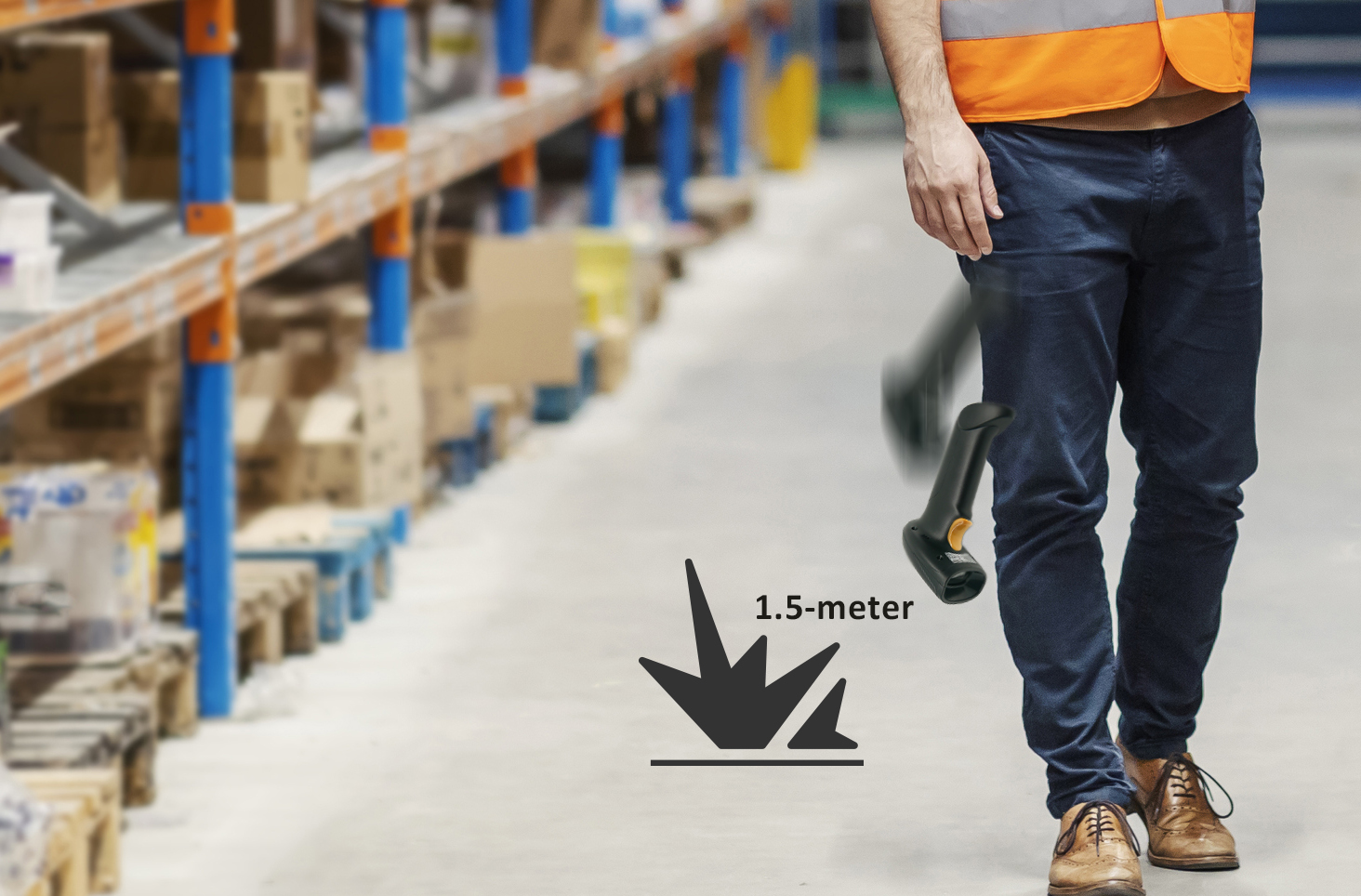

Compact but Durable

While sustaining a 1.5-meter drop to concrete, MS822B incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees continuous productivity for the best reliability.




IP42
Certification		 1.5m
Drop Protection


Specification

System

  • Memory 4 MB
  • Key Trigger Key

Optical & Performance

  • Sensor 1280 x 800 pixels, CMOS Sensor
  • Aiming Element 625 nm LED
  • Illumination Color temperature 6000-6500 k
  • Ambient Light 0-100,000lux
  • Scan Rate 60fps/s
  • Skew Angle ±65°
  • Pitch Angle Sensor ±65°
  • Roll Angle 360°
  • Optical Resolution 3mil（code 39） 3mil（EAN13）
  • Depth of Field 13 mil EAN13 Near 50 mm Far 510 mm

Communication

  • Radio 2.4G Wireless
  • Wireless Coverage 2.4G: 100 m ( line of sight)
  • Host Interface supported USB Type C

Mechanical

  • Dimension 96.5 L x 72 W x 161 H (mm)
  • Weight 180g
  • Trigger Switch Life 1,000,000 times
  • Cradle Dimension 106 L x 80.5 W x 70 H (mm)

Functionality

  • Operation Mode Trigger Mode, Buffer Mode

Symbologies

  • 1D Barcodes 1D:Codabar、Code11、Code39、Code32、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code93、Code128、GS1-128、UPC-A、UPC-E、EAN 8、EAN 13、GS1 DataBar（RSS14）、GS1 DataBar Limited、GS1 DataBar Expanded、
  • 2D Barcodes 2D: PDF417、Micro PDF417、QR Code、Micro QR、Data Matrix、Aztec Code
  • Data Formatting Prefix, Suffix, Code ID

Electrical

  • Operation Voltage DC 5V
  • Current Consumption Operation mode:＜290mA , Standby mode:＜55mA
  • Indicator Buzzer LED light
  • Battery Type Lithium-ion
  • Battery Capacity 2600mAh 18650 battery
  • Battery Charging time Fully charged in 6 hours
  • Operating Time Over 40 hours

Environmental

  • ESD Protection Functional after 4K Contact and 8K Air
  • Mechanical Shock 1.5m onto concrete (scanner only)
  • Operating Temperature -10°C to 50°C (14°F to 122°F)
  • Storage Temperature -20°C to 60°C
  • Relative Humidity 5% to 95% non-condensing
  • IP Rating IP42

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI

What comes in the box

  • The standard package contents The standard package :
    ■ MS822B scanner
    ■ Cradle integrated with 2.4G Dongle and cable
