The Unitech PA720E Plus is also known as the Unitech EA630 Plus continues progressing with an advanced Android12 system to optimize high-performance 2D barcode experience,accelerating and improving labor productivity tremendously than ever. The full touch 6” Gorilla screen offers clear visibility up to 80% screen-to-body ratio. A bigger 4G/64G mobile storage mitigates the possibility of data missed. The Ultra Slim Rugged Smartphone drives up stock management more efficiently in the retail, hospitality, and health service industries.
Features
• 6 inch rugged smartphone with a screen-to-body ratio of over 80%
• Android 12 OS with GMS Certification
• All-In-One functionality: 2D Imager, NFC, 5MP front camera, and 16MP rear camera

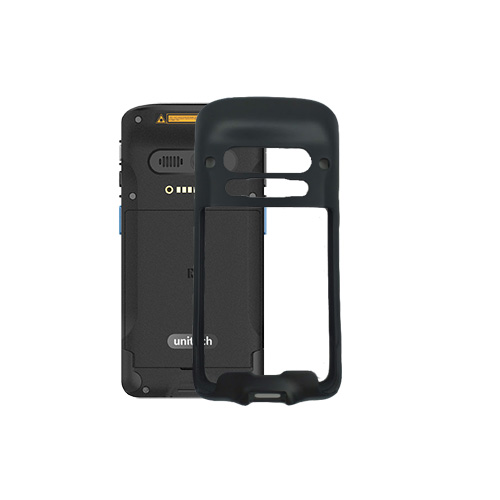

• Rugged: Corning® Gorilla® Glass 5 touch display, IP65 rated, and 1.2M drop (1.5M with boot case)
• Long-lasting removable 4000mAh smart battery
• Dual bands WLAN with fast roaming / 4G LTE / Bluetooth® 5

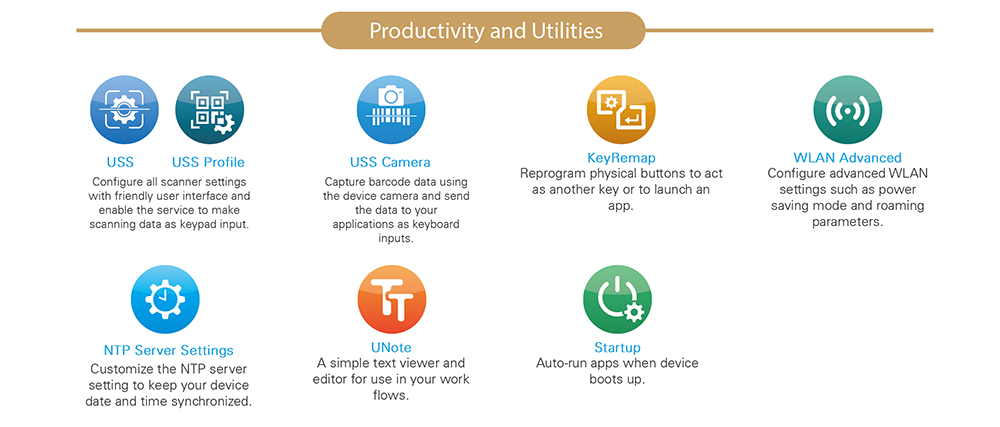

• Support unitech software solutions, SDKs, MoboLink, and MDM solutions
Upgrade to Android 12 OS with GMS Certified
• Advanced 64-bit Octa-core CPU (2 GHz) with 4 GB RAM / 64 GB Flash |
|
|||
Android 12 Operation System |
GMS Certification |
Octa-Core CPU |
4 GB RAM 64 GB Flash |
Note: Learn more about Android Security bulletin information |
|||
|
||||

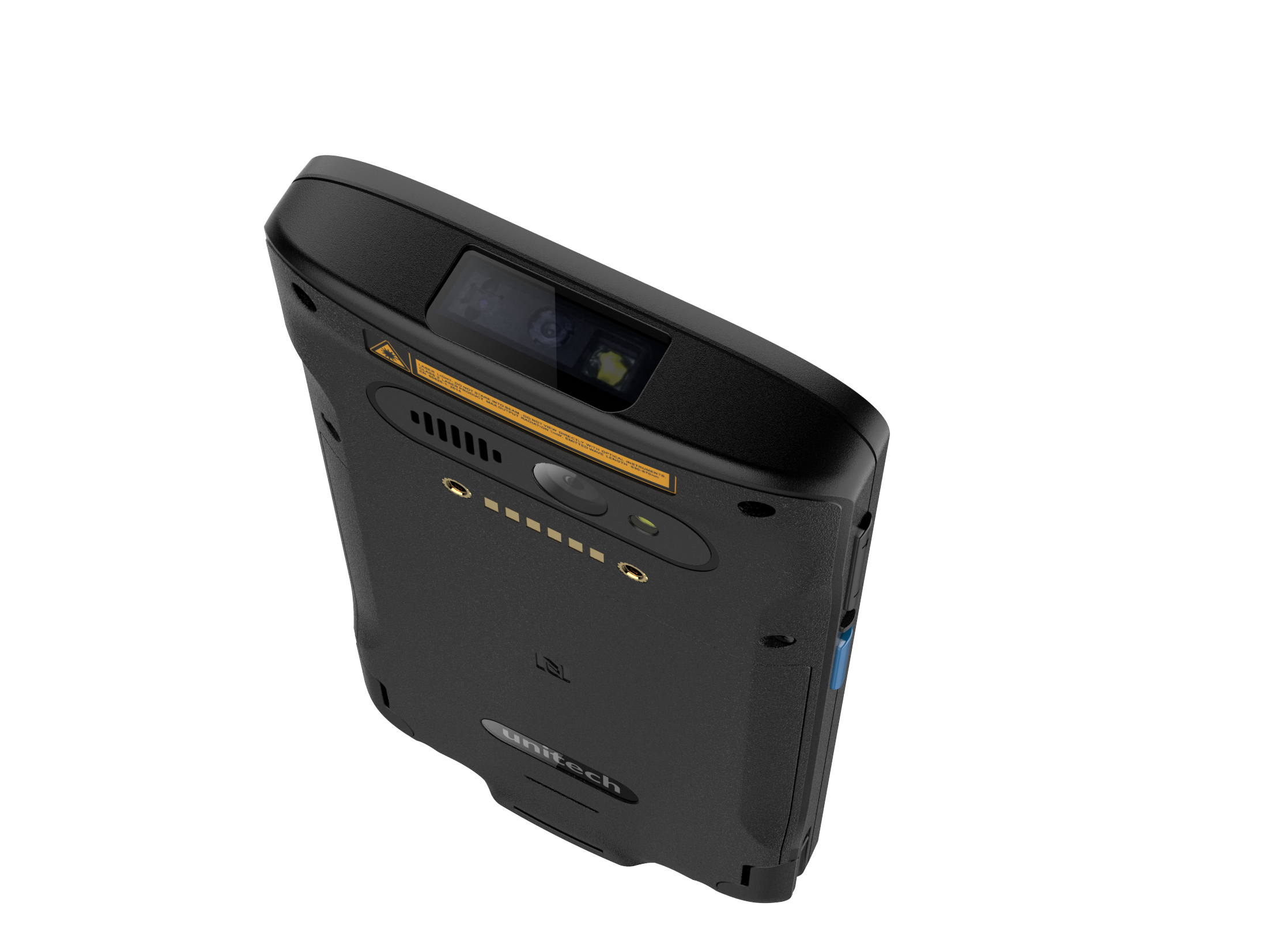

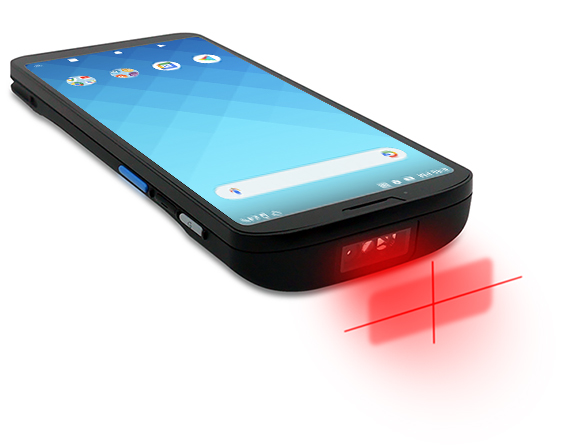

High Performance 2D Scanner |
||||
|
||||
The EA630Plus is built-in a Powerful 2D scanning engine featuring a laser aimer that enables the reading of high-resolution codes (down to 3 mils on Code 39 1D barcode) and it is available to read EAN 100% at 541 mm distance (typical read range). Moreover, it enhances the visibility to capture most 1D / 2D barcodes even in low light or bright light environments. |
||||
Powerful Laser Barcode Scanner Aimer |
Low Light Visible |
|||

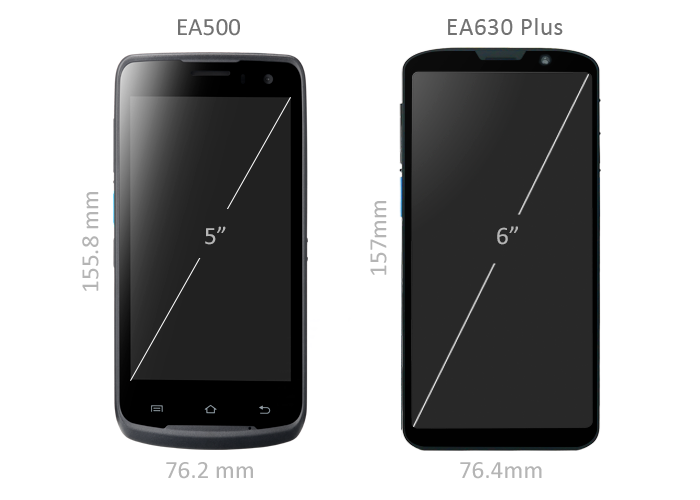

High Screen to Body Ratios
The EA630Plus rugged smartphone has a 6-inch 18:9 display as offering 80% screen to body ratio. It also provides the 450nits brightness for easy viewing in outdoor environment. |
6" Display |
18:9
Ratio |
80 %
Screen to body ratio |
450 nits
Brightness |
Gorilla® Glass 5Touch Display |
|
|
||||
Specially Designed for Portability |
||||
|
||||
The EA630Plus is combined with a compact and durable design that makes it an ideal tool to increase higher efficiency for applications in the retail, hospitality, and healthcare service. |
||||
13.9mm
Slim design |
232g
Lightweight |
|||

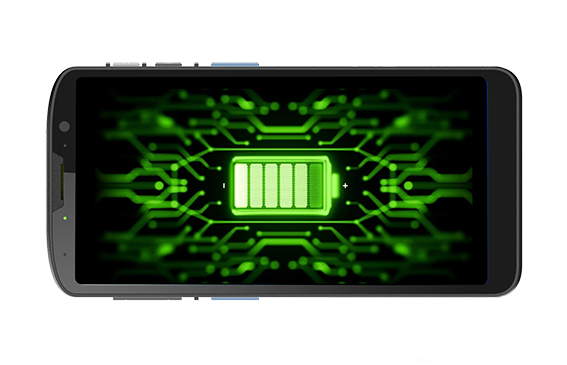

Long-Lasting Battery Life |
|||||
The EA630 Plus' powerful 4000mAh battery is designed to have up to 14 hours operating time, giving you the flexibility to work through the day. |
|||||
Up to 14 hours Operating Time |
4000 mAh Battery |
||||
Durable Design

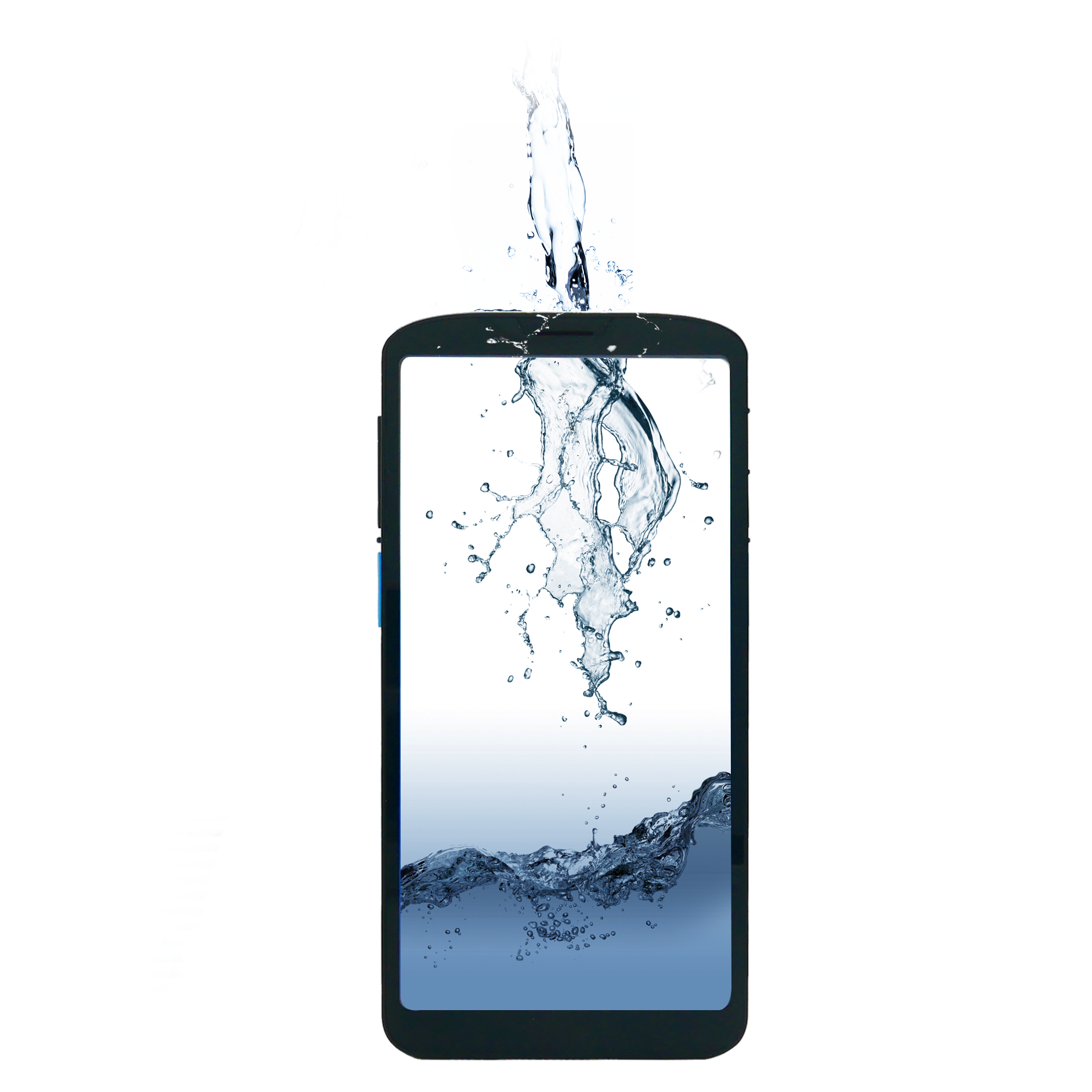

It enhances the industrial durable protection with features including IP65 dustproof, waterproof and 1.2 meters resistant to fall protection. (1.5 meters with boot case)) |
|
|||||
IP65 |
1.2 m
Drop Protection |
1.5 m
Drop Protection |
|||
|
|
||||||||
A Data Collector for All Your Need |
||||||||
EA630 Plus not only fulfills superior 1D/2D scanning performance but surpasses end-user expectations. A wide series of practical features, including an NFC reader/writer, GPS, and a high-resolution 5MP front and 16MP rear camera, further strengthen traceability and functionality in a compact device.
Featuring the fastest data speeds with fast roaming function on dual bands WLAN, 4G LTE connectivity, and Bluetooth® 5, the EA630 Plus bridges the gap between associates to ensure instant messages and alerts are received within teams. |
||||||||
1D/2D Barcode Scanning |
16 MP
Rear Camera |
4G LTE | WLAN
Dual Bands |
Bluetooth® 5 | NFC RFID reader / Writer |
|||
|
||||||

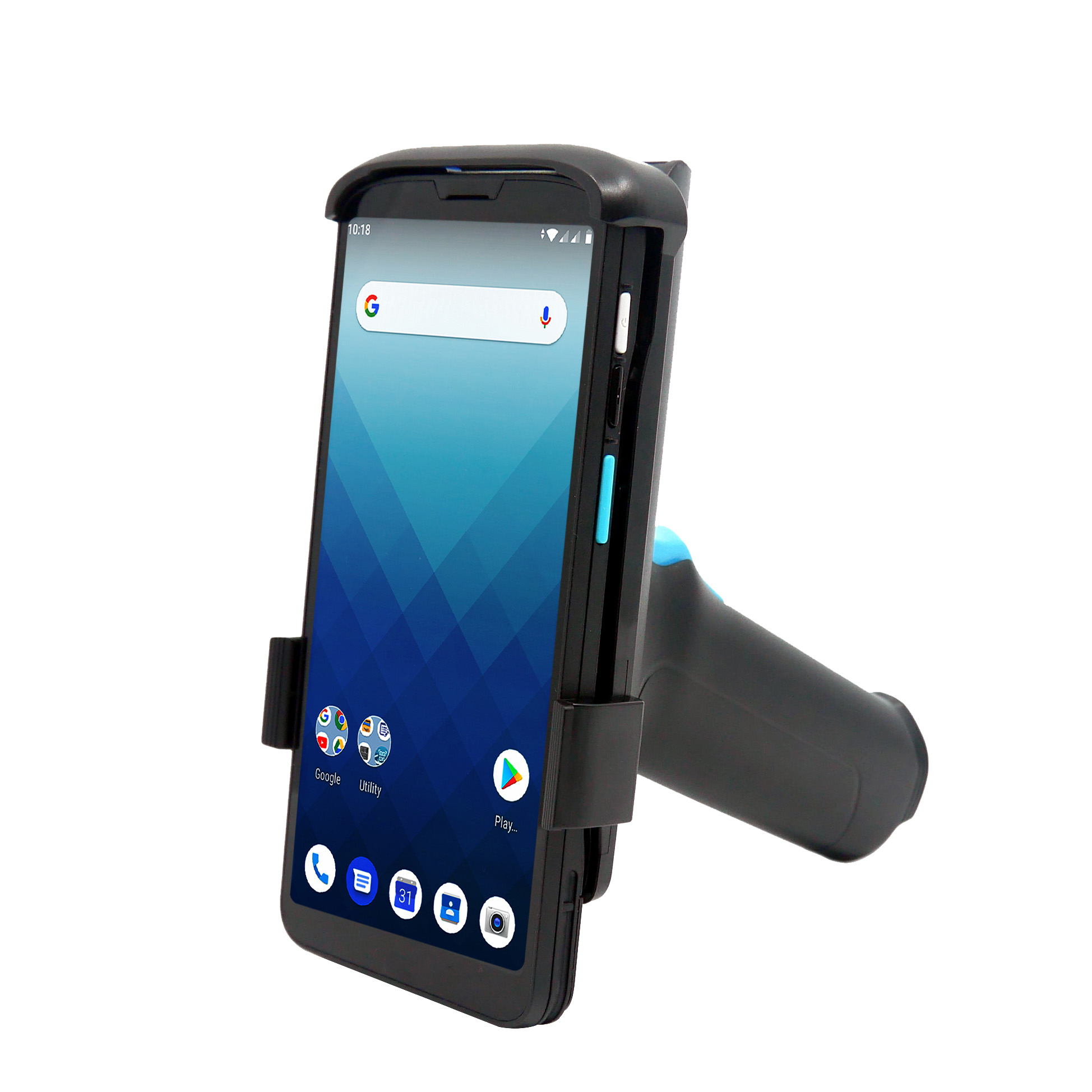

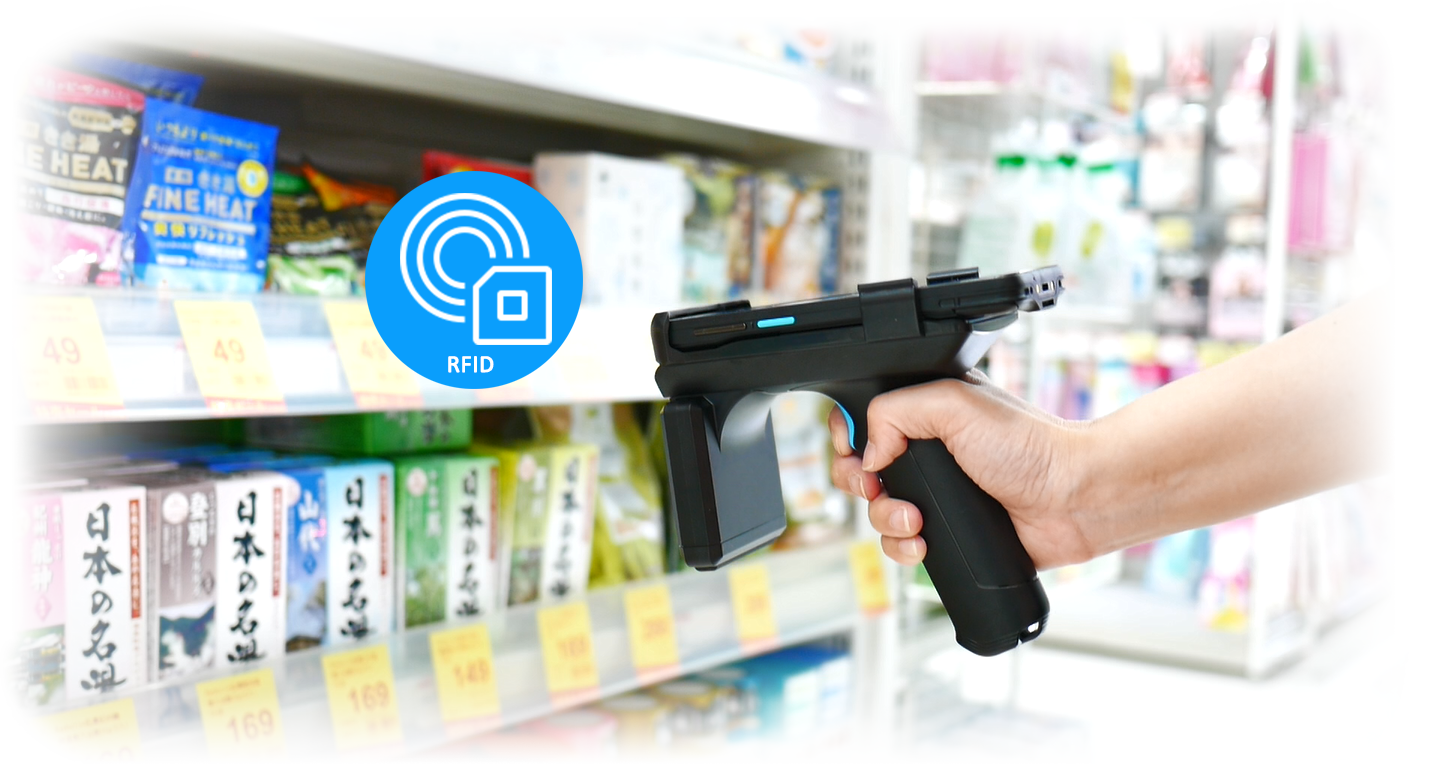

Ergonomic Gun Grip Design |
||||||
|
||||||

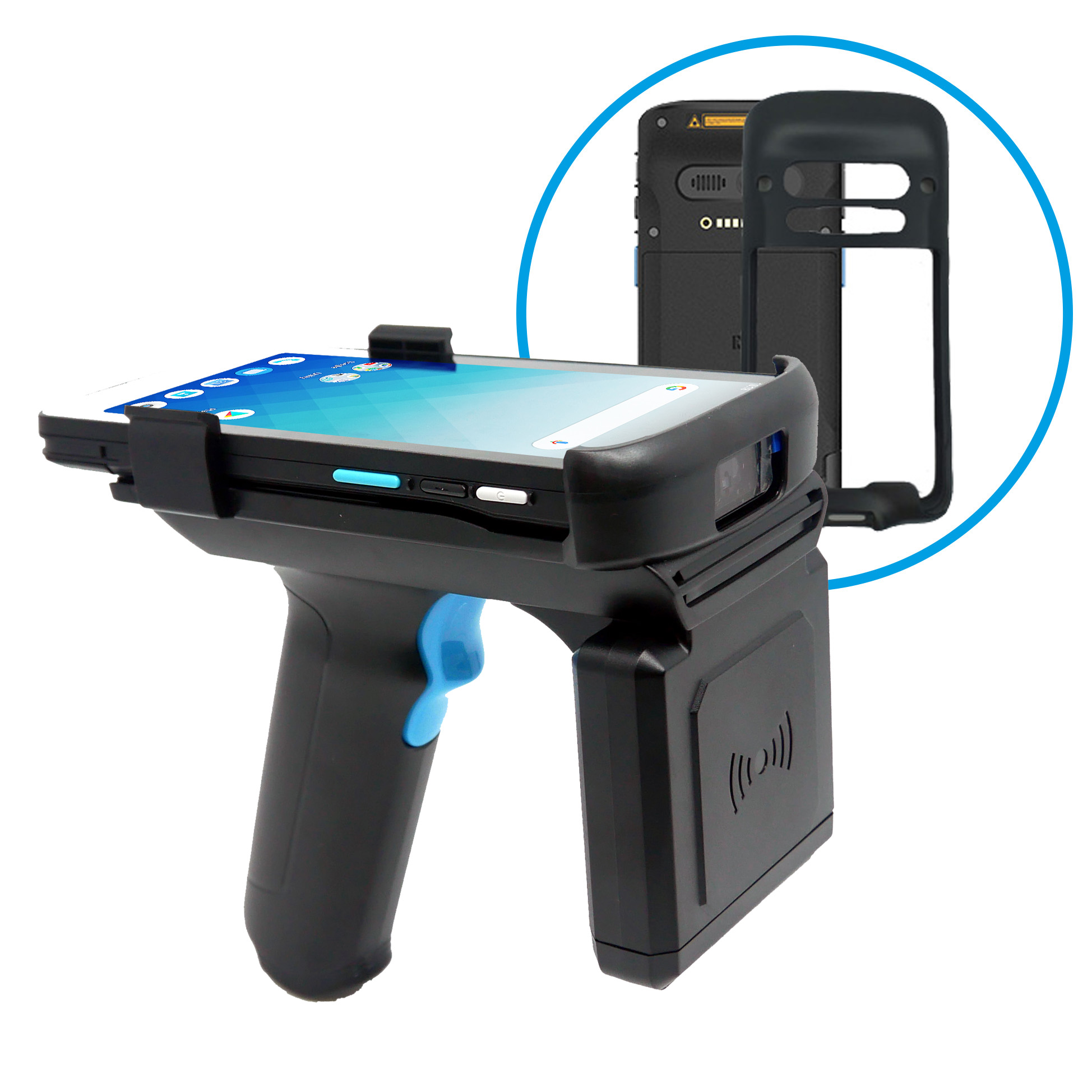

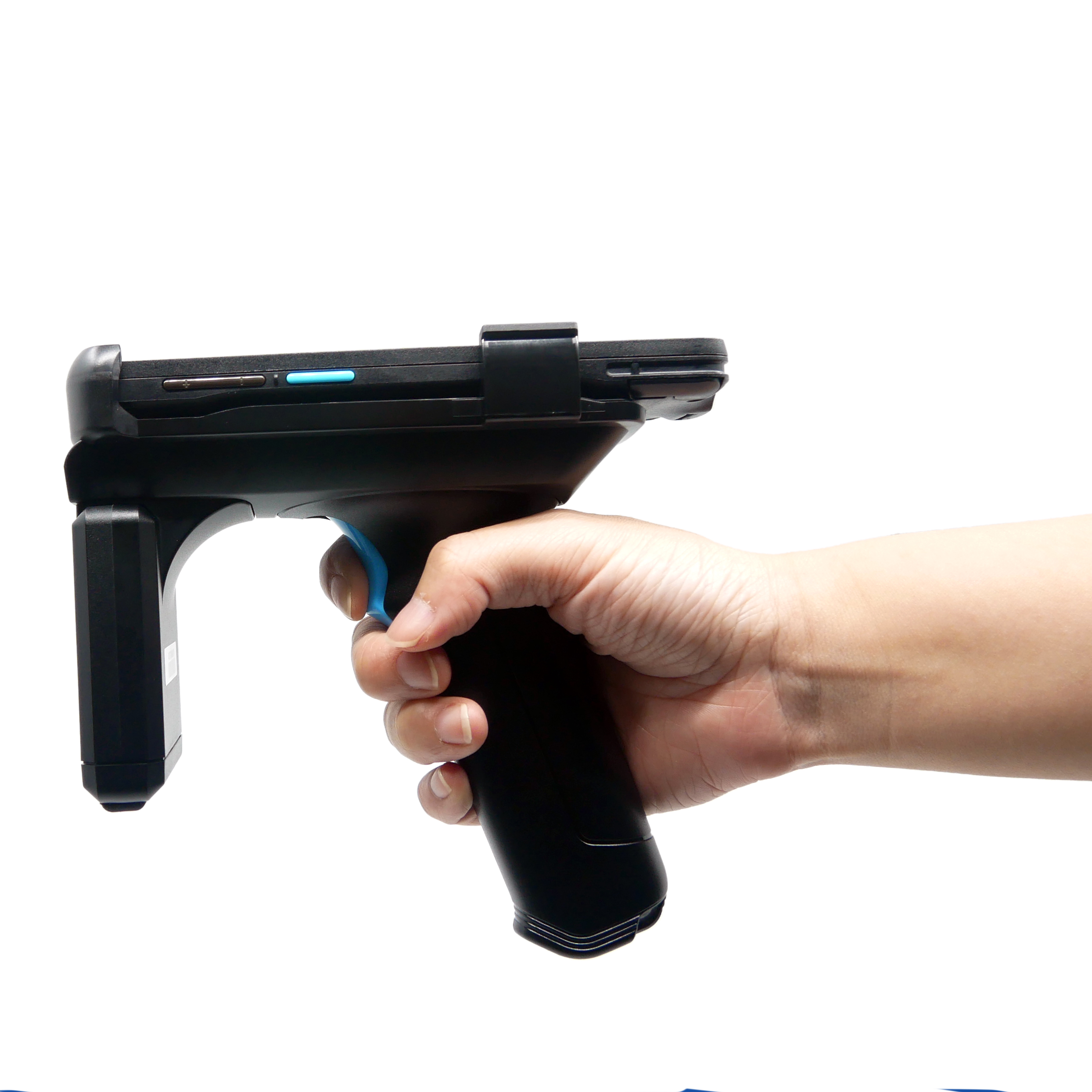

It allows users to add values to your device with the unique UHF RFID gun grip or 2D long-range gun grip (optional). Just simply attaches it and it delivers a convenient way to support standard barcode scanning, RFID scanning or 2D long-range scanning in inventory tracking and taking solutions. |
||||||
------- Unique Gun Grips for Optional Choice ------- |
||||||
Standard Easy to hold |
2D LR
- 25 m distance |
RFID - 6 m distance - 750 tags / second |
||||
|
|
|||||
|
|||||
SmartPA: Better Audio Output |
|||||
|
|||||
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer.The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.
|
|||||
|
|||||
Power Amplifier Better Audio Output |
Built-in Algorithm Lessen Circuit / Temperature Damage |
Specification
Operation System
- OS Android 12
- GMS certified GMS certified
-
CPU
2GHz, Qualcomm® Snapdragon™ 662
64bits Octa-core Processor - Memory 4 GB RAM / 64 GB Flash
- Languages support Multiple languages
Display
- Screen Size 6”, 18:9 Full-HD (2160 x 1080) color screen (450nits)
- Touchpanel Gorilla® Glass 5 with 5-point Capacitive Touch Panel, compatible with gloves and supports wet resistance
Buttons / Keypad
-
Buttons / Keypad
5 keys- Programmable function button; dual dedicated scan buttons; volume
up/down buttons; on/off button
Camera/Photos/Video
-
Camera
5MP front camera
16 MP Rear with auto-focus function and Flash Light
Indicator Type
- Type LED, Speaker, Vibrator
Communication
- Bluetooth® Bluetooth® 5 supported
-
WLAN
Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz
Support 802.11d/e/h/i/k/r/v, fast roaming
Compliant with WEP, WPA and IEEE 802.11i WPA2 -
WWAN
GSM: 850,900,1800,1900 MHz
WCDMA: Band 1, Band 2, Band 5, Band 8
LTE:FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B28)
TDD-LTE (B38/B39/B40/B41) - GPS AGPS, GPS, GLONASS, Beidou, Galileo
-
Sensors
Gyroscope, Light sensor, e-Compass, Proximity sensor,
Accelerometer sensor
RFID
-
HF
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693, Mifare, Felica(ISO/IEC18092)
compliance
I/O Interfaces
-
USB
USB 3.1 (type-C) support USB OTG
Support Ethernet/USB-Host via cradle -
POGO PIN
PogoPin backside: Support Gun-grip, UHF reader
PogoPin bottom: Charging via cradle - SIM Slot Dual nano SIM Slot
- Expansion Slot MicroSD, up to 256 GB
-
Audio
One speaker with Smart PA (95±3dB @ 10cm), One receiver ,
Dual noise-cancelling microphones
Enclosure
- Dimensions ( H x W x D ) 157mm x 76.4mm x 13.9mm ( H x W x D )
- Weight 232g
Durability
- Drop Specification 1.2m , 1.5m with boot case
- Sealing IP65
- Vibration and Shock test MIL-STD 810G
Power Source

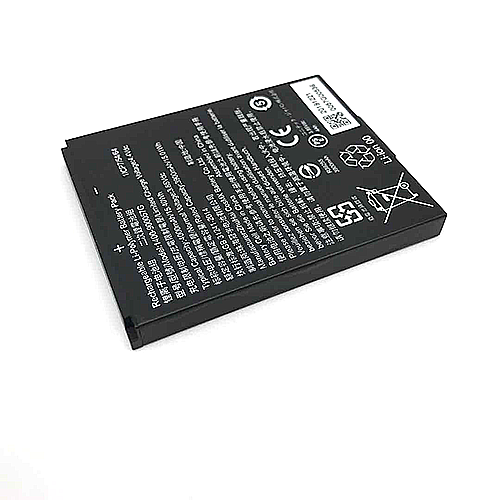

- Main battery 3.85V, 4000mAH Li-polymer battery
Symbologies
-
1D Barcodes
UPC/EAN/JAN, GS1 DataBar, Code 39, Code
128, Code 11, Code 93, Codabar/NW7, Interleaved 2
of 5, Matrix 2 of 5, MSI, Trioptic, Code 32 -
2D Barcodes
PDF417, MicroPDF417, GS1 Composite , Aztec Code,
Data Matrix, QR Code, Micro QR Code, MaxiCode, Han
Xin Code, DOT Code
Environmental
- Operating temperature -10°C to 50°C
- Storage temperature - 30°C to 70°C (without battery)
- Charging temperature 0°C to 45°C
- Relative Humidity 10% ~ 90% (Non-Condensing)
Regulatory Approvals
- Regulatory Approvals CE, FCC, NCC, VCCI, TELEC, CCC, SRRC, RoHS, CEC, BQB, N-Mark
Accessories
-
Accessories

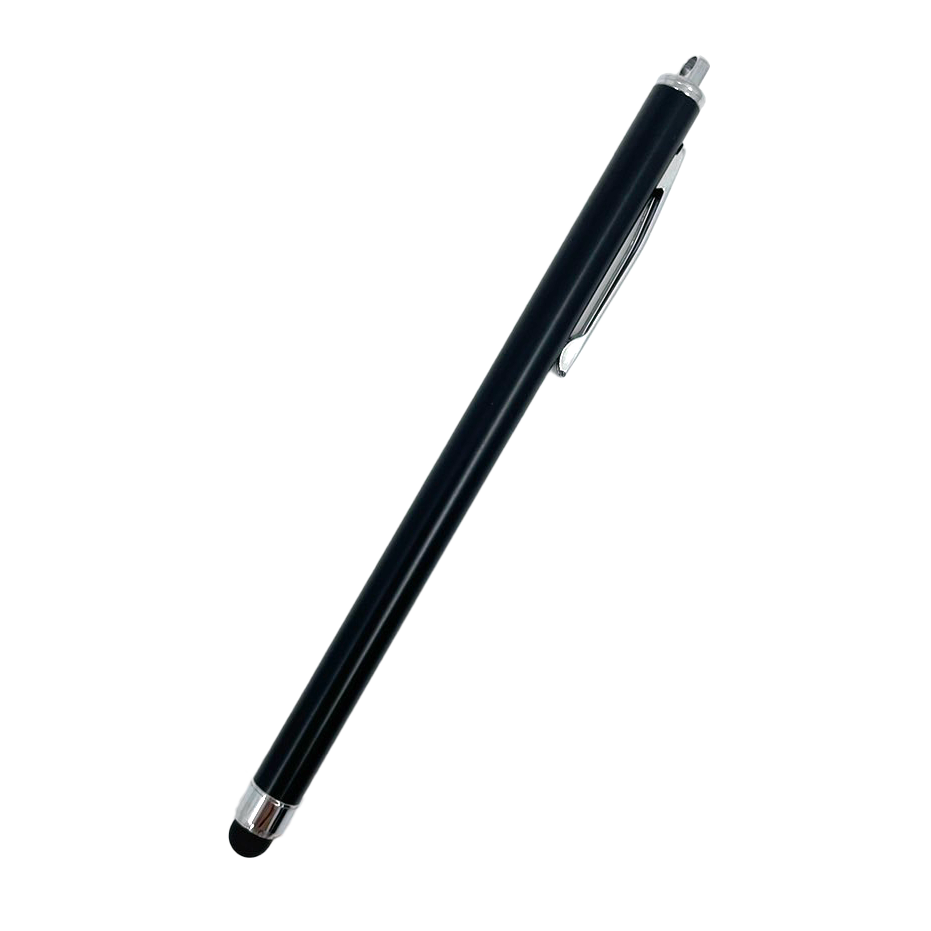

■ Stylus

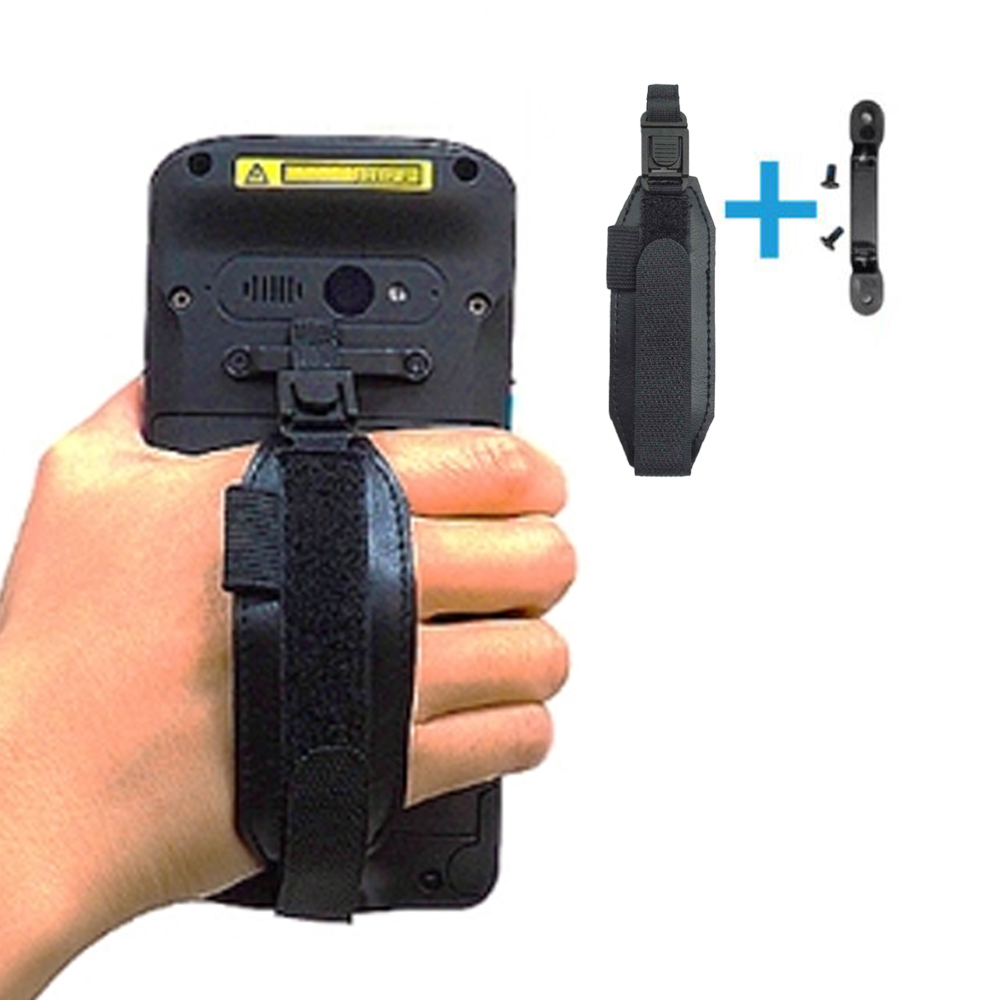

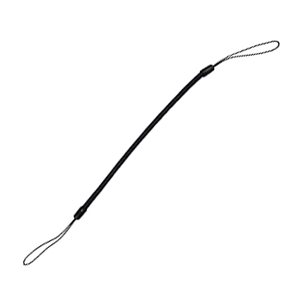

■ Hand strap

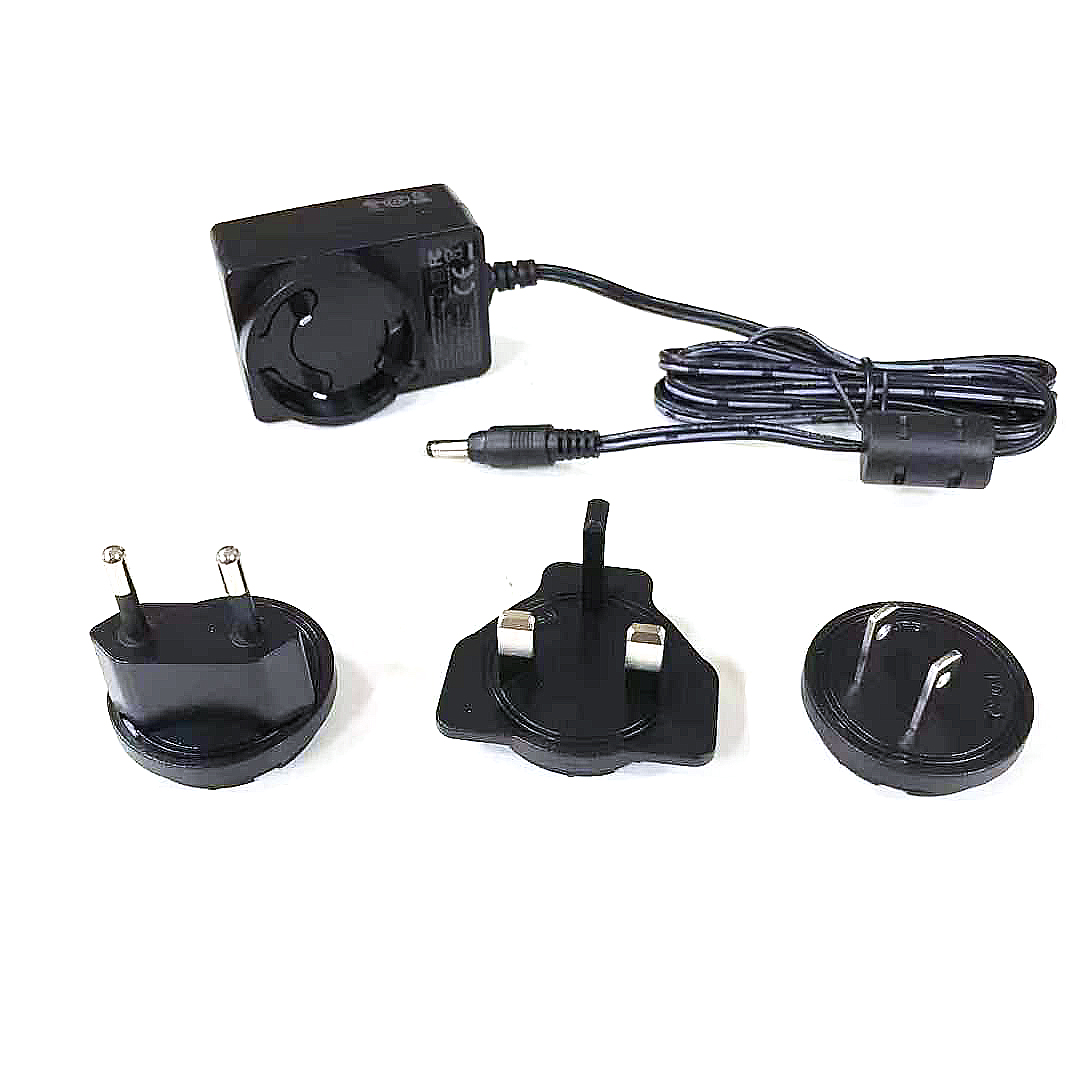

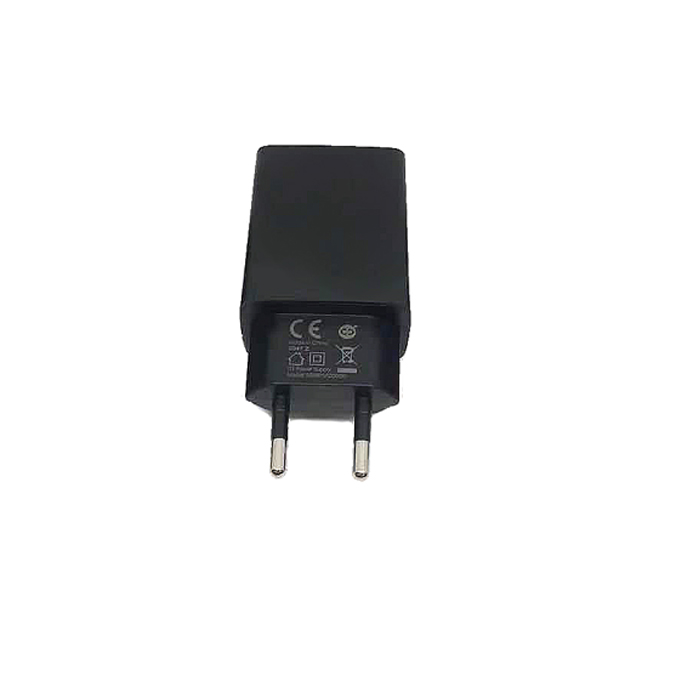

■ Quick charge adaptor (via USB type-C cable)
■ USB 3.0 type-C cable

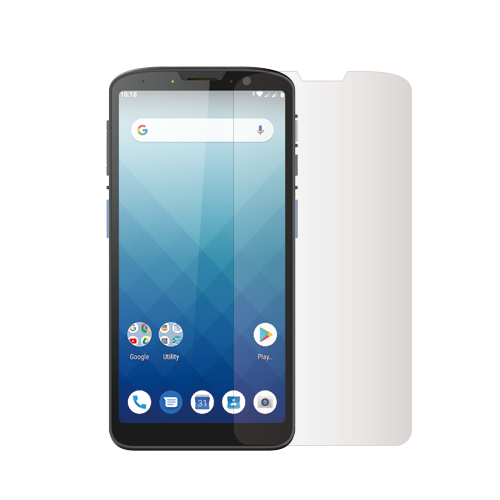

■ 9H glass screen protector

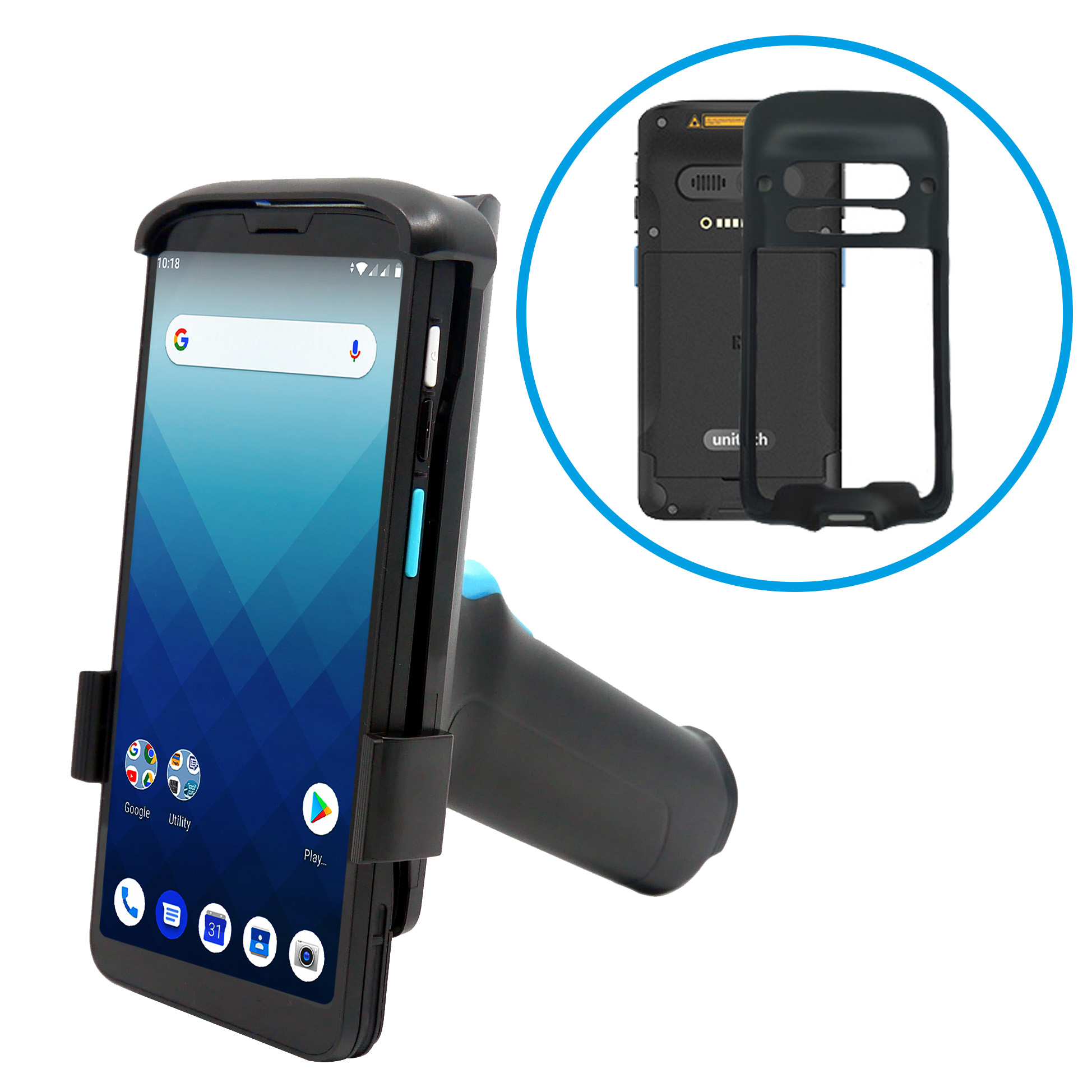

■ Gun grip: standard/ UHF

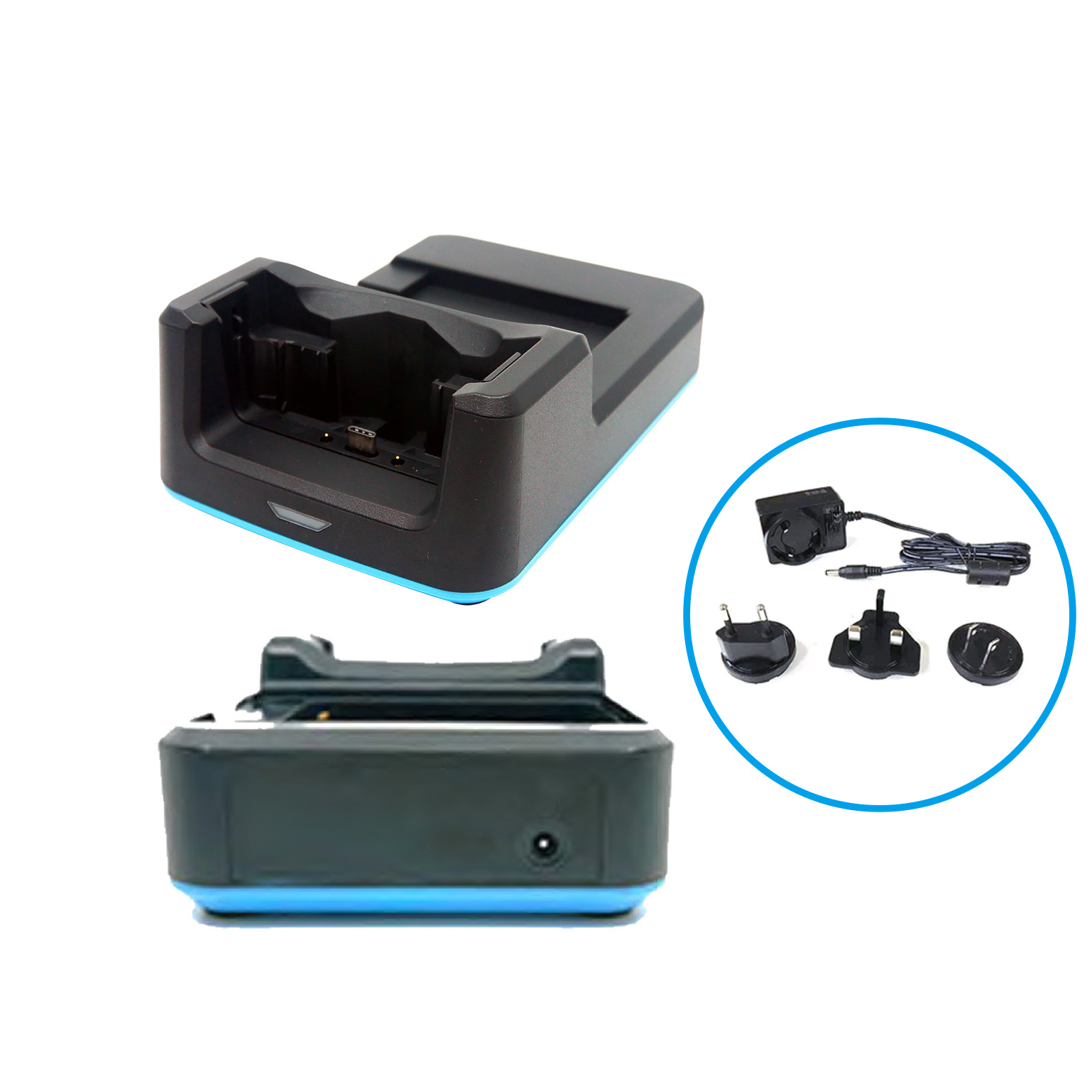

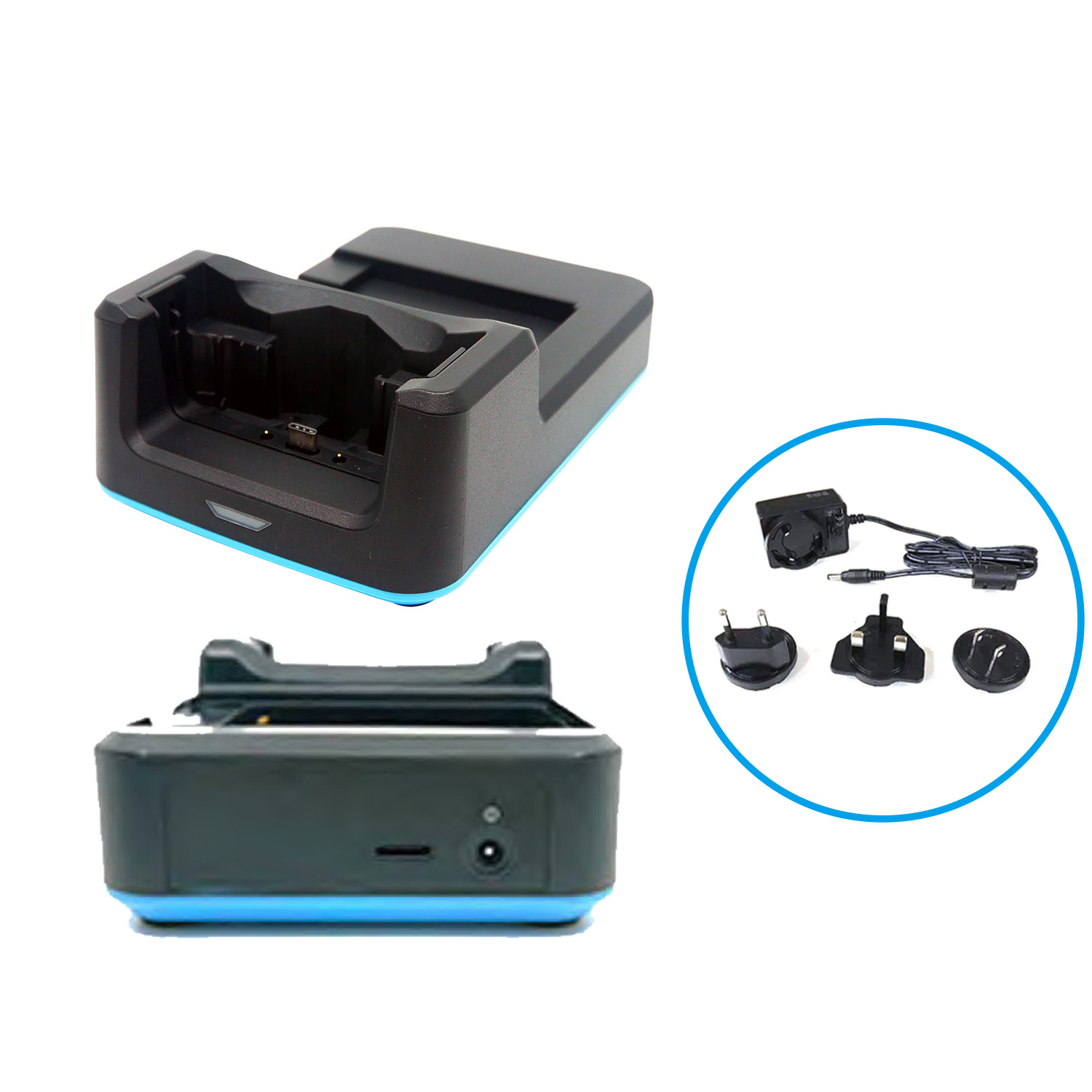

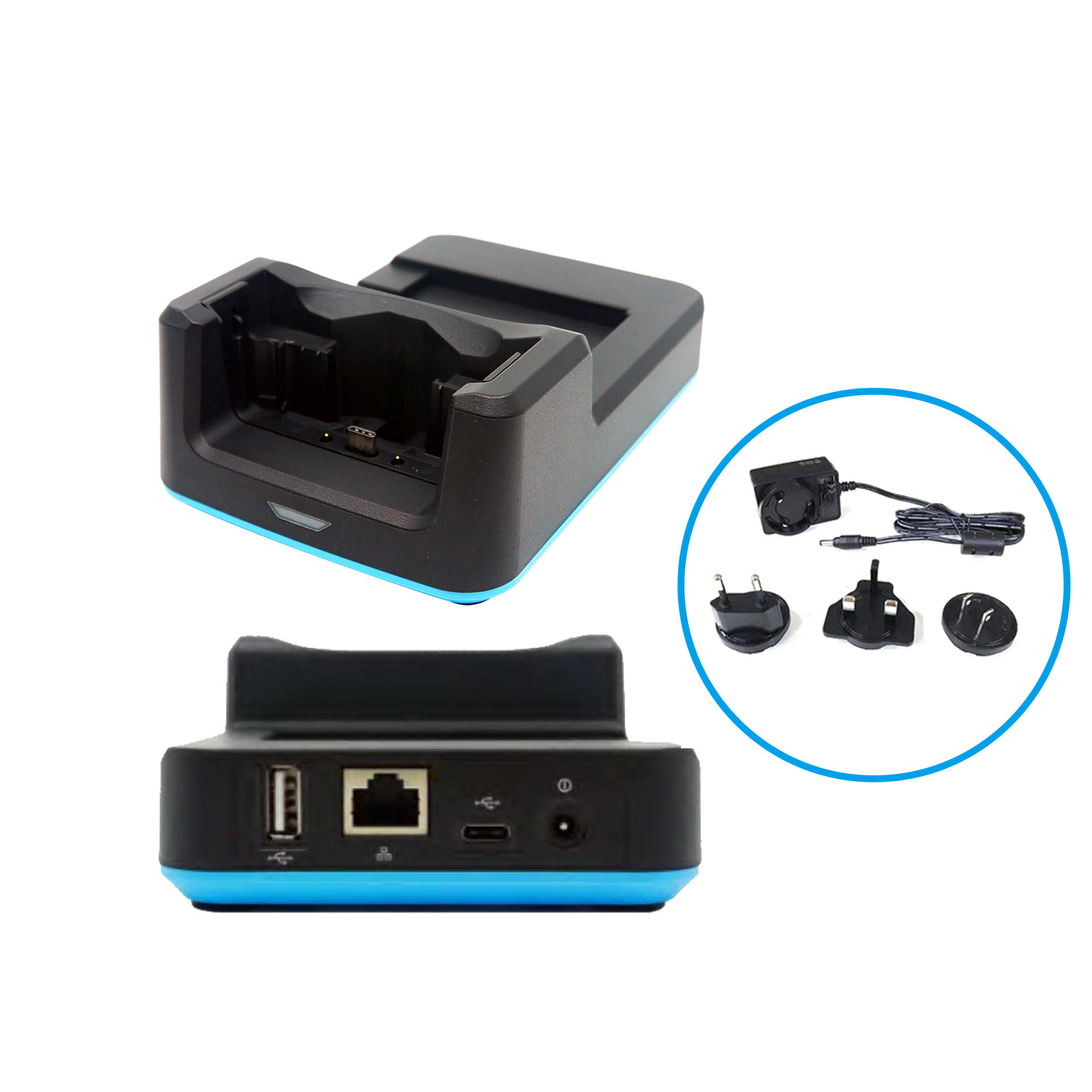

■ Single Slot Charging cradle
■ Single Slot USB cradle
■ Single Slot Ethernet cradle

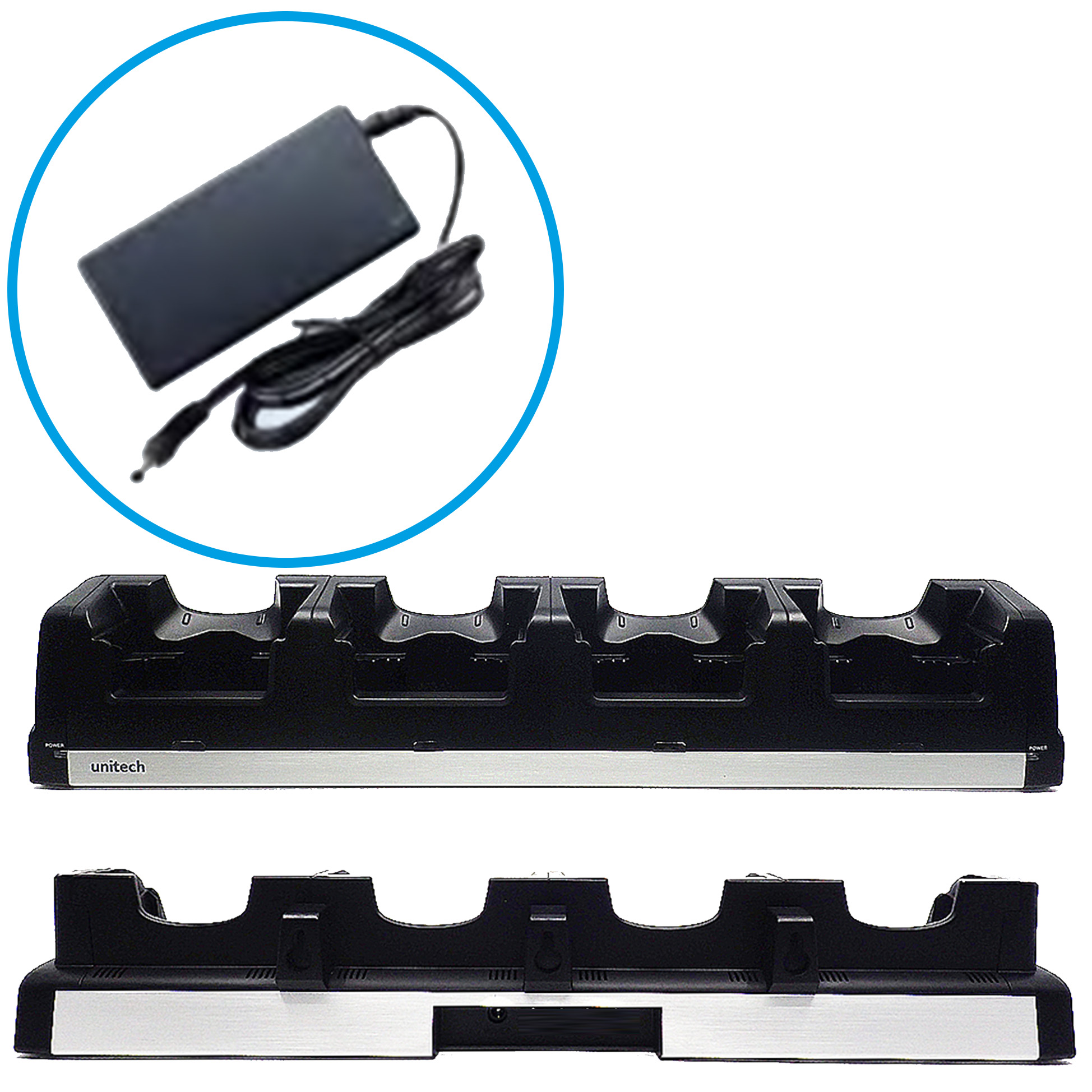

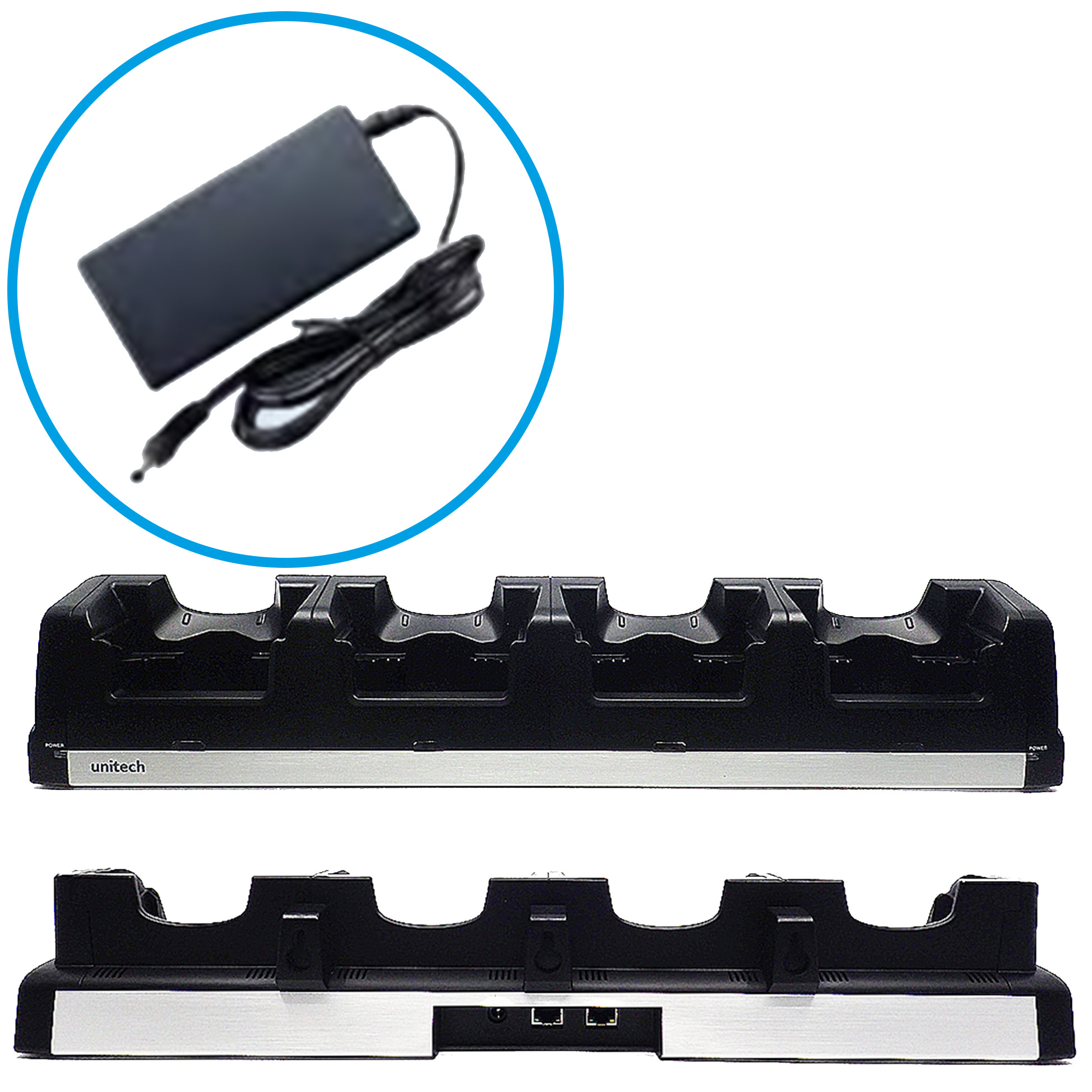

■ 4 Slots Ethernet cradle
■ 4 Slots Terminal Charging cradle
