ANW100

1-Port RFID Antenna

Various dimensions | Easy installation | multi-linear polarized

  • Retail

  • Field Service

ANW100 is a multi-linear polarized antenna that is easy to be embedded on the ceiling and wall. There are two versions available, one is for (US) 902 - 928 MHz, and the other one is for (EU) 865 - 868 MHz. Each version has two dimensions for optional choice. It is suitable for clothing, shoes, personnel access control and library shelves applications.

Feature

‧ Easy installation with various dimensions.

‧ Multi-linear polarized antenna

‧ 3.5 dBi / 4.5 dBi for option

‧ RP-TNC jack connector
‧ Indoor applications

Specification

RFID

  • UHF UHF

UHF RFID Performance

  • Polarization Multi-linear
  • Frequency Range US: 902 - 928 MHz
    EU: 865 - 868 MHz
  • VSWR Less than 1.7 : 1
  • Gain US & EU Dimension 1: 3.5 dBi
    US & EU Dimension 2: 4.5 dBi

I/O Interfaces

  • Connector RP-TNC Jack
  • Cinnector Location Side

Enclosure

  • Dimension US:
    Dimension 1: 910 * 230 * 43m
    Dimension 2: 1,550 * 230 * 43mm

    EU:
    Dimension 1: 1,000 * 230 * 43 mm
    Dimension 2: 1,770 * 230 * 43 mm
  • Weight US & EU Dimension 1: 0.8 KG
    US & EU Dimension 2: 1.4 KG

Environmental

  • Operating temperature -20°C ~ 60°C

Power Source

  • Impedance 50 Ω

What comes in the box

  • The standard package contents 2 units in a box

Applications

  • Applications Indoor

    Retail
    ● Smart shelves

    Security
    ● Personnel access control

    Field Service
    ● Library shelves

SKUs

  • SKUs Dimension 1 : 4060-900001G (US) ; 4060-900002G (EU)
    Dimension 2 : 4060-900009G (US) ; 4060-900010G (EU)

Accessories

  • Items For RS804
    3 M RF Cable: RP TNC male to RP TNC male (PN#1550-905910G )
    10 M RF Cable: RP TNC male to RP TNC male (PN#1550-905911G )

Warranty

  • Hardware Warranty 12 months
  • Statement This product is warranted against defects in workmanship and materials for a period of one year from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.

Accessories

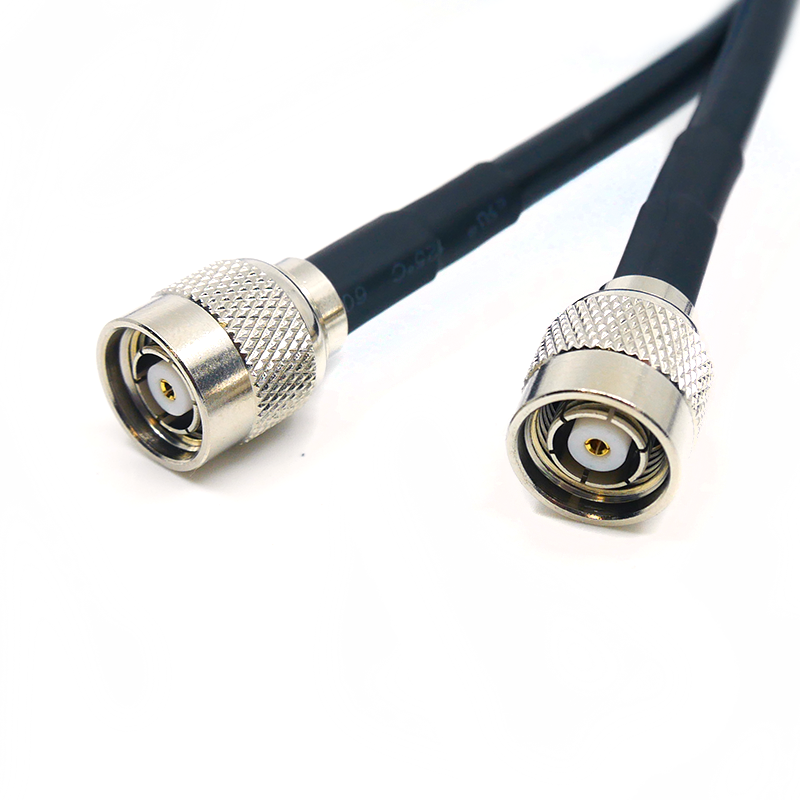

(RS804)3 M RF Cable: RP TNC male to RP TNC male

PN#1550-905910G

(RS804)10 M RF Cable: RP TNC male to RP TNC male

PN#1550-905911G
