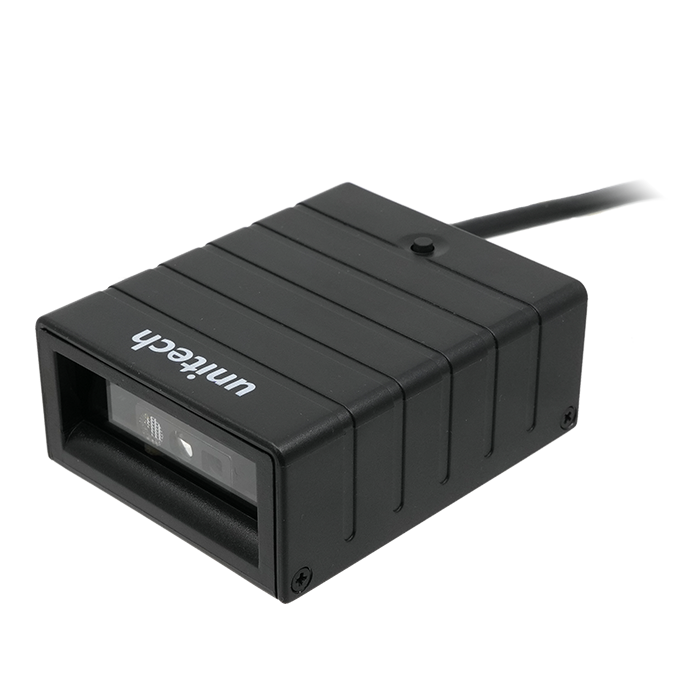

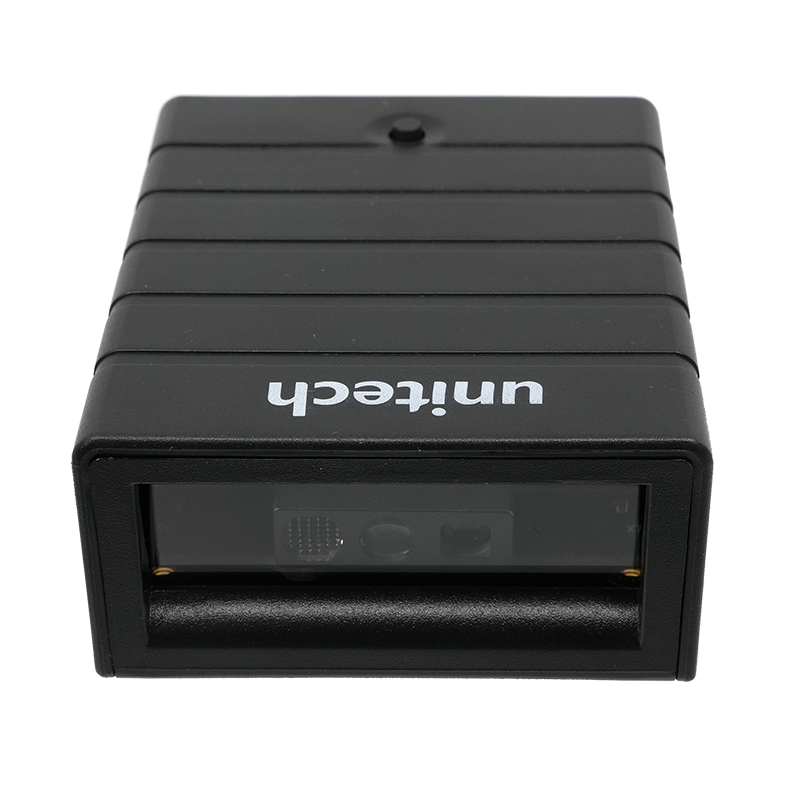

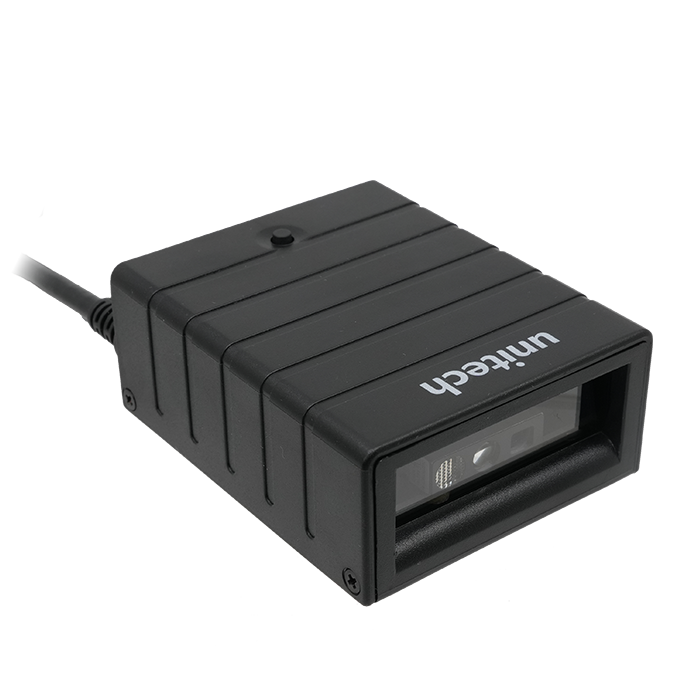

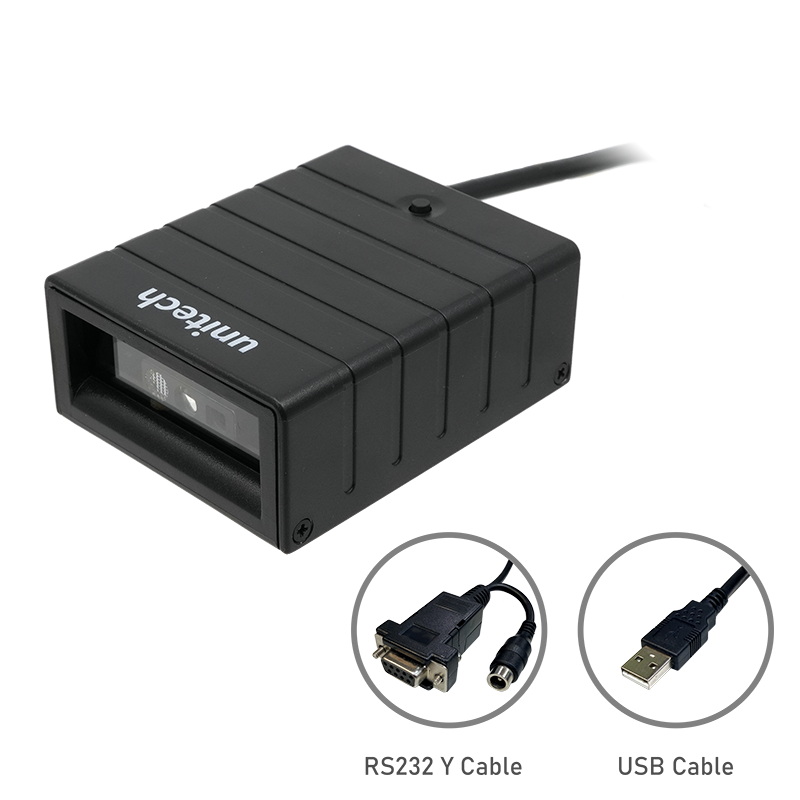

FC75
Fixed Mount Scanner

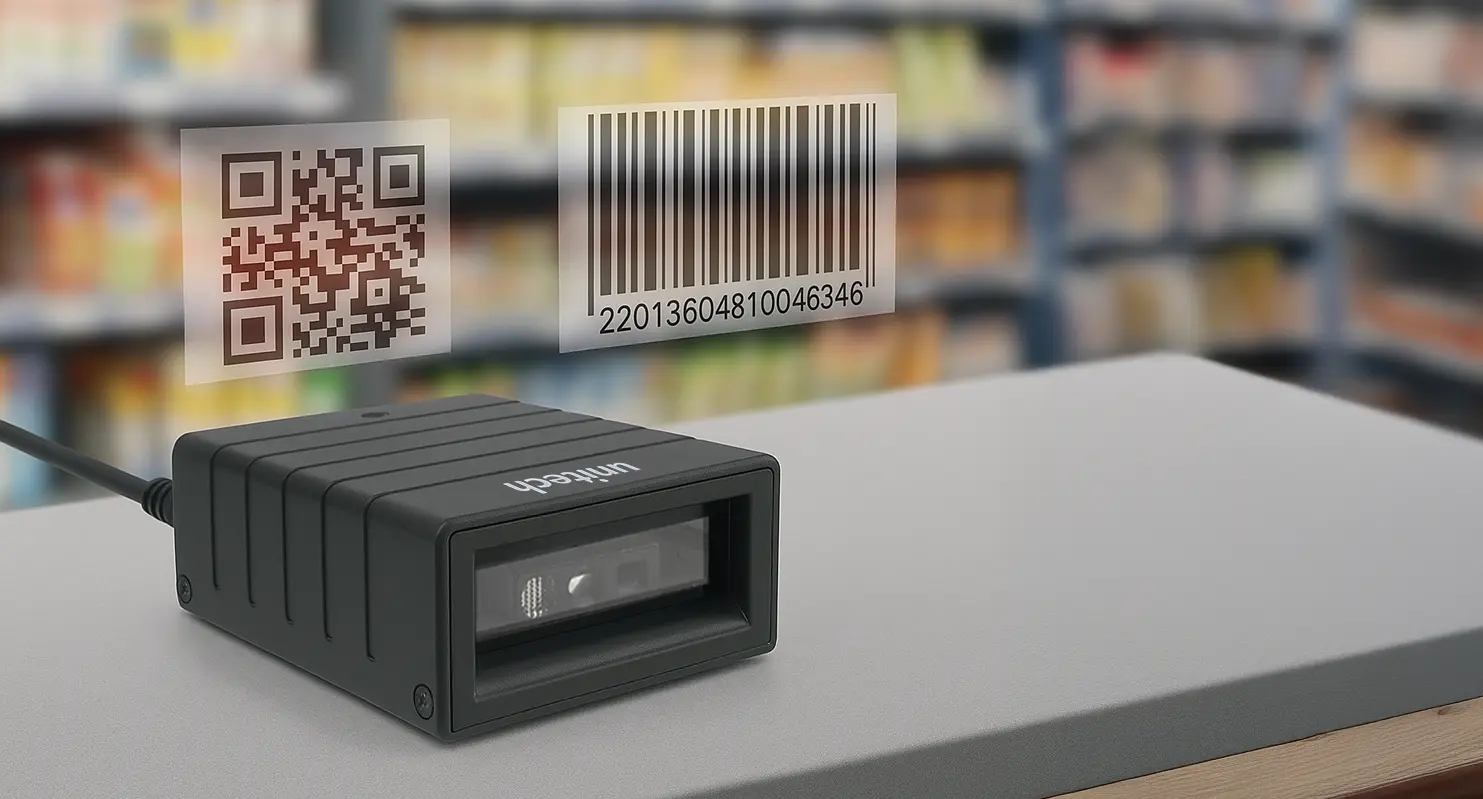

Compact Form Factor｜Support 1D and 2D Barcode Scanning｜RS232 & USB Interfaces
-
1D
-
2D
-
IP42
-
Retail
-

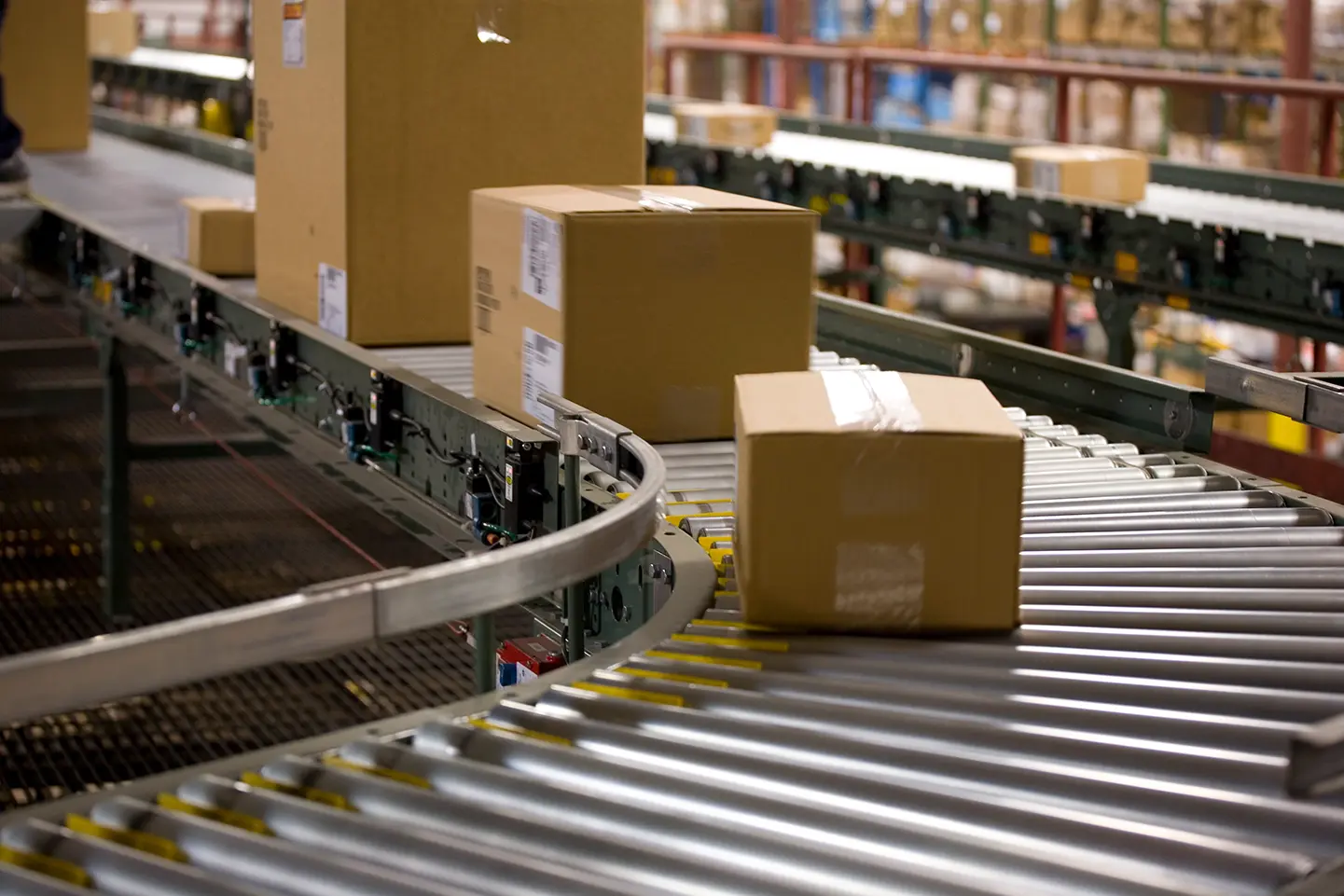

Logistics
-
Warehousing
-

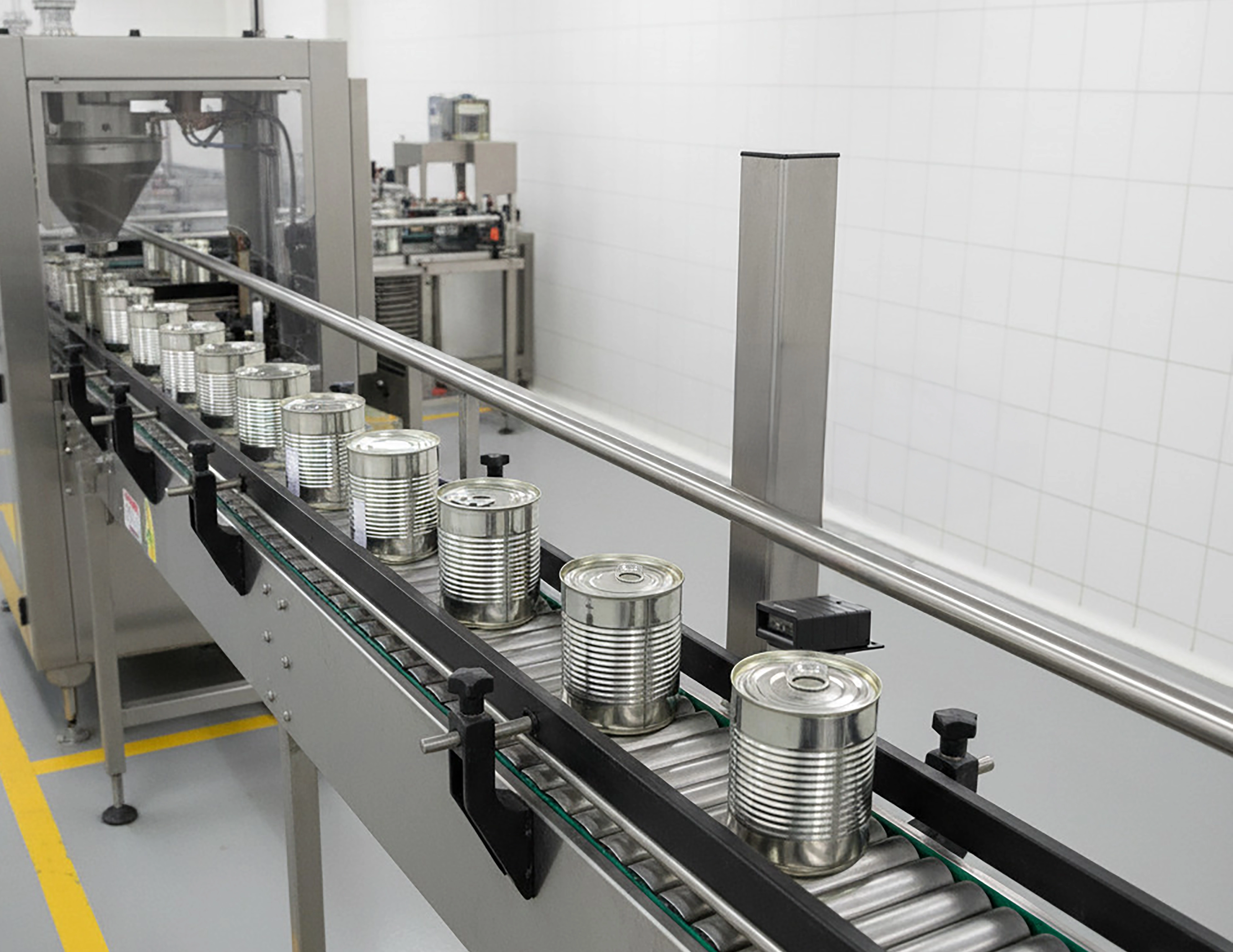

Manufacturing
Specification
Optical & Performance
- Sensor 1280 (H) x 960 (V) pixels
- Aiming Element 610nm, Green LED
- Illumination White LED
- Ambient Light Works in any lighting conditions from 0 to 100,000 lux
- Scan Rate 60 fps
- Skew Angle Horizontal – 44.5°, Vertical – 33.5°
- Pitch Angle Sensor ±60°
- Roll Angle 360°
- Printing Contrast Scale 20% Minimum
-
Depth of Field
SYMBOLOGY: Near // Far
5.0 mil Code 39: 2.4 in. (6.1 cm) // 9.5 in. (24.1 cm)
5.0 mil Code 128: 2.8 in. (7.1 cm) // 9.0 in. (22.9 cm)
6.67 mil PDF417: 2.4 in. (6.1 cm) // 8.0 in. (20.3 cm)
10 mil Datamatrix: 2.9 in. (7.4 cm) // 8.5 in. (21.6 cm)
100% UPCA: 1.8 in. (4.6 cm) // 19.5 in. (49.5 cm)
15 mil QR: 1.2 in. (3.0 cm) // 11.5 in. (29.2 cm)
20 mil QR: 1.2 in. (3.0 cm) // 14.0 in. (35.6 cm)
Communication
- Host Interface supported RS232, USB (HID KBW or Virtual comport)
Mechanical
- Dimension 56 mm x 69 mm x 27.7 mm
- Weight 85g (scanner only)
Symbologies
- 1D Barcodes EAN/UPC, UCC/EAN128, ISBN, ISBT, Code 39, Code 93/93i, Code 128, Interleaved, Standard 2 of 5, Codabar, MSI, GS1 DataBar
- 2D Barcodes Data Matrix, PDF 417, Micro PDF 417, Maxicode, QR code, Aztec, MicroQR code
Electrical
- Operation Voltage DC +5V±5%
- Current Consumption 330mA
Environmental
- ESD Protection ±8KV air discharge, ±4KV conductive discharge
- Mechanical Shock 2000G, 0.85ms, half sinus, 3axes
- Operating Temperature -20°C to 50°C (-4°F to 122°F)
- Storage Temperature -30°C to 70°C (-22°F to 158°F)
- Relative Humidity 5% to 95% (Non-condensing)

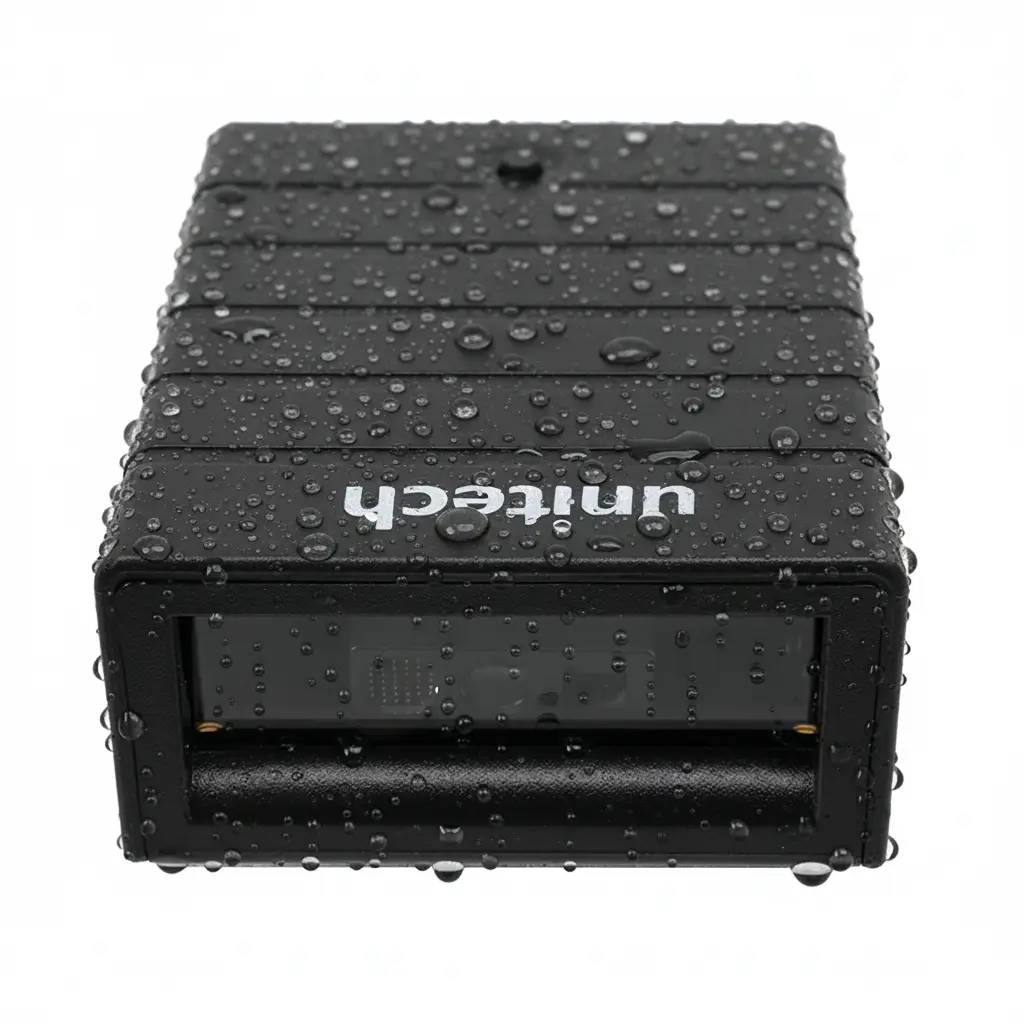

- IP Rating IP42
Regulatory Approvals
- Regulatory Approvals FCC
