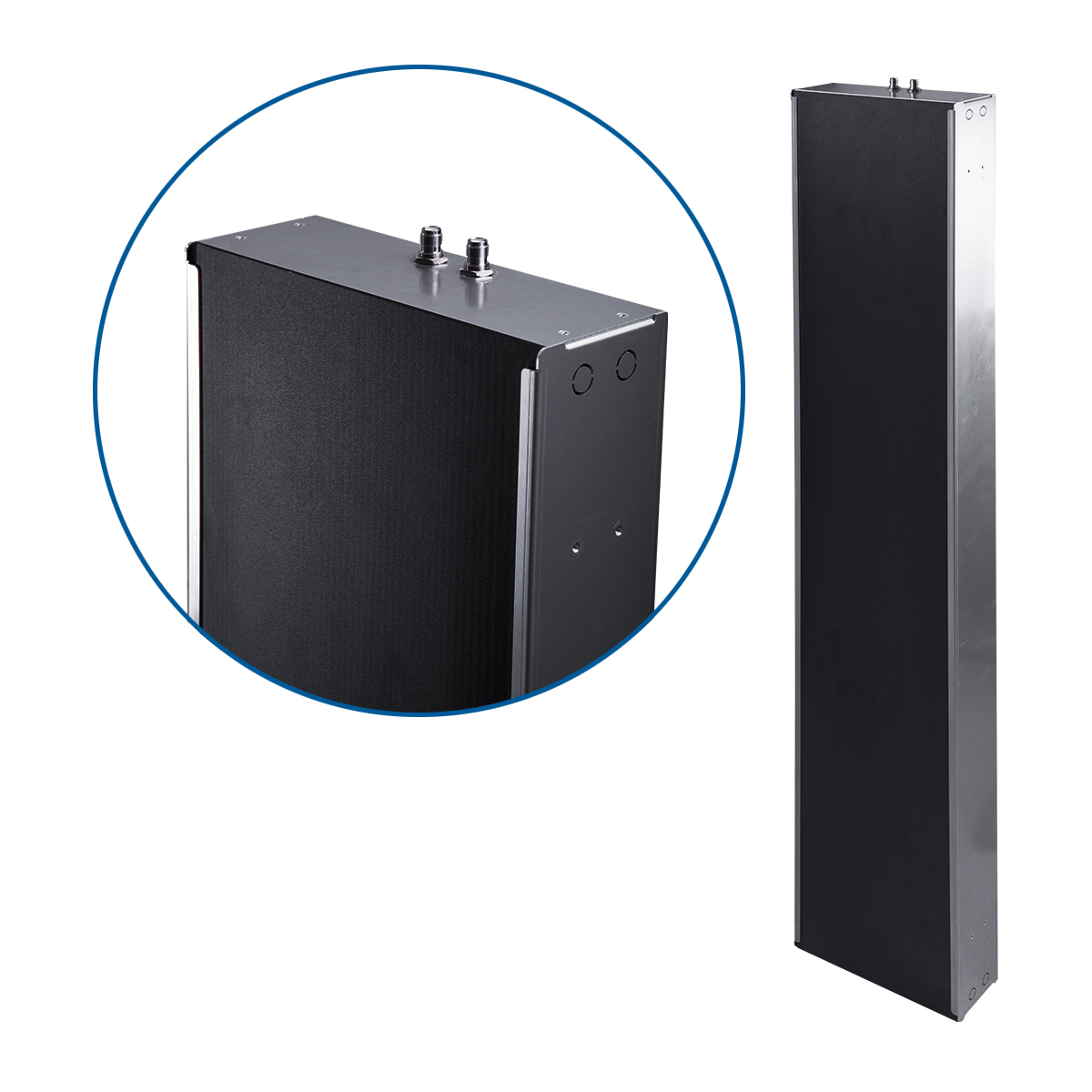

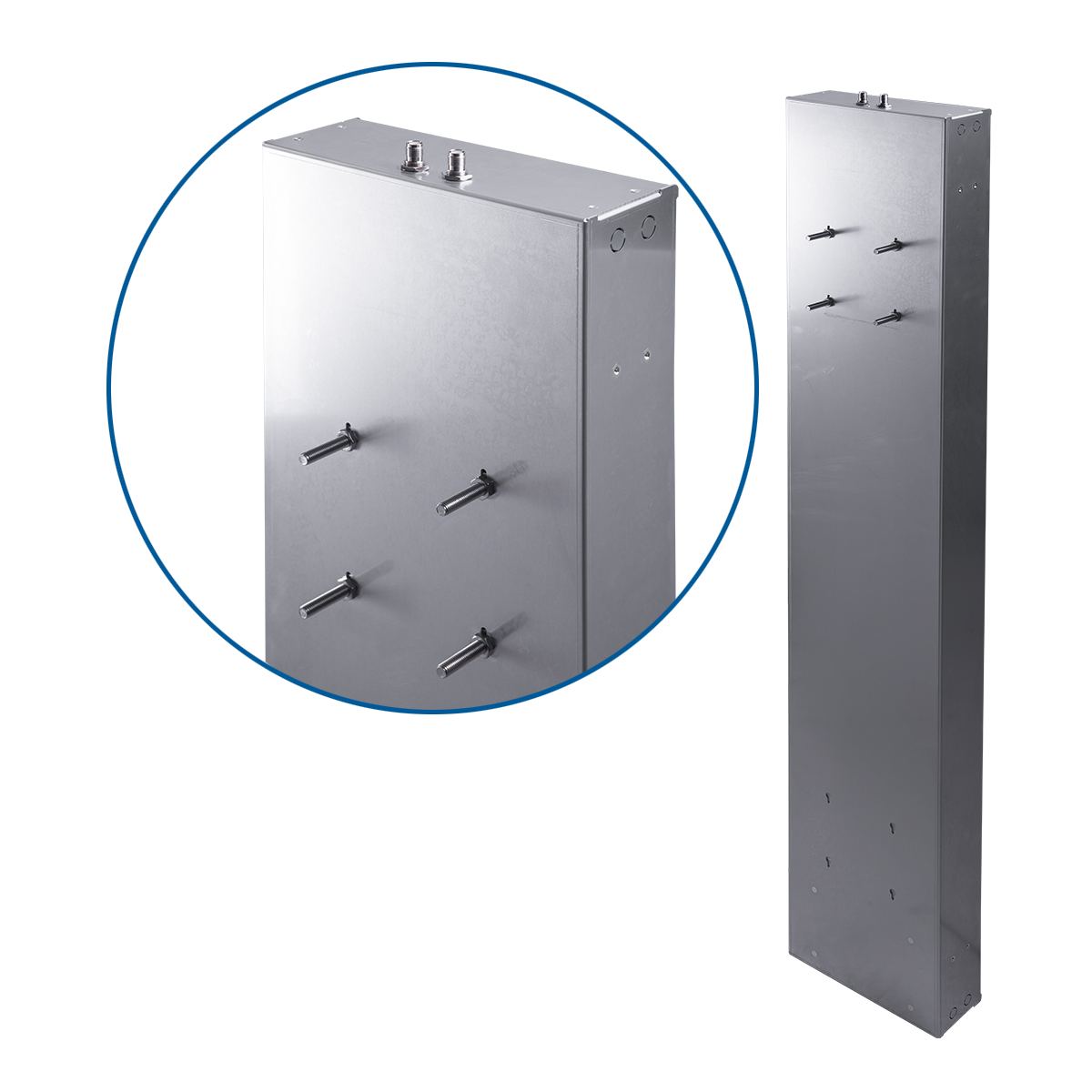

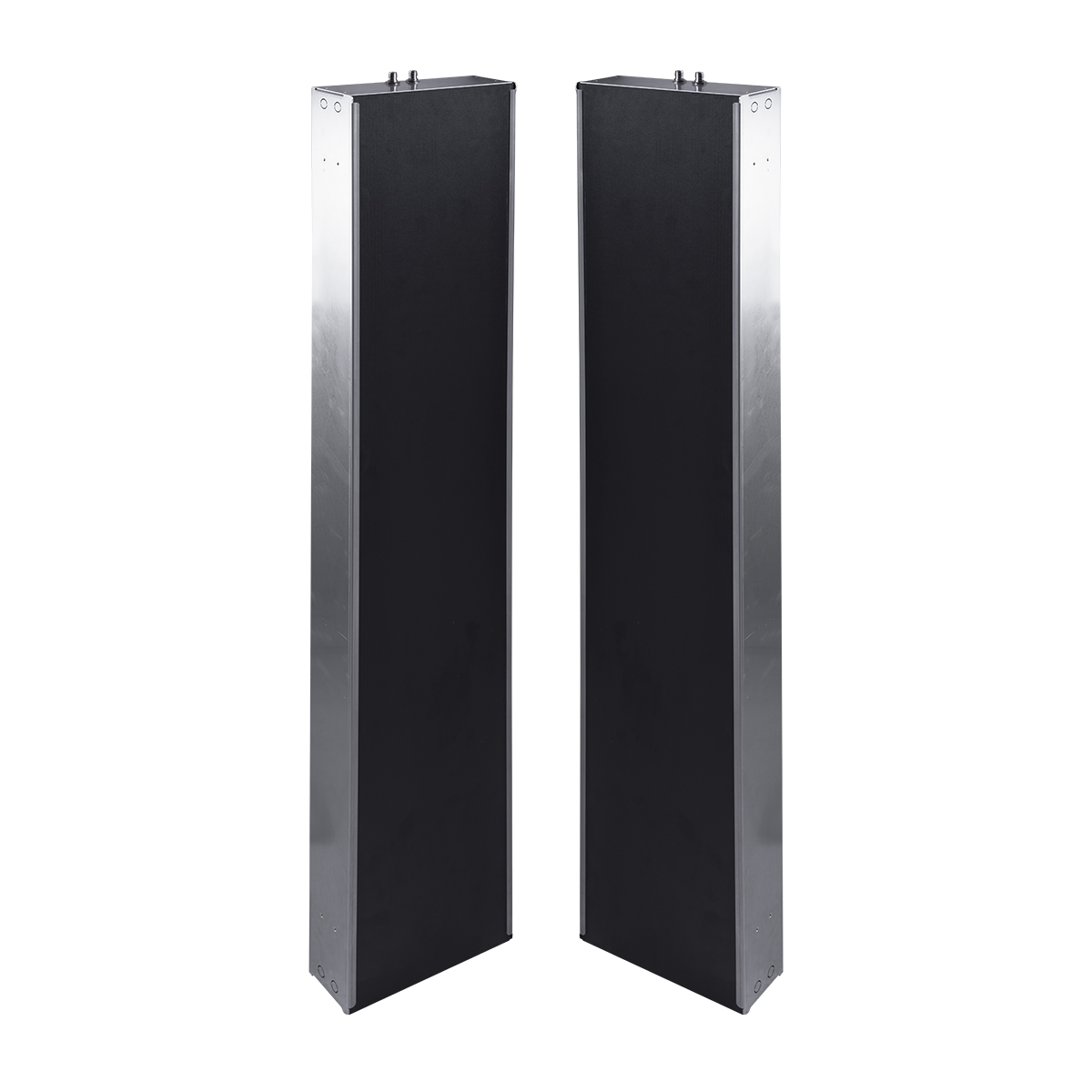

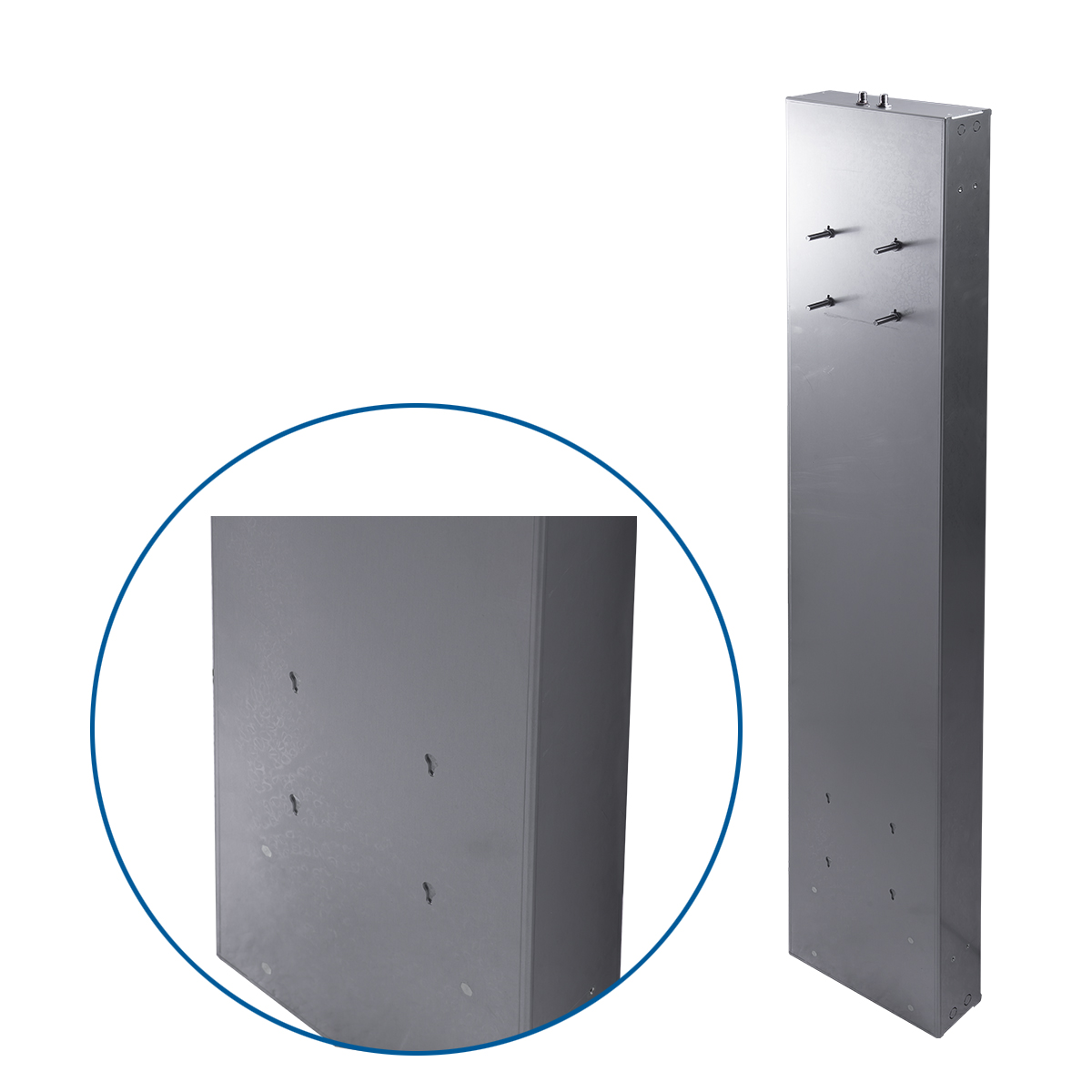

ANA300
2-Port RFID Antenna
Multi-linear polarized | Fast installation | 2-Port Antenna
-
Retail
-
Logistics
-
Warehousing
ANA300 is a 2-port antenna with multi-linear polarization. Each ANA300 includes 2 antenna elements. Featuring plug and play system, it features easy and fast installation. Installed in pairs and it delivers extensive coverage through its wide plate design. It is ideal for anti-shelf gates, warehouse fixed portals, and logistic dock door applications.
Feature
‧ Plug & Play: Easy and fast installation
‧ Multi-linear polarized antenna
‧ Gain Value 5.5dBi
‧ RP-TNC jack connector
‧ Indoor applications
Specification
RFID
- UHF UHF
UHF RFID Performance
- Polarization Multi-linear
-
Frequency Range
US: 902 - 928 MHz
EU: 865 - 868 MHz - VSWR Less than 1.7 : 1
- Gain 5.5 dBi
I/O Interfaces
- Connector RP-TNC Jack * 2
- Cinnector Location Top
Enclosure
-
Dimension
US:
1,300 * 235 * 90mm
EU:
1,320 * 235 * 90 mm - Weight 3.1 KG
Environmental
-
Operating temperature
-20°C ~ 60°C
Power Source
- Impedance 50 Ω
What comes in the box
- The standard package contents 2 units in a box
Applications
-
Applications
Indoor
Retail
● Anti-theft gates
Warehouse
● Fixed portal
Logistics
● Dock door
SKUs
- SKUs 4060-900003G (US) ; 4060-900004G (EU)
Accessories
-
Items
For RS804
■ 3 M RF Cable : RP TNC male to RP TNC male (PN#1550-905910G )
■ 10 M RF Cable : RP TNC male to RP TNC male (PN#1550-905911G )
Warranty
- Hardware Warranty 12 months
- Statement This product is warranted against defects in workmanship and materials for a period of one year from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
