ANP100
1-port RFID antenna
Compact | IP65 protection | Easy integrated
-
Retail
-
Logistics
-
Warehousing
-
IP65
ANP100 is a 1-port RFID antenna with right-hand circular polarization. Featuring a compact design, it is flexible to be integrated into warehouse racks and smart shelves. This device has IP65 rating certification, completely sealing durable housing against indoor or outdoor environments.
Feature
‧ Lightweight & convenient installation
‧ Available in right hand circularly polarization
‧ Waterproof: IP65 rating
‧ +8 dBi Gain
‧ SMA connector
‧ Outdoor and indoor applications
Specification
RFID
- UHF UHF
UHF RFID Performance
- Polarization Right-Hand Circular
-
Frequency Range
US: 902 - 928 MHz
EU: 865 - 868 MHz - VSWR Less than 1.5 : 1
- Gain 8 dBi
I/O Interfaces
- Connector SMA Jack
- Cinnector Location Bottom
Enclosure
- Dimension 180 * 200 * 31.5 mm
- Weight 0.4 KG
Durability
- Sealing IP65
Environmental
- Operating temperature -20°C ~ 60°C
Power Source
- Impedance 50 Ω
What comes in the box
- The standard package contents 1 unit in a box
Applications
-
Applications
Indoor & Outdoor
Retail
● Smart shelves
Warehouse
● Inventory racks
Logistics
● Forklift Mount
SKUs
- SKUs 205367G (US); 205488G (EU)
Accessories
-
Items
For RS804

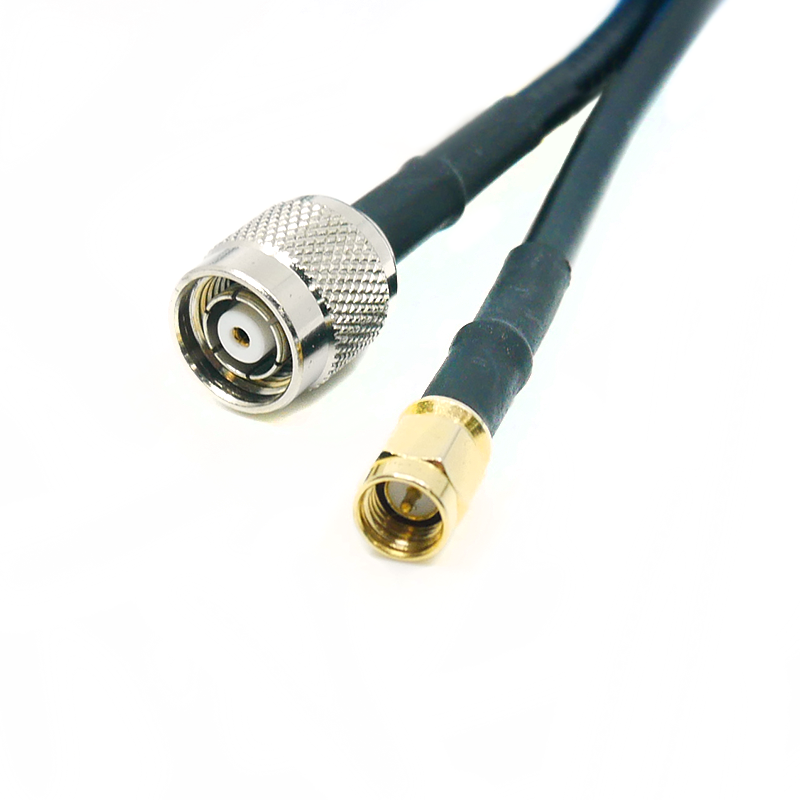

■ 3 M RF Cable: SMA male to RP TNC male (PN#1550-905894G )
■ 10 M RF Cable: SMA male to RP TNC male (PN#1550-905895G)
For RS200

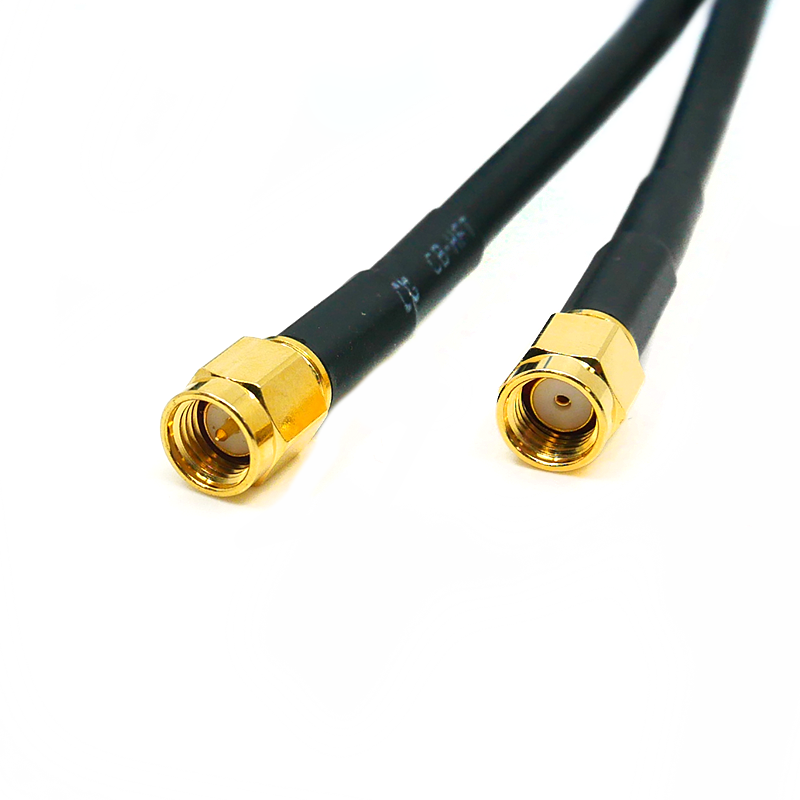

■ 3 M RF Cable: SMA male to RP SMA male (PN#1550-900102G )
■15 M RF Cable: SMA male to RP SMA male (PN#1550-905898G)
Warranty
- Hardware Warranty 12 months
- Statement This product is warranted against defects in workmanship and materials for a period of one year from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
