ANP300
1-Port RFID Antenna
Wide operating temperature | IP66 protection | Easy integrated
-
Logistics
-
Warehousing
-
IP66
ANP300 is a 1-port RFID antenna with right-hand circular polarization. Its IP66 rating and wide operating temperature design ensure stable performance in a challenging environment. It is suitable for applications in parking lot management, asset tracking management, and cold chain data monitoring.
Feature
‧ Wide operating temperature design: -40°C ~ 85°C
‧ Available in right hand circularly polarization
‧ Waterproof: IP66 rating
‧ +9 dBi Gain
‧ N Jack connector
‧ Outdoor applications
Specification
RFID
- UHF UHF
UHF RFID Performance
- Polarization Right-Hand Circular
-
Frequency Range
US: 902 - 928 MHz
EU: 865 - 868 MHz - VSWR Less than 1.5 : 1
- Gain 9 dBi
I/O Interfaces
- Connector N Jack
- Cinnector Location Bottom
Enclosure
- Dimension 260 * 260 * 44mm
- Weight 0.9 KG
Durability
- Sealing IP66
Environmental
-
Operating temperature
-40°C ~ 85°C
Power Source
- Impedance 50 Ω
What comes in the box
- The standard package contents 1 unit in a box
Applications
-
Applications
Outdoor
Transportation
● Parking lot management
Logistics
● Cold chain data monitoring
Warehouse
● Asset tracking
SKUs
- SKUs 4060-900007G (US) ; 4060-900008G (EU)
Accessories
-
Items
For RS804

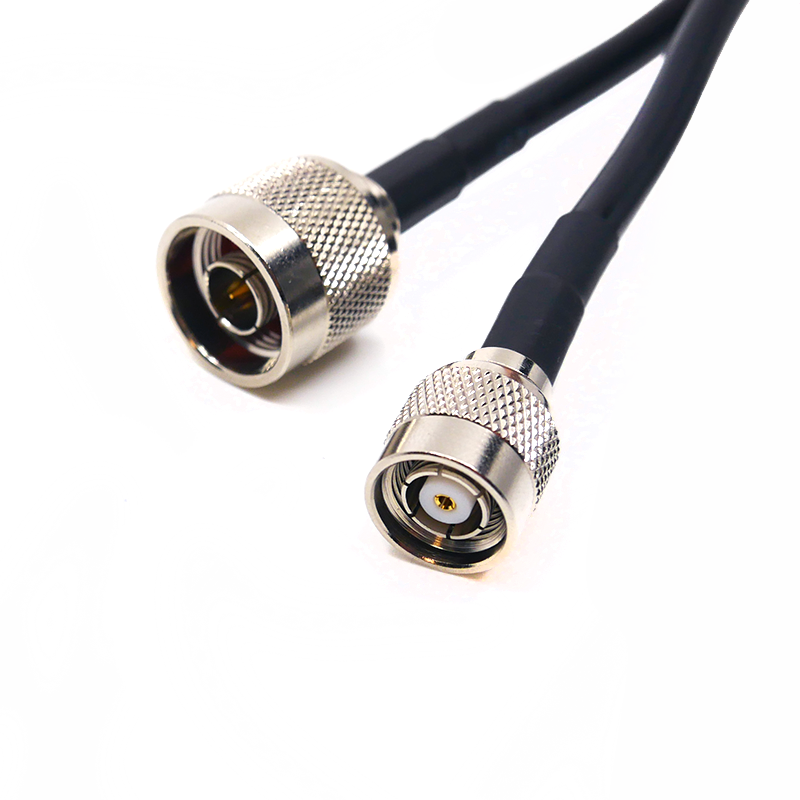

■ 3 M RF Cable: N male to RP TNC male (PN#1550-905912G )
■ 10 M RF Cable: N male to RP TNC male (PN#1550-905913G)
Warranty
- Hardware Warranty 12 months
- Statement This product is warranted against defects in workmanship and materials for a period of one year from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
Download
Marketing Material
-
Rev.C5.3MB98 Downloads
