IP67 Rating + 1.5m Drop Protection | Removable 4250mAh Battery | Superior Barcode Reading (30 scans/sec)

Android 11
2D
DPM Code
5"
NFC
13MP
1.8 m
1.5 m
Wireless
Bluetooth
GMS certified
Retail
Hospitality
Logistics
Field Service
IP67

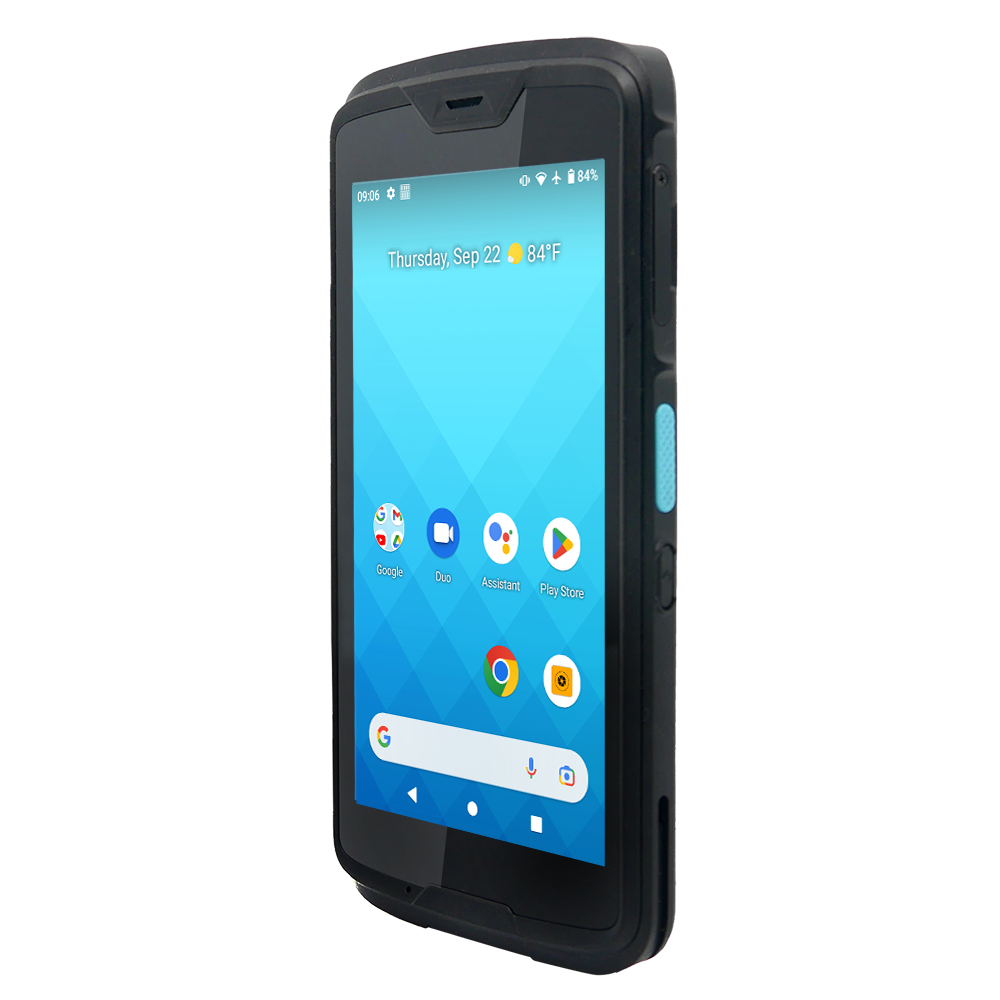

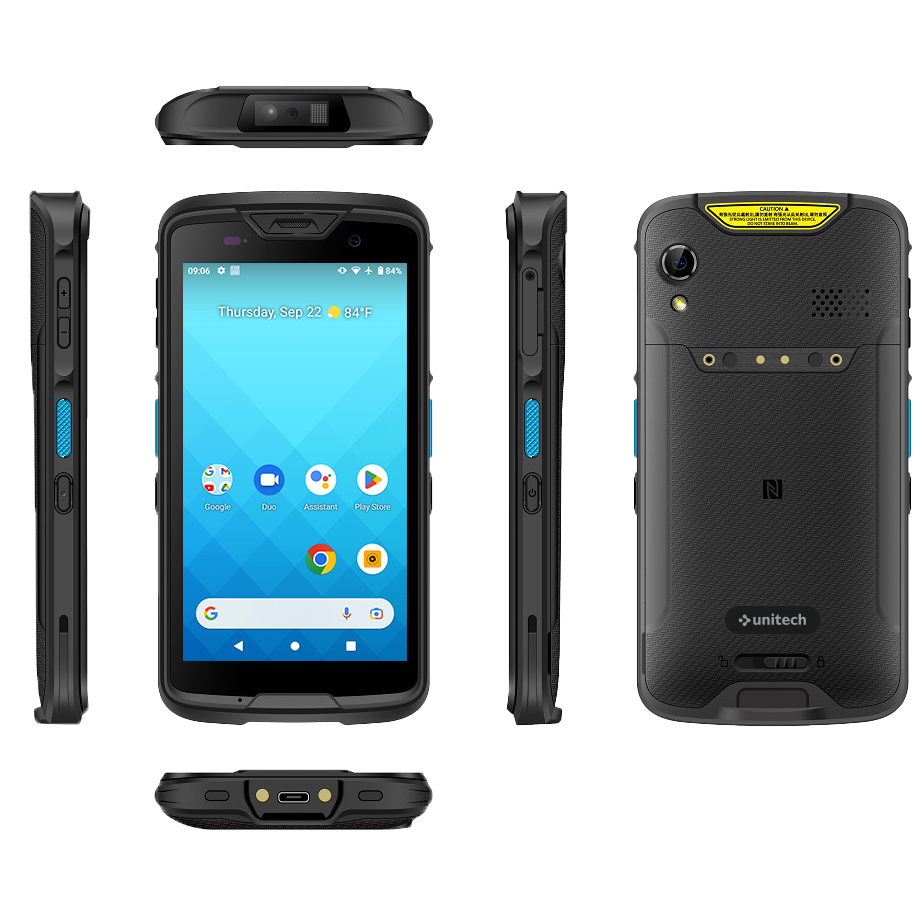

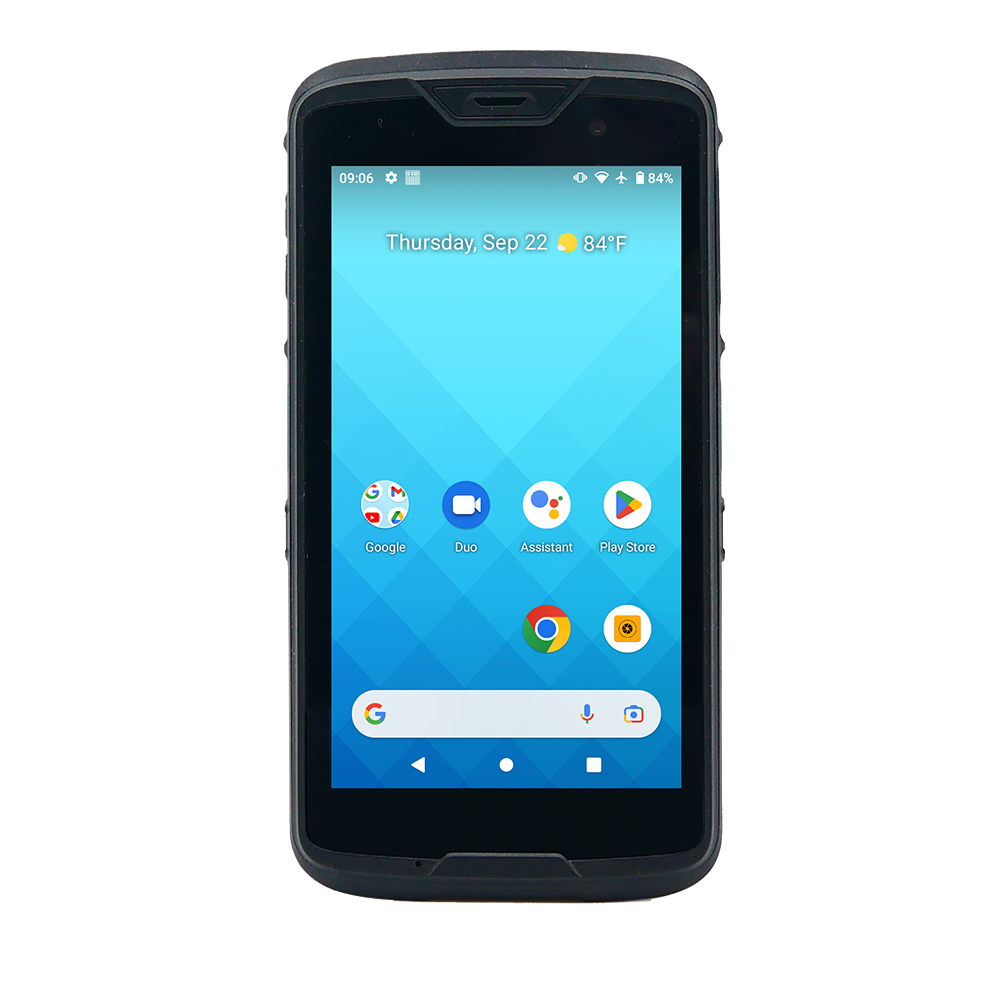

Introducing the EA520, the 5” cutting-edge rugged smartphone delivers powerful barcode reading performance, convenient connectivity, durable but the lightweight design that just fits in the palm of your hand. This enhances the service level for various vertical applications within the retail, hospitality, and field service sectors.

Features

• 5-inch display with 450nits sunlight readable

• Android 11 OS with GMS Certification

• Support most 1D / 2D barcodes on mobile screens, even DPM barcodes

• Lightweight design that just fits in the palm of your hand.

• All-In-One functionality: HF/NFC and 13MP camera

• Rugged: Corning® Gorilla® Glass 3 touch display, IP67 rated, and 1.5M drop (1.8M with boot case)

• Long-lasting removable 4250mAh battery

• Support Bluetooth® 5 / dual-band Wi-Fi, fast roaming

• Support MDM Software Solutions and utilities such as MoboLink.

Portability for Better Retail Associate Experience

Powered by the Android 11 OS with GMS certification, the EA520 is equipped with an octa-core CPU to deliver users excellent performance for smarter, more intuitive interactions. Specially designed for portability and versatile functionality, this device is easy to carry around for inventory checking, communicating with supervisors, supporting customers on the sales floor that redefines the retail associate working experience with convenient tools.

Android 11 Operation System	GMS Certification	Octa-Core CPU	4 GB RAM 64 GB Flash

Powerful Barcode Reading Performance

Featuring powerful 1D/2D scanning capability, it also supports DPM codes and ensures read reliability for mobile phone screens and paper in any orientation. Powered by a removable 4250mAh battery, it is an integrated HF/NFC RFID reader/writer, GPS, and a high-resolution 13MP camera in a compact device. The EA520 gives your workforce the technology it needs to take your business to the next level.

1D/2D Support	DPM code Support	NFC Reader / Writer	13MP Camera

Durable at Its Best

The EA520 enhances the industrial durable protection with features including IP67 dustproof, waterproof, and 1.5 meters resistance to fall protection (1.8 meters with boot case). That means it covers fully protected from dust and can survive in 1 meter of water for up to 30 mins.

IP67
Certification

1.5m
Drop Protection

1.8m
Drop with Bootcase

Seamless and Connectivity

Featuring Bluetooth® 5, wireless dual bands with fast roaming for real-time data collection, staff can scans the item and instantly connect to the backend system to find out the quantity in stock or make an online order for customers. The EA520 delivers a seamlessly work experience and improves productivity for various applications.

Bluetooth 5

Dual bands
Wireless

Specially Designed for Portability

The EA520 can improve service quality of various vertical applications within the retail, logistics, hospitality, and field service industries.

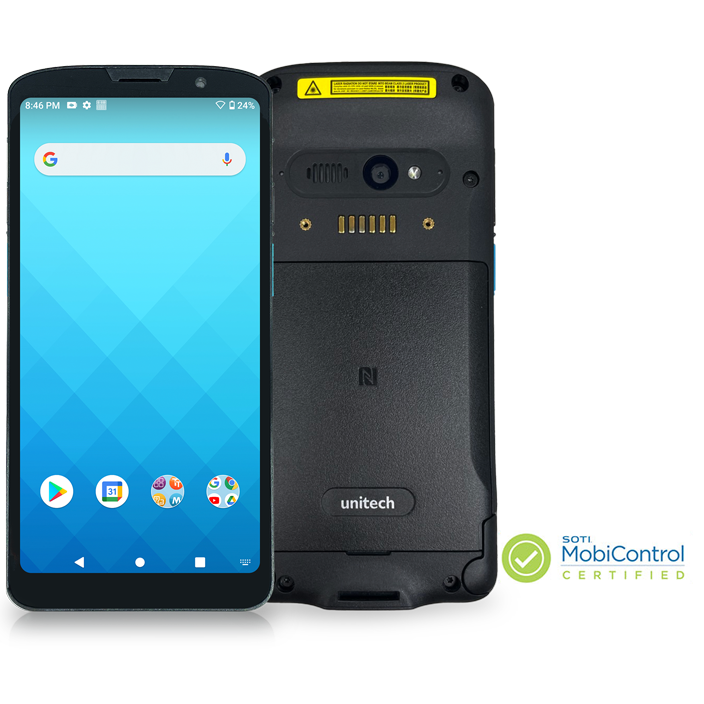

Support SOTI— MobiControl

SOTI MobiControl empowers organizations to remotely track the performance of mobile devices and easily configure the application settings through the entire lifespan of mobile devices. Business operations gain better visibility into where the devices are, what tasks they’re carrying out, and how the productivity is going on. It’s a mobile solution to help you effectively communicate and oversee end-to-end points without the time and location limitations!

Configure

Quickly & Easily

Manage Apps

Remotely & Securely

Eliminate

Devices Downtime

Optimize

Data Delivery


Optical Character Recognition (OCR)

EA630 provides Optical Character Recognition (OCR) technology in Unitech USS software to streamline your tedious typing process and minimize the typing mistakes when entering the numbers. Our OCR technology allows users to easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips, and any other readable surface.


Airline	Manufacturing	Logistics
✔The Airline Ground Services｜Read ID numbers from passports ✔Manufacturing｜Read vehicle registration numbers and electronic chips ✔ Logistics&Retail｜Read lot numbers printed on the package


SmartPA: Better Audio Output

SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.


Power Amplifier Better Audio Output			Built-in Algorithm Lessen Circuit / Temperature Damage

center

Operation System

OS Android 11
GMS certified GMS certified
CPU Octa-core 2GHz Processor
Memory RAM 4GB
Flash 64GB
Languages support Multiple languages
Others Input Chinese/ English
Supports handwriting and soft keyboard

Display

Screen Size 5.0” TFT-LCD HD (720 x 1280) color screen
Touch Panel Gorilla Glass 3. Ultra sensitive capacitive touch screen,
compatible with gloves and supports wet resistance

Buttons / Keypad

Buttons / Keypad Side SCAN button x 2 (Left / Right), User-defined function button
(programmable key), volume up/down buttons, on/off button

Camera

Camera 8MP front camera
13M rear camera with LED flash and auto-focus function

Indicator Type

Type LED, Speaker, Vibrator

Symbologies

2D Barcodes Support all major 1D and 2D barcodes

RFID

HF RFID Support HF/NFC, Frequency 13.56Mhz, ISO14443 A/B,
ISO15693, Felica(ISO/IEC18092), Mifare compliance

I/O Interfaces

USB USB 2.0 (Type-C)
OTG Yes, over USB Type-C
POGO PIN Charging via cradle
Expansion Slot MicroSD, up to 256 GB
Audio One speaker (1.5W / 95±3dB @ 10cm), One receiver
One microphone

Power Source

Main battery 3.85V 4250mAh Li-ion battery
Removable

Communication

Bluetooth® Bluetooth® 5 supported
WLAN 802.11 a/b/g/n/ac/d/e/h/i/j/k/r/v, 2.4G+5GHz, support fast roaming, VoWiFi, hotspot,
Compliant with WFA, WPA/WPA2
GPS AGPS, GPS, GLONASS, Beidou, Galileo
Sensors Light Proximity, Accelerometer
Fingerprint Optional

Software

MDM Software SOTI, AirWatch, 42Gears, and MoboLink

Enclosure

Dimensions ( W x H x D ) 151.1 x 76.8 x 13.7 mm
Weight 246g (with battery)

Durability

Drop Specification 1.5m, 1.8m with boot case
Sealing IP67
Tumble test 0.5m tumbles for 300 cycles / 600 drops

Environmental

Operating temperature -20°C to 60°C
Storage temperature - 40°C to 70°C (without battery)
Charging temperature 0°C to 45°C
Relative Humidity 95% ( non-condensing )

Accessories

Accessories ■ EA520 Battery 3.85V 4250mAh (PN#1400-900063G)
■ USB 2.0 type C cable (PN#1550-905919G)
■ Glass Screen Protector(PN#401621G)

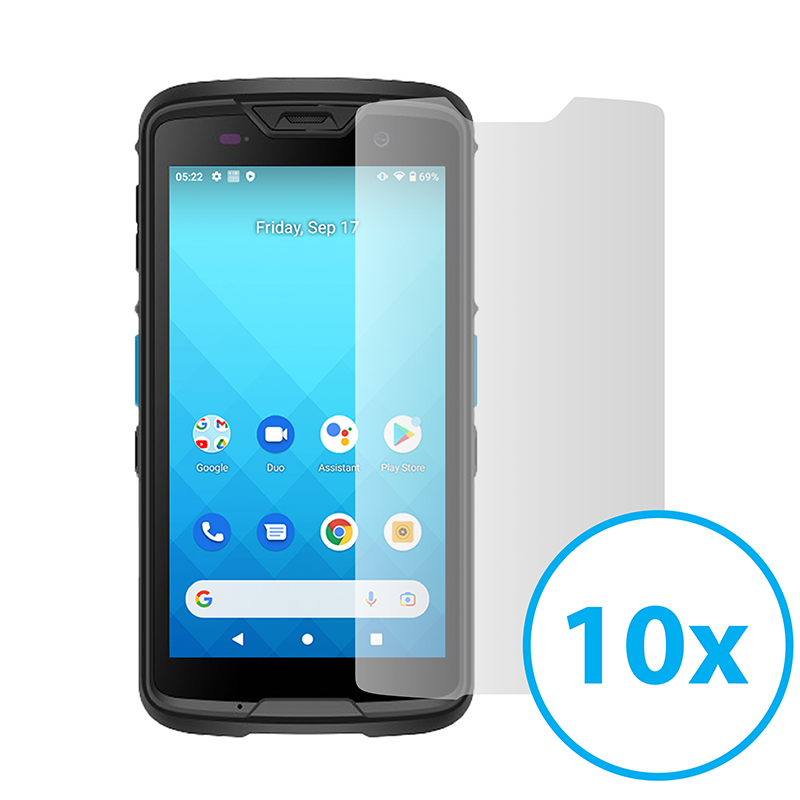

■ Glass Screen Protector w/ packing, 10pcs/ box (PN#5400-900047G)
■ Boot Case (PN#3210-900031G)
■ Hand Strap with fixed arm- individual package (PN#5400-900046G)
■ Stylus (8mm: PN#384896G / 5.5mm: PN#386534G)
■ Coiled Strap (PN#383642G)
■ 5V/2A Adaptor with US plug for terminal & cradle (PN#1010-900058G)
■ 5V/2A Adaptor with universal plugs for terminal & cradle (PN#1010- 900067G)
■ 5V/3A Adaptor (EU,UK,US,AU) (PN#1010-085001G)
■ Single Slot Charging Cradle* (PN#5000-900092G)
■ Single Slot USB Cradle* (PN#5000-900093G)
* Use USB Cable & Power Adapter from EA520

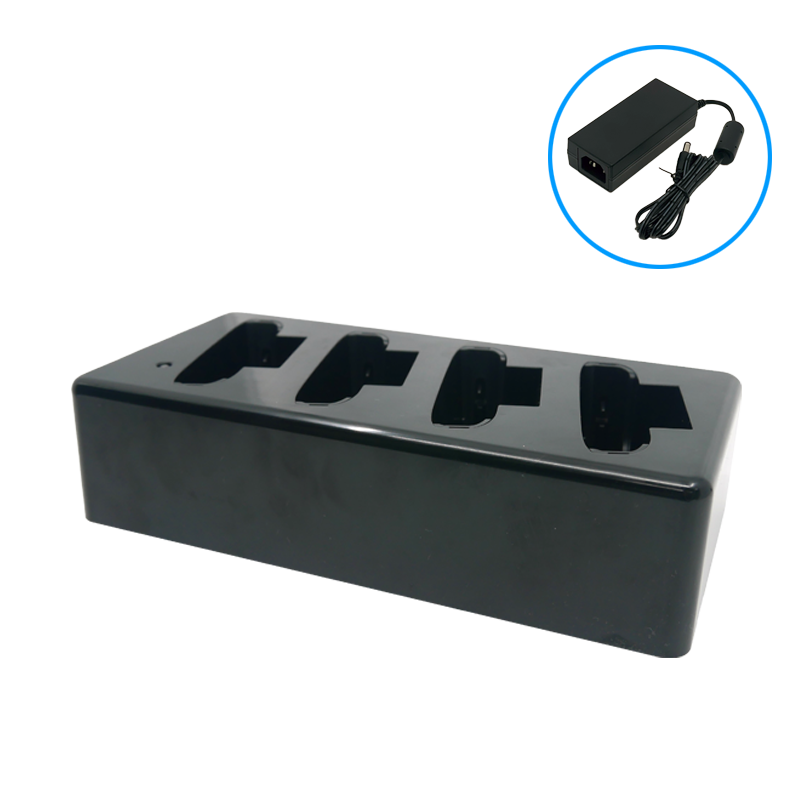

■ 4-slot Terminal Charging Cradle (PN#5000-900100G, PSU Only)
■ 4-Slot Battery Charging Cradle (PN#5100-900033G, PSU Only)
■ 12V/5A Power Supply in the Multi-slot Cradle (PN#1010-900068G)
■ 3-Pin Power Cord(US) (PN#1010-601551G)
■ 3-Pin Power Cord(EU) (PN#1550-602333G)
■ 3-Pin Power Cord (UK) (PN#1550-602689G)
■ Gun Grip- For EA520 Without Boot Cover On (PN#5500-900097G)
■ EA520 Wearable Kit w/ Bracket, Strap, Pad (PN#3210-900032G)
■ EA520 Vehicle Cradle (PN#5000-900097G)
■ RP902 Bluetooth UHF RFID Pocket Reader
(PN#RP902-33E8S0G(EU),PN#RP902-43A8S0G(US),PN#RP902-43F8S0G (JP))
■ Soft Belt Holster with Belt Clip (PN#DT3669)
■ Belt Holster (PN#381852)
■ Bracket arm for hand-strap (1x arm and 2x screws) (PN#386078G)
■ Screw set (set contains 2 screws) for bracket (PN#381357G)

Regulatory Approvals

Regulatory Approvals CE, FCC, NCC, CCC, SRRC, VCCI, TELEC, RoHS, BQB, N-Mark, BSMI
for battery

Warranty

Hardware Warranty 12 months
Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
