The unitech HT730 is an ergonomic one-hand operation handheld terminal with keypad and powerful data collection solutions. Offering Android 10 OS with GMS certification, the HT730 is equipped with Qualcomm® Artificial Intelligence (AI) CPU to deliver users excellent performance for smarter, more intuitive interactions which is suitable to improve your work efficiency in a wide range of applications in warehousing, logistics, and field service.
• Android 10 OS with GMS certified
• Ergonomic one-handed operation
• Superior 2D scanning performance: Support 30-degree scanning tilt down
• Superior performance with the scanning range up to 20m away
• Support IEEE 802.11a/b/g/n, 802.11ax-ready, 802.11ac Wave 2 with 2X2 MU-MIMO WLAN Standard
• 6700mAh battery for 20-26 hours operation
• True Hot-swap battery design without downtime
• 1.8M drop-resistant housing (2.4M with bumper)
• IP65/IP67 protection against water and dust
• Durable keypad with backlight: 38/29 keys with 2.5 million lifetime clicks
• Support Bluetooth® 5.1
• Support MDM software and utilities such as MoboLink, StageGo, Ivanti Wavelink and StayLinked
Powered by Android 10 OS with GMS Certified
The unitech HT730 is an ergonomic one-hand operation handheld terminal with keypad and powerful data collection solutions. Offering Android 10 OS with GMS certification, the HT730 is equipped with 5th gen Qualcomm® AI Engine to deliver users excellent performance for smarter, more intuitive interactions that are suitable to improve your work efficiency in a wide range of applications in warehousing, logistics, and field service.
4 GB RAM
64 GB Flash
Superior Performance with Long Reading Distance
Specially built for an extended-range work environment, the HT730 4” rugged handheld terminal features a superior performance with the scanning range up to 20m away from the spot. The device supports full barcode symbologies including 1D, 2D, Dot Code, and OCR as well as boosts your scanning performance at a speed of 60fps.
Ideal for tasks that require heavy scanning, the HT730 is built-in a powerful megapixel 2D scanning engine with a wide variety of 30-degree scanning tilt-down design. It also delivers motion tolerance of up to 5m/s, the HT730 increases the operational effectiveness even while moving.
Support 2D, Dot code, OCR
Scanning tilt down design
5m/s Motion tolerance
Ergonomic One-Hand Operation with Large Keypad
The 4-inch touch display with 400 nits of brightness means your inventory app will look great indoors or outdoors. The large-sized backlit keypad features high-end silicone keys with under-key label printing designed to stop the label legends from ever becoming unreadable, even after our tested 2.5 million key presses. Scanning buttons on both sides, top of the keypad, or on the optional gun grip trigger, means you can capture barcode data in a manner ergonomically best for you.
38 / 29
No Downtime with True Hot-Swap Battery
Featuring hot-swap technology, the HT730 allows batteries to be swapped without interrupting within 1 minute. With a long-lasting 6700 removable battery, the HT730 allows continuous use for 20-26 hours operation and it is easily replaced whiles running out of power seamlessly.
Boost Wireless Communication Performance
The HT730 supports 2X2 MU-MIMO antennas that boost the wireless performance with a faster and better data transferring experience, allowing staff to get connected immediately. Built-in 4G dual-SIM slots, it provides double signal coverage and real-time communications even in different countries. Furthermore, it has a 13MP camera that gives an easy way to prove delivery or shipment issues.
Design for harsh environments, HT730 features ultra-durable design to withstand 1.8m / 2.4m (with bumper) drop to concrete and IP65 / IP67 environmental seal against water and dust. Moreover, the HT730 offers options including a rugged gun grip, a rugged UHF RFID long-range reader, and even a rugged extra-long-range barcode scan engine that enhances the ease of use and increases staff comfort for inventory tracking and taking solutions.
1.8 m Drop protection
2.4 m Drop protection
Optical Character Recognition (OCR)
HT730 provides Optical Character Recognition (OCR) technology in Unitech USS software to streamline your tedious typing process and minimize the typing mistakes when entering the numbers. Our OCR technology allows users to easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips, and any other readable surface.
✔The Airline Ground Services｜Read ID numbers from passports
✔Manufacturing｜Read vehicle registration numbers and electronic chips
✔ Logistics&Retail｜Read lot numbers printed on the package
SmartPA: Better Audio Output
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.
Better Audio Output
Lessen Circuit / Temperature Damage
GMS certifiedGMS certified
CPUQcta-core 2.3 GHz, Qualcomm 720G (SM7125)
AI5th Gen Qualcomm AI Engine
Screen Size4”TFT-LCD WVGA (480x800) color screen (400 nits)
Touch PanelUltra-sensitive capacitive touch screen, compatible with gloves and support wet resistance
Buttons / Keypad
Buttons / KeypadNumeric (29 key)/ Function Numeric (38 key) with backlight
MDM SoftwareSOTI, AirWatch, 42Gears, Ivanti Wavelink, and MoboLink
Dimensions ( W x H x D )195 mm x 72 mm x 34 mm
Drop Specification1.8m / 2.4m(with Bumper)
SealingIP65 / IP67
Tumble testTumble 600 times (1.6 ft./0.5 m)
Operating temperature-20°C to +50°C
Storage temperature- 30°C to 70°C (without battery)
Charging temperature0°C to 45°C
Relative Humidity5% ~ 95% (non-condensing)
Accessories■ Battery 3.7V 6700mAh (PN#1400-900071G)
■ Hand Strap (PN#608909G)
■ USB 3.0 type-C Cable(PN#1550-905908G)

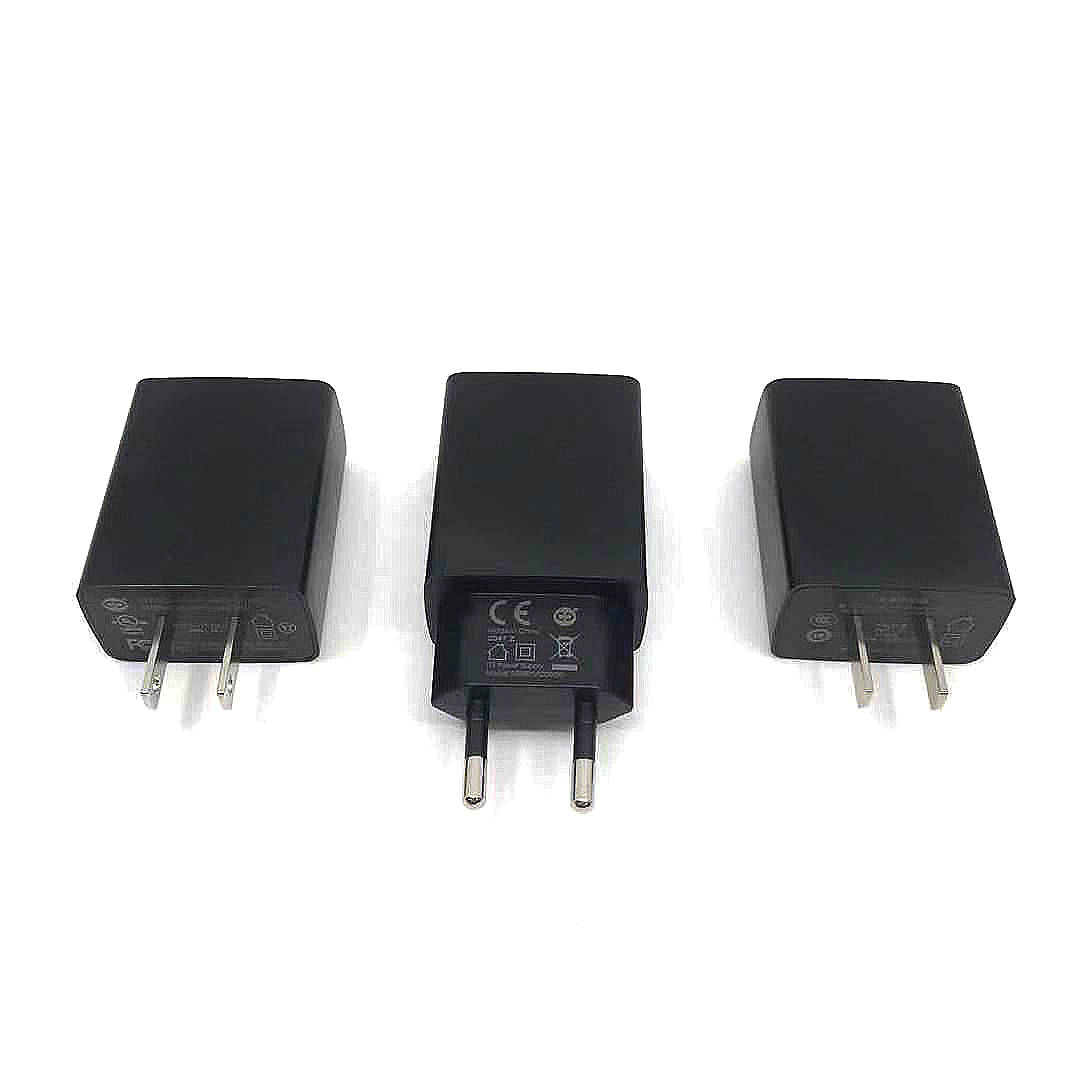

■ Power Adaptor(PN#1010-900061G(US) PN#1010-900062G(EU) PN#1010-900063G(CN)
■ Single Slot Charging Cradle (PN#5000-900086G)
■ Single Slot USB Cradle (PN#5000-900090G)
■ Single Slot Ethernet Cradle (PN#5000-900087G)
■ Single Slot Display Port Cradle (PN#5000-900088G)
■ 5V/6A Power Supply for 1-slot Cradle (PN# 1010-900043G)
■ 3-Pin Power Cord (UK) PN#1550-602689G
■ 3-Pin Power Cord(EU)PN#1550-602333G
■ 3-Pin Power Cord(US)PN#1010-601551G
■ Standard Gun Grip (PN# 5500-900096G)
■ 4-Slot Charging Cradle(PN#5000-900089G)
■ 4-Slot Ethernet Cradle(PN#5000-900091G)
■ 4-Slot battery Charger (PN# 5100-900031G)
■ 12V/5A Power Supply for 4-slot Cradle (PN#1010-900068G)
■ Glass Screen Protector(PN#401609G)
■ Stylus with Coil Strap (PN# 1979-900003G)
■ HT730 Bumper Package for Standard Range Engine (PN#5400-900048G)
■ HT730 Bumper Package for Long Range Engine (PN#5400-900049)
■ HT730 Boot case for Standard Range Engine (PN#3210-900036G)
■ RP902 Bluetooth UHF RFID Pocket Reader (PN#RP902-33E8S0G (EU), PN#RP902-43A8S0G (US), PN#RP902-43F8S0G (JP))
■ Quick charge UK USB Plug (PN#1010-51C002G)
■ Quick charge EU USB Plug (PN#1010-51C001G)
■ HT730 Battery Cover (PN#386108G)
What comes in the box
The basic package contents■ HT730 Terminal
■ Hand Strap
StatementThis product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
