15m Read Range | 6700mAh with hot-swap battery | IMPINJ R2000

Android 10
2D
UHF RFID
4"
Keypad
MU-MIMO
13MP
IP65
1.8 m
GMS certified
Bluetooth
Logistics
Warehousing
Field Service

The HT730 UHF is an omnidirectional 15M-read-range RFID terminal that reads 750 tags+ per second to let associates quickly access data when managing stock. With the sophisticated IMPINJ R2000 embedded chip, gaining clear visibility of assets and location is never a troublesome task. There’s no need to turn off the device, so your associates can still hot-swap 6700mAh battery on continuous work. An ultra-powerful RFID reader with resistance to dust and water and withstanding 1.8m drop is your best fit for warehousing, field service, and transportation & logistics.

Features

• Industry-leading 15M RFID read range
• High sensitivity and optimum chip: IMPINJ R2000
• Swappable smart battery with lasting 6700mAh capacity
• Perform 750+ tag reads per second
• Maximum EIRP of 36 dBm

• Support Hot-Swap function, keeps applications active up to 1 minute
• Integrated various WLAN connections: IEEE 802.11a/b/g/n, 802.11ax-ready, 802.11ac Wave 2 with 2X2 MU-MIMO WLAN Standard
• Wirelessly connect with Bluetooth® 5.1
• Ultra-sensitive 4” display touch screen
• Balanced, ergonomic, and robust gun grip design
• Enterprise-durable protection with IP65 protection and 1.8m drop to concrete

Ultra-powerful RFID Reader to Boost Efficiency The best-in-class RFID reader is designed for the extended reading range up to 15 meters, offering data in real-time and facilitating better traceability of the product. The highly-sensitive chip, IMPINJ R2000, can read multiple UHF tags simultaneously and further accelerate the entire shipping and goods validation process. Maximum 36 EIRP dBm power reads most RFID tags like EPC Global Class 1 Gen 2 and ISO 18000-6C compliant within the global frequency range between 865MHz and 928MHz (US/EU/JP/TW/CN). On the logistics cycle, the HT730 UHF reader keeps the process going faster and on time.


Global Frequency 865MHz - 928MHz	15m Reading Distance	EIRP 36dBm Maximum

Continuous Work with Fast Read Rate

Driving up productivity with more tag reads per second, HT730 UHF performs at least 750 reads to undertake high-volume data on the site of a large distribution center. It eliminates the manual work to check parcels on loading pallets and saves precious time to end-user delivery. The 6700mAnh battery runs operation up a whole
day to handle a packed schedule and can be easily swapped to proceed 24/7 working.

Advanced Connectivity for Instant Feedback

The 4-inch display provides more readability to view instant feedback while reading tags. The screen is easy to view indoors and outside, even in bright sunlight. Either connected with Bluetooth® 5.1 or a WLAN network, HT730 UHF allows users to quickly check misplaced or missing items on integrated Apps, such as TagAccess. It’s an easy-to-aim device that provides clear audible, tactile, and visual feedback on each read.

Enterprised-level protection

With a balanced and ergonomic gun grip design, HT730 UHF fits comfortably in your hand with a push-to-talk trigger and releases the strain on a long working shift. While it’s designed to be sleek, the reader is durable enough for field service teams that maintain infrastructure or logistics teams that carry on the parcel to our community. The IP65 enterprise-level protection against water and dust supports our everyday life workers with a rugged yet trustworthy tool.

Streamline Your RFID Operations with HT730UHF and TagAccess Software

HT730UHF is a powerful RFID reader that supports TagAccess software, providing an integrated solution for reading and writing RFID tags. With TagAccess, users can manually pair the device via Bluetooth. The software offers multiple functions, including Inventory, Read & Write, Find Tag, Lock Tag, Kill Tag, and GTIN operations, empowering users to examine, modify, locate, lock, and even deactivate tags. Moreover, the HT730UHF offers Android software development kits (SDKs) that allow customers to customize their own RFID applications and seamlessly integrate them into their workflows, providing a highly personalized and efficient RFID experience.

Seamless TagAccess Integration for Enhanced Global Trade Item Number (GTIN) Management

The integration of HT730UHF with TagAccess software for GTIN management provides a robust solution for inventory tracking and product verification. This makes it an indispensable tool for businesses aiming for efficiency and accuracy in their operations. It is applicable across various sectors, including manufacturing, supply chain, logistics, and retail. Through this feature, product identification becomes streamlined and more effective.

Inventory Management

Utilizing the GTIN Inventory feature, the HT730UHF harnesses its efficient scanning capabilities to swiftly tally the total quantity of products and their variants within a specific area. Its efficiency is particularly evident in scenarios like retail stock checks and warehouse inventory management, where it ensures accurate stock levels and minimizes discrepancies.

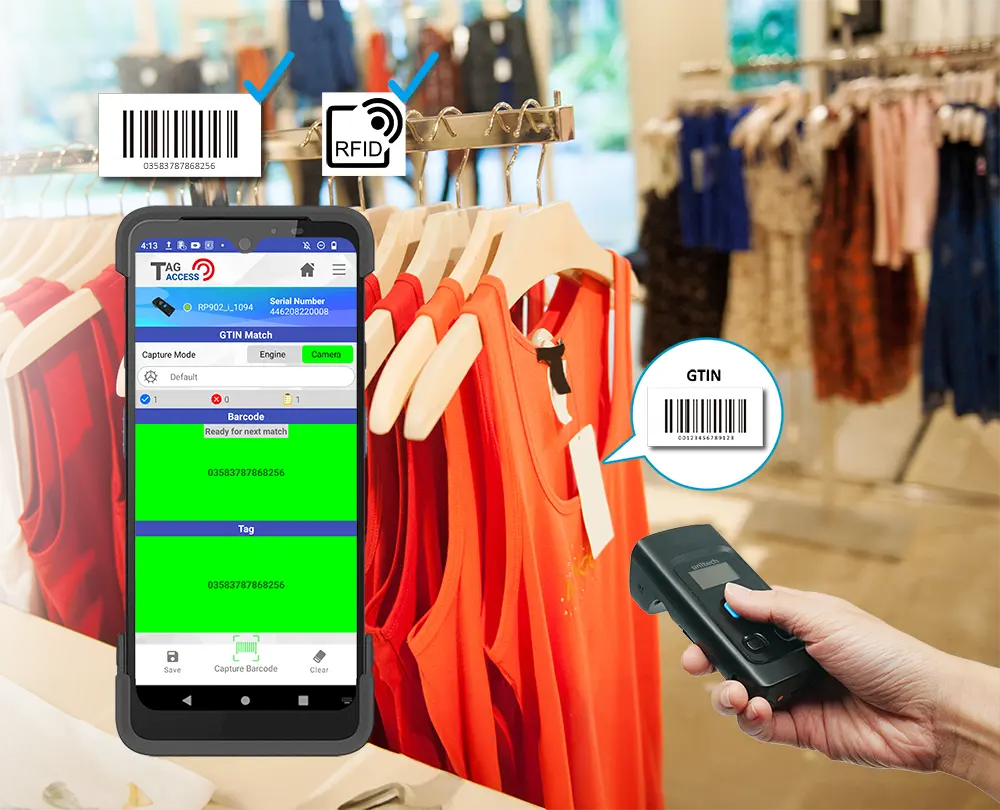

Scan Matching with Enhanced Precision

TagAccess software equips Unitech's Android device with the capability to scan barcodes using its 2D barcode engine and camera. Additionally, through the HT730UHF, it reads RFID tags. This functionality enables operators to efficiently read GTIN from barcodes and extract GTIN from Serialized Global Trade Item Numbers (SGTINs) on RFID tags attached to items. This process ensures product authenticity and consistency by confirming the matching of GTINs across different identification methods. In logistics, it aids in ensuring that the correct items are shipped and received, enhancing accuracy and reliability in inventory management.

Operation System

OS Android 10 with GMS
CPU Qcta-core 2.3 GHz, Qualcomm 720G (SM7125)
Memory 4GB RAM / 64GB Flash
Languages support Multi-languages

Display

Screen Size 4”TFT-LCD WVGA (480x800) color screen (400 nits)
Touchpanel Ultra-sensitive capacitive touch screen, compatible with gloves and support wet resistance

Camera/Photos/Video

Camera Rear 13 MP Autofocus with flash

Keypad

Keypad Function Numeric (38 key) with backlight

Indicator

Type LED, Speaker, Vibrator

Symbologies

2D Barcodes N6703
N3603 / EX30 (optional)

RFID

UHF EPC Class1 Gen2 V2; ISO-18000-6C
865-928MHz
(Specific regional and country settings supported upon country selection)

UHF RFID Performance

Reading Distance 15 m
Tag Read Rate 750+ tags/sec

Communication

Bluetooth® Bluetooth® 5.1
WLAN 802.11a/b/g/n, 802.11ax-ready, 802.11ac Wave 2
(Dual Antenna, 2X2 MU-MIMO support)

Enclosure

Dimension 203 x 82.2 x 164.3 mm
Weight 750 g

Durability

Drop Specification 1.8 m
Sealing IP65

Environmental

Operating temperature -20°C to +50°C
Storage temperature - 30°C to 70°C (without battery)
Charging Temperature 0°C to 45°C
Relative Humidity 5% ~ 95% (non-condensing)
Electrostatic Discharge +/-15kV air discharge
+/-8kV contact discharge

Power Source

Main battery 6,700mAh, 3.7V

Accessories

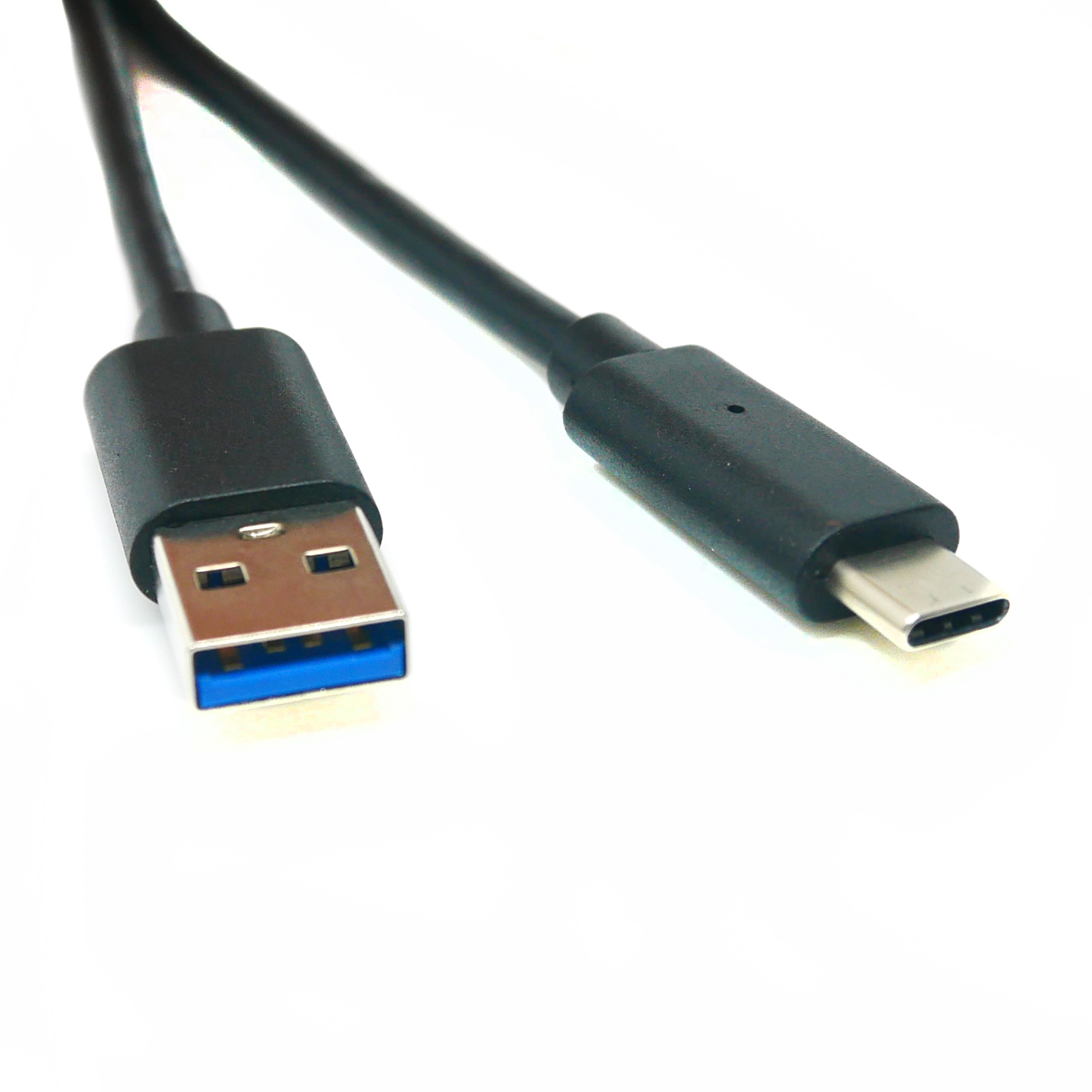

Items ■ USB 3.0 type-C cable(PN#1550-905908G)

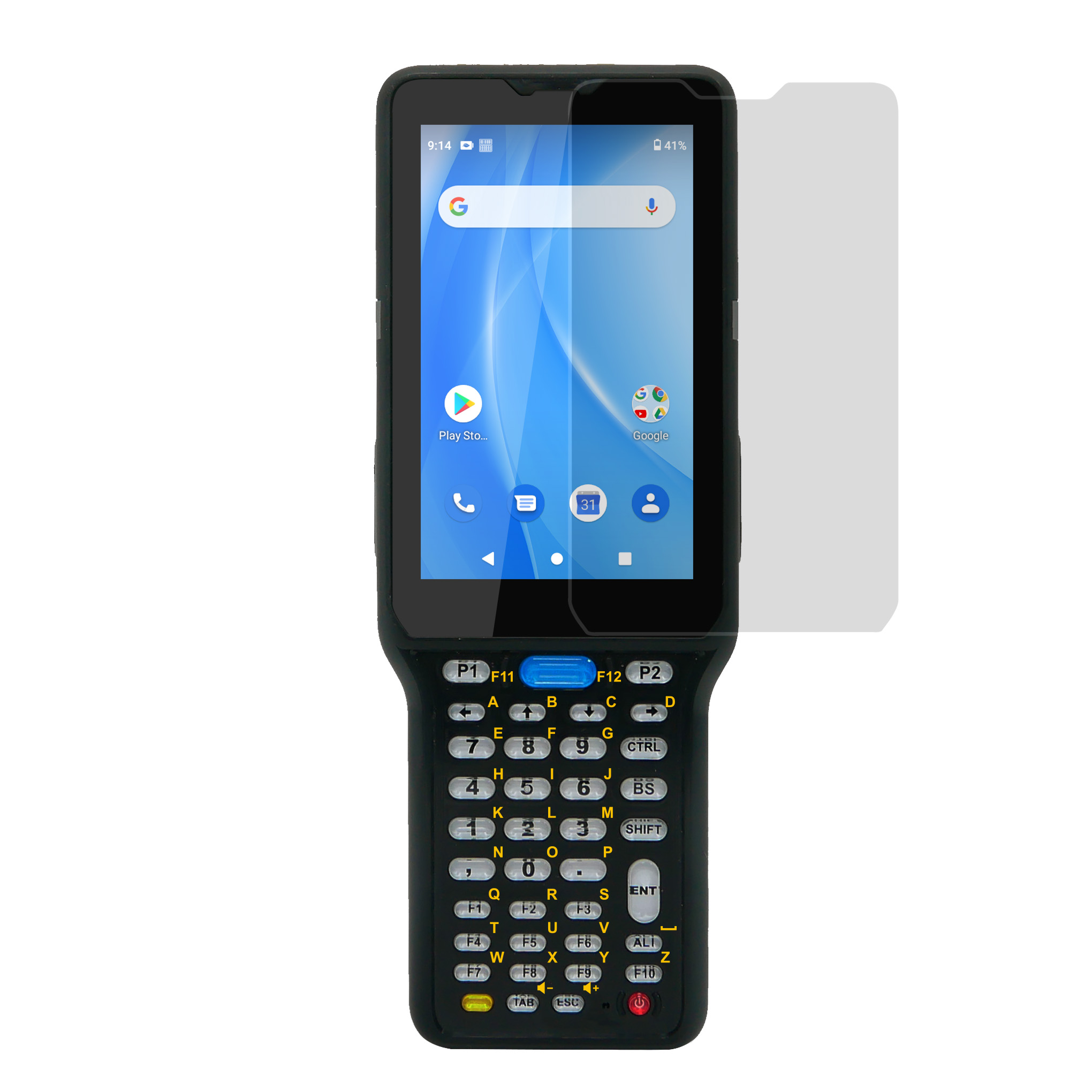

■ Glass Screen Protector(PN#401609G)

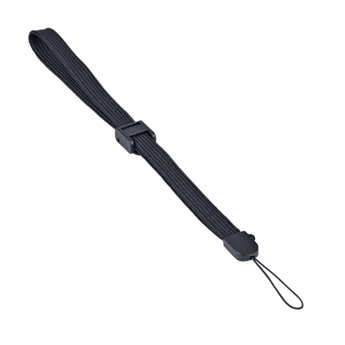

■ Wrist Lanyard(PN#385892G)

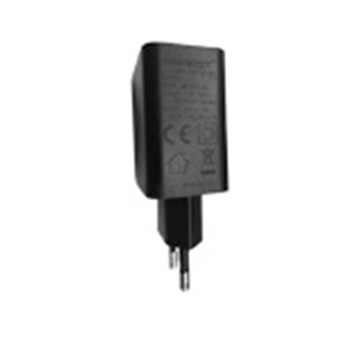

■ Power Adaptor (US,EU,UK) (PN#1010-900073G(US) (PN#1010-900074G(EU) (PN#1010-900065G(UK) )

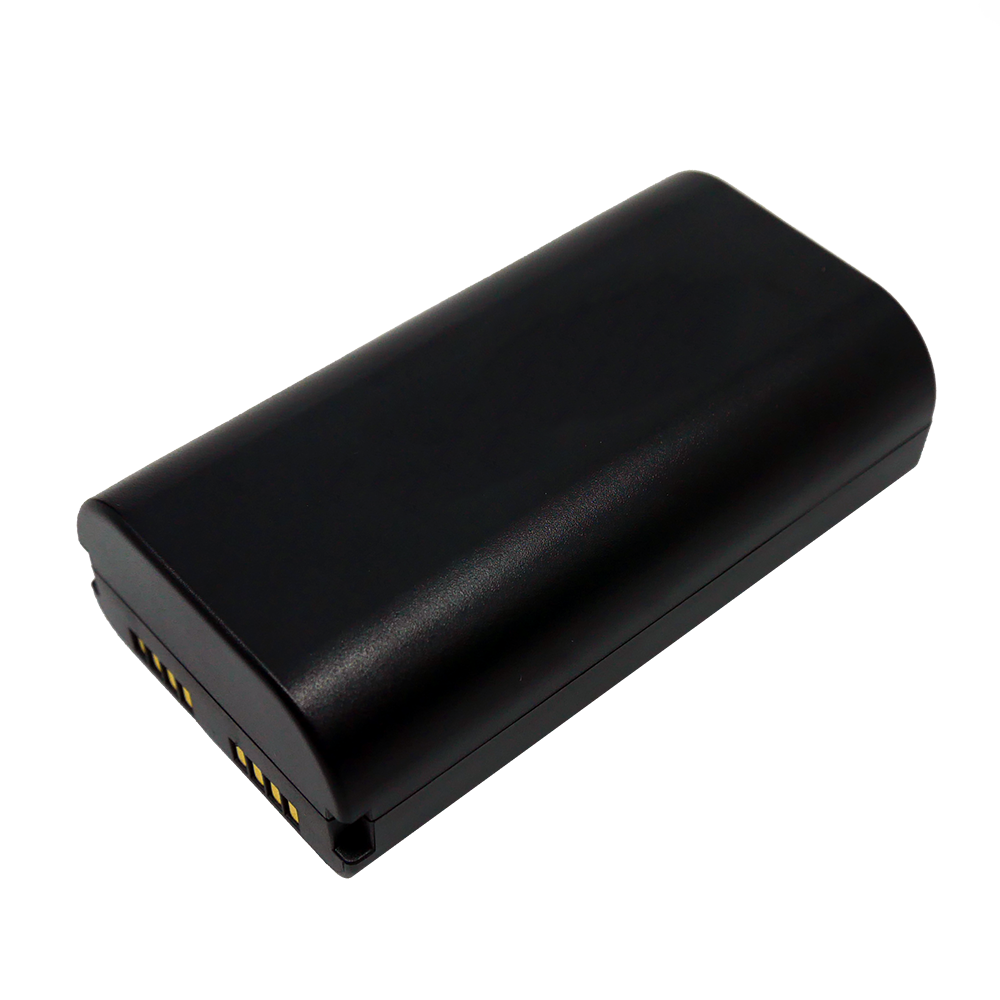

■ Battery 3.7V 6700mAh (PN#1400-900061G)

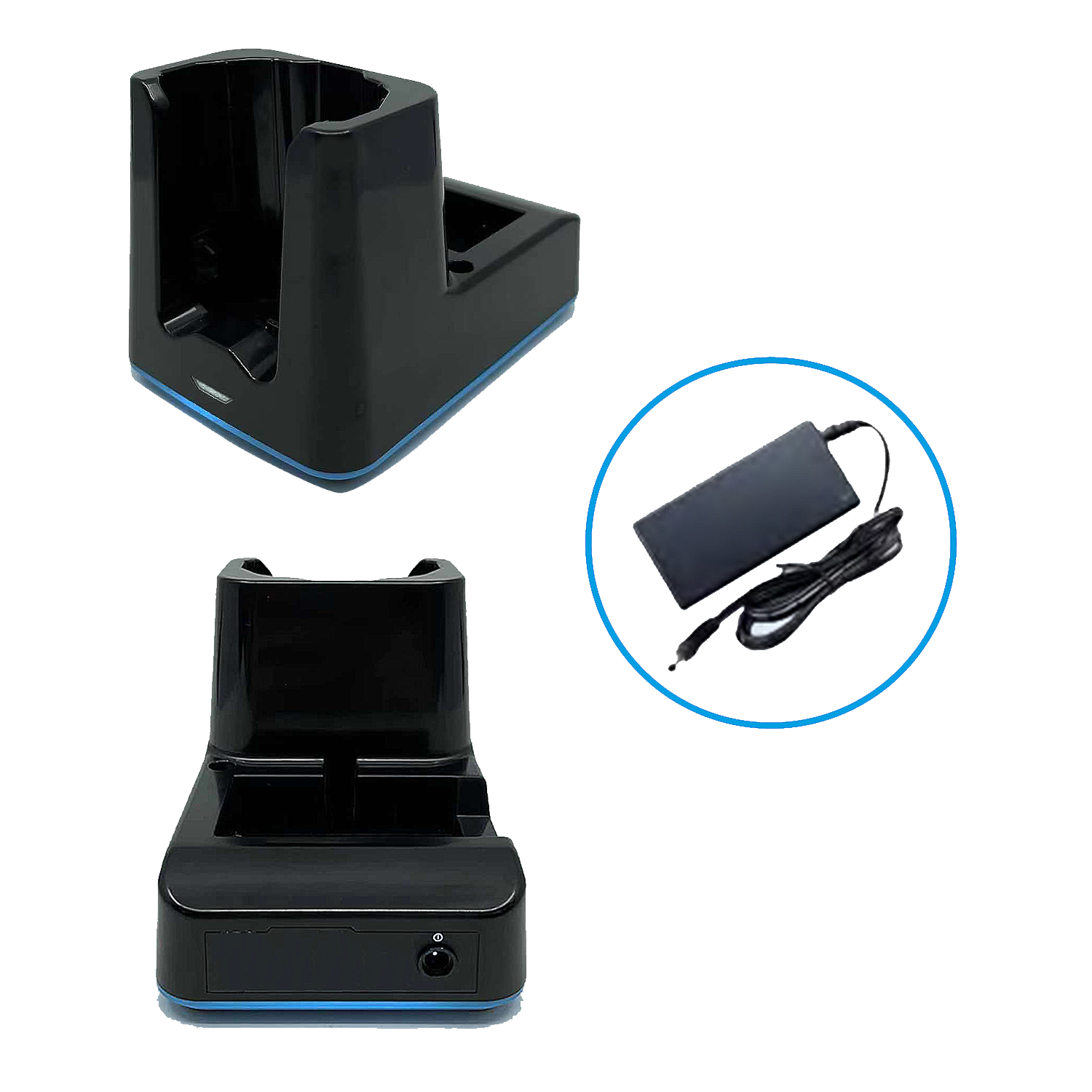

■ Single Slot Charging cradle (PN#5000-900086G)
■ Single Slot USB cradle (PN#5000-900090G)
■ Single Slot Ethernet cradle (PN#5000-900087G)

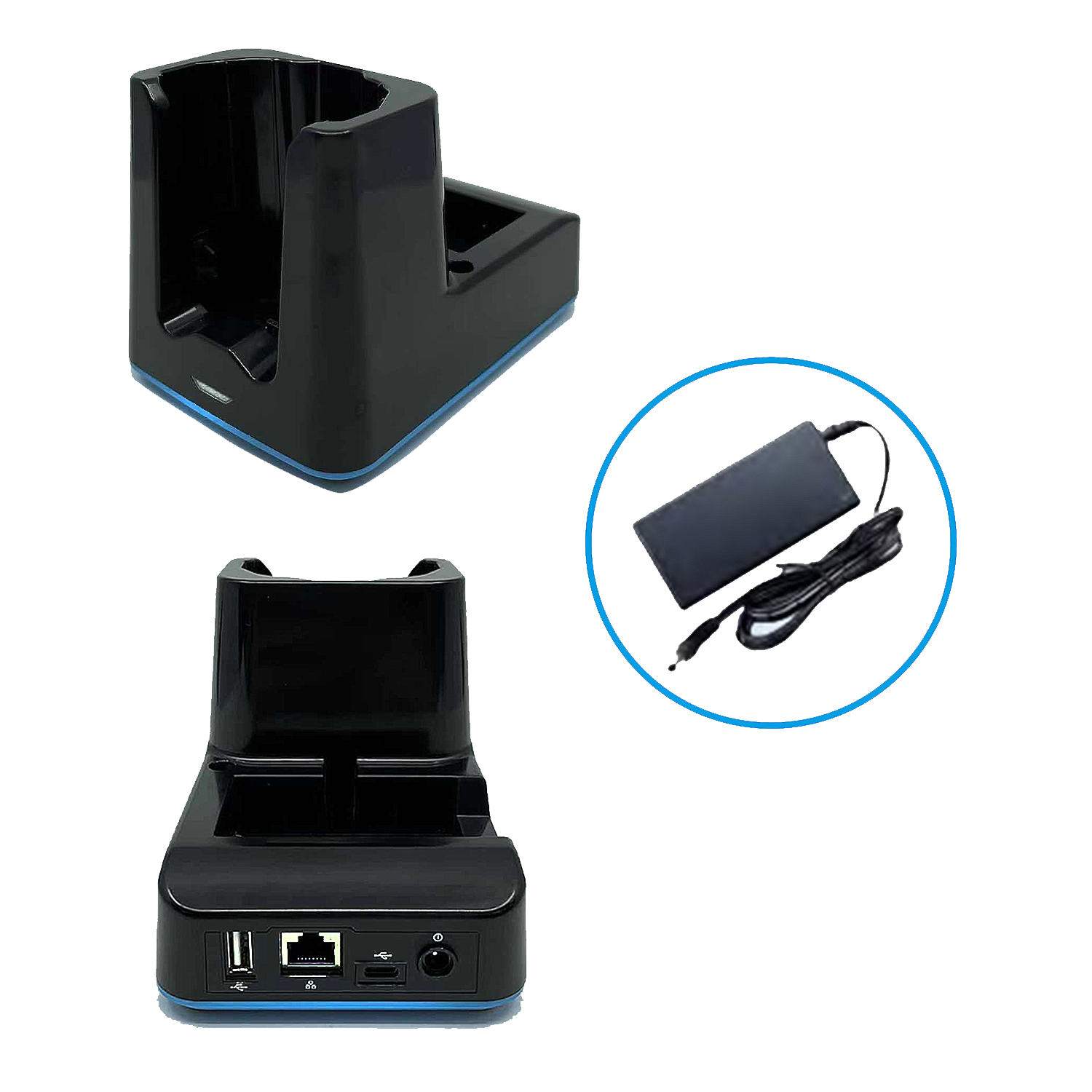

■ Single Slot Display port cradle (PN#5000-900088G)
■ Power supply for 1-slot cradle (PN# 1010-900043G)

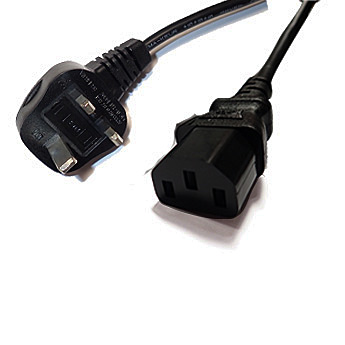

■ 3-Pin Power Cord (UK) PN#1550-602689G

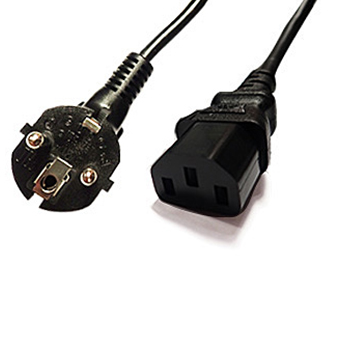

■ 3-Pin Power Cord(EU)PN#1550-602333G
■ 3-Pin Power Cord(US)PN#1010-601551G
■ 4-Slot Charging cradle(PN#5000-900089G)
■ 4-Slot Ethernet cradle(PN#5000-900091G)

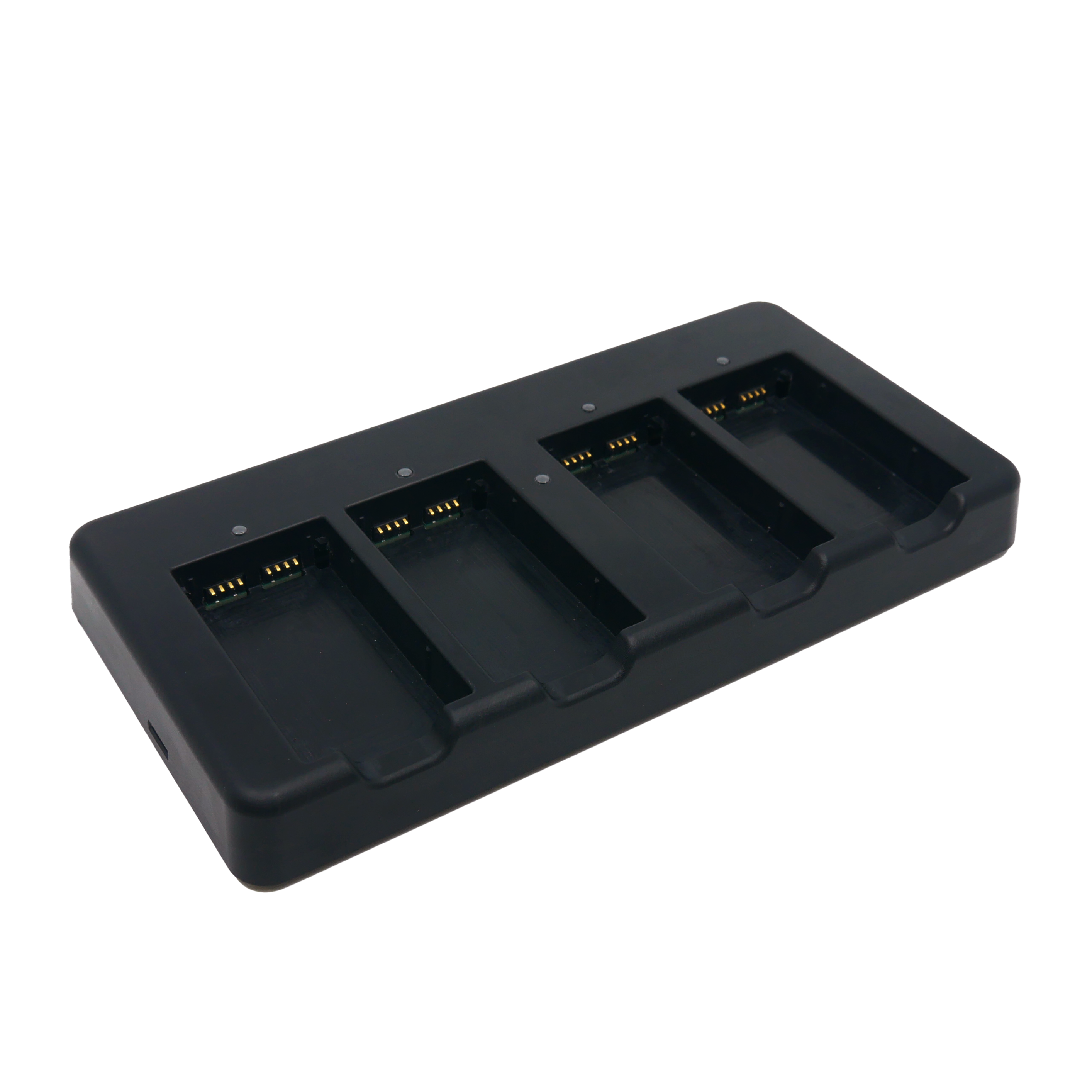

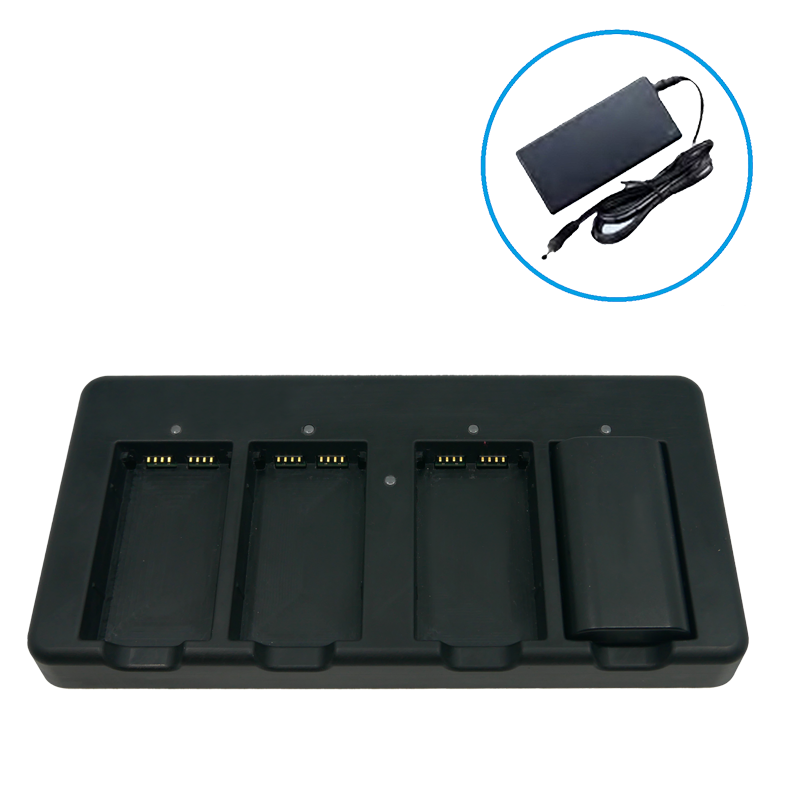

■ 4-Slot battery charger (PN# 5100-900031G)
■ Stylus with coil strap (PN# 1979-900003G)

Warranty

Hardware Warranty 15 months
Statement This product is warranted against defects in workmanship and materials for a period of fifteen months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
