MS351

Worry Free 1D Wireless Scanner

Looking for a great price-value solution for a rugged Linear laser based wireless scanning? The MS351 is designed to answer them all!

  • 1D Laser

  • USB

  • IP51

  • 1.5M

  • Bluetooth

  • Logistics

  • Warehousing



Our MS351 fits into any environment, whether it is retail, warehouse or even a hospital. No need to worry about missing a beat in a noisy environment thanks to the vibration feedback the scanner gives. Next to this, the high transmission speed thanks to Bluetooth 4.2 connectivity; makes for quicker scanning.



Features

•  1D, 200 scans per second, reading resolution up to 3mil
•  10,000,000 life cycle Trigger Switch
•  2600 mAh Li-ION Battery
•  Durable construction, IP51 sealing

•  With protective bumpers, 1.5m drop resistance
•  Comprehensive 4-year, worry-free warranty

Affordable And Ready



The MS351 also acts in an application where the requirement for 1D scanning is a better solution. For example, to read the barcode labels which are very closely placed next to each other such as multiple barcodes on one price tag, inside the smart phone, at home appliance and so on.

Compact but Durable



The sturdy materials, IP51 sealing, 1.5 meter free drop against concrete floor, combined with a 2600 mAh LI-ION battery and a durable trigger make the MS351 an incredible value-for-money option for any environment. The Bluetooth 4.2 Dual Mode, Class 2 Range connectivity and a range of 30 meters in open air also means incredible connectivity for even faster and more repetitive scanning.

Specification

Optical & Performance

  • Scan Rate 200 scans per second

Communication

  • Radio 2.4-2.5GHz
    Bluetooth 4.2, Class 2 Range
  • Host Interface supported 2.4-2.5GHz
    Bluetooth 4.2, Class 2 Range

Mechanical

  • Dimension 90.2mm x 70mm x 180mm
  • Weight Device: 207g
    Cradle: 140g
  • Trigger Switch Life 10,000,000 life cycle Trigger Switch
  • Cradle Dimension 118mm x 89.5mm x 74mm

Symbologies

  • 1D Barcodes 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, GS1 DataBar (formerly RSS) variants

Electrical

  • Operation Voltage DC 5 ± 0.25 V
  • Current Consumption Working: 150 mA / Standby: 4 mA
  • Indicator Scanner: LED, Beeper, Vibrator
    Cradle: LED

Environmental

  • Operating Temperature 0°C to 50°C
  • Storage Temperature -40°C to 60°C
  • Relative Humidity 5%-95% non-condensing
  • IP Rating IP51

Warranty

  • Warranty 4 Years scanner
    3 Months battery

What comes in the box

  • The standard package contents Scanner
    Cradle
    USB cable
    PSU (EU)

Accessories

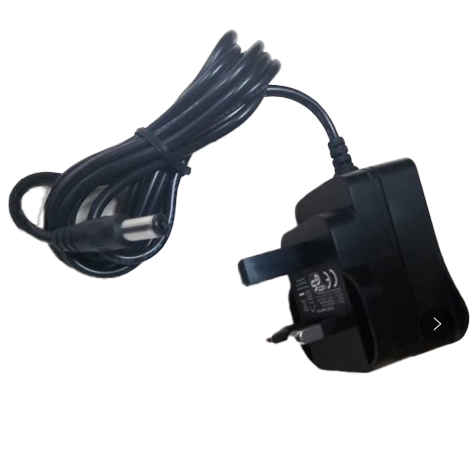

UK PSU MS35x

1010-338002G
