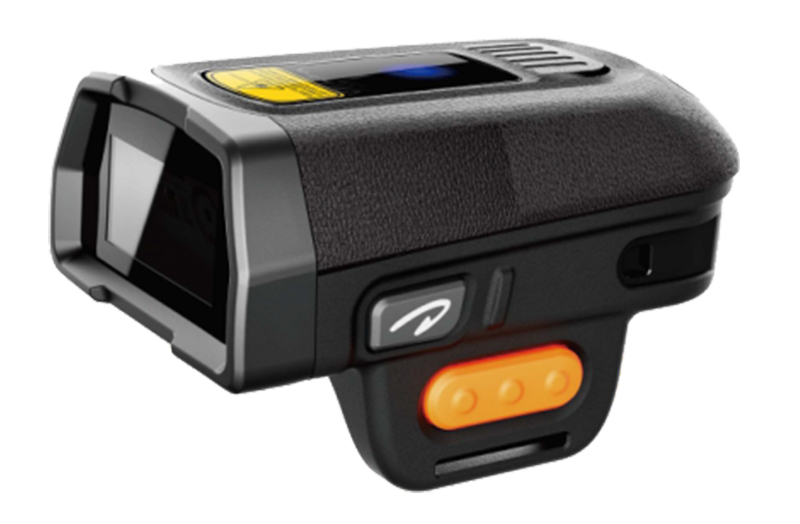

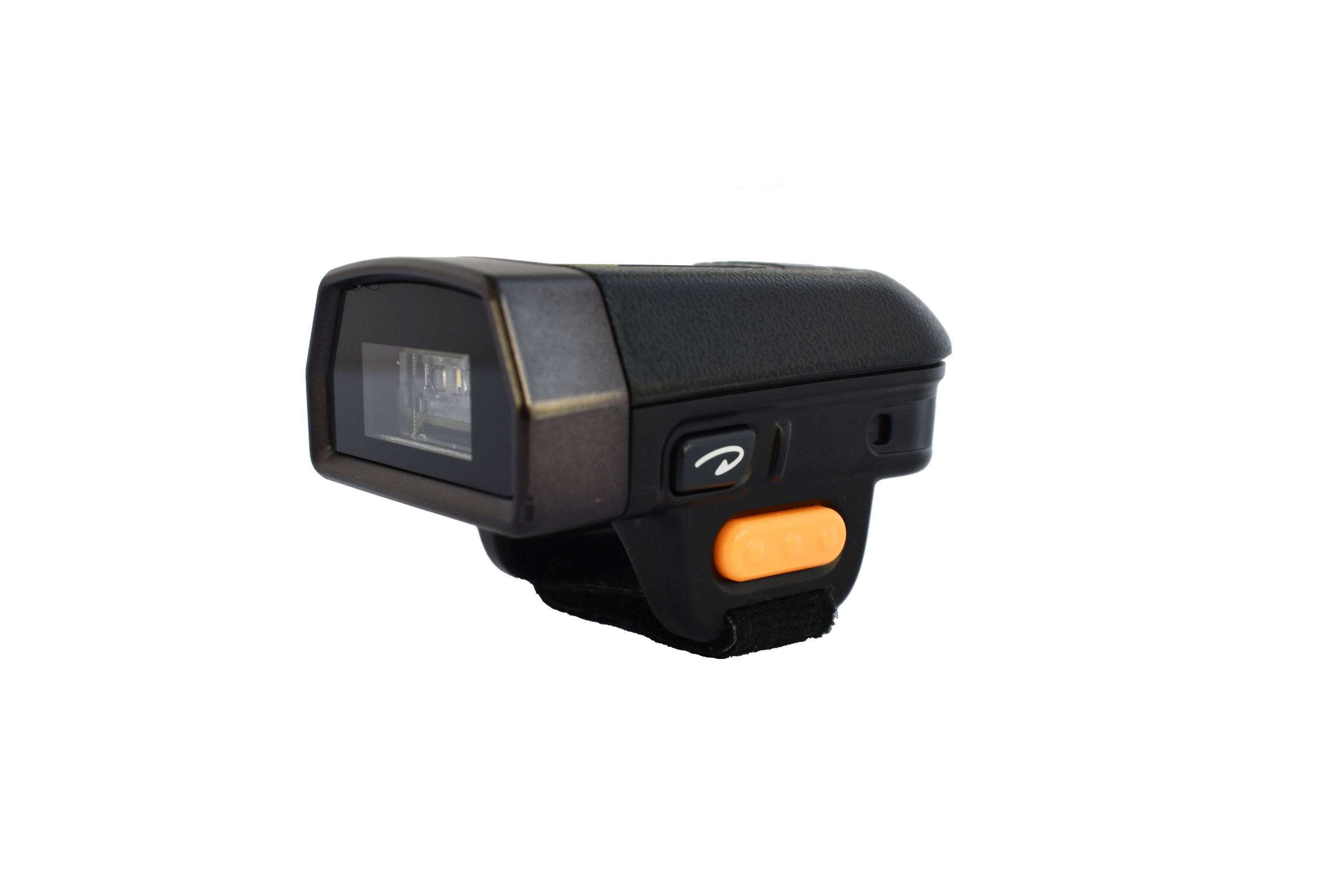

The MS632 features a 2D imager inside which supports the most commonly used 1D and 2D barcode symbology, with appreciated performance. Above all, it is a budget friendly 2D ring scanner in the market.
Features
• Weighted to only 65 grams including 1000 mAH.
• 2D barcode: Available to read 1D, 2D and PDF417 barcodes.
• BLE 4.0 dual mode support: backward compatible with BlueTooth 2.1 SPP and HID mode.
• Pogo pins for charging: easy to recharge the unit by simple drop-in and pick-up.
• User defined key: can user define key input for their application.
• 1.8MB storage memory (when in offiline mode).
Affordable 2D Ring Scanner
Looking for a light weighted, affordable 2D ring scanner to improve your productivity without stinging your budget? The MS632 features a 2D imager inside which supports the most commonly used 1D and 2D barcode symbology, with appreciated performance. Above all, it is a budget friendly 2D ring scanner in the market.

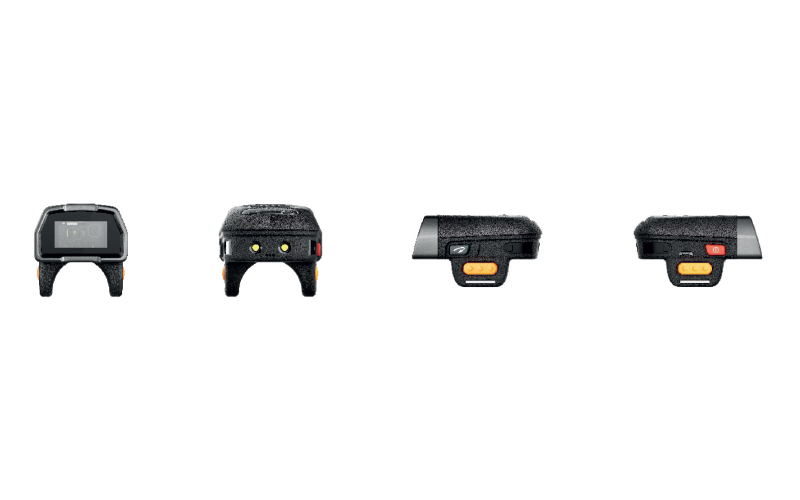

Ergonomic and Light-Weighted
The MS632 is designed to meet the usage of a right- and left-handed person. The device is weighted to just 65 grams including the 1000 mAH battery inside. It is suitable for long hours of usage and allows the users hand to move normally. The Micro-USB port allows the MS632 to be charged by the host device, it also features 2 pogo-pins for charging purpose’s. It can be simply dropped in and picked by the user to and from the dual-slot charging cradle; designed for MS632.
Specification
System
- Memory 1.8MB
Optical & Performance
- Sensor 30 Frames/SEC
-
Skew / Pitch / Roll Angle
Tilt: 360˚
Pitch: +/- 45˚
Skew: +/- 45˚ - Optical Resolution 640 x 480 pixels
- Printing Contrast Scale 35%
Communication
- Radio 2.4 GHz receiver
- Connectivity Bluetooth 4.0 dual mode support: backward compatible with Bluetooth 2.1 SPP and HID mode
- Host Interface supported Support HID & SPP profile
Mechanical
- Dimension 66 x 44 x 24 mm
- Weight 65 g
Symbologies
-
2D Barcodes
Aztec Code, Coda bar, Coda block F, Code 11, Code 16K, Code 128, Code 2 of 5, Code 39, Code 49,
Code 93, Data Matrix, EAN/JAN-13, EAN/JAN 8, EAN-UCC
Composite Codes, EAN-UCC Emulation, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI, PDF417, Postal Codes (Australian Post, British Post, Canadian Post, China Post,
Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet), Plessey Code, PosiCode, QR Code,
RSS Expanded, RSS Limited, RSS-14,TCIF Linked Code 39, Telepen, Trioptic Code, UPC-A, UPC E.
Electrical
- Operation Voltage 5 DC ± 0.25 V
- Indicator LED x 2, Buzzer
- Battery Capacity 1000 mAh
Environmental
- Operating Temperature -10°C to 50°C
- Storage Temperature -20°C to 70°C
- Relative Humidity 5% to 95%, non-condensing
- IP Rating IP42
Accessories
-
Items
■ MS632
■ Quick Start Guide
■ USB cable
■ PSU (EU Plug)
■ 2.4 Dongle for PC
■ 2-Slot charging cradle (optional)
Regulatory Approvals
- Regulatory Approvals CE
