The MS836B laser scanner features mobility 2.4G wireless technology and accurate linear scanning performance that gives your business flexibility and freedom. The well-integrated mobility design allows users to move around without being restricted while supporting high comfort over long periods of operation. This device enhances workflow efficiency at an affordable price for a wide range of market applications, such as point-of-sale, inventory control, and warehouse management.
• 2.4G wireless transmission range up to 100m in the line of open sight.
• Superior laser scanning: reads all major linear barcodes including printed and digital
• High-Speed data capture performance: up to 100 times/sec
• Long battery life up to 30 hours per a fully charged battery
Design for mobile workers, the MS836B comes with a USB dongle that enables users to capture barcodes with freedom wireless connection. Easy plug-and-play function, the MS836B pairs easily to laptops or PCs without complicated set-up. Besides, it allows users to transmit data to the host from up to 100 meters from the base via 2.4G wireless communication.
Storage Data Even Out of Range
When it is out of range, the MS836B barcode scanner can store 40,000 EAN codes in memory and upload them to your devices at your own convenience. It allows associates to capture barcodes from the checkout counter or checking your store's inventory in the retail store without restrictions.
Accurate Laser Scanning Performance
Quickly and accurate capturing most linear barcodes or coupon displayed on the phone, the MS836B helps staff to record inventory without any frustration. It is equipped with advanced high-speed engine that has ability to decode poor quality codes and achieve 100 times per second. It streamline everyday processes in supermarket, retail store and warehouse applications.
Linear Laser Scanner
Up to 100 times/sec
Long-Lasting Battery Life
The MS836B's powerful 2600mAh battery is designed to have up to 30 hours of operating time with a 5-hour single charge, giving you the flexibility to work through the day.
Up to 30 hours
Furthermore, it has an IP42 rating for dust and water resistance as well as a 1.5 meter drop spec that provides superior durability and reliability. Combining high performance and compact design, M836B gives mobile worker conveniently and safely while on the go.
Optical & Performance
Sensor1D Laser Engine
Ambient Light0-100,000 Lux
Scan Rate100 times/ sec
Optical Resolution≥ 4mil（code 39）
Depth of Field 10mm-265mm(13 mil, EAN13, PCS=90%)
Wireless Coverage2.4G 100M( line of sight)
Protocol2.4G USB Bluetooth HID, BLE ,SPP
Host Interface supportedUSB Type C
Dimension174mm × 72mm × 96mm (L x W x H)
Operation ModeTrigger Mode, Buffer Mode
1D BarcodesIndustoal 2 of 5, Standard 25, Matrix 25, China post 25, Code 11, Codabar, MSI/plessey, UK/plessey, Code39 (Standard 39& Full ASCII Code 39)Code 32, Code 93, Code128, UPCA,UPCE, EAN13, EAN8,UPC/EAN add-on 2/5, ISBN,ISSN, GS1(RSS)
RSS-14,LIMITED, EXPENDED, Include GS1 STACK
Data FormattingPrefix, Suffix, Code ID
Operation VoltageDC 5V
Current ConsumptionOperation mode:＜120mA , Standby mode:＜85mA
IndicatorBuzzer LED light
Battery Capacity2600mAh 18650 battery
Battery Charging timeFully charged in 5 hours
Operating Time30 hours (continuous working )
Mechanical Shock1.5m onto concrete (scanner only)
Operating Temperature-10°C to 50°C
Storage Temperature-20°C to 60°C
Relative Humidity5-90% non-condensing

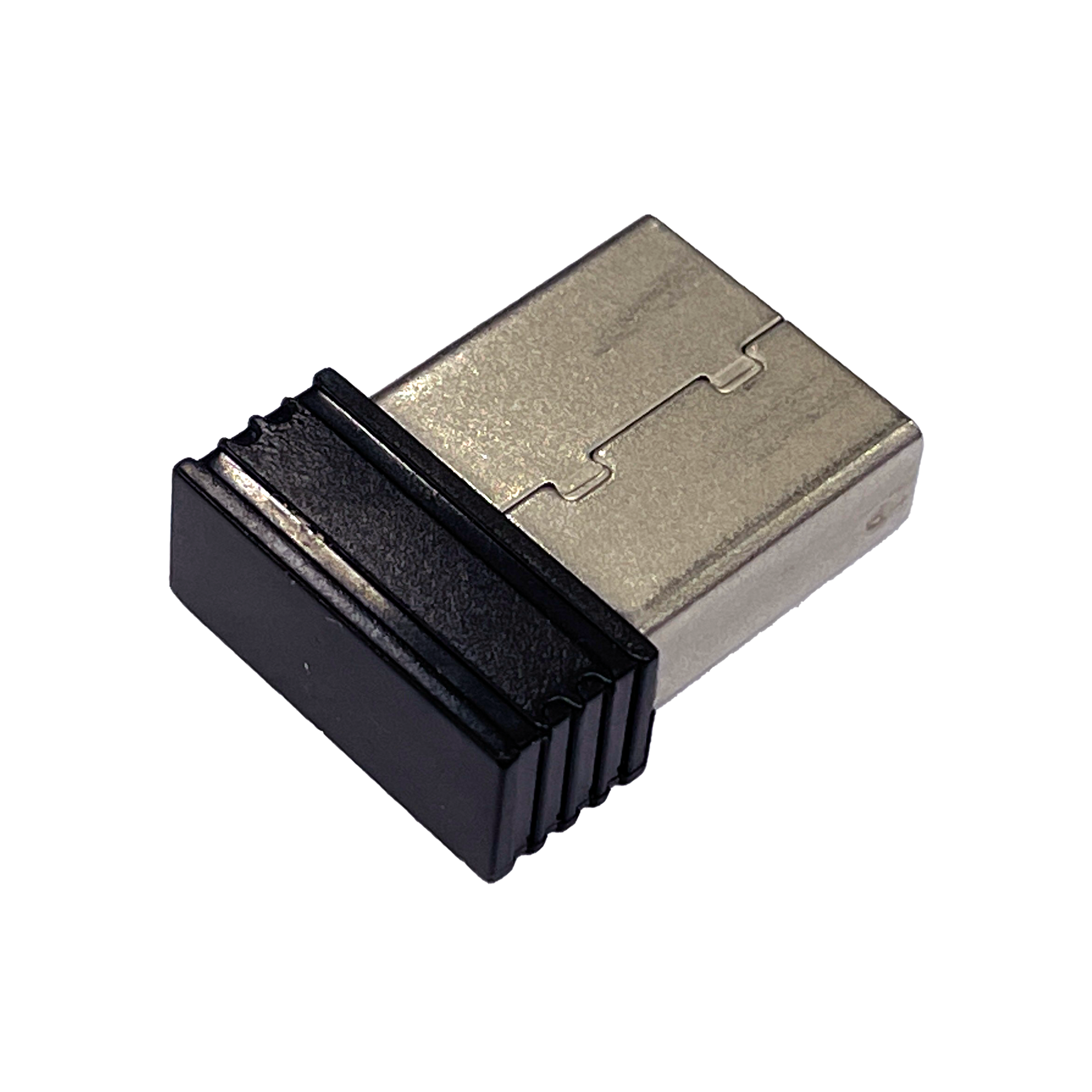

Items ■ 2.4G Dongle (PN:5500-900098G)
■ Hans-Free Stand (PN:5200-900014G)
Regulatory ApprovalsCE, FCC, BSMI, VCCI
What comes in the box
The standard package contents ■ MS836B scanner
■ 2.4G Dongle
■ USB cable (Type C USB)
HardwareUp to 1 year
StatementThe warranty covers natural failures due to regular usage. Damages caused by drops or other incidents are not covered. And different regions may have varying warranty terms. Please contact your local representative for further extended information.
