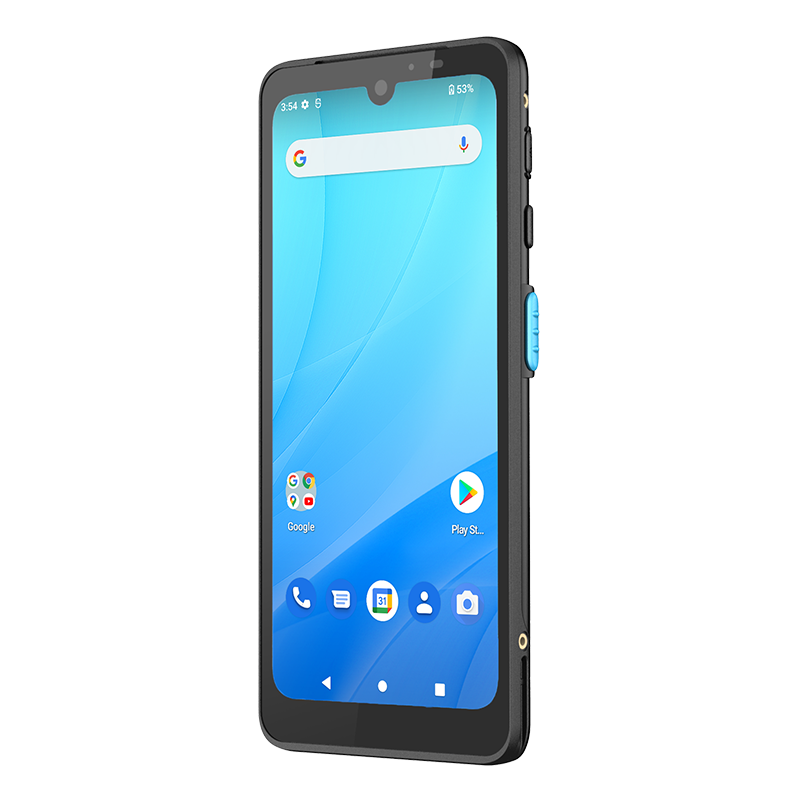

PA768e
6.3-inch 4G Rugged Touch Computer
4G eSIM & Wi-Fi 6E｜5100mAh hot-swappable battery
-
2D
-
.svg)
HF/NFC
-
6,3"
-
1.8M
-
4G LTE
-
WLAN 6E
-
Retail
-
Logistics
-
Warehousing
-
Field Service
-
Manufacturing
-
Android 14
Unitech introduces the PA768e, a 4G rugged touch computer designed to elevate operational efficiency with eSIM, Wi-Fi 6E technology support and robust outdoor durability for field service, transportation and logistics applications.
Features
• Android 14 OS with GMS certified
• 4G LTE with eSIM enterprise handheld computer
• Support Wi-Fi 6E: 2.4 and 5GHz frequency as well as the 6GHz band
• Support eSIM technology: Effortless connectivity without physical SIM cards
• Superior barcode engine : 1D/ 2D/ DPM (7mil) / DOT code/ barcodes on screens/ OCR
• Multi-Scan function: Available to read 10 barcodes at one time
• 1.5M drop-resistant housing (1.8M with bumper)
• IP65 & IP68 heavy-duty protection against water and dust
• True Hot-swap UL certified battery design without downtime
• Support MDM Software Solutions and utilities such as SOTI, VMWare, 42Gears, and MoboLink (Comining Soon)
Powered by Android 14 OS with GMS Certified
• 6.3 inch (20:9) Android 14 rugged mobile computer with Split Screen function
• Advanced 64-bit Octa Cores CPU up to 2.4 GHz
• Google Certification: Google Mobile Service（GMS）
64 GB Flash
Seamless and Connectivity via Wireless Communication
Featuring Wi-Fi 6E technology, the PA768e rugged mobile computer delivers incredible transmission speeds and lower latency, providing users with reliable, high-speed connections to synchronize with systems and handle tasks more efficiently. It empowers users to embrace a new era of speedy connectivity for businesses.
.webp)
Advance Workflow with eSIM Technology
The PA768e eSIM technology revolutionizes connectivity by removing the need for physical SIM cards, ensuring greater convenience across various industries. Embedded securely within the device, the eSIM eliminates the risk of loss or damage while enhancing security by preventing unauthorized removal. Network switching is effortless—users can simply connect to Wi-Fi, scan a QR code, or enter an activation code. Optimized for efficiency, the PA768e delivers seamless, reliable connectivity, perfectly suited to the dynamic demands of logistics, warehousing, and beyond.
Reliable at its best
|
The PA768e is GMS certified, helping users tackle even the toughest workdays with ease. With IP65 and IP68 enterprise-grade protection and the ability to withstand 1.8-meter drops (with bumper), the PA768e is the perfect tool for maximizing data collection, management, and traceability across transportation and logistics, field service, manufacturing, and more!
|
|||||
| IP65 & IP68 Certification |
1.5m Drop Protection |
1.8m Drop with Bumper |
|||
.png)
User-Friendly Functionality• True Hot-swap battery design without downtime. • Ergonomic handle design for long time use with a durable trigger key. • Workers can run more smooth operations while wearing gloves (thickness ≤ 2mm) or wet-fingers. • Various Accessories for customer needs. • Support MDM Software Solutions and utilities such as SOTI, VMWare, 42Gears, and MoboLink. (Coming Soon) |
 |
SmartPA: Better Audio Output
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.
| Power Amplifier Better Audio Output |
Built-in Algorithm Lessen Circuit / Temperature Damage |
Optical Character Recognition (OCR)
• Easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips.
• Minimize the typing mistakes when entering the numbers.
• Streamline your tedious typing process.
| Airline | Manufacturing | Logistics |
✔ The Airline Ground Services｜Read ID numbers from passports
✔ Manufacturing｜Read vehicle registration numbers and electronic chips
✔ Logistics & Retail｜Read lot numbers printed on the package
Specification
Operation System
- OS Android 14, upgradeable to Android 16
- GMS certified GMS certified
- AER Certified AER certified
- CPU Qualcomm Snapdragon™ 6225 Processor, 8 Cores, up to 2.4GHz
- Memory 6 GB RAM / 64GB Flash, UFS6 GB RAM / 128GB Flash, UFS (Optional)
- Languages support Multiple languages
Display
- Screen Size 6.3” Color LCD 2340 X 1080 (FHD+) High Resolution Display
-
Touchpanel
Gorilla® Glass with Multi-Touch Capacitive Touch Panel, support stylus, glove, wet-finger Compatibility
High sunlight visibility- LCD backlight up to 500nits
Buttons / Keypad

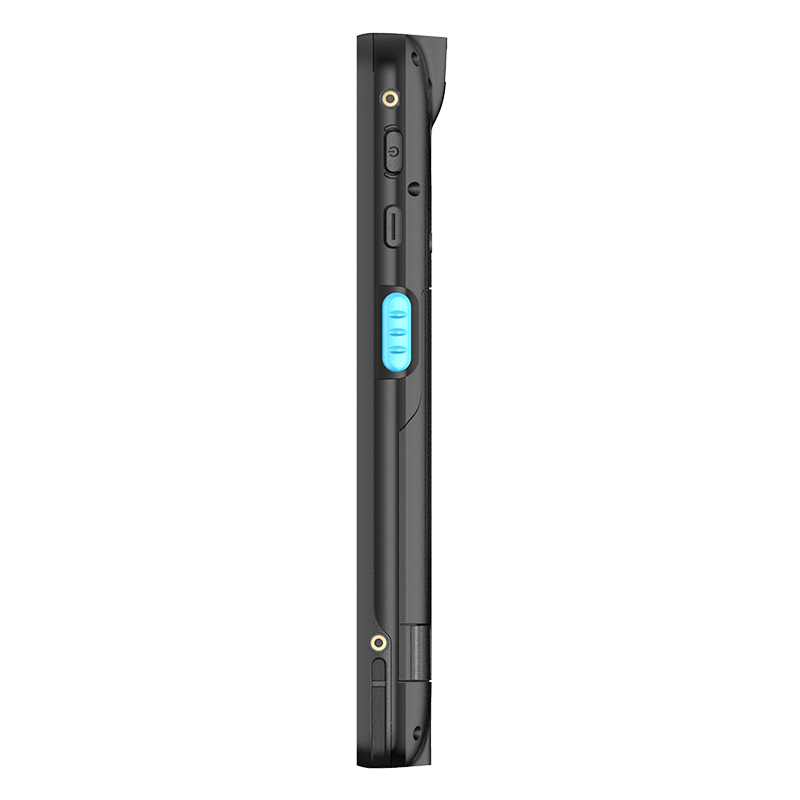

- Buttons / Keypad Programmable key, Volume up/down key, Left/right scan key, Power key
Camera
-
Camera
5 MP Front camera
16 MP Rear Camera with LED flash and auto-focus function
Indicator Type
- Type LED, Vibrator
Symbologies
- 1D Barcodes Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar
-
2D Barcodes
Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code
- Postal Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
RFID
-
HF RFID
Support HF/NFC, Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693, Mifare, Felica(ISO/IEC18092)
Communication
- Bluetooth® Bluetooth® 5.1
-
WLAN
2.4GHz & 5GHz & 6GHz
IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v/ax, support Wi-Fi 6E
Support Wi-Fi 6E, MU-MIMO (2x2), Wi-Fi Direct and Hotspot
Security WPA3, WPA2, WPA & WEP -
WWAN
4G LTE(FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 14, 17, 20, 28
(TDD) – Bands 38, 39, 40, 41
3G UMTS/HSPA+ – Bands 1, 2, 5, 8
2G GSM/GPRS/EDGE (850/900/1800/1900 MHz) - GPS GPS/ GLONASS/ Gallileo/ Beidou
- Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor
I/O Interfaces
- USB USB 3.1 type C, support fast charging
- OTG Yes, over USB Type-C
- SIM Slot Dual SIM: Nano SIM Slot x 1, eSIM x 1
- Expansion Slot Micro SD x 1, up to 1TB
-
Audio
Speaker support 95 dB at 10cm
Dual-Microphone support noise cancellation
Enclosure
- Dimensions ( H x W x D ) 167 x 75.5 x 17 mm
- Weight 270g (w/o bumper & hand strap)
Durability
- Drop Specification 1.5 m, 1.8 m w/ optional bumper
- Sealing IP65 & IP68
- Vibration and Shock test Tumble 600 times (1.6 ft./0.5 m)
Environmental
- Operating temperature -20°C to 55°C (-4°F to 131°F)
- Storage temperature -40°C to 70°C (-40°F to 158°F), w/ battery
- Charging temperature 0°C to 45°C (32°F to 113°F)
- Relative Humidity 5% ~ 95% (Non-Condensing)
Power Source
-
Main battery
Hot Swappable 5100mAh Li-Polymer battery /
battery with cover in one piece - Extended battery 7700mAh / battery with cover in one piece (optional)
- Hot Swap Hot Swappable
Software
- MDM Software SOTI, VMWare, 42Gears, and MoboLink
Regulatory Approvals
- Regulatory Approvals CE, FCC, NCC, RoHS 2.0
What comes in the box
-
The standard package contents
■ PA768e Terminal
■ Battery
■ USB type C cable
Accessories
-
Accessories
■ USB 3.0 Type-C Cable(Support Fast Charge) (PN#1550-905908G)
■ Fast Charge Adaptor via USB Type-C Cable (#1010-900074G EU Plug)
■ Hand Strap (PN# 5400-900052G)

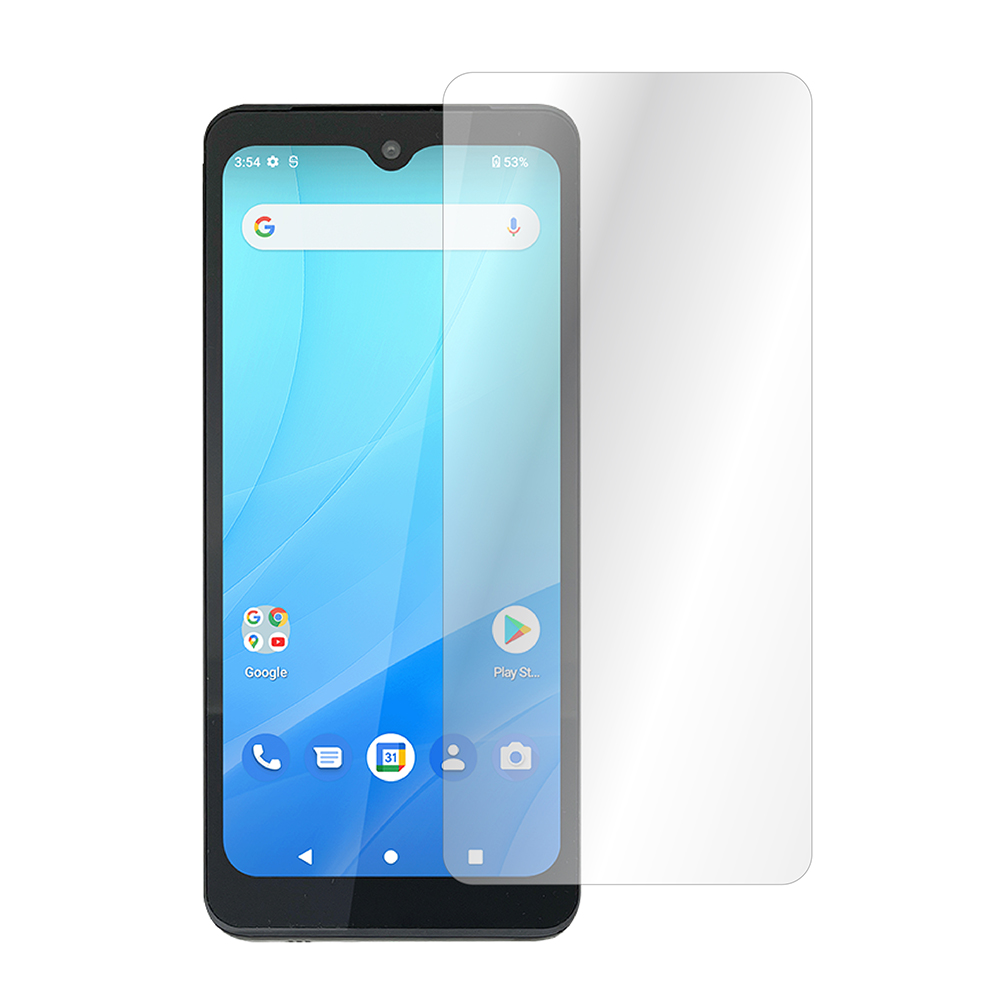

■ 9H Glass Screen Protector (PN#5400-900053G 10pcs with Packing)
■ Stylus (5.5mm PN#386534G)
■ Coiled Strap (PN# 383642G)

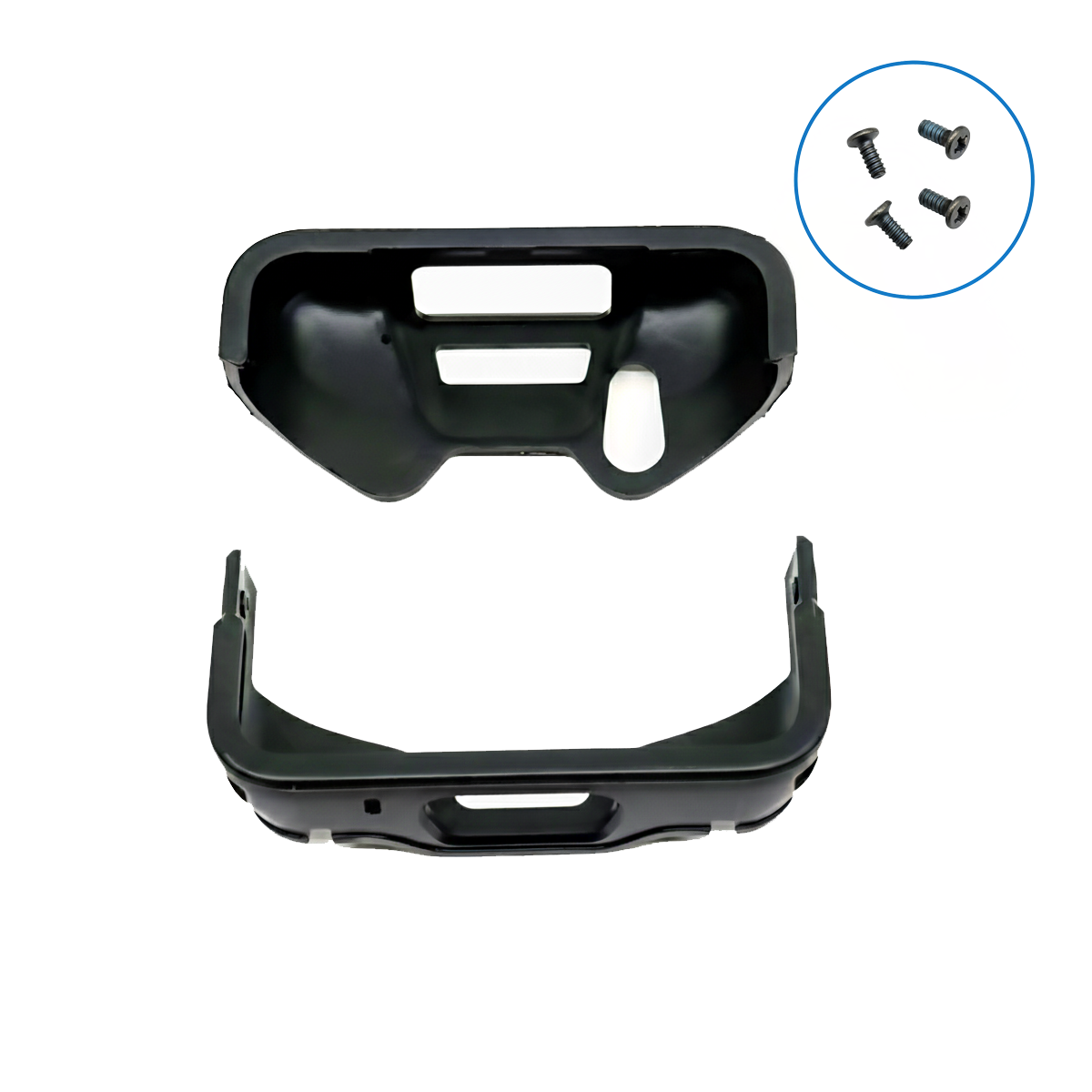

■ Bumper (PN#5400-900059G, 1 Set with Package)

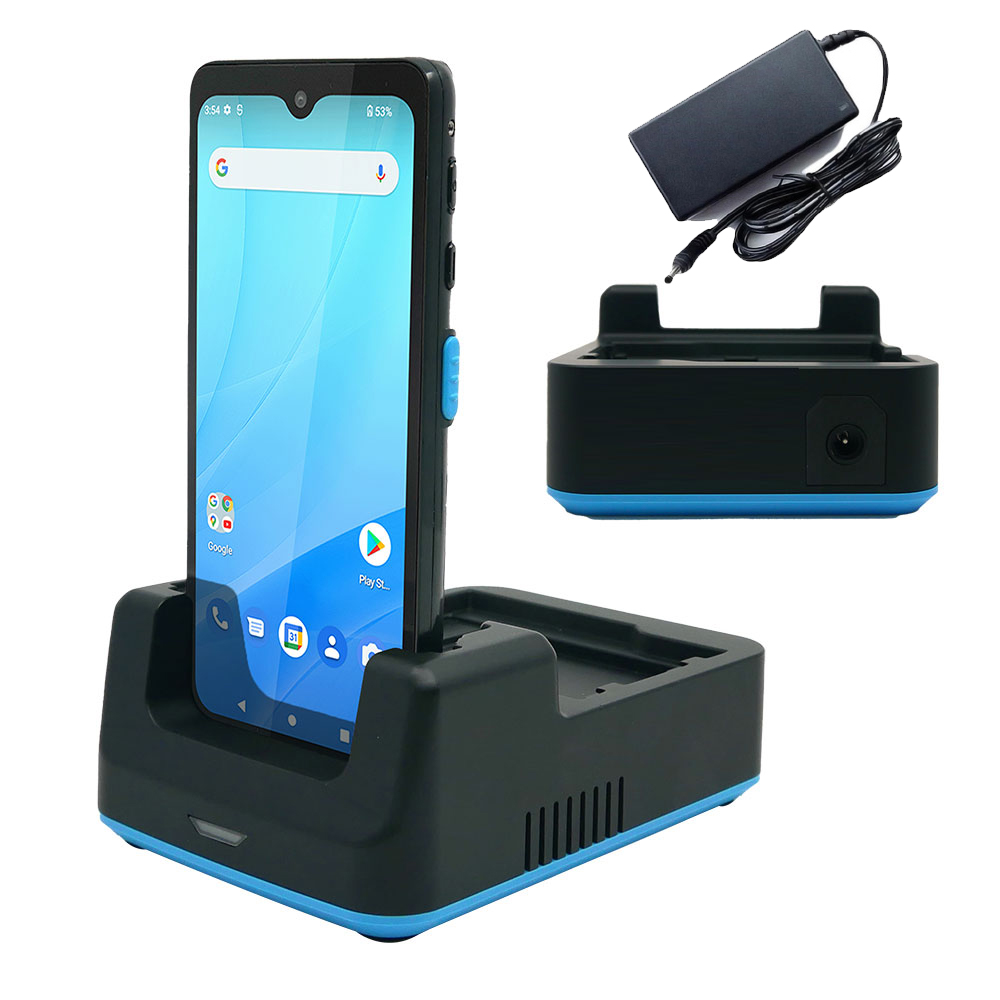

■ Single Slot Charging Cradle*(PN# 5000-900105G, PSU Only)

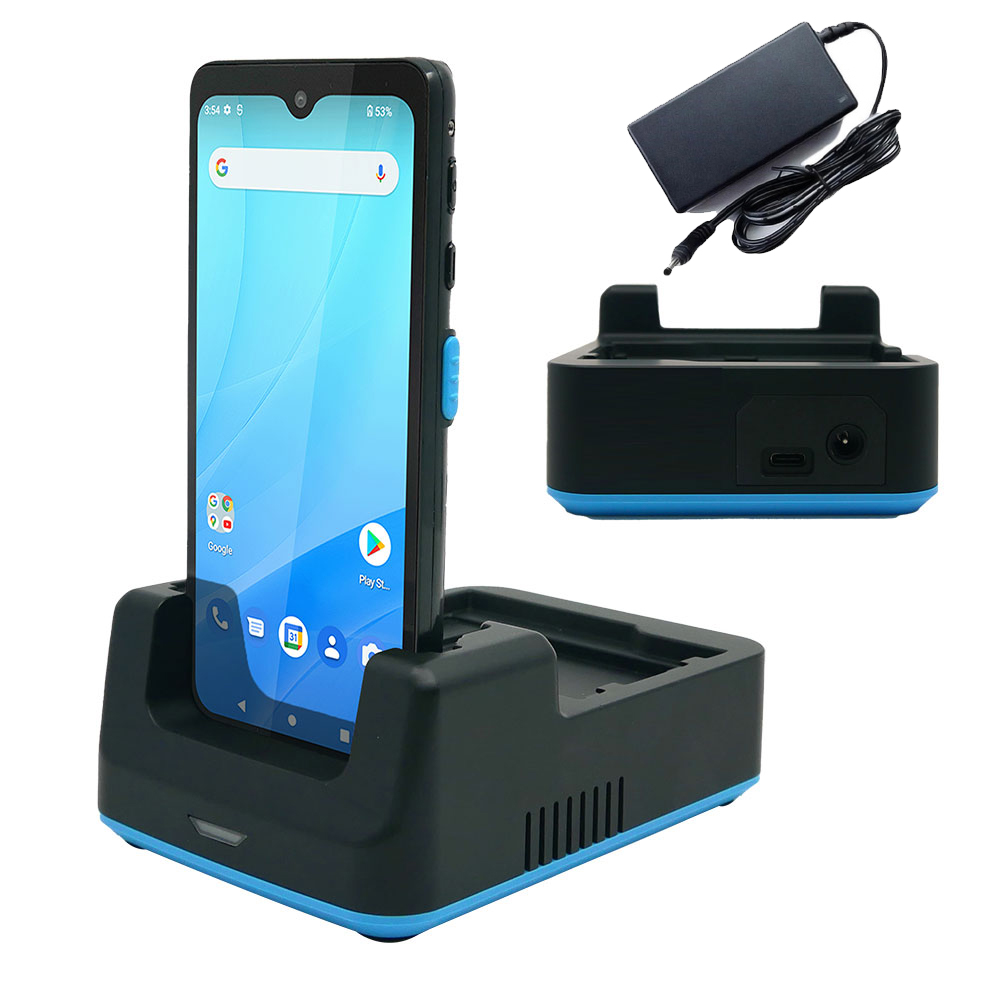

■ Single Slot USB Cradle*(PN# 55000-900106G, PSU Only)
■ Single Slot Ethernet Cradle*(PN# 5000-900107G, PSU Only)
■ Power Supply in the 1-slot Cradle (PN#1010-900043G)

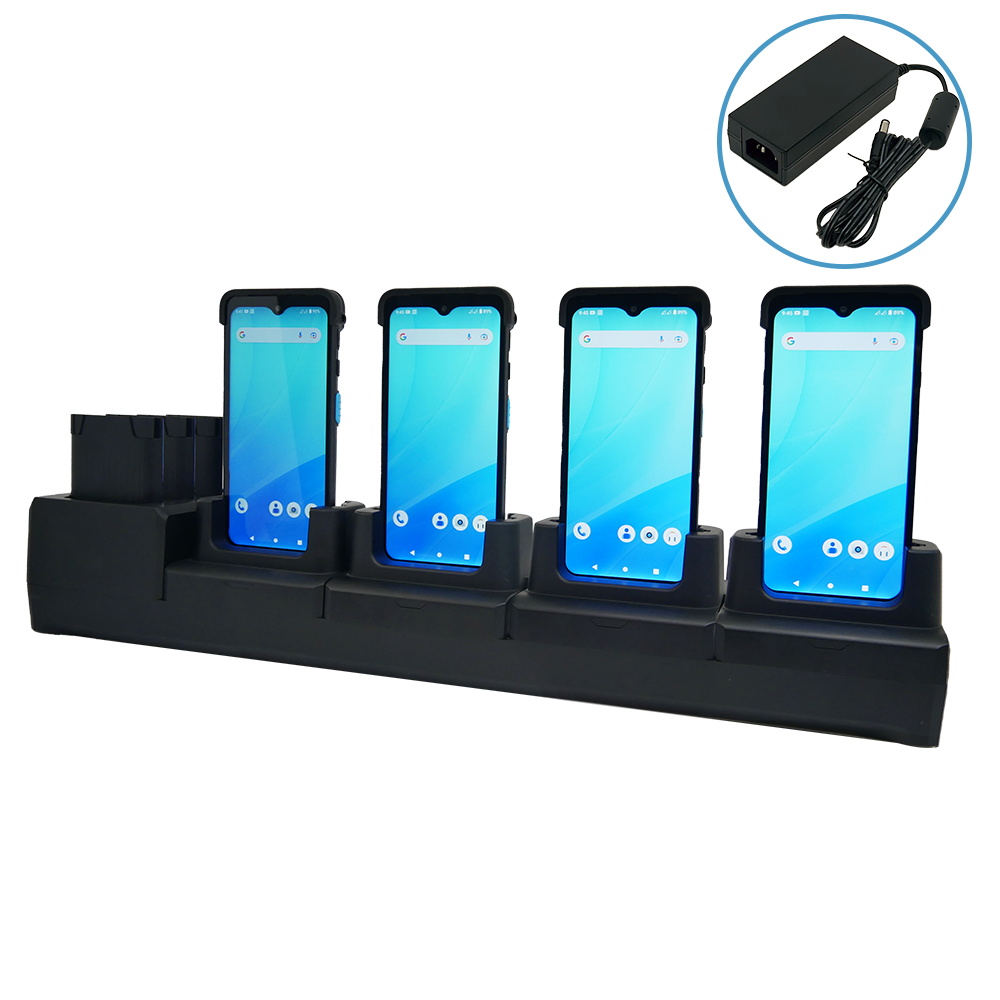

■ 4-Terminal+ 4-battery Charging Cradle (PN#5000-900109G , PSU Only)

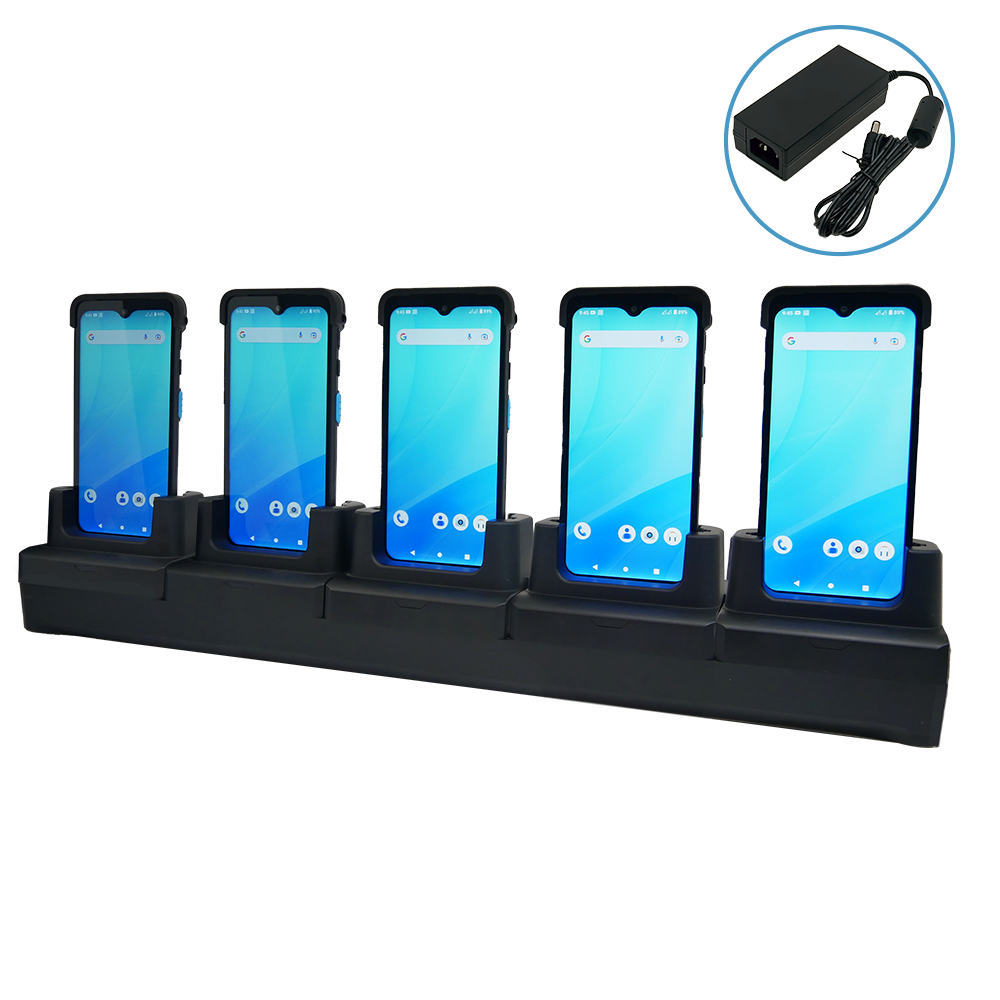

■ 5-Slot Terminal Charging Cradle (PN#5000-900110G, PSU Only)
■ 5-Slot Terminal Ethernet Cradle (PN#5000-900111G, PSU Only)
■ 4-Slot Battery Charger (PN#5100-900034G, PSU Only)
■ Power Supply in the Multi-slot Cradle (PN#1010-900068G)
■ 3-Pin Power Cord(EU) (PN#1550-602333G)
■ 3-Pin Power Cord (UK) (PN#1550-602689G)

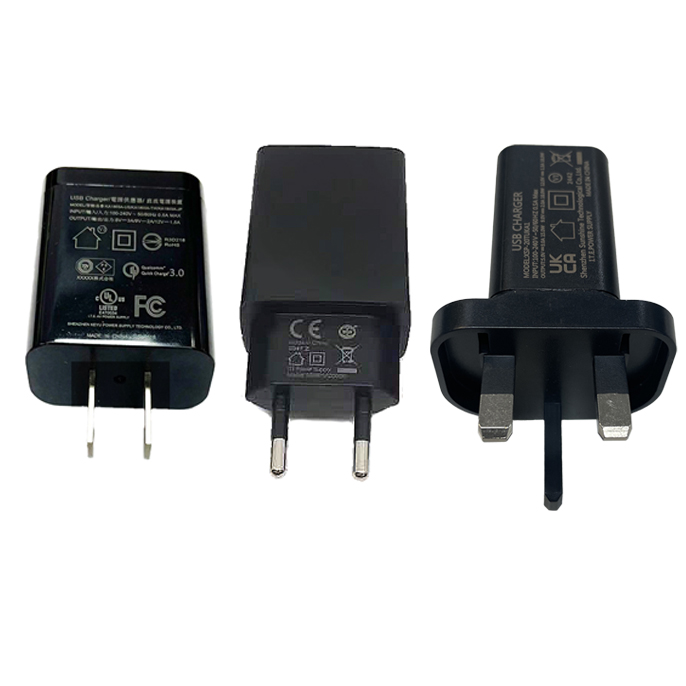

■ Power Adapter 5V/3A (EU,UK,US,AU) (PN#1010-085001G)

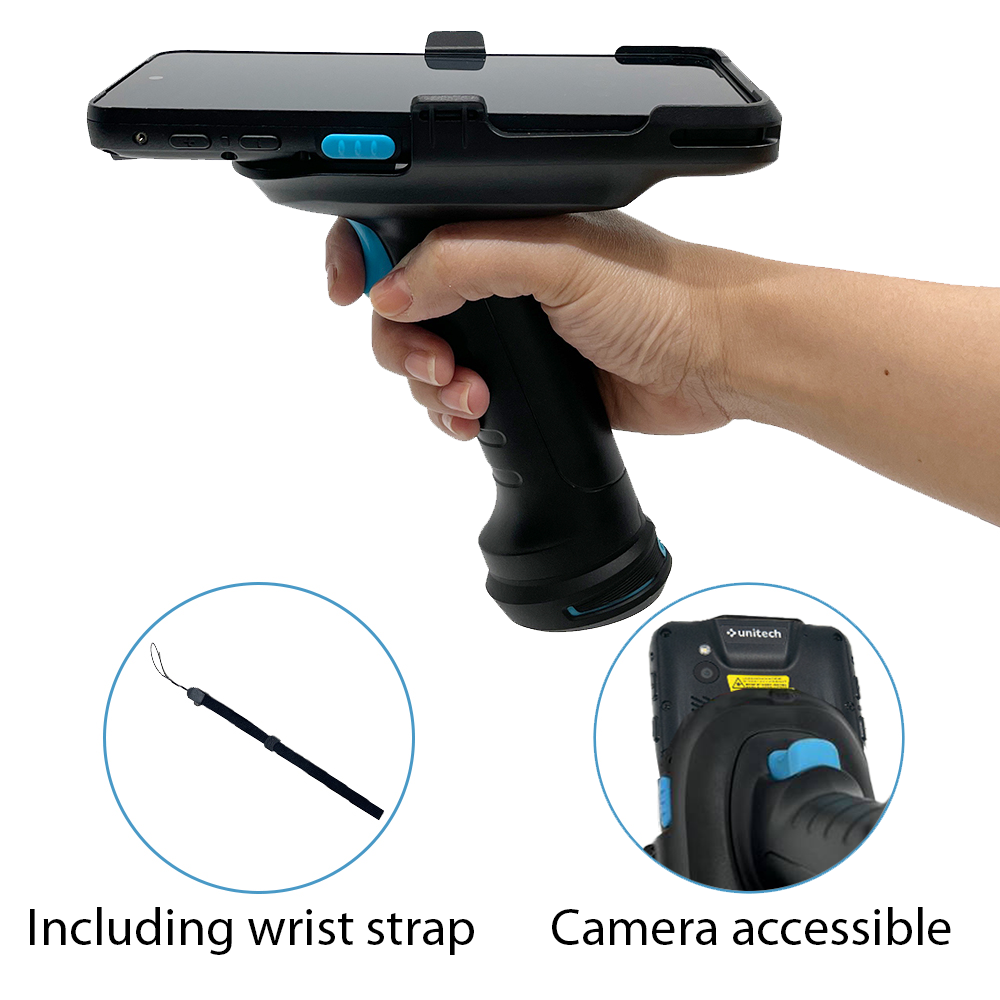

■ Standard Gun Grip (PN#5500-900102G)

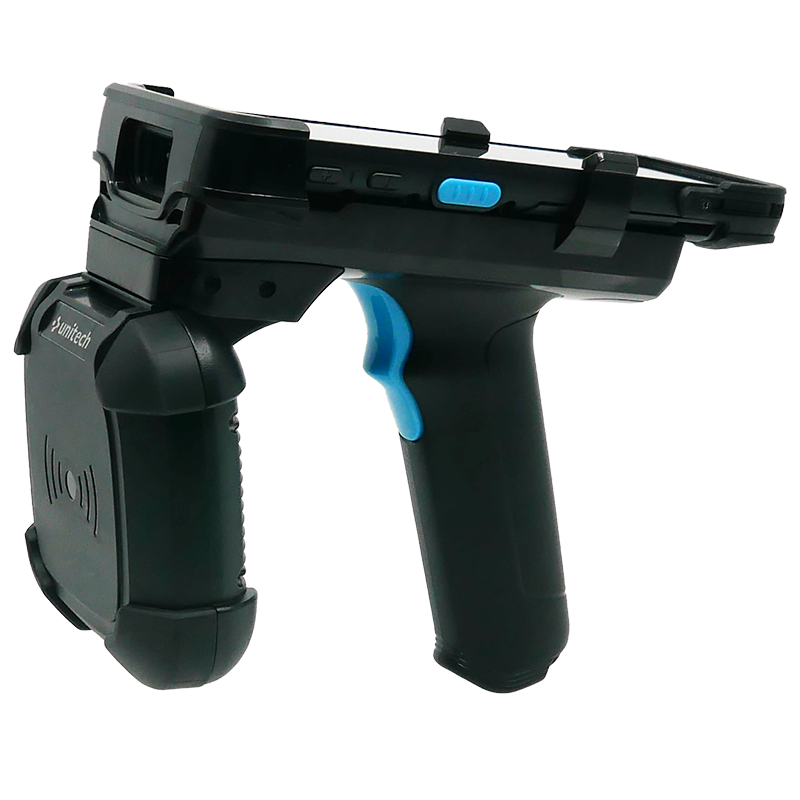

■ RG768 UHF RFID Gun Grip (PN# 5500-900103G (US) & PA768 with bumper / PN#5500-900104G (EU) & PA768 with bumper)
■ Standard Battery 5100mAh (PN#1400-900069G)
■ Extend Battery 7700mAh (PN#1400-900072G)

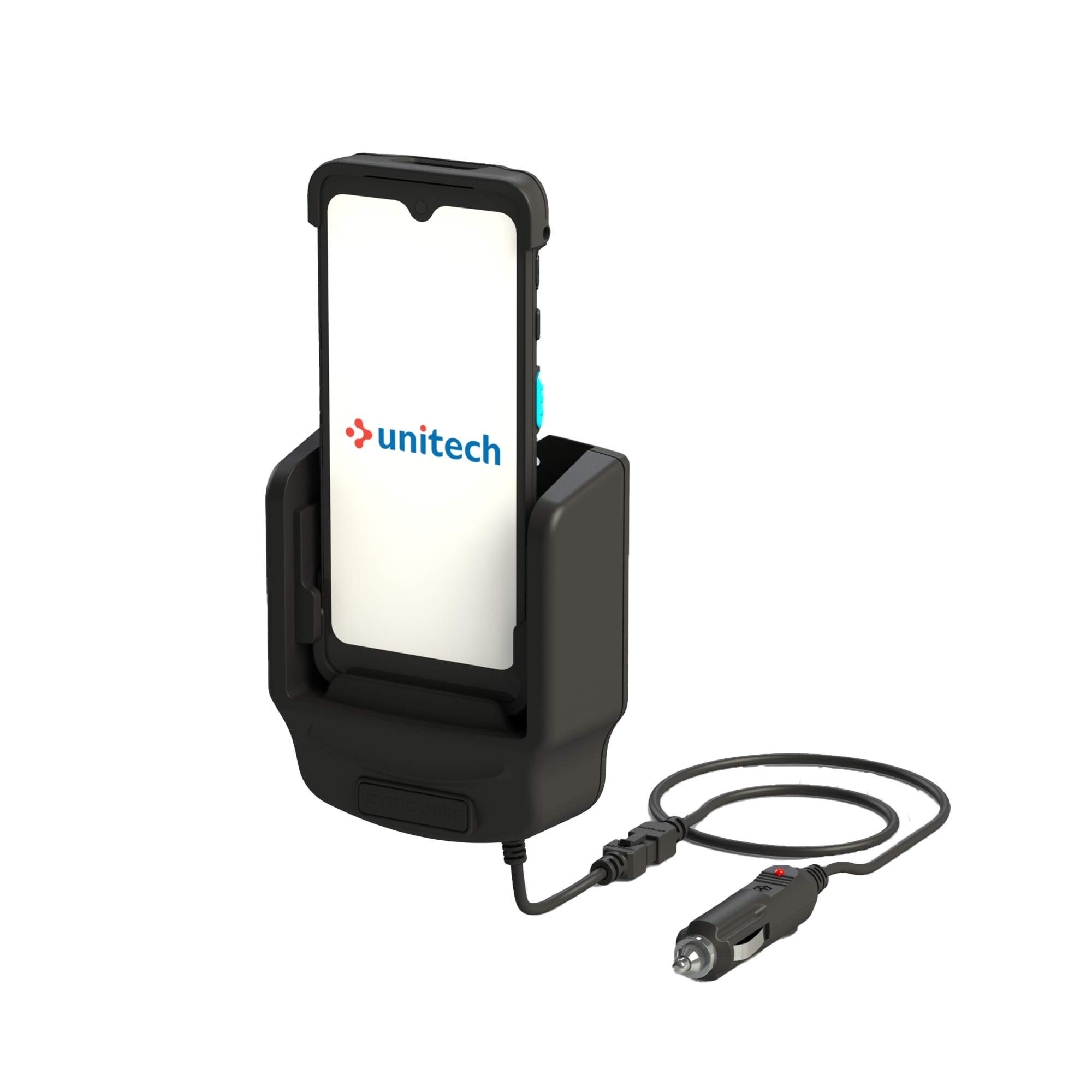

■ Vehicle Cradle (PN# 5000-768001G)
