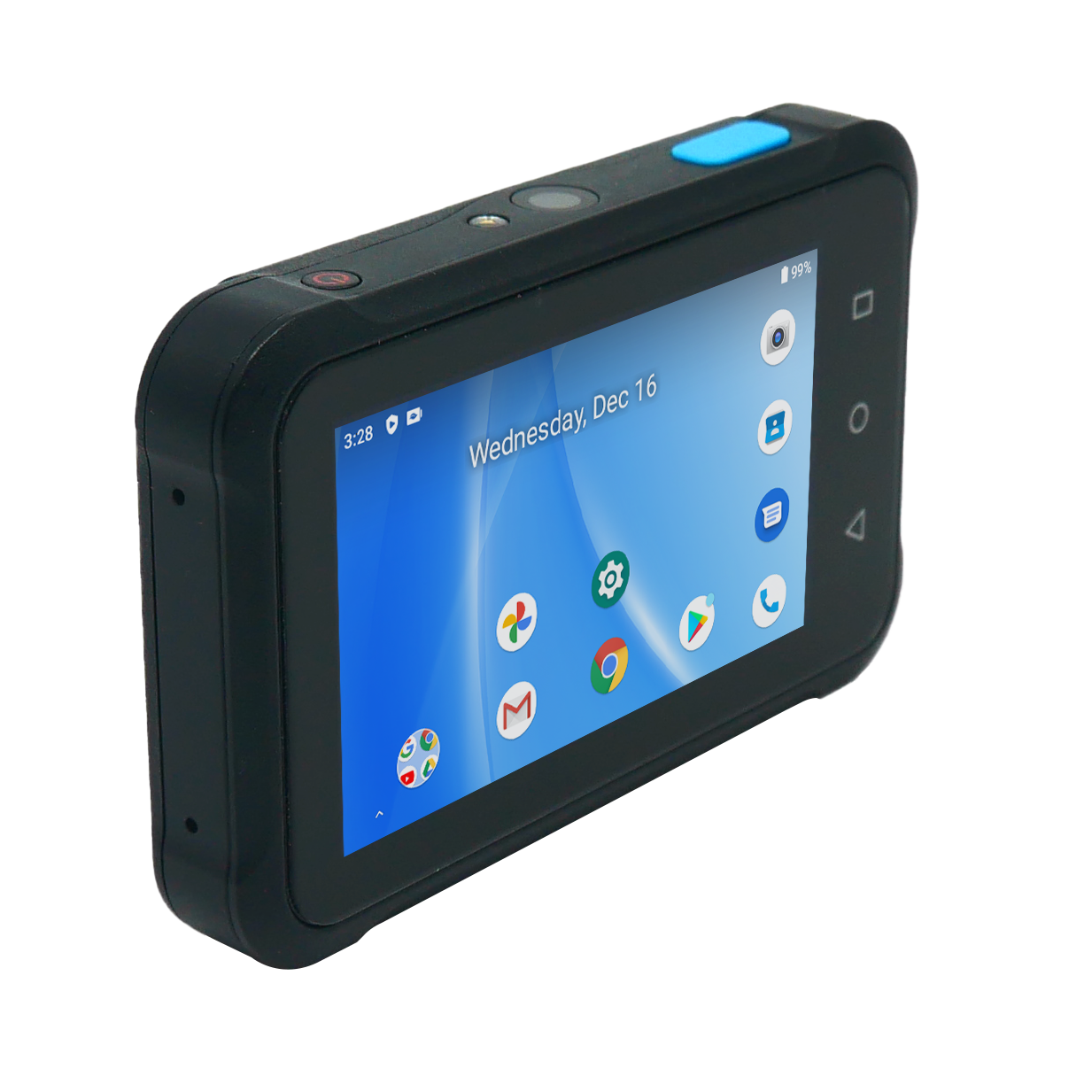

WD200 (Coming Soon)

3.1 inch Wearable Computer

Qualcomm® 660 platform | 110g with 2050mAh battery | 2X2 MU-MIMO WLAN

  • Android 10

  • HF/NFC

  • Wearable

  • IP67

  • 1.5M

  • 4G LTE

  • MIMO

  • Bluetooth

  • GMS certified

Power your data collection with a device that optimizes the way you work. Browse the Internet and web-based apps faster with the user-friendly Android 10 OS with GMS certification. Experience heightened device performance with a 2.2GHz Octa-Core processor and ease of use with a wearable that fits wrists, necks, and belt loops. A 3.1inch touchscreen offers easy viewing and a 13MP camera captures barcodes and delivery confirmations



Features

•  Android 10 with GMS certification
•  Lightweight, ergonomic wearable computer
•  3.1” color display (800x480, 450nits). Supports gloves and wet resistance
•  Powerful Qualcomm® 660 2.2GHz Octa-Core processor
•  Support Bluetooth® 5 / NFC / WLAN 802.11 ac support 2X2 MU-MIMO Antenna / 4G LTE
•  13MP camera captures barcodes and delivery confirmations
•  Ease of use with a wearable that fits wrists, necks, and belt loops
•  IP67 rated, and 1.5m drop specification
•  Dual MIC design, clear voice even in a noisy environment
•  Long-lasting embedded 2050mAh battery (Up to 10 hours working time)
•  Device supported versatile: SOTI, AirWatch, 42Gears, and MoboLink

Powered by Android 10 OS with GMS Certified

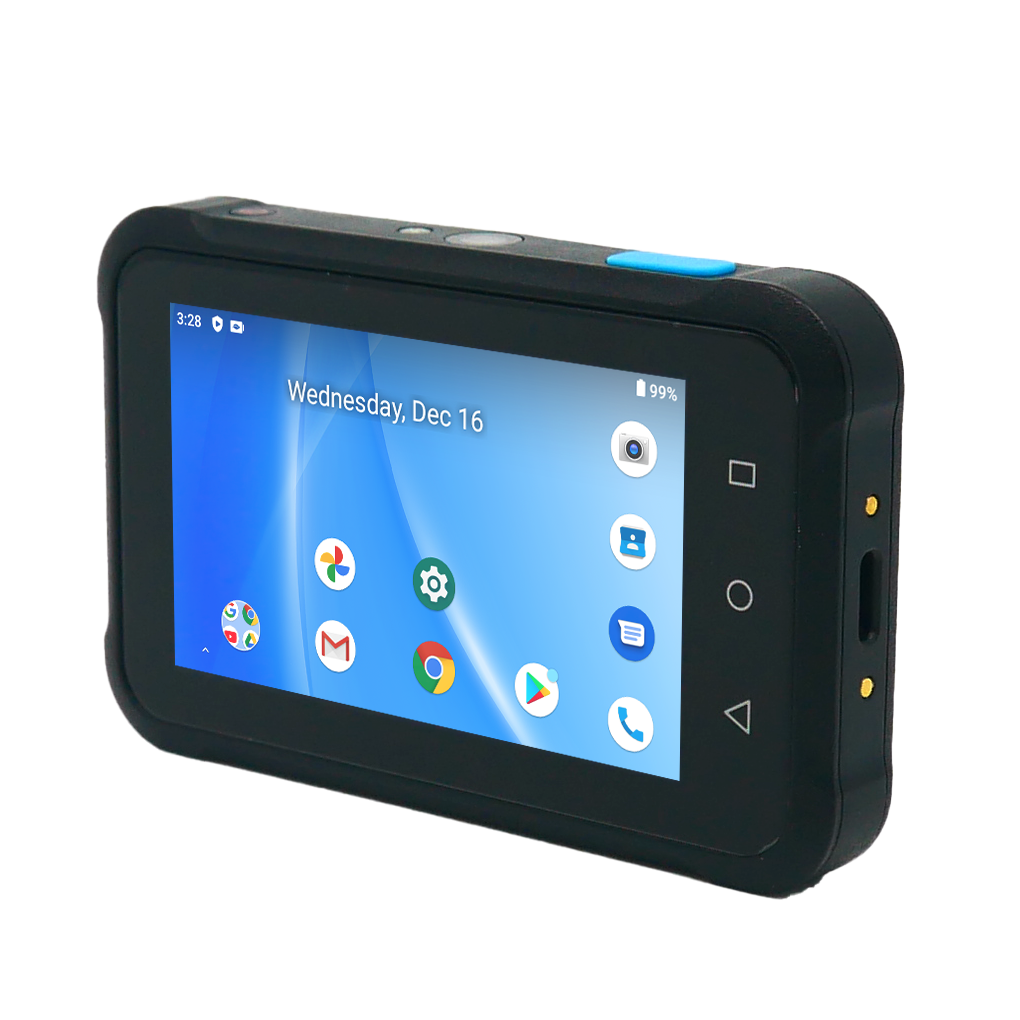

Power your data collection with a device that optimizes the way you work. Featuring a lightweight and ergonomic wearable design, the WD200 is a 3.1” Android 10 wearable device with GMS certification that supports users to work in an intensive picking environment that requires all hands to be free. A 3.1-inch sunlight-readable touchscreen offers easy viewing with 450 nits brightness and supports gloves and wet resistance, also comes with a 13MP camera that gives the flexibility to capture barcodes and delivery confirmations for applications in the warehouse, retail, logistic, transportation, and shipping yard.


Android 10
Operation System

GMS
Certification

3.1 inch

Display

450 nits

Brightness


Smart, Hands-free Mobility

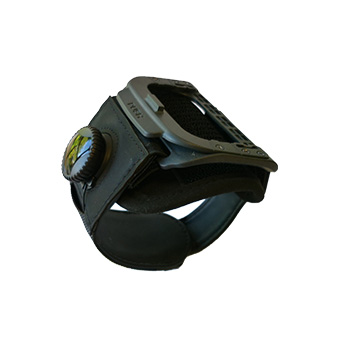

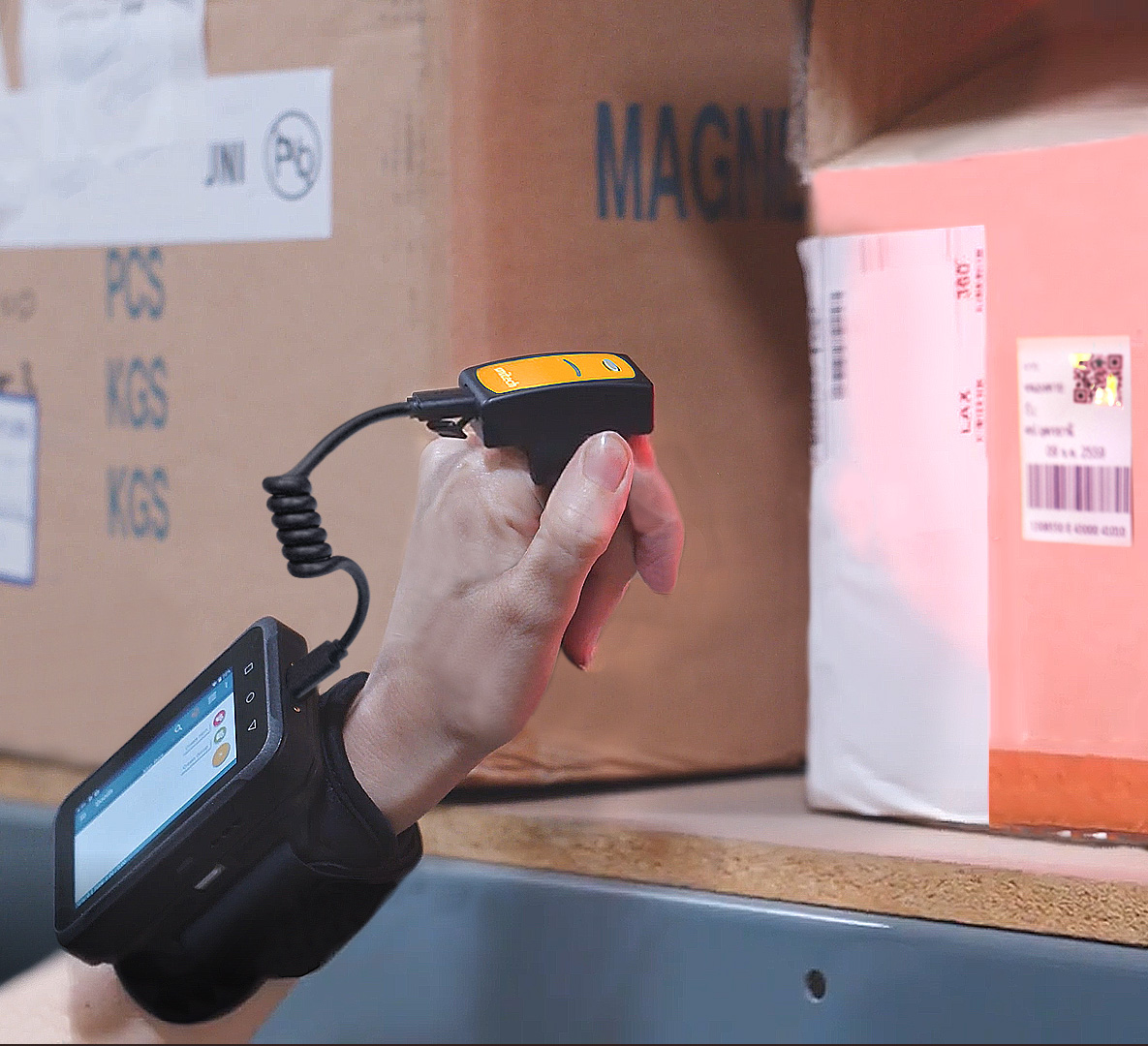

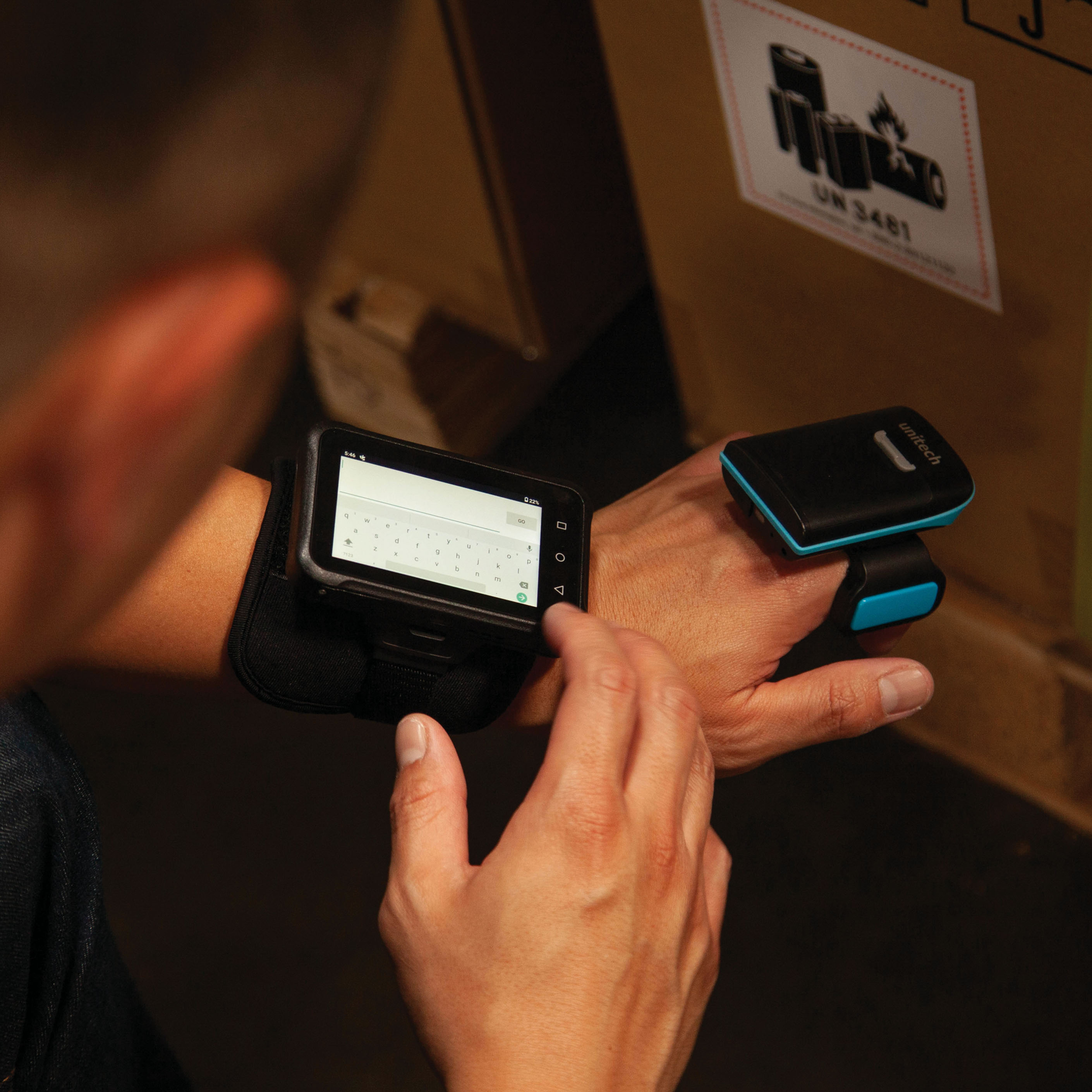

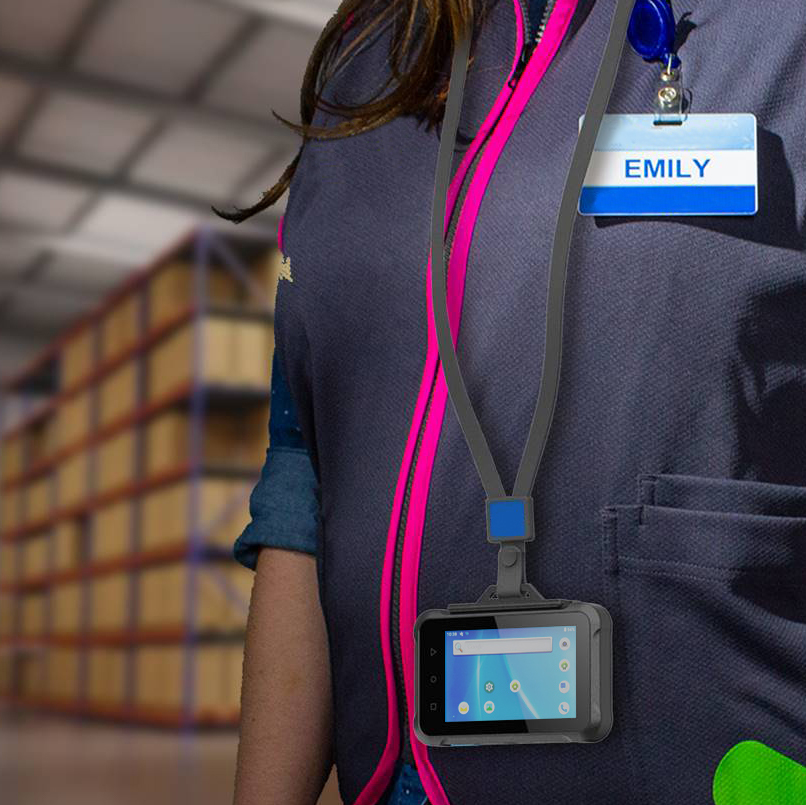

Want more efficiency without losing flexibility? The WD200 is designed to meet your expectations! Ease of use with a wearable that fits wrists, necks, and belt loops. The terminal is lightweight of 110g with a battery and it features EZ Lock arm strap design, easy to replace the main unit in a few seconds. Combined with one of our featured ring scanners, both hands can remain free during work without interfering with the workflow.


Wrist

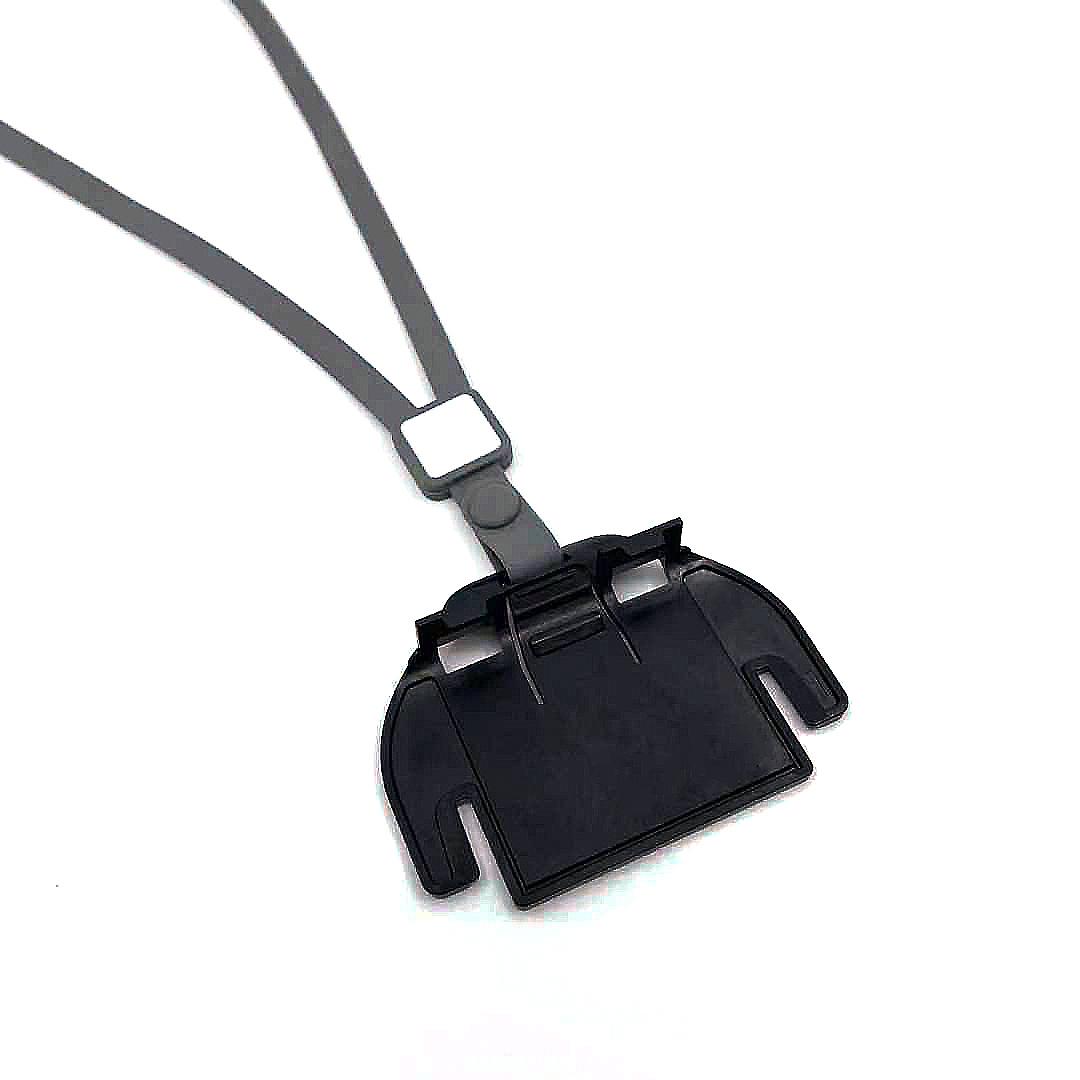

Wearable		 Neck

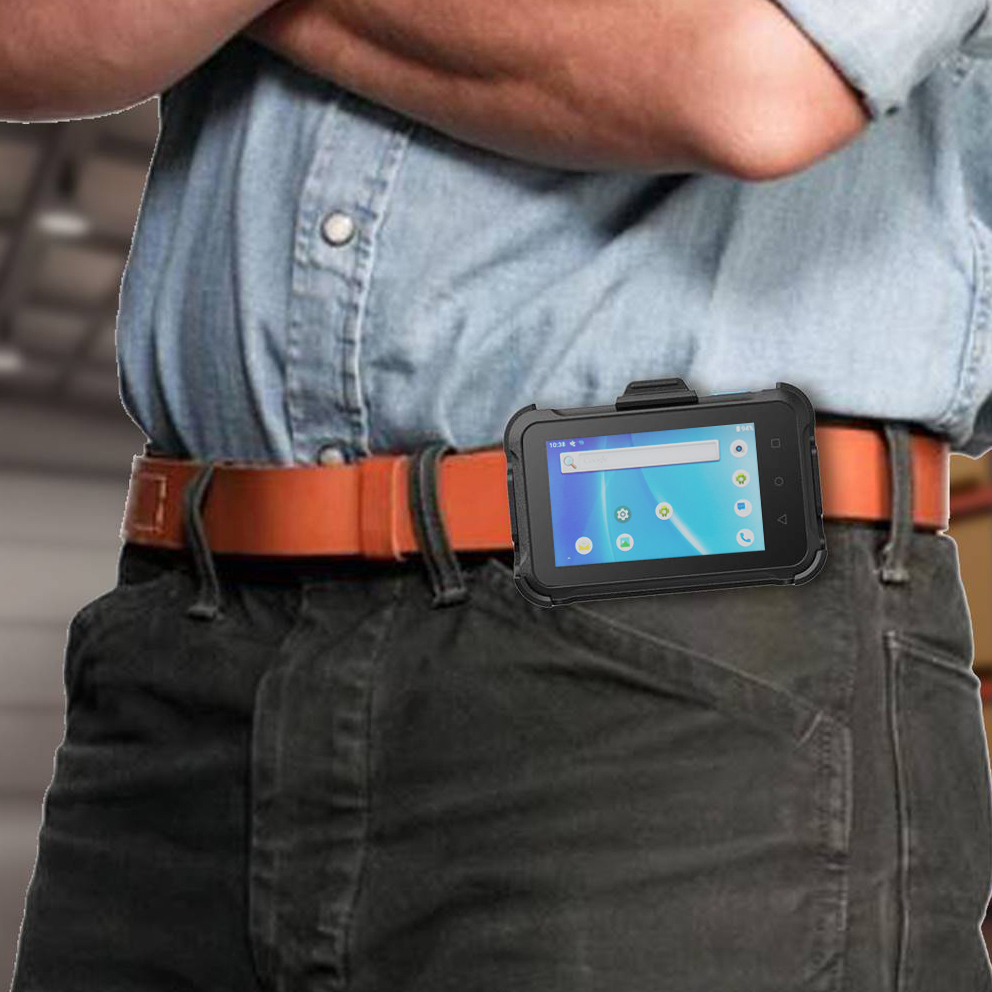

Wearable		 Belt Loop
Wearable 		110g
Lightweight


Experience Heightened Device Performance





Browse the Internet and web-based apps faster and experience heightened device performance with a Qualcomm 660 2.2GHz octa-core processor. Power your data collection with a device that optimizes the way you work.

2.2GHz
Qualcomm Octa-core

3 GB RAM
32GB Flash





Long-Lasting Battery Life


The WD200's powerful 2050mAh* battery is designed to have up to 10 hours of operating time, giving you the flexibility to work through the day.


Up to10 hours
Operating Time		 2050 mAh
Battery



Get Connected





Together with extended connectivity, the WD200 supports Bluetooth®5, NFC, 4G LTE, and WLAN 802.11 AC with 2X2 MU-MIMO Antenna that boosts the performance by allowing devices to be connected simultaneously.



Bluetooth®5 NFC 4G LTE 2X2 MU-MIMO
WLAN


Durable Design



It is not only equipped with dual MIC design, giving clear voice even in a noisy environment but also enhances the industrial durable protection with features including IP67 dustproof and 1.5m drop resistant of fall protection. The WD200 is a reliable tool to improve business productivity.

IP67

Certification

 1.5 m

Drop Protection

 MIL-STD 810G



Unitech Shield delivers value-added service for up-to-date support





unitech Premier Products

 unitech Advantage Products

✓ Free OS upgrade

  • ✓ 5 years of Google security patch support
        with frequency : Quarterly or half-yearly
  • ✓ Extend 3 years of patch updates



  •

  • ✓ 3 years of Google security patch support

  •     with frequency : half-yearly or yearly

  •  ✓ Extend 3 years of patch updates



  •


Click here for more information about Unitech Shield.





Specification

Operation System

  • OS Android 10
  • GMS certified GMS certified
  • CPU Qualcomm Snapdragon™ 660 Octa Core, 2.2 GHz , 64bits
  • Memory 3 GB RAM / 32GB Flash
  • Languages support English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages

Display

  • Screen Size 3.1” Color TFT-LCD (800 X 480) High Resolution Display (450 nits)
  • Touchpanel Ultra sensitive capacitive touch screen, compatible with gloves and support wet resistance

Buttons / Keypad

  • Buttons / Keypad ON / OFF button , 1x User-defined function button, 3x touch buttons

Camera

  • Camera 13 MP Rear and Flash Light

Indicator Type

  • Type LED, Speaker, Vibrator

RFID

  • HF RFID Support HF/NFC
    Frequency 13.56Mhz
    Support: ISO14443A/B, ISO15693 standard

Communication

  • Bluetooth® Bluetooth® 5
  • WLAN IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v, IPv4, IPv6
    Security of WLAN : WEP, WPA/WPA2 PSK, 802.1x EAP,OWE, SAE
    Fast Roaming : PMKID caching, 802.11r, OKC
    2x2 MU-MIMO
  • WWAN LTE:
    FDD-LTE (B1/B3/B4/B7/B20)
    TDD-LTE (B38/B39/B40/B41)
  • GPS GPS/GLONASS/Gallileo/Beidou
  • Sensors Gyroscope, G-sensor, E-compass, Light Sensor

I/O Interfaces

  • USB USB 3.1 (Type-C) support USB OTG
    Support Display Port Mode

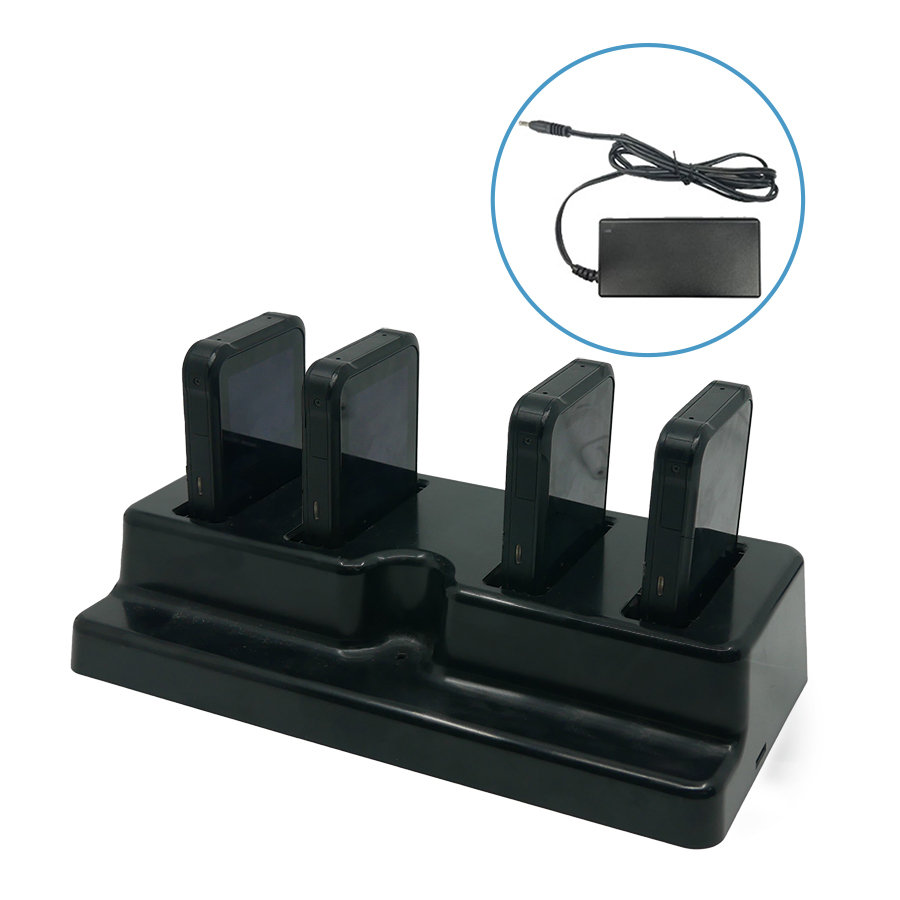

    Ethernet/USB-Host via cradle
  • OTG Yes, over USB Type-C
  • POGO PIN Charging via cradle
  • SIM Slot Nano SIM Slot
  • Audio One 1W speaker ,
    Dual noise-cancelling microphones

Enclosure

  • Dimensions ( H x W x D ) 96.7mm x 60.7mm x 14.43 mm
  • Weight 110g (with battery)

Durability

  • Drop Specification 1.5 meter, MIL-STD 810G
  • Sealing IP67
  • Vibration and Shock test 1,000 tumbles @ 1.6 ft./0.5 m

Environmental

  • Operating temperature 14°F to 122°F (-10°C to 50°C)
  • Storage temperature -4°F to 158°F (-20°C to 70°C)
  • Charging temperature 0°C to 45°C
  • Relative Humidity 5% ~ 95% (non-condensing)

Power Source

  • Main battery 3.85V, 2050mAh Li-polymer battery (embedded, can be repaired)

Software

  • MDM Software SOTI, 42Gears, MoboLink, Airwatch, Ivanti Wavelink

Regulatory Approvals

  • Regulatory Approvals CE, FCC, NCC, BSMI, VCCI, CCC, RoHS, CEC, BQB, N-Mark
    compliance.

What comes in the box

  • The standard package contents ■ WD200 Terminal
    ■ USB 3.0 Cable (Type C)

Accessories

  • Accessories ■ Quick charging (3.0) power adapter
    ■ USB-C cable USB 3.0 (Support Quick Charge)
    ■ USB Power adaptor 5v/2A charging (EU,UK,US,AU plug)
    ■ USB-C cable standard USB 2.0

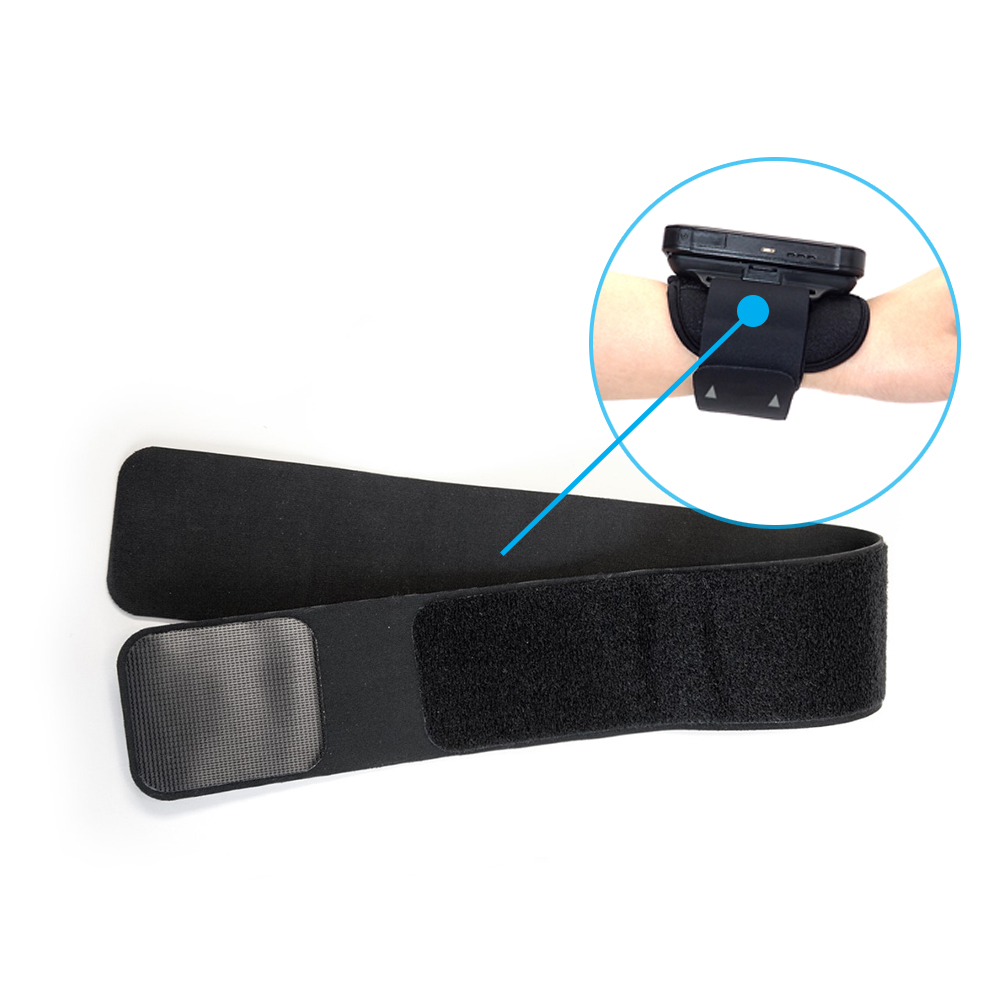

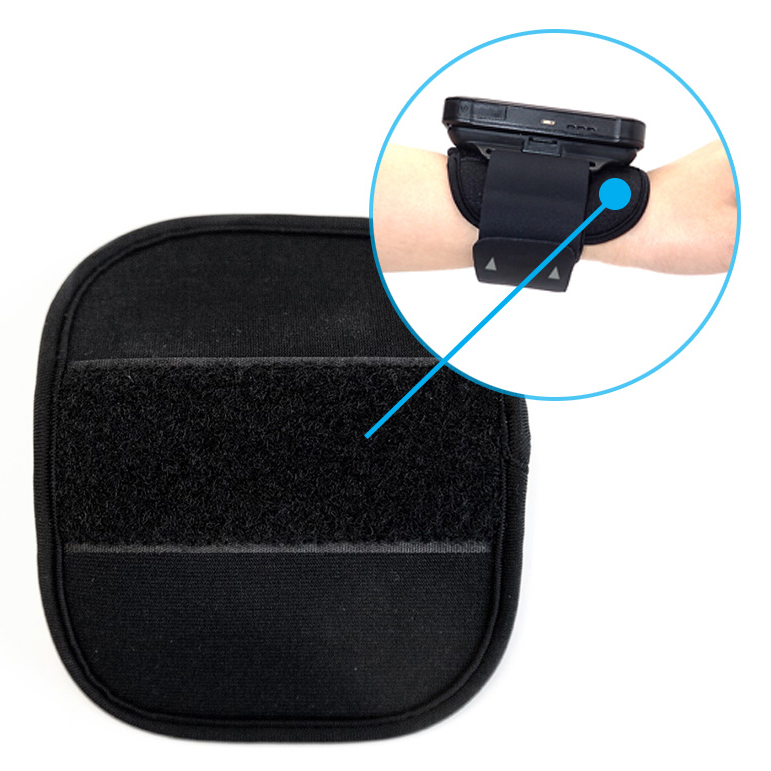

    ■ Professional armband strap-Small size(16cm)
    ■ Professional armband strap-Normal size(28cm)
    ■ Professional armband strap-Large size (30cm)

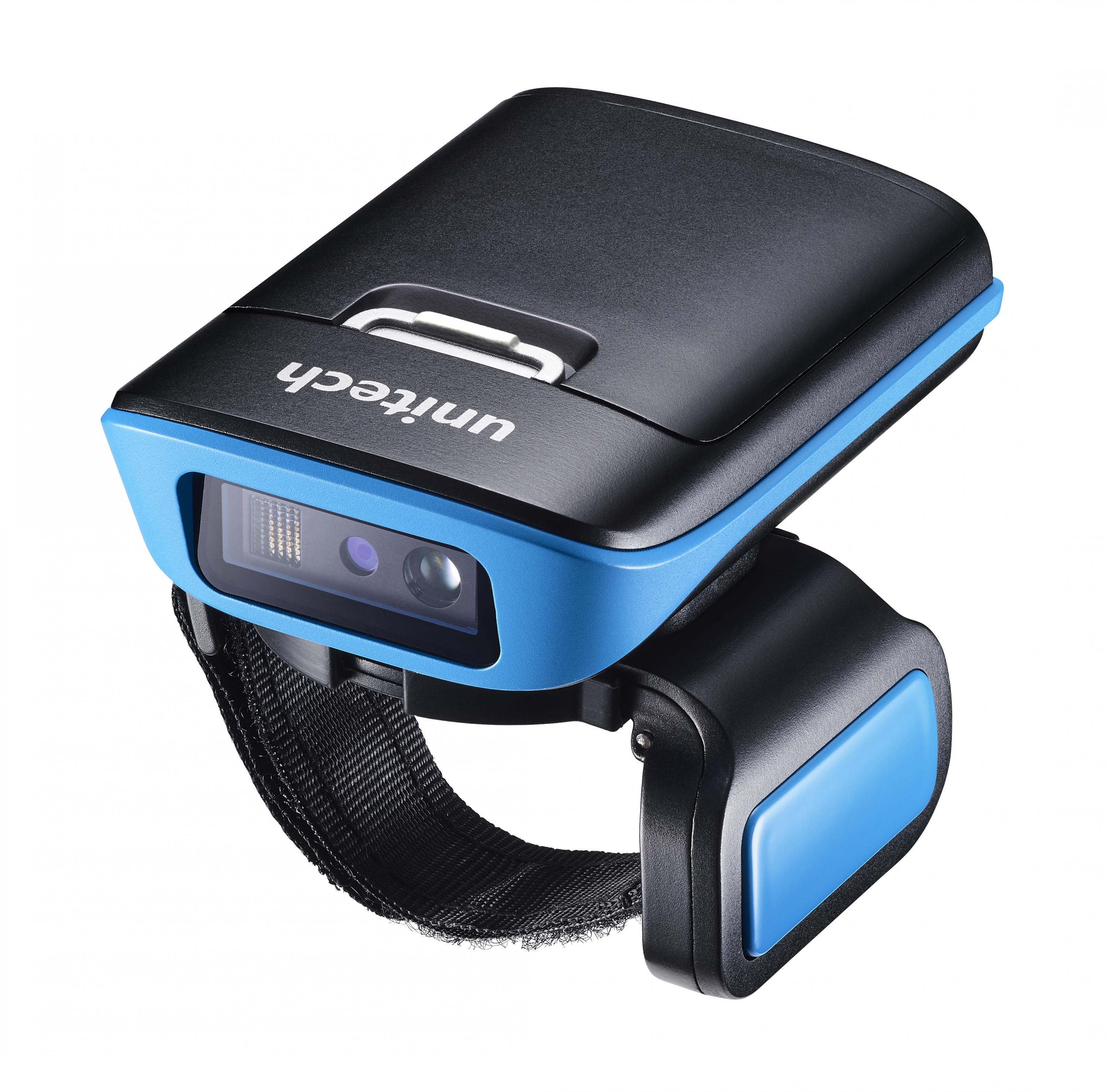

    Optional Bluetooth Barcode readers:

    ✔ MS632 2D Bluetooth Ring Scanner
    ✔ MS650 1D Bluetooth Ring Scanner
    ✔ MS652 2D Bluetooth Ring Scanner

Accessories

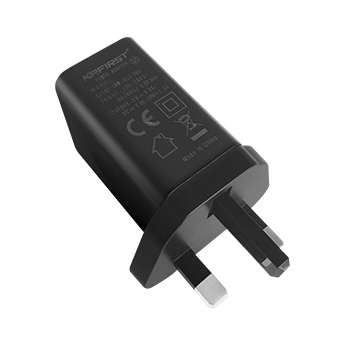

Quick charging (3.0) USB Power adapter (EU) for terminal

1010-900042G

USB Type-C Cable

1550-900112G

1550-905908G

USB 3.0 type-C cable

Power Adaptor (USB) with universal plugs

1010-900026G
