EA500 Plus
Enterprise Mobile Computer
Powered by Android 8.1 OS with GMS Certified, EA500Plus is a 5” enterprise mobile computer.
-
Android 8.1
-
2D
-
.svg)
NFC
-
5"
-
Pogo pins
-
4G LTE
-
IP65
-
1.5 m
-
GMS certified
-
Retail
-
Hospitality
-
Healthcare
The EA500Plus provides convenient connectivity, reading capabilities and enhances the service level for a variety of vertical applications within the retail, hospitality and field service sectors.
Features
• All-in-one function: 2D Imager, HF/NFC and 13MP camera
• Android 8.1 OS with GMS, Google Enterprise Device Certified
• Suitable for any mobile worker: 3G / 4G LTE, Dual-Band 802.11 a/b/g/n/ac WiFi, GPS and Bluetooth® 4.2 low energy
• Rechargeable 3800mAh battery
• 5” HD display.Ultra sensitive capacitive touch screen (compatible with gloves and supports wet resistance)
• Rugged: Corning® Gorilla Glass® 3, IP65 rated, and 5-foot drop specification
• Dual Scanning Buttons (left and right side) and programmable key
• Device supported versatile: SOTI, AirWatch, 42Gears, and MoboLink
★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/MobileComputers/RuggedSmartphones
Compact Design, Rugged Format
Powered by the steady Android 8.1 operating system, EA500Plus is one of the most flexible mobile computer with a weight of only 210g. It’s easy to carry around for a variety of vertical applications within the retail, hospitality and field service sectors.
High Resolution Camera for workforce
Equipped with an 13MP rear camera with autofocus and LED flash and a 2MP front camera, the EA500Plus is ideal for capturing digital evidence for proof-of-delivery.
1.5M Drop Specification
Designed to survive in harsh environments, this enterprise mobile computer is rugged enough to drop from 1.5 meters onto concrete. The EA500Plus is highly reliable to meet the needs of a wide range of bile workforce applications.
2D Scanning Capability
Featuring superior 1D and 2D barcode reading performance, it ensures read reliability for mobile phone screens and paper in any orientation. The EA500Plus gives your workforce the technology it needs to take your business to the next level.
Built-in NFC RFID Reader/Writer
The EA500 Plus features an NFC reader and writer that allows users to log in the terminal with private identification card.
Equipped with Rugged POGO pin & USB Type-C
The pogo-pin design protects the handheld from the wear and tear of frequent charging and docking. The EA500Plus also comes with a USB Type-C cable for data transforming.
Especificación
Operation System
- OS Android 8.1
- GMS certified GMS certified / EEA certified
- CPU 1.4GHz, Qualcomm 8940 octa-core processor
-
Memory
RAM 2GB or 4GB optional
ROM 16GB or 64GB optional -
Languages support
English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian,
Portuguese, Korean and multiple languages -
Others
Input Chinese/ English
Supports handwriting and soft keyboard
Display
- Screen Size 5.0” TFT-LCD HD (720 x 1280) color screen
-
Touch Panel
Gorilla Glass 3. Ultra sensitive capacitive touch screen,
compatible with gloves and supports wet resistance
Buttons / Keypad
- Buttons / Keypad 5 keys- Programmable function button; dual dedicated scan buttons; volume up/down buttons; on/off button
Camera
-
Camera
2MP front camera
13M rear camera with LED flash and auto-focus function
Indicator Type
- Type LEDs, Vibrator
Symbologies
- 1D Barcodes Support all major 1D barcodes
- 2D Barcodes Support all major 2D barcodes
RFID
-
HF RFID
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard
I/O Interfaces
- USB USB Type-C
- OTG Yes, over USB Type-C
- POGO PIN Charging via cradle and USB client
- SIM Slot Micro SIM x 2
- Expansion Slot Micro SD x 1, up to 128 GB
- Audio Microphone, speaker and 3.5mm audio jack
Power Source
-
Main battery
Rechargeable and Changeable ( Non-swappable )
3.8V 4000mAh (typical) / 3.8V 3800mAh (minimum)
Operating time : 10-12 hours
(depending on the specific environment)
RTC battery : RTC backup only
Communication
- Bluetooth® Bluetooth® 4.2
- WLAN IEEE 802.11a/b/g/n/ac/d/e/f/h/i/k/r/v
-
WWAN
4G : FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B20/B28A/B28B)
3G : WCDMA(B1/B2/B5/B8) =(2100, 1900,850, 900 MHz)
2G : GSM/EDGE/GPRS (850, 900, 1800, 1900 MHz) - GPS GPS, BeiDou, GLONASS
-
Sensors
Proximity sensor, light sensor and G-sensor
E-compass, gyroscope, and height meter
Software
- MDM Software SOTI, AirWatch, 42Gears, and MoboLink
Enclosure
- Dimensions ( W x H x D ) 155.8 mm x 76.2 mm x 13.5 mm
- Weight 210g
Durability
- Drop Specification 1.5m to concrete
- Sealing IP65
- Tumble test 600 tumbles @ 0.5 m
Environmental
- Operating temperature -10°C to +50°C
- Storage temperature –20°C to +70°C
- Charging temperature 0°C to 40°C
- Relative Humidity 5% ~ 95% (non-condensing)
Accessories
-
Accessories
■ USB type C cable/ adaptor (PN#1550-900112G)
■ 6-slot charging cradle with PSU (PN# 5000-500003G)

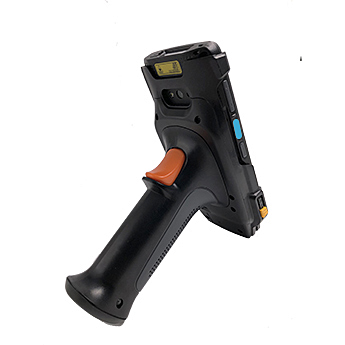

■ Gun grip (PN#5500-900053G)

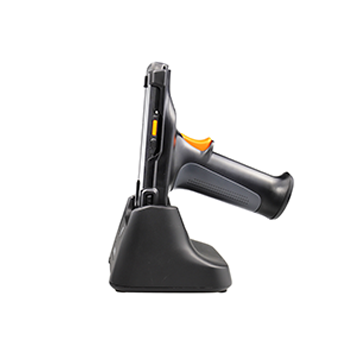

■ Cradle for EA500Plus with gun grip (PN# 5000-900056G)

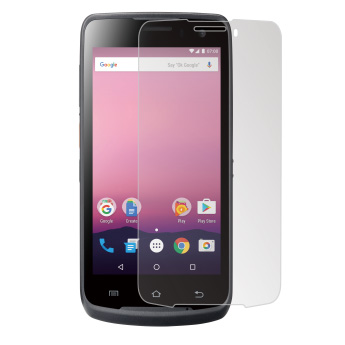

■ Glass Screen Protector (PN#401435G)
■ Protective Case with Hand Strap (PN#3210-900007G)
■ Single Slot Charging Cradle (PN# 5000-900040G)
■ Power Adaptor with universal plugs (PN#1010- 900026G (global) /PN#1010- 900027G (China))
■ Power Adaptor with universal plugs (PN#1010-900051G)
■ Screw mount kit (PN#RAM-B-101U)
■ Suction-mount kit (PN#RAM-B-166-202U)
■ Carry pouch (PN#3210-900008G)
What comes in the box
-
The standard package contents
■ EA500 Plus Terminal
■ USB Cable (Type C)
■ Single Slot Charging Cradle
■ Adaptor (US or EU or TW or UK) -
The basic package contents
■ EA500 Plus Terminal
■ USB Cable (Type C)
■ Adaptor(US or EU or TW or UK)
Regulatory Approvals
- Regulatory Approvals CE, RED, NCC, BSMI, CCC, VCCI, FCC
Warranty
- Hardware Warranty 15 months
