MS250

High Performance Contact Scanner (1D)

The MS250 is a cost-effective CCD scanner ideal for point-of-sale, document processing, and library applications. Designed for everyday 1D barcode use, it provides a practical and efficient solution for retail and business environments.

The MS250 is a reliable and cost-effective CCD contact scanner designed for everyday 1D barcode applications. With a durable, no-moving-parts design and the ability to read barcodes from screens, it delivers consistent performance beyond typical entry-level scanners.



Features

• CCD-based linear imager with no moving parts for enhanced durability

• Reads barcodes from screens, including mobile coupons and digital membership codes

• High first-read rate—even on damaged, blurred, or low-quality barcodes

• Cost-effective solution for high-volume 1D barcode applications

• Scan range: 0 – 4 inches

• Supports USB, RS232, and PS/2 interfaces

• Withstands 1.5m (5 ft) drops to concrete

• LED indicator for scan status

• 2-year warranty

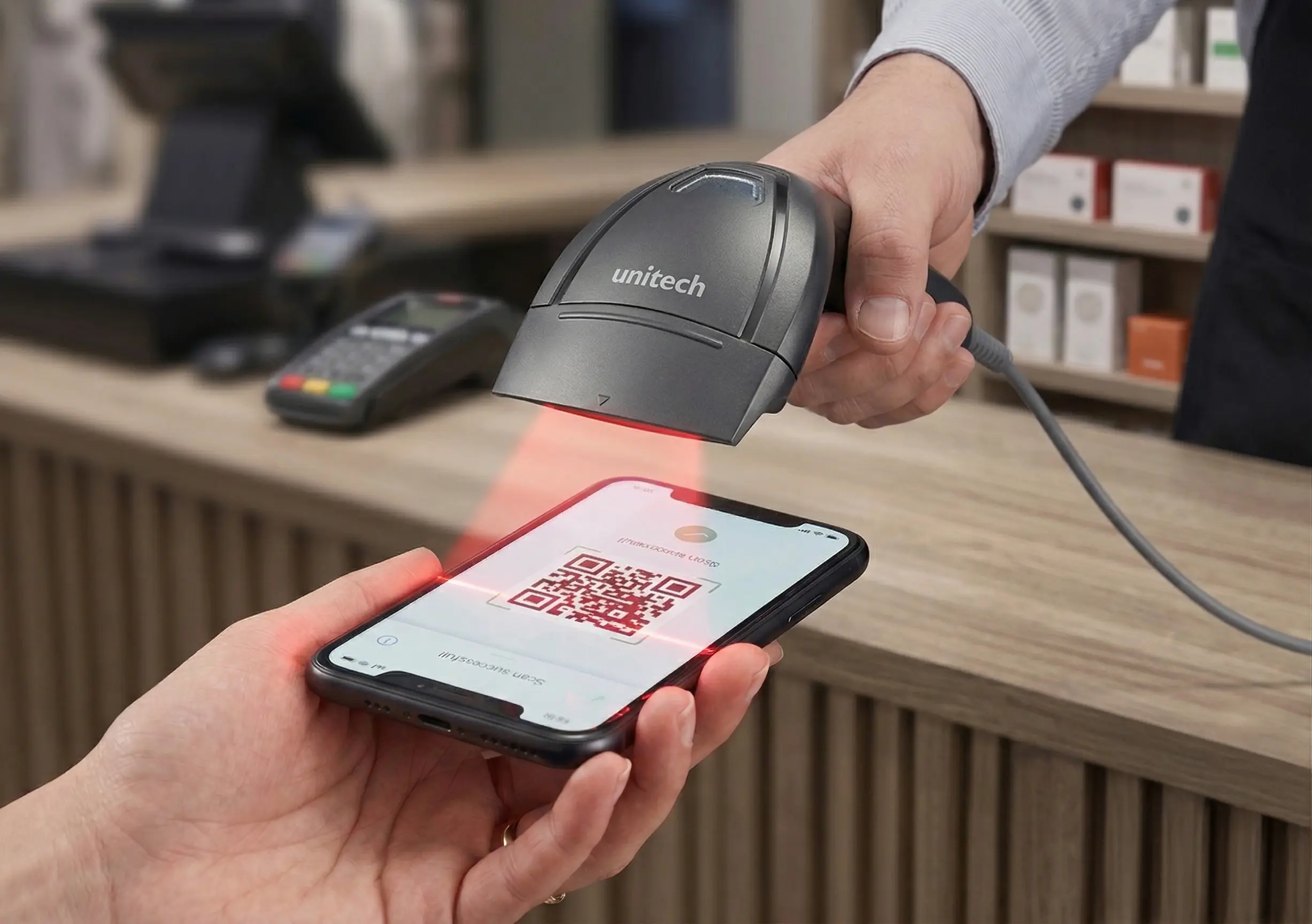

Easy to Operate with Screen-Ready Scanning



The MS250 CCD contact scanner is designed for simple, plug-and-play operation across a wide range of retail and business environments.

Its ability to read both printed and screen-based barcodes makes it especially useful for modern POS workflows, including mobile coupons and membership programs.

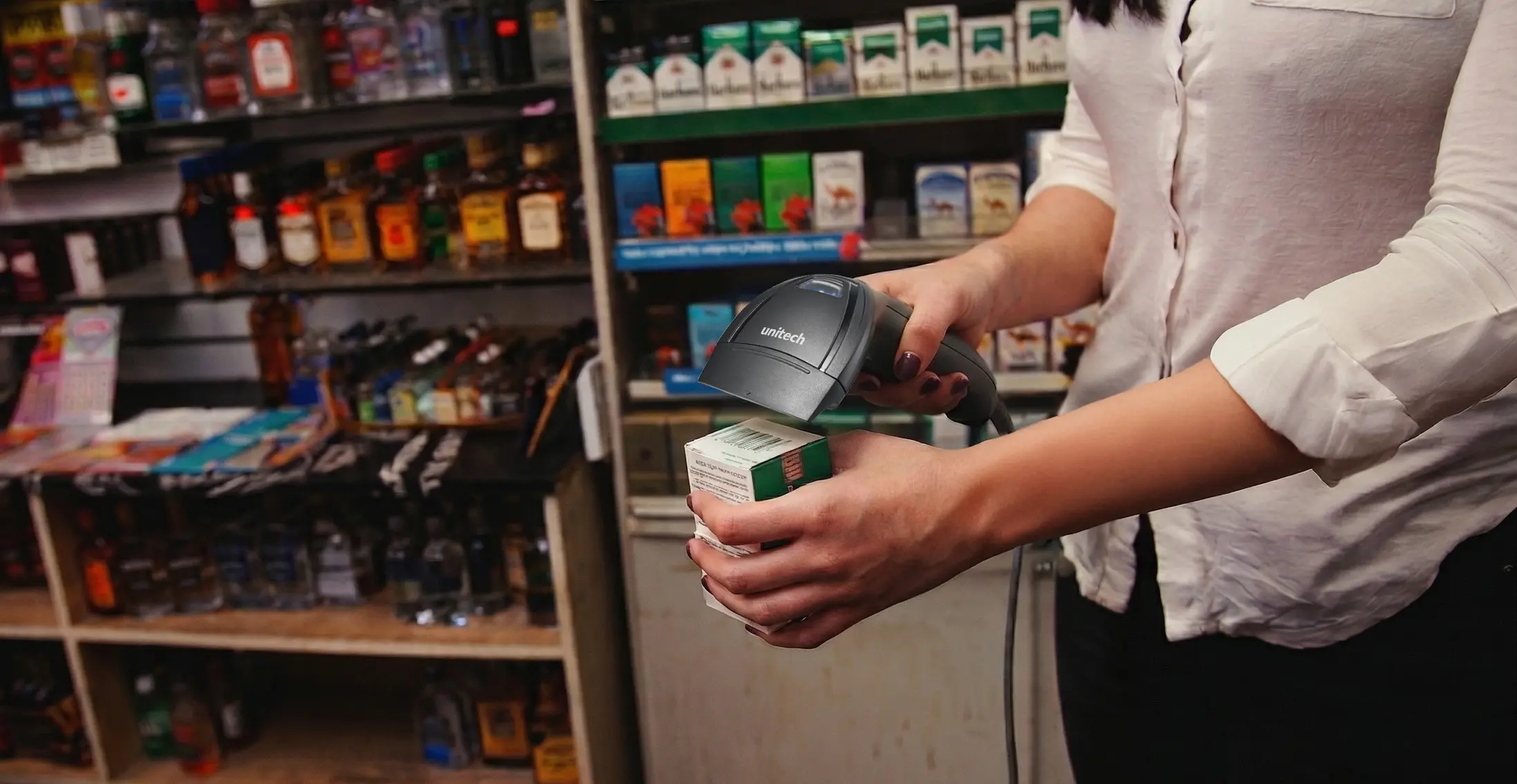

In retail environments, the MS250 supports point-of-sale and light inventory tasks with reliable, close-range scanning. It is also well-suited for self-checkout applications, where consistent reading performance is required.



For small to medium businesses, the MS250 can be used for asset tracking and check-in/check-out processes, helping improve visibility and control over shared equipment.



For applications focused on 1D barcodes, the MS250 provides a cost-effective alternative to 2D scanners—while still supporting screen-based barcode reading.



Flexible Integration for Multiple Environments



The MS250 offers flexible integration with a variety of systems through USB, RS232, and keyboard wedge interfaces—making it easy to deploy in both legacy and modern environments.



With multiple configuration options and a compact form factor, it can be seamlessly integrated into existing POS setups or space-constrained workstations.

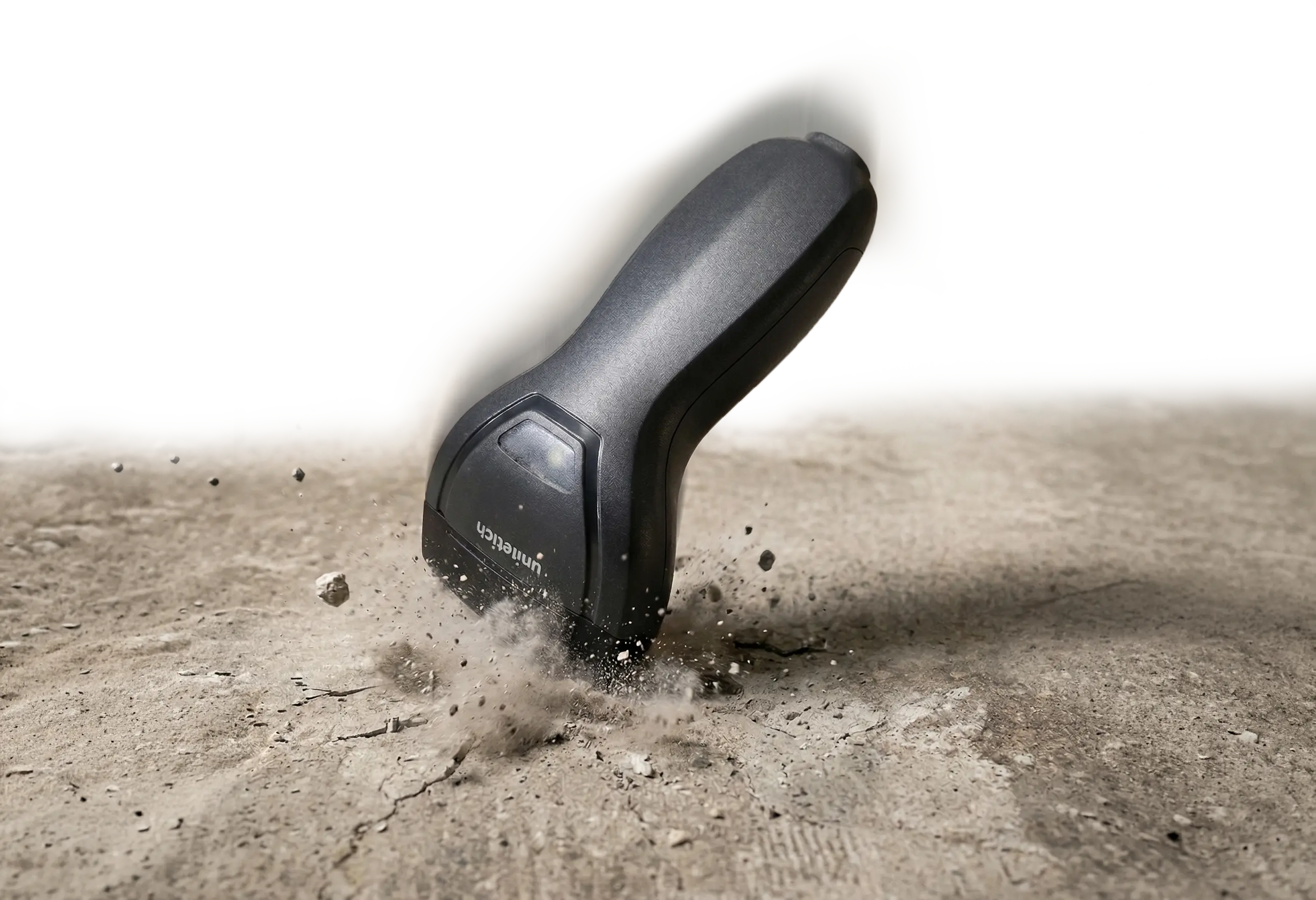

Durable Design with No Moving Parts



Built with CCD technology and no moving parts, the MS250 delivers enhanced durability compared to traditional laser scanners.



This solid-state design reduces mechanical wear, making it ideal for environments with frequent use, movement, or accidental drops. The MS250 withstands repeated 1.5m (5 ft) drops to concrete and is backed by a 3-year warranty.

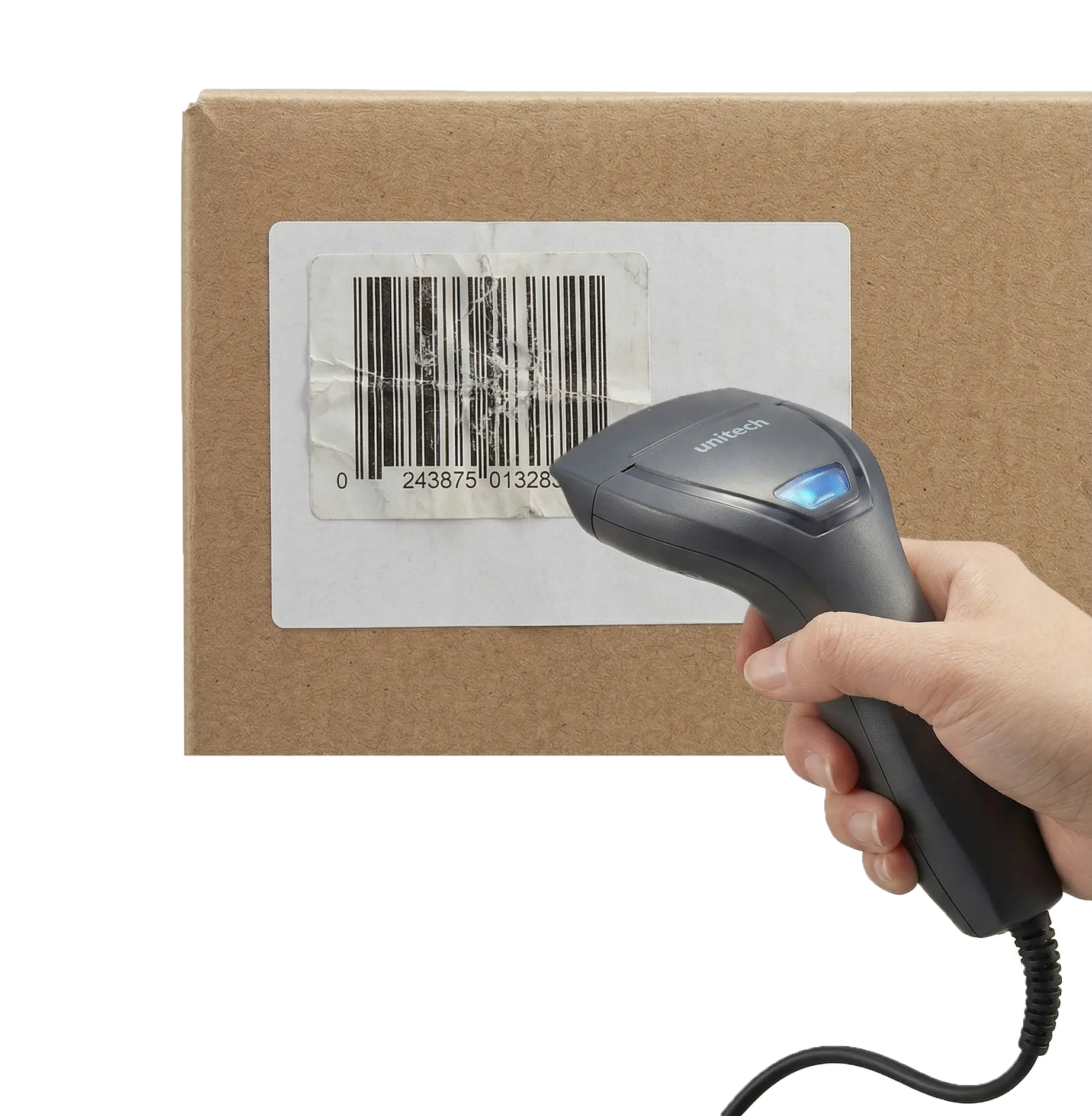

Reliable Scanning, Even on Damaged Barcodes

The MS250 uses a CCD-based imaging approach to capture full barcode data, enabling reliable decoding even when barcodes are damaged, blurred, or poorly printed.

Compared to traditional single-line laser scanners, this improves first-read success rates and reduces the need for repeated scans—enhancing efficiency in daily operations.

Damaged Barcodes

TAA Compliant Barcode Scanners



Especificación

Optical & Performance

  • Sensor Linear CCD Sensor
  • Aiming Element N/A
  • Illumination Visible Red light 635nm LED
  • Ambient Light 20,000 Lux Max
  • Scan Rate 200 scans/ second ±10%
  • Skew Angle Forward & Backward ±10°~30° (±5°)
    Left & Right ± 60° (±5°)
  • Optical Resolution 3mil (0.076mm) @ PCS90%
  • Printing Contrast Scale 45%
  • Depth of Field Width of Field: 80mm
    Reading Distance :Up to 90mm @ 20mil, PCS90%, Code39

Communication

  • Host Interface supported USB, RS232, Keyboard Wedge, USB emulation COM port

Mechanical

  • Dimension 6.4 in. H x 3.1 in. W x 2.5 in. D
    163.3 mm x 79 mm x 62.5 mm
  • Weight 2.9 oz.
    83 g
  • Trigger Switch Life 1,000,000 times

Functionality

  • Operation Mode Trigger Mode, Flash Mode

Symbologies

  • 1D Barcodes Code 39, Full ASCII Code39, Interleave 2 of 5, Standard 2 of 5, UPC A/E, ISBN, MSI/ Plessy, Codabar, Code 11,EAN8/13, JAN8/13, Code 93, Code 128, EAN128, Code32, GS1 databar Code, Matirx25, China postage, LCD25

Electrical

  • Operation Voltage DC 5V ± 5%
  • Current Consumption Operation mode:<120mA; Standby mode:<20mA
  • Indicator Buzzer, LED

Environmental

  • ESD Protection Functional after 8K Contact and 12K Air
  • Mechanical Shock 5-foot (1.5M) drop rating onto concrete - scanner only
  • Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
  • Storage Temperature -20°C to 70°C (-4°F to 158°F)
  • Relative Humidity 20% to 95% (Non-condensing)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI, TAA Compliant

What comes in the box

  • The standard package contents ■ MS250 Scanner

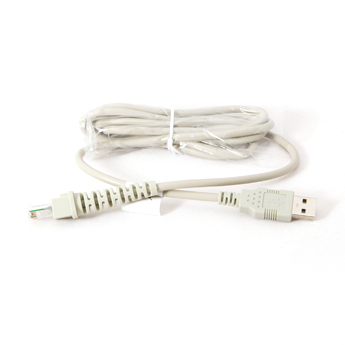

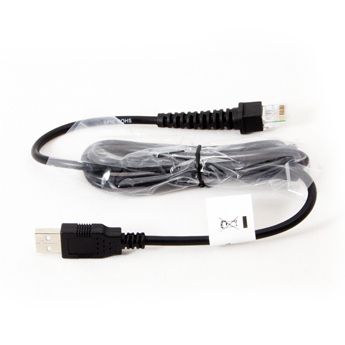

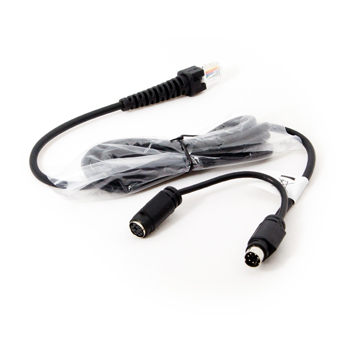

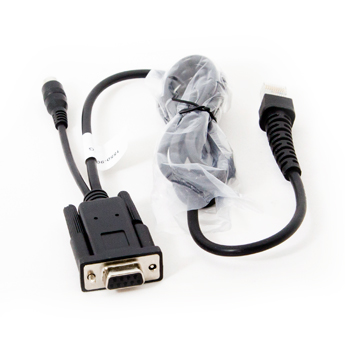

    ■ Interface cable

Warranty

  • Hardware Warranty 24 months
  • Statement This product is warranted against defects in workmanship and materials for a period of two years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
