MS652+
Wearable 2D Ring Scanner
El MS652 + está diseñado para optimizar el flujo de trabajo para una amplia gama de aplicaciones, como comercio minorista, logística, servicio de campo y hotelería.
• Diseño ligero y cómodo de 2 anillos
• Batería de turno completo de 13 horas de duración
• Alcance operativo de 32 pies mediante comunicación Bluetooth
El escáner de anillo MS652 + es el escáner más nuevo que llega a la creciente cartera de recopilación de datos de Unitech. Cuenta con un diseño portátil que le brinda libertad de movimiento para realizar tareas de escaneo de códigos de barras cómodamente mientras mantiene ambas manos libres.
Características
• Diseño de anillo portátil ligero y único
• El diseño giratorio con una sola pulsación permite cambiar fácilmente el funcionamiento de la mano derecha e izquierda
• Diseño inalámbrico de flexibilidad con rango de operación de 32 pies (10 m)
• Diseño resistente y duradero con IP42 y caídas de 1,5 m
• Bluetooth® Low Energy 4.2 / classic V2.1 classic y tecnología NFC: empareje fácilmente con teléfonos inteligentes y tabletas (dispositivos iOS / Android)
• Paquete de baterías recargables y reemplazables
• Duración de la batería de turno completo: hasta 13 horas
• Montado en dos dedos para mejorar la estabilidad de la operación
• Aplicación complementaria de Android “Unitech Scanner Utility” que ofrece interfaces gráficas de usuario y API que ayudan a los usuarios y desarrolladores a conectarse, configurar y recuperar datos con el escáner sin esfuerzo. Admite dispositivos con Android 5.0 y superior.
• Retroalimentación de decodificación instantánea: indicadores LED, zumbador y vibrador.
Ergonomic Design
The MS652+ wearable 2D ring scanner enables its operator to move products, packages, materials and proceed with their barcode reading tasks more efficiently, safely and comfortably. Whether you prefer left or right-handed operation, users can instantly switch between right and left hand operation with the special one push rotate design. It improves productivity in your operations with the wearable technology.
Featuring a superior scan engine, MS652+ is available to scan most 1D, 2D and PDF417 barcodes printed on paper labels or displayed on the screen of a mobile phone. The Bluetooth® Low Energy 4.2 / classic V2.1 classic and NFC technology delivers the most efficient way to pair with smart phone and tablets (including iOS or android system) with just a touch. Moreover, the wireless technology keeps the scanner connected up to 10 m (30 ft) from the computer, increasing productivity by allowing workers to move to the task. The MS652+ can be utilized with an auto mode that ensures no data is lost while it is out of range of the wireless signal, also upload the data to the back-end system automatically when it gets back in range, allowing users to complete their tasks without interruption.
The MS652+ is small but extremely rugged, with an IP42 protection against water and dust, encased in durable 5-foot (1.5 meters) drop-resistant housing. In addition, the MS652+ features a built-in changeable and rechargeable battery pack to improve your productivity at work. With an ergonomic and compact design, the MS652+ 2D ring scanner delivers a powerful, next level way to improve efficiency.The MS652+ is small but extremely rugged, with an IP42 protection against water and dust, encased in durable 5-foot (1.5 meters) drop-resistant housing. In addition, the MS652+ features a built-in changeable and rechargeable battery pack to improve your productivity at work. With an ergonomic and compact design, the MS652+ 2D ring scanner delivers a powerful, next level way to improve efficiency.
Especificación
Model Numbers
-
SKUs
MS652-2UDB00-SG:
MS652+ with SPP Mode
Optical & Performance
- Sensor CMOS sensor (640 x 400 pixels)
- Aiming Element 1 Hyper Red 660nm LED
- Ambient Light Max 107, 639 lux (direct sunlight)
- Skew Angle ± 60°
- Pitch Angle Sensor ± 60°
- Printing Contrast Scale 20% Minimum
-
Depth of Field
SYMBOLOGY / X-DIM TYPICAL RANGE*Near Far
5 mil Code 39 2.0 in / 5.1 cm 6.4 in / 16.2 cm
5 mil Code 128 2.5 in / 6.3 cm 5.0 in / 12.7 cm
6.6 mil PDF417 2.5 in / 6.3 cm 6.3 in / 16.0 cm
10 mil PDF417 1.8 in / 4.5 cm* 9.0 in / 22.8 cm
13 mil 100% UPC 2.0 in / 5.0 cm* 12.5 in / 31.7
cm 20 mil Code 39 2.0 in / 5.0 cm* 19.5 in / 49.5
cm 20 mil Data Matrix 1.5 in / 3.8 cm 13.5 in /
34.3 cm 20 mil QR Code 1.5 in / 3.8 cm 11.0 in / 27.9 cm
Communication
- Host Interface Supported USB
Mechanical
-
Dimension
2 in. H x 2.8 in. W x 0.8 in. D
5 cm H x 7.1 cm W x 2.1 cm D - Weight 3.4 oz. / 95 g
- Trigger Switch Life 1 million times
Functionality
- Operation Mode Trigger mode, Presentation mode, Auto mode, Batch mode
Symbologies
- 1D Barcodes All major symbologies and PDF417
-
2D Barcodes
QR Code, Data Matrix, Aztec Code, PDF417,
Macro PDF417, Micro PDF417, MaxiCode, Coda
block A, Codablock F, GS1Composite, Han Xin
Code, Australian Post, British Post, Canadian Pos,
InfoMail, Intelligent Mail Bar Code, Japanese Post,
KIX (Netherlands) Post, GS1 Composite, Korea
Post, Planet Code, Postal, Postnet
Electrical
- Operation Voltage DC 5V ± 10%
-
Current Consumption
Operation mode: 160mA, Standby mode: 23mA
Power off mode 1uA - Indicator LED, Buzzer
Environmental
- ESD Protection Functional after 8K Contact and 12K Air
- Mechanical Shock 5 feet (1.5 m) onto concrete, scanner only
- Operating Temperature 32° to 122° F (-10°C to 50°C)
- Storage Temperature -4ºF to 140ºF (-20°C to 60°C)
- Relative Humidity 5% to 95% non-condensing
- IP Rating IP42
Accessories
-
Items

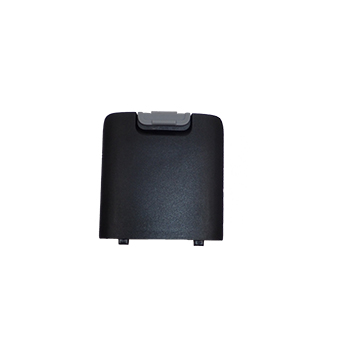

■ Battery

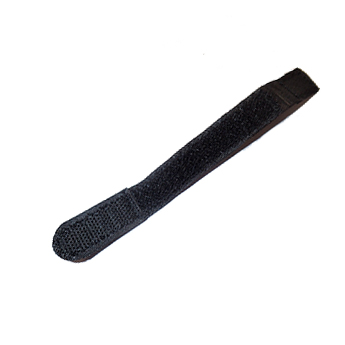

■ Hand strap

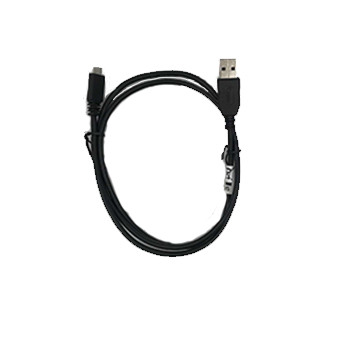

■ Micro USB cable

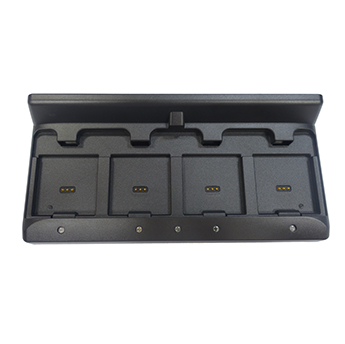

■ 4-Slot Battery Charger (optional)
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI, VCCI, TELEC, NCC
What comes in the box
-
The standard package contents

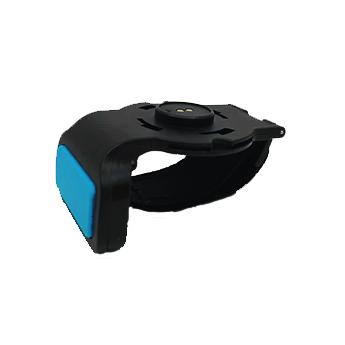

■ MS652+ Scanner with trigger module
■ Battery
■ USB Charger Cable

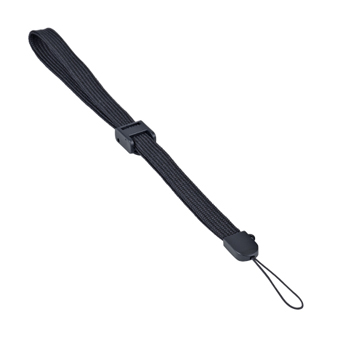

■ Wrist Strap

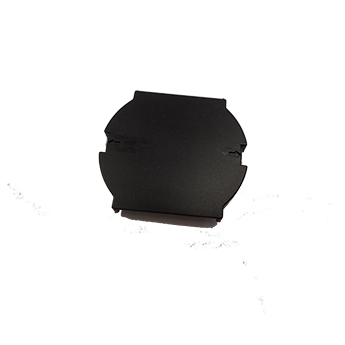

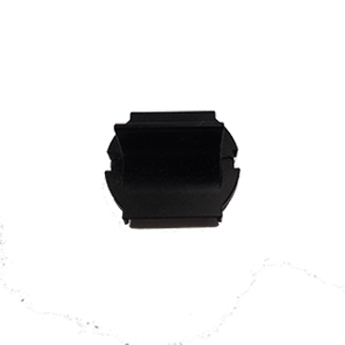

■ Finger rubber pad
■ Two double-sided tapes
Warranty
- Main Unit 1 year
