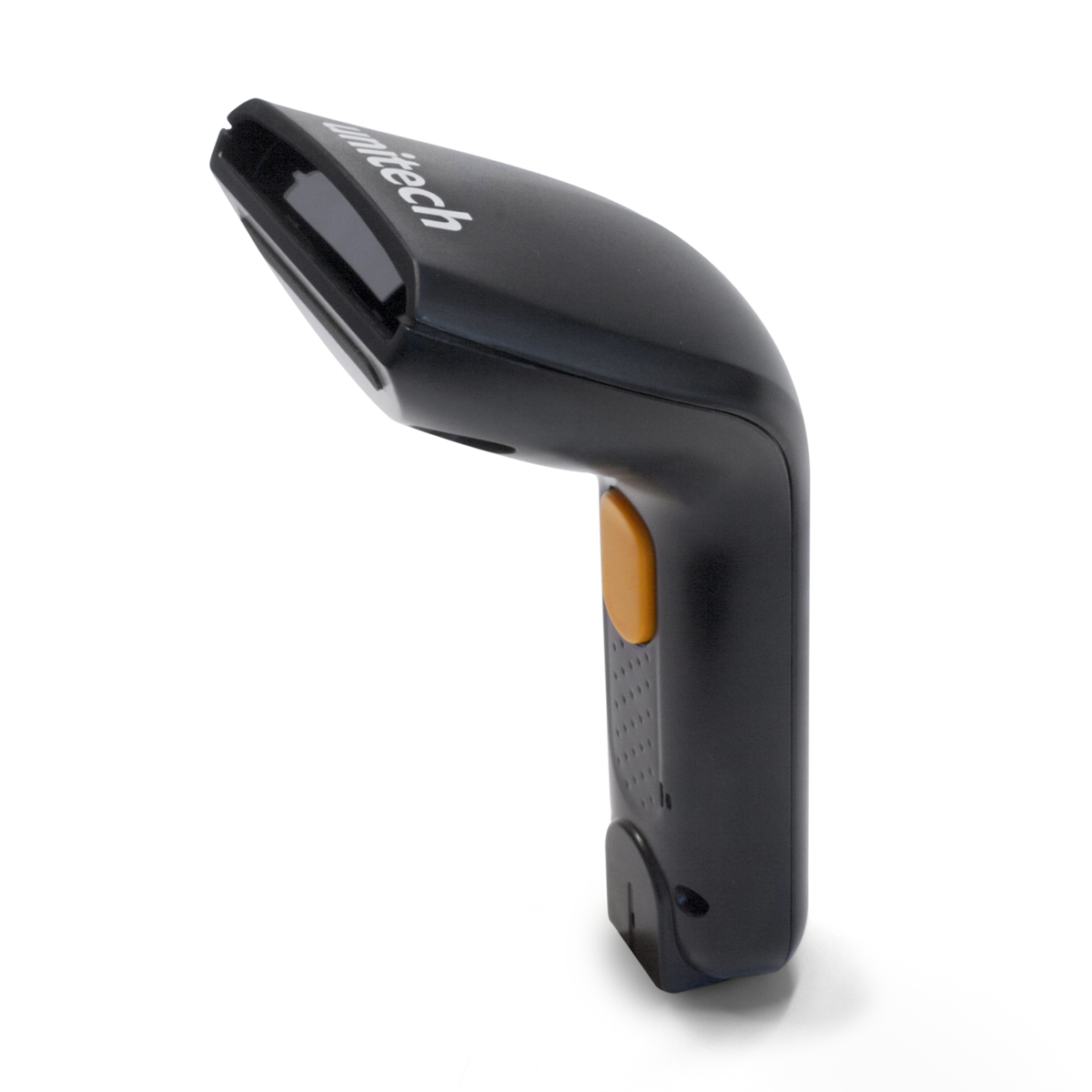

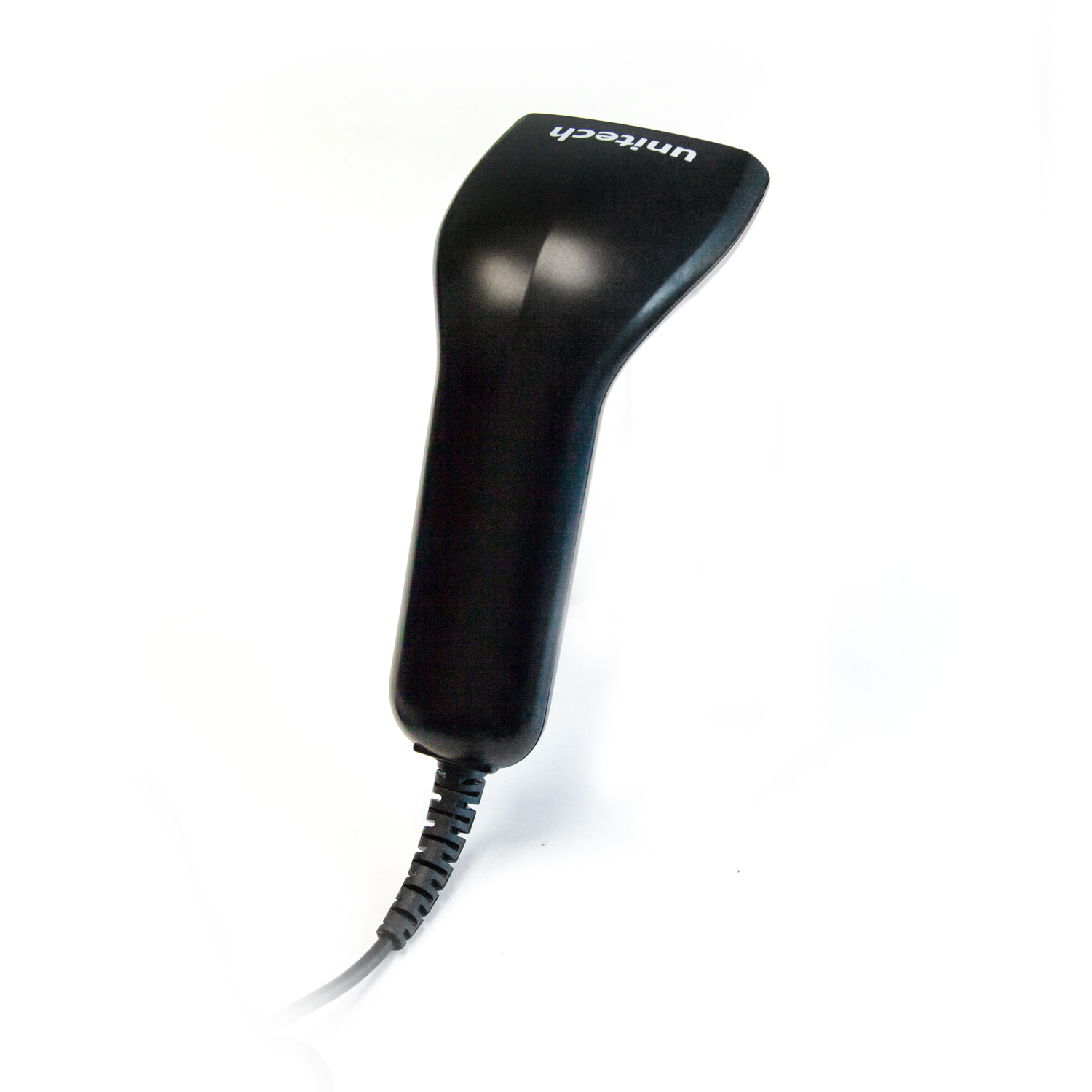

AS10

Basic Handheld Contact Scanner (1D)

If you only need the basics, don't look any further than the AS10 barcode scanner. The AS10 barcode scanner is an affordable option for streamlining your data collection. Easy to use and configure, this bestseller makes the barcode scanning process as hassle-free as can be.

• Affordably priced 1D scanner for retail, libraries, government facilities, and event ticketing applications

• Light as a feather device and ergonomic grip for simple, straightforward scanning

• One-year warranty coupled with our California-based customer service and technical support

  • 1D CCD

This barcode scanner is ideal for retail, medical, library, and light industrial applications. The AS10 would fit in seamlessly in an education or library environment for ID card scanning or book checkout systems. The AS10 is also a popular solution for point-of-sale applications in retail settings. Reduce processing time, increase accuracy, and streamline your workflow with this easy and powerful barcode scanner.



Operator profile

Compatible with Clover POS Devices

Make retail transactions and purchases a cinch with Clover + Unitech! Our AS10 barcode scanners have been tested and approved by Clover to seamlessly pair with Clover POS devices. Scan 1D linear barcodes with the AS10 and view instant data on Clover device screens.





Features

• Out-of-the-box functionality

• Reads most commonly used bar code symbologies

• Easy to use and configure

• Ergonomic design

• Economical and durable

Superior Contact Scanning

The AS10 barcode scanner features a linear imager scan engine that reads all major symbologies. The decoder on the device allows basic editing and modification of scan data before sending it to the host computer.

Affordable

The AS10 barcode scanner is not only on task, it’s on budget. This scanner is the most affordable device in our value scanner line. At a price point far below that of its competitors, the AS10 barcode scanner offers unbeatable value.

Easy Plug and Play

The AS10 was designed to be easy to use. Simply connect the communication cable to the host computer and watch the AS10 populate barcode data onto the screen. No download or software is required to use the AS10 barcode scanner – just plug it in and start scanning. The AS10 supports two interfaces for added versatility; connect it to your host computer via USB or keyboard wedge.

Durable and Economic

The AS10 barcode scanner is compact, light, and built to last. The device can endure multiple 4-foot drops to concrete and is protected by a one-year warranty.

Specification

Optical & Performance

  • Ambient Light 5000 Lux Max.
  • Scan Rate 100 scans/sec
  • Depth of Field 2.375 in.

Communication

  • Host Interface supported RS232, KBW, USB

Mechanical

  • Dimension 7 in x 3 in x 2.4 in (H x W x D)
    177 mm x 75 mm x 61 mm
  • Weight 4.2 oz.
    120 g (without cable)

Symbologies

  • 1D Barcodes GS1 DataBar, UPC / EAN / JAN,Code 39, EAN128, Full ASCII, Code 128, Interleave 25, Matrix 25, CODABAR / NW7, Code11, MSI / PLESSEY, Code93, China Postage, Code 32 / Italian Phammacy

Electrical

  • Operation Voltage DC +5V
  • Current Consumption 80mA
  • Indicator Beeper

Environmental

  • Mechanical Shock 4 feet
    (1.2 m)
  • Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
  • Storage Temperature -20 °C to 70 °C (-4 °F to 158 °F)
  • Relative Humidity 20% to 95% (Non-Condensing)

Warranty

  • Hardware Warranty 1 Year
