EA602
Entry Level Handheld (Android)
Step into next-level data collection with a handheld designed to optimize and streamline your workflow.
• Everything you need is in the box! The EA602 includes device, USB cable, and power supply
• A powerful 1.4GHz Octa-Core processor lives inside which means faster app running and less battery drainage
• A 5" capacitive HD touch screen works with gloved or wet hands making it a true all-weather device
The EA602 is a rugged 5” mobile enterprise computer combining strong features with powerful data collection. The EA602 provides convenient connectivity, reading capabilities, and enhances the service level for a variety of vertical applications within the retail, transportation, logistics, and field service sectors.
Features
• All-in-one box; EA602 comes with USB cradle and power supply
• All-in-one function: 2D Imager, HF/NFC and 8MP Camera
• Industrial grade: 1.4GHz Octa-Core processor with Android 7.1 OS
• Suitable for any mobile worker: 2G / 3G / 4G LTE, Dual-Band 802.11 a/b/g/n/ac WiFi, GPS and Bluetooth® 4.2
• Rechargeable and swappable 4000mAh battery
• 5” HD display. Ultra-sensitive capacitive touch screen (compatible with gloves and supports wet resistance)
• Rugged: Corning® Gorilla Glass® 3, IP65 rated and 5-foot drop specification
• Dual scanning buttons (left and right side) and programmable key
• Supported MDM software solutions: SOTI, Airwatch, 42Gears, 12Manage and MoboLink
Powerful Data Collection
Equipped with a 1.4GHz Octa-Core processor and running on the Android 7.1 operating system, makes this device suitable for data intensive applications in highly mobile environments. Mobile workers can easily accelerate their workflow as this device is equipped with a 2GB RAM, 16GB ROM and supports an additional microSD expansion (up to 32GB storage capacity).
All-In-One Functionality

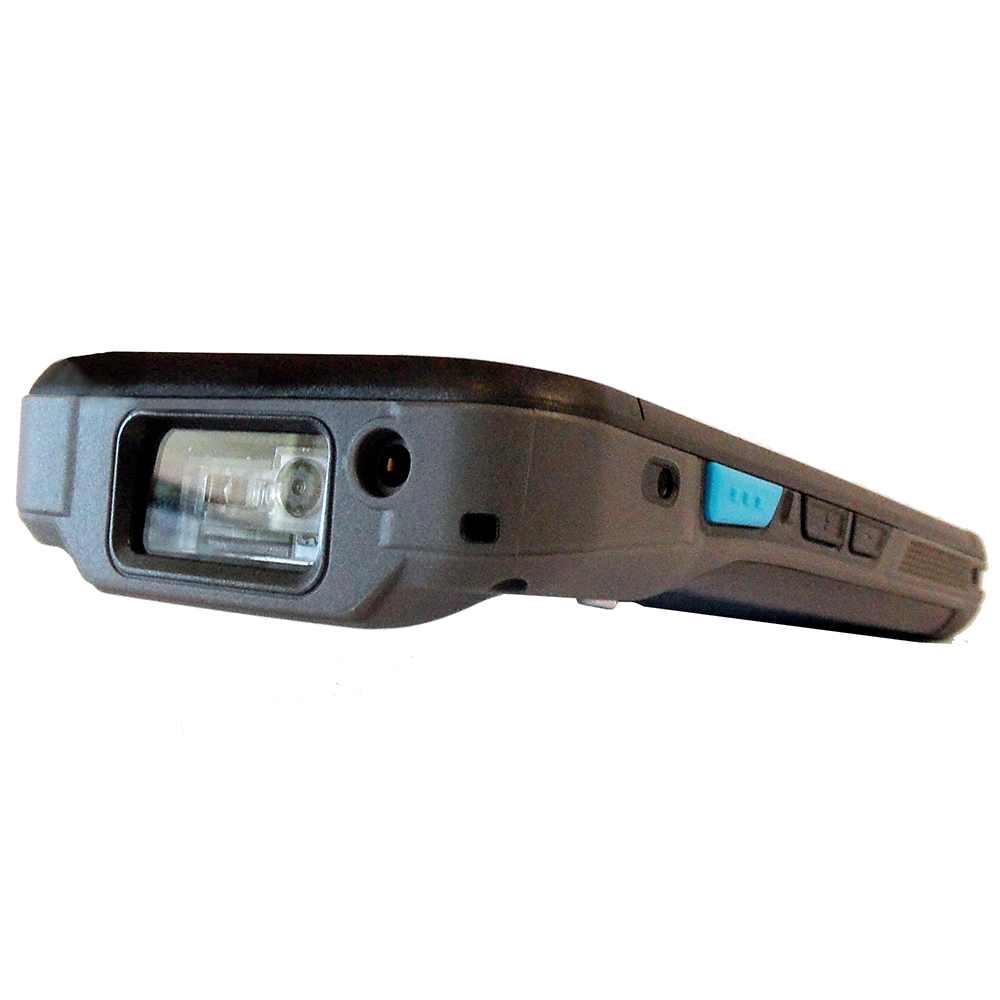

The EA602 offers an integrated 2D scanning capability, as well as an integrated HF/NFC RFID reader/writer, GPS and a high resolution 8.0 MP camera.
Holding a 4000mAh removable battery the EA602 provides continuous usage time without needing to worry about running out of juice. This device offers everything you’ll need. By supporting a dual SIM slot, the EA602 meets the requirements of data transmission and phone.
Enjoy the fastest data speeds out there with the integrated Bluetooth® 4.2, Dual-band 802.11 a/b/g/n/ac WiFi and 4G connectivity. This device is truly an excellent mobility device and offers improvement of job efficiency at a competitive price!
Rugged Design
Capable to withstand a multiple 1.5m drops to concrete and IP65 rated against water and dust, makes this EA602 a rugged device. Equipped with a POGO PIN (for quick and non-intrusive charging) it will prolong it life span and durability and offers quick and non-intrusive charging.
Specification
Model Numbers
-
SKUs
EA602-QALFUMRG:
EA602, 2D Imager Scanner
Operating System
- OS Android 7.1
- CPU 1.4GHz, Qualcomm 8937 Octa-Core
- Memory 2GB RAM / 16GB Flash
- Languages Supported English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
-
Other
Input Chinese/ English
Supports handwriting and soft keyboard
Display

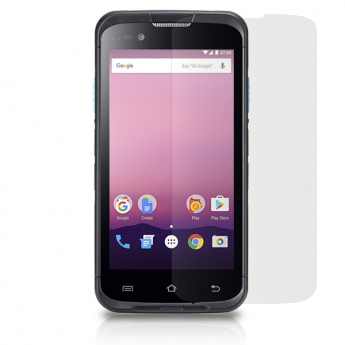

- Screen Size 5.0 inch TFT-LCD HD (720 x 1280) color screen
-
Touchpanel
Gorilla Glass 3. Ultra sensitive capacitive touch screen,
compatible with gloves and supports wet resistance
Buttons / Keypad
-
Buttons / Keypad

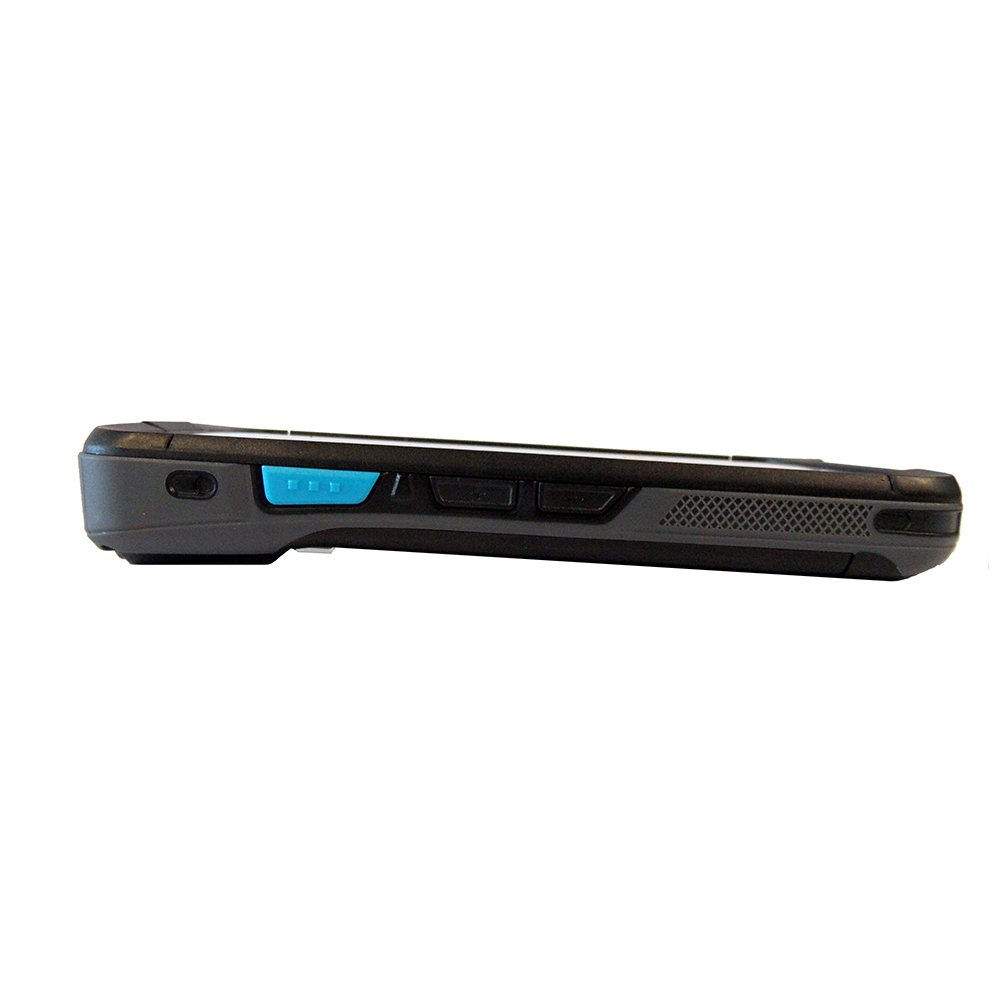

Side SCAN button x 2 (Left / Right), User-defined function button
(programmable key), Volume switch button (+ / -), ON / OFF button.
Camera
-
Camera
2 MP Front camera
8 MP Rear with LED flash and auto-focus function
Indicator Type
- Type LEDs, Vibrator
Symbologies
- 1D Barcodes 1D : All major codes
- 2D Barcodes 2D : All major codes
RFID
-
HF RFID
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard
Communication
- Bluetooth® Bluetooth® 4.2
- WLAN 802.11 a/b/g/n/ac/d/e/f/h/i/k/r/v
-
WWAN
GSM/HSDP+/UMTS,
4G FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B20/B28A/B28B)
3G UMTS/HSDPA/HSPA/HSPA+
(850, 900, 1700, 1900, 2100 MHz)
2G GSM/EDGE/GPRS (850, 900, 1800, 1900 MHz) - GPS GPS, AGPS, BeiDou, GLONASS
- Sensors Proximity sensor, light sensor and G-sensor
I/O Interfaces
- USB Micro USB
- OTG Yes, over Micro USB
- POGO Pin Charging via cradle and USB client
- SIM Slot Micro SIM slot x 2
- Expansion Slot MicroSD x 1, up to 32 GB
- Audio Microphone, speaker and 3.5mm audio jack
Enclosure
-
Dimensions ( W x D x H )
6 in. H x 3.1 in. W x 0.6 in. D
15.2 cm. H x 7.8 cm. W x 1.5 cm. D - Weight 10 oz. / 283 g
Durability
- Drop Specification Multiple 5 ft./1.5 m drops to concrete
- Sealing IP65
Environmental
- Operating Temperature 14°F to 122°F/-10°C to 50°C
- Storage Temperature -4°F to 140°F/-20°C to 60°C
- Relative Humidity 5% ~ 95% (non-condensing)
Power Source
-
Main Battery
Rechargeable and swappable
3.8 V, 4000mAh Polymer Li-ION pack.
Operation time : 10-12 hours (depending on the specific
environment
RTC battery : Real time clock battery
Software
- MDM Software SOTI, Airwatch, 42Gears, 12Manage and MoboLink
- Azure Azure Certified
Regulatory Approvals
- Regulatory Approvals CE, R&TTE, FCC, NCC, CCC
What's In the Box
-
Standard Package Contents
■ EA602 Terminal

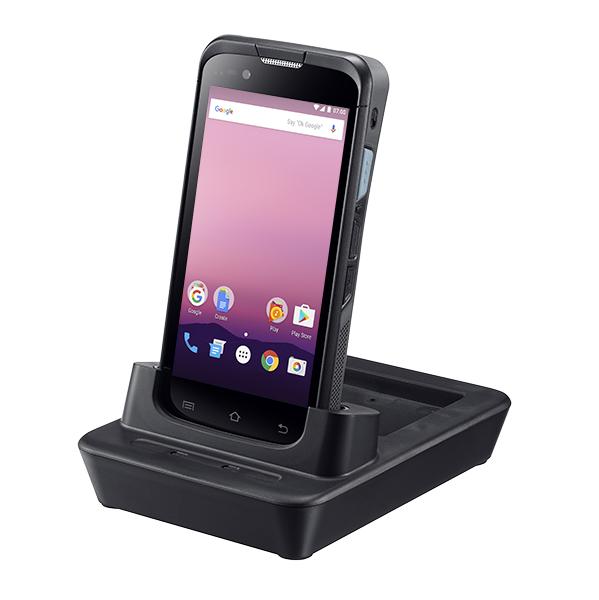

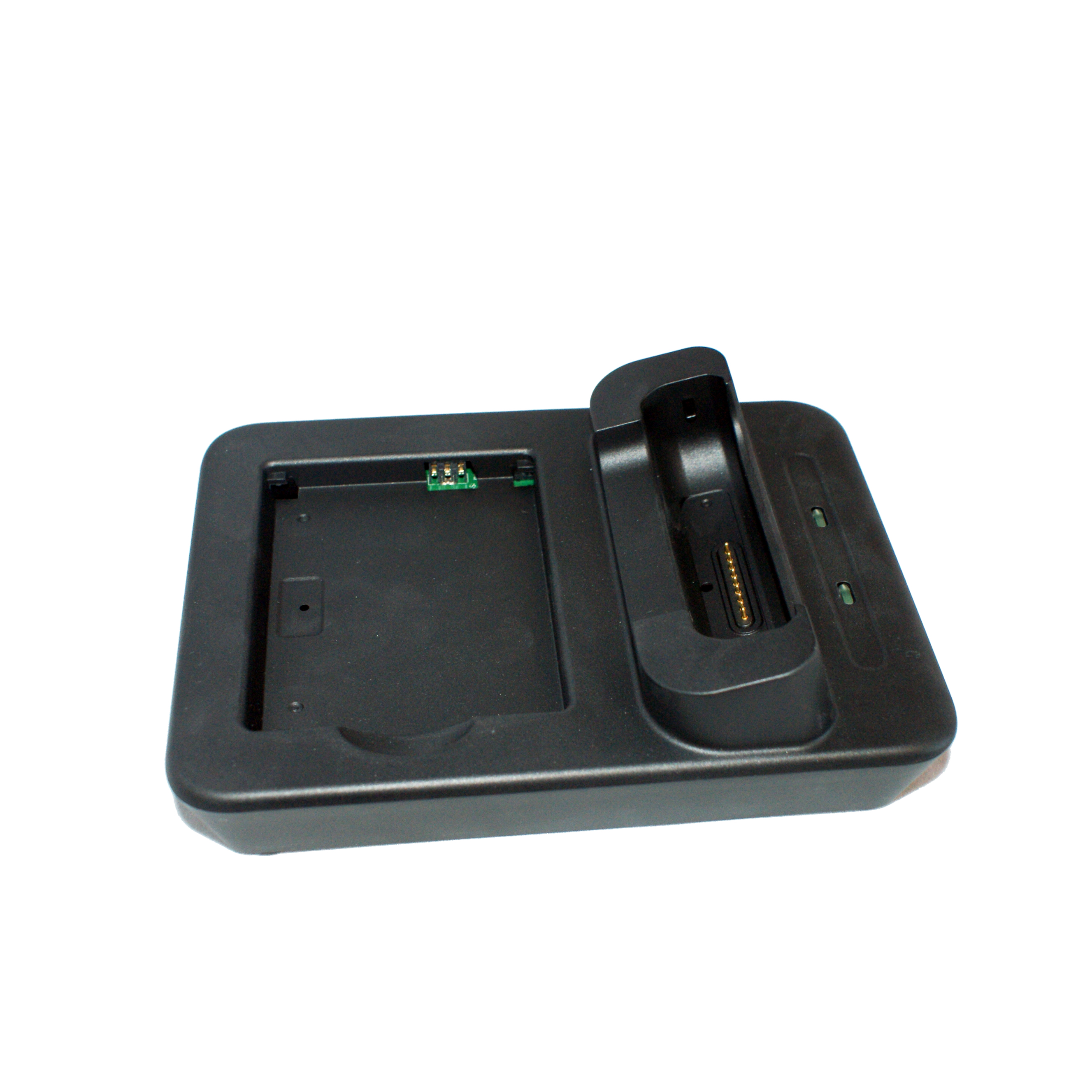

■ 1-Slot charging USB cradle
■ USB cable
■ Adaptor for cradle
Accessories
-
Accessories
■ 1-Slot charging USB cradle
■ Vehicle cradle (Boot)

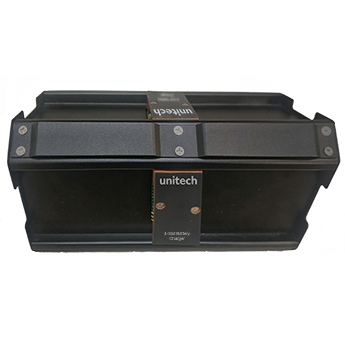

■ 4-slot terminal charging Cradle

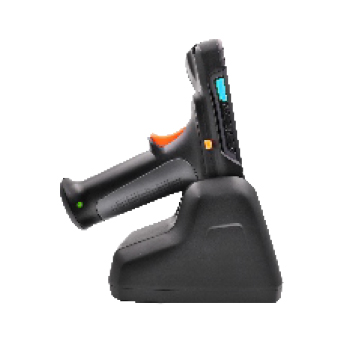

■ Charging cradle of Gun-grip

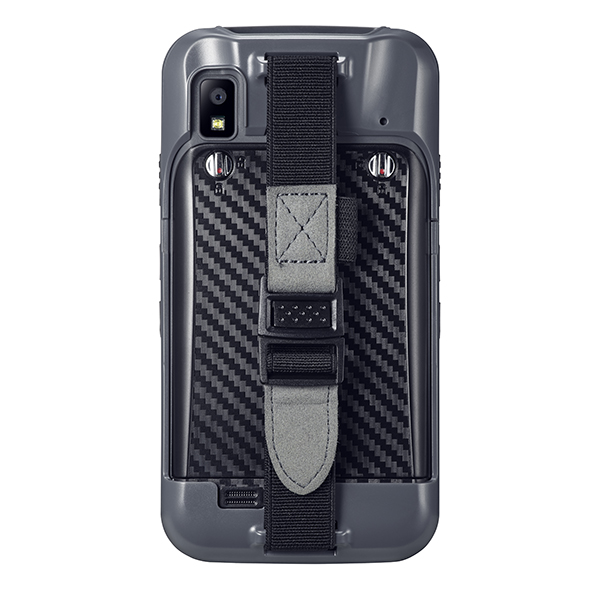

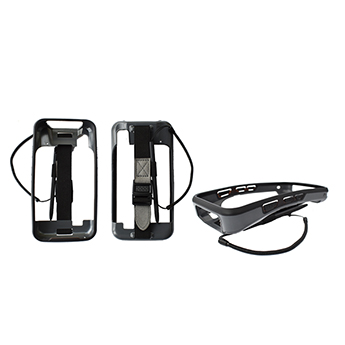

■ Protective case +hand strap + stylus
■ Carry pouch(Nylon holster)

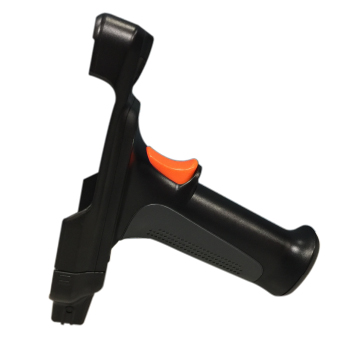

■ Gun grip

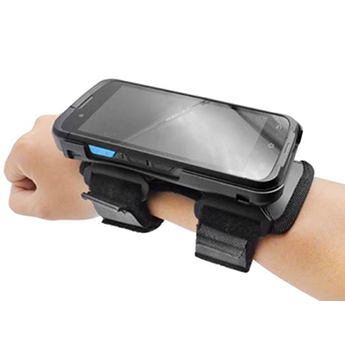

■ Wrist strap
■ USB cable
■ Adaptor for cradle
■ Adaptor for terminal
Warranty
- Warranty 1 Year
