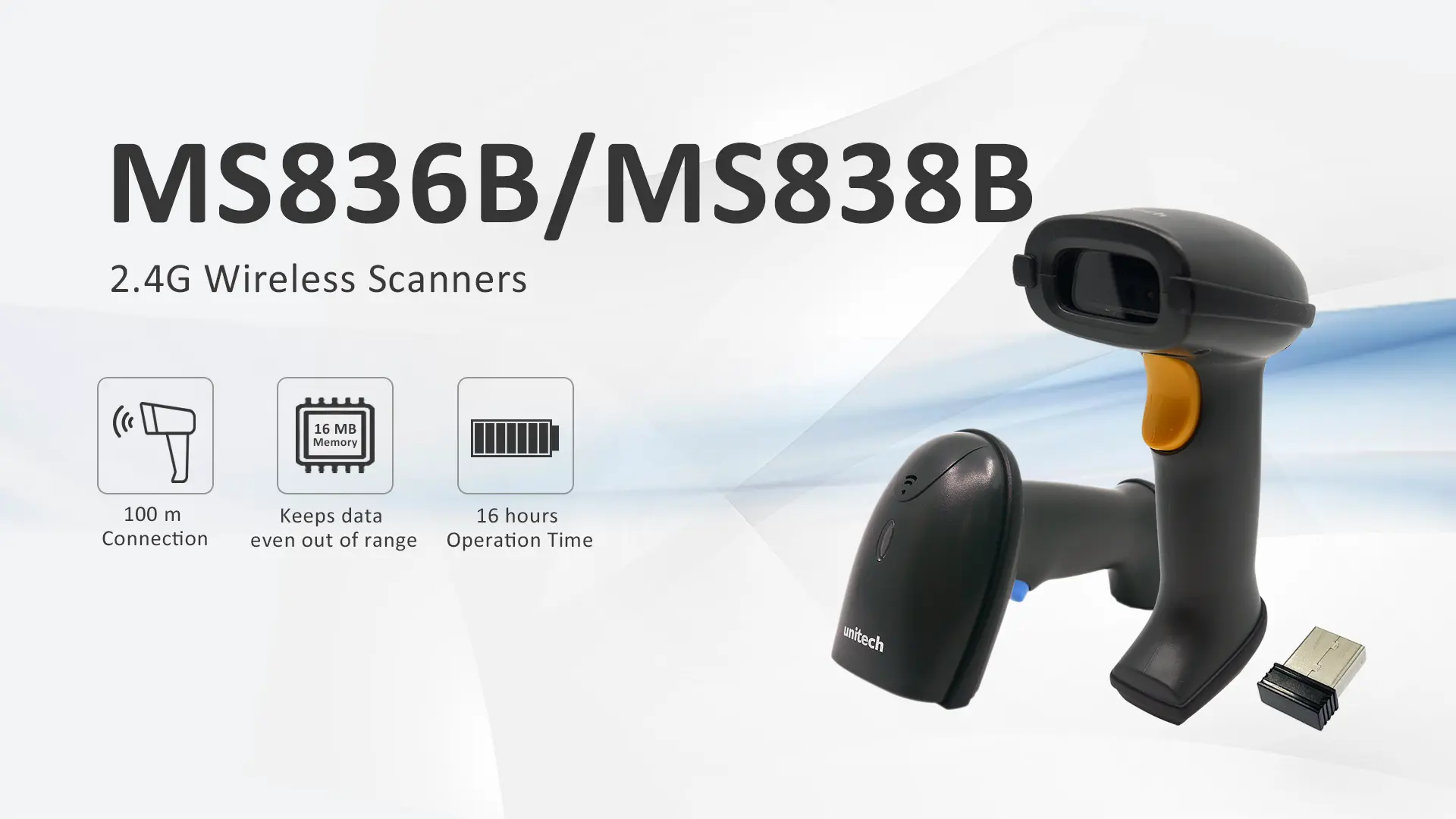

Delivering reliable performance and affordable price, the MS838B wireless 2D imager scanner combines superior 1D and 2D barcode scanning with the freedom of wireless technology. The well-integrated mobility design allows users to move around without being restricted while supporting high comfort over long periods of operation. This cost-effective and reliable handheld scanner provides the optimum combination of performance that makes it an ideal scanning tool for a wide range of market applications, such as point-of-sale, personal data identification, and inventory control.
Features
• 2.4G wireless transmission range up to 100m in the line of open sight.
• Reads all major 1D and 2D barcodes including printed and digital
• Long battery life up to 16 hours per a fully charged battery
• Plug and play, convenient to use
• Durable, Compact, and Long life trigger design
• Rugged design by IP52 and 1.5m drops
• Buffer mode for out-of-range reading
• Instant decoding feedback: LED, Buzzer indicators
Move without Restrictions
Design for mobile workers, the MS838B comes with a USB dongle that enables users to capture barcodes with freedom wireless connection. Easy plug-and-play function, the MS838B pairs easily to laptops or PCs without a complicated setup. Besides, it allows users to transmit data to the host from up to 100 meters from the base via 2.4G wireless communication.
|
|||||||||||||
2.4GHzCommunications |
BT Wireless |
USB Wired |
|||||||||||
|
Storage Data Even Out of Range
When it is out of range, the MS838B barcode scanner can store 40,000 EAN codes in memory and upload them to your devices at your own convenience. It allows associates to capture barcodes from the checkout counter or checking your store's inventory in the retail store without restrictions.
|
|||||||||||||
2MBMemory |
Inventory Mode |
||||||||||||
|
Reliable 2D Scanning Performance
Quickly and accurately capturing most 1D and 2D barcodes or coupons displayed on the phone, the MS838B helps retail cashiers checkout without any frustration. It delivers great performance up to 60 frames per second. It is suitable to streamline everyday processes in the supermarket, retail store, and warehouse applications.
|
|||||||||||||
1D / 2D |
Up to 60 fps Frame Rate |
||||||||||||
|
Long-Lasting Battery Life |
|||||
The MS838B's powerful 2600mAh battery is designed to have up to 16 hours of operating time with a 5-hour single charge, giving you the flexibility to work through the day. |
|||||
Up to16 hours Operating Time |
2600 mAh Battery |
||||
Durable
Furthermore, it has an IP52 rating for dust and water resistance as well as a 1.5 meter drop spec that provides superior durability and reliability. Combining high performance and compact design, M838B gives mobile worker conveniently and safely while on the go.
|
|||
IP52 Certification |
1.5m Drop Protection |
||
Specification
System
- Memory 2MB
- Key Trigger Key
Optical & Performance
- Sensor CMOS Sensor,640 x 480 pixels
-
Aiming Element
Red LED
-
Illumination
White LED
-
Ambient Light
0-100,000 Lux
- Scan Rate 60fps
- Skew Angle ±65°
- Pitch Angle Sensor ±60°
- Roll Angle 0 - 360°
- Optical Resolution ≥ 3mil(code 39)
-
Depth of Field
13 mil EAN13 Near 60 mm Far 310 mm
Communication
-
Radio
2.4G Wireless
Bluetooth V4.2 Class 2 -
Wireless Coverage
2.4G 100 m( line of sight)
Bluetooth: 10 m -
Protocol
2.4G USB
HID, BLE ,SPP - Host Interface supported USB Type C
- Memory Buffer 2MB
Mechanical
- Dimension 174mm × 72mm × 96mm (L x W x H)
- Weight 200g
Symbologies
- 1D Barcodes Codabar, Code11, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128, GS1-128, UPC-A, UPC-E, EAN 8, EAN 13, GS1 DataBar (RSS14), GS1 DataBar Limited, GS1 DataBar Expanded, etc
- 2D Barcodes PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code
- Data Formatting Prefix, Suffix, Code ID
Electrical
- Operation Voltage DC 5V
- Current Consumption Operation mode:<250mA , Standby mode:<48mA
- Indicator Buzzer LED light
- Battery Type Lithium-ion
- Battery Capacity 2600mAh 18650 battery
- Battery Charging time Fully charged in 5 hours
- Operating Time Over 16 hours
Environmental
- Mechanical Shock 1.5m onto concrete (scanner only)
- Operating Temperature -10°C to 50°C
- Storage Temperature -20°C to 60°C
- Relative Humidity 5- 95% non-condensing
- IP Rating IP52
Accessories
-
Items
■ 2.4G Dongle (PN:5500-900098G)

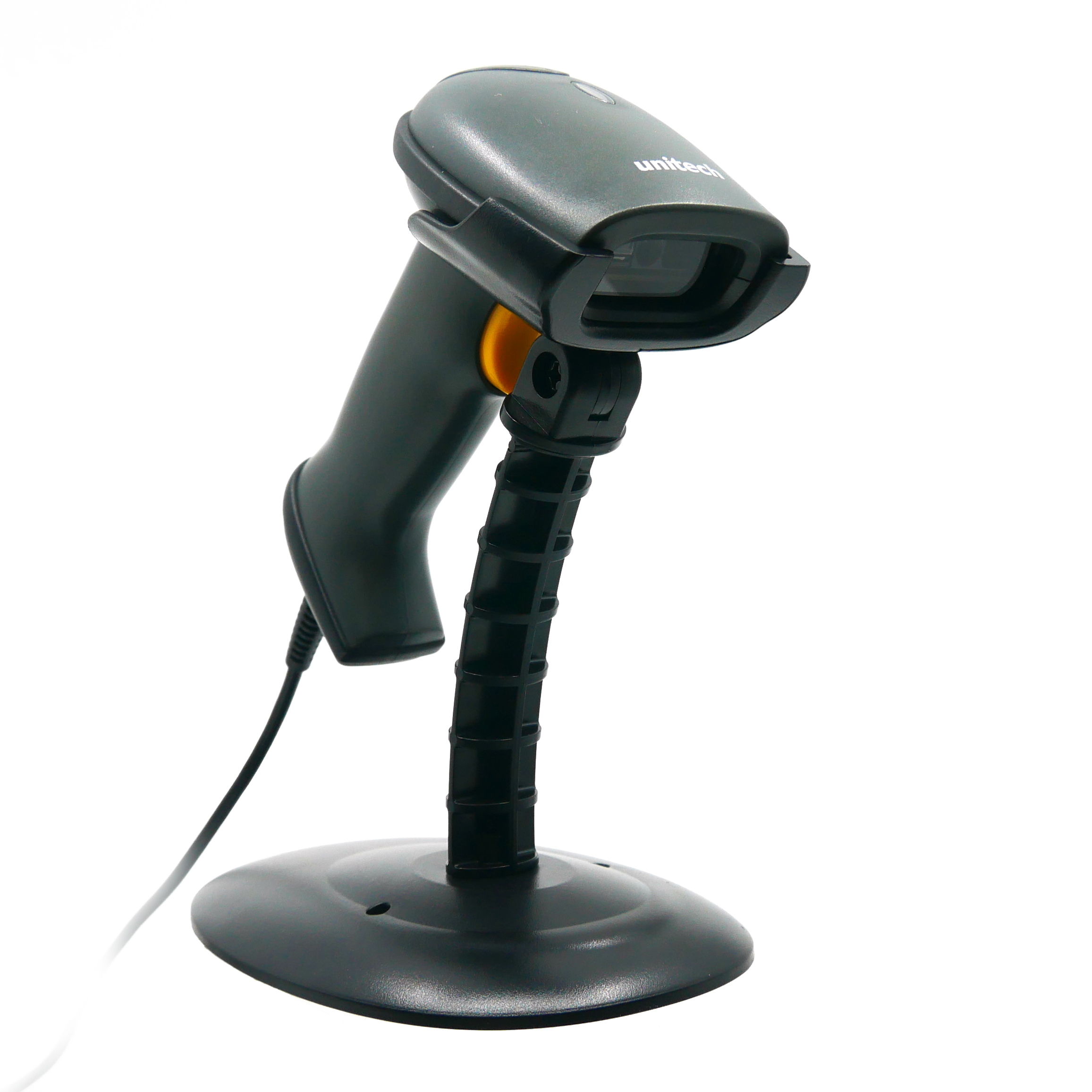

■ Hans-Free Stand (PN:5200-900014G)
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI, VCCI
What comes in the box
-
The standard package contents
■ MS838B scanner
■ 2.4G Dongle
■ USB cable (Type C USB)
Warranty
- Hardware Warranty 15 months
- Statement This product is warranted against defects in workmanship and materials for a period of fifteen months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
