MS852B LR
Bluetooth 2D Imager Ultra-Long-Range Scanner
Combining mobility wireless design, MS852B LR is a Bluetooth 2D imager scanner that features a superior performance with the scanning range up to 21m away from the spot, and wireless transmission range up to 100m in the line of open sight.
-
2D
-
Wireless
-
IP42
-
1.8 m
-
Bluetooth
-
Warehousing
-
Field Service
Combining mobility wireless design, the MS852B LR Bluetooth 2D imager scanner features a superior performance with the scanning range up to 21m away from the spot. The MS852B LR Bluetooth 2D imager scanner enhances its outstanding value on supporting most 1D / 2D barcodes and special barcodes. It is an ideal choice for the environment where barcodes are difficult to reach, such as warehouse, yard, field service, and manufacturing facility applications.
Features
• Superior performance with the scanning range up to 21m away
• Support most 1D / 2D barcode on mobile screens, OCR and DotCode
• Wireless transmission range up to 100m in the line of open sight.
• Support Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1)
• Long battery life up to 12 hours per a fully charged battery
• With excellent motion tolerance design suitable to read bar code while moving
• Long lifecycle trigger design: Up to 10,000,000 times.
• Ultra-rugged design: IP42 and 2.2m (with protection case) drop spec

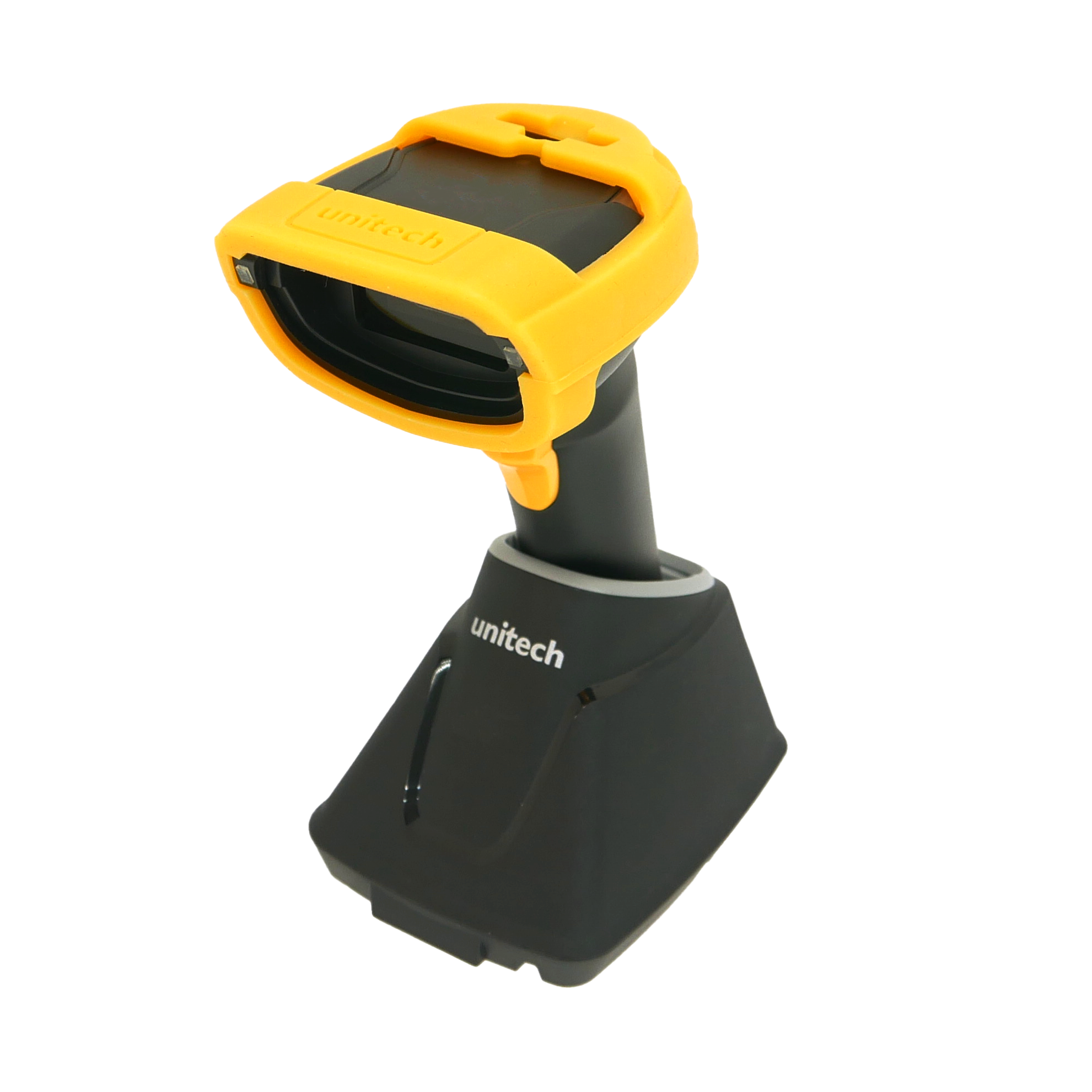

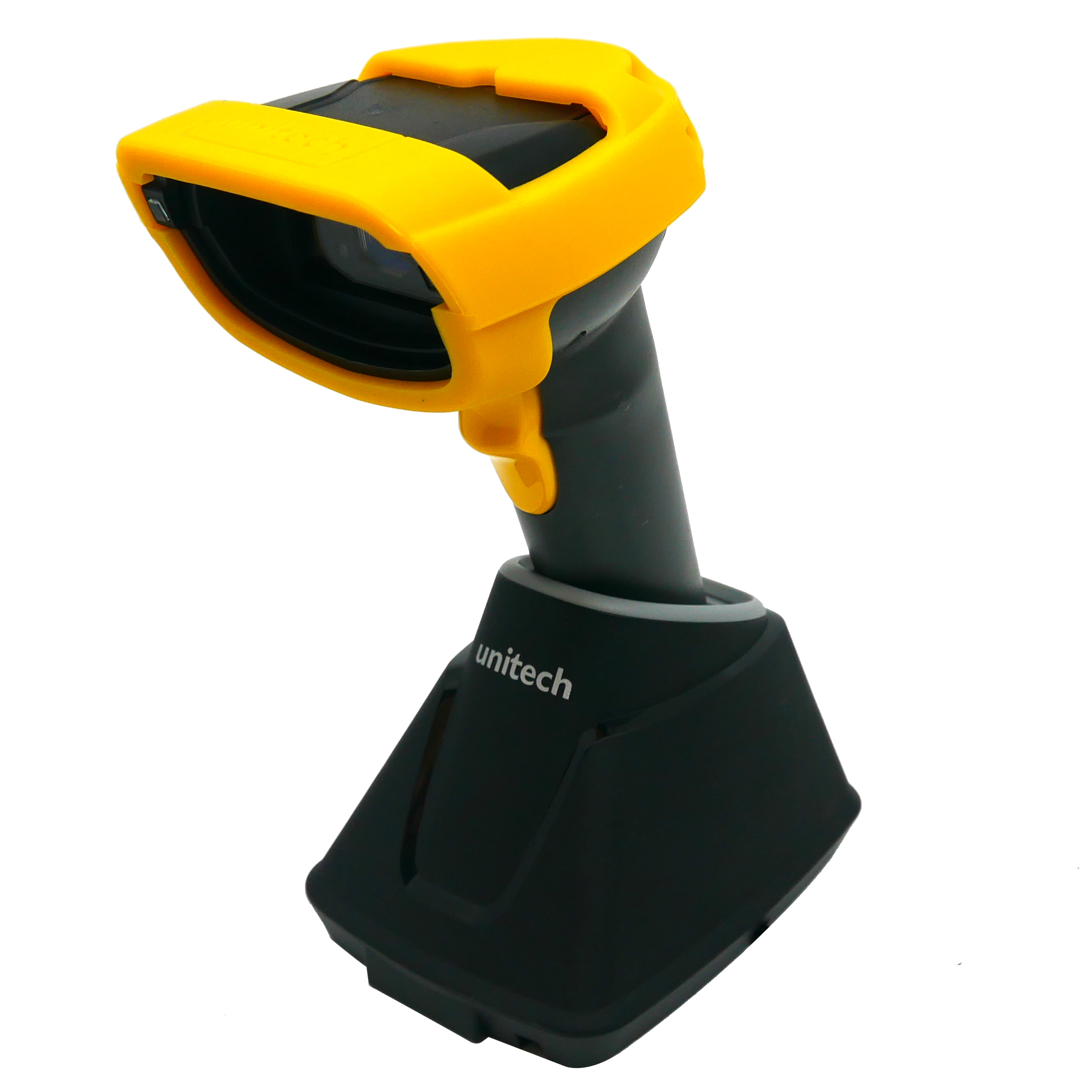

• Dedicated design protective case to protect scanner when falling from a height
(2.2m drop with protective case)
• Auto Bluetooth pairing / auto switch between trigger & presentation mode with cradle
Wireless for Flexibility
Delivering the superior barcode scanning performance and mobility wireless design,the MS852B LR supports Bluetooth® dual mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1) to give you the freedom and bring your business the flexibility. It is compatible with any smartphone, tablet, or computer–the MS852B LR pairs easily to any mobile device or PC. Besides, it allows users to transmit data to the host from up to 100 meters from the base.
Superior Long Range Barcode Scanner
Built-in an advanced megapixel barcode sensor with excellent motion tolerance design, the MS852B LR increased scan speed and operational effectiveness even while moving. This device also supports most 1D / 2D barcodes on mobile screens and special barcode symbologies such as OCR on passport and DotCode on tires or cigarette package.
|
|||||
Megapixel |
Up to 55 fps Frame Rate |
Auto-Focus |
|||
|
|
|||||
Outstanding Performance For All Range |
|||||
|
|||||
The MS852B LR has the ability to capture barcodes with the scanning range from 7.6cm near on a poor quality code to 21m far on a shelf item in the warehouse. |
|||||
|
|||||
21 m Maximum Scanning Distance |
7.6 cm Minimum Scanning Distance |
User-Friendly with Cradle Accessory
This MS852B LR wireless scanner has a cradle accessory that supports auto Bluetooth® pairing and it has the ability to switch between trigger or presentation mode automatically. When it is out of range reading in Auto Mode, the scanned data will be saved into the MS852B LR memory buffer automatically and transmit to the host when back to the wireless coverage. Moreover, MS852B LR can be set to batch mode reading, all the scanned data will be stored in a memory buffer and upload to your devices at your own convenience.
Compact but Durable
While sustaining a 1.8-meter drop to concrete (2.2 meter with protection case),, MS852B LR incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for the best reliability. |
IP42 Certification |
2.2m Drop Protection |
||||
Various Applications
This scanner can be used in the most practical way depending on the scanning task in various solutions in warehousing and field service.
TAA Compliant Barcode Scanners
TAA refers to the Trade Agreements Act, which is a law that was passed for the purpose of making international trade more open and fair. One of the main requirements of the TAA is products purchased by the United States government can only be made in the U.S. or by a designated country such as Taiwan.
Founded in 1979 in Taiwan, Unitech is a global provider of AIDC technologies with over 40 years of experience. Our factories were built in Taiwan, and all the SMT and assembly are done in Taiwan as well. We offer a series of quality barcode scanner products to comply with the Trade Agreements Act (TAA) for U.S. government GSA (General Services Administration) Schedule contracts
Specification
System
- Memory 7MB for batch mode/ 20KB for auto mode
- Key Trigger Key
Optical & Performance
- Sensor 1280 X 800 global shutter
- Aiming Element 655nm
- Illumination Hyper Red 660nm
- Ambient Light 10,000 ft. candles (107,639 lux)
- Skew Angle ±60°
- Pitch Angle Sensor ±60°
- Roll Angle 0 - 360°
- Optical Resolution 3.0 mil (Code 39), 5.0 mil (PDF417)
- Printing Contrast Scale 25%
-
Depth of Field
"SYMBOLOGY / X-DIM TYPICAL RANGE* Near Far(inches/centimeters)
10 mil Code 39 3.0/7.6 * 85.0/215.9
13 100% UPC 3.5/8.9 90.0/228.6
15 mil Code 128 6.0/15.2 * 100.0/254.0
20 mil Code 39 4.0/10.2 * 172.0/436.9
40 mil Code 39 6.0/15.2 * 340.0/863.6 **
55 mil Code 39 7.0/17.8 * 430.0/1092.2 **
100 mil Code 39 (paper) 20.0/50.8 * 700.0/1778.0 **
100 mil Code 128 (reflective) 30.0/76.2 * 700.0/1778.0
DataMatrix 10 5.0/12.7 45.0/114.3
DataMatrix 55 5.0/12.7 250.0/635.0
15 mil Code 128 (4 in. wide) 8.0/20.3 * 100.0/254.0"
100 mil QR Code 15.7in / 40.0 cm 820.7 in / 2085.0cm
Communication
-
Radio
Bluetooth LE® V4.2
& Bluetooth® 2.1+EDR, Class 1
Dual mode - Wireless Coverage 100m ( line of sight)
- Protocol Serial Port and HID profiles
- Host Interface supported USB, RS232
- Memory Buffer 7MB for batch mode/ 20KB for auto mode
Mechanical
- Dimension 87.8 L x 71.6 W x 177.7 H (mm)
- Weight 233g (without cradle)
- Trigger Switch Life 10 million times
- Cradle Dimension 120.6 L x 88.7 W x 86.0 H (mm)
Functionality
- Operation Mode Trigger Mode, Presentation Mode, Buffer Mode
Symbologies
-
1D Barcodes
Code 39, Full ASCII, Code 32, Italian Pharmacode, Trioptic, Code 128, EAN-128, ISBT-128, Codabar, Code 11, Matrix 2 of 5, Chinese Matrix 2 of 5, UPC/EAN, UPCA, UPCE, UPCE1, EAN-8, EAN-13, Bookland/ISBN, ISSN, Coupon Code, Interleaved 2 of 5, Discrete 2 of 5, IATA, Databar, Code 93, MSI, UK Plessy, Telepen
-
2D Barcodes
PDF Standard, Macro PDF, Micro PDF, Macro Micro PDF, Composite, TLC-39, Aztec, Data Matrix, QR Standard, Micro QR, GS1 QR, Maxicode, Han Xin, Grid Matrix, DotCode, OCR, Japan Postal, Australia Post, Canada Postal, Netherlands KIX Code, US Planet, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal, Mailmark, French Lottery, Posti4S, Korean 3 of 5
- Special Barcodes Support OCR barcodes
- Data Formatting Prefix, Suffix, Code ID, Reformatting Date
Electrical
- Indicator LED & Beeper & Vibrator
- Battery Type Rechargeable and replaceable battery pack.
- Battery Capacity 2850mAh
- Battery Charging time 7 hours
-
Operating Time
>12 hours
Up to 50,000 scans at 1 scan/per sec by reading EAN8 at 20cm distance.
Environmental
- ESD Protection Functional after 8K Contact and 15K Air
-
Mechanical Shock
1.8M
2.2M with protection cover - Operating Temperature -10°C to 50°C (14°F to 122°F)
- Storage Temperature -40°C to +70°C (-40°F to +158°F)
- Relative Humidity 95% non-condensing
- IP Rating IP42
Accessories
-
Items
■ USB cable (PN# 1550-905890G)
■ RS232 cable (PN# 1550-905891G)
■ USB type C cable (PN# 1550-905892G)
■ 1-slot charging cradle (PN#5 000-900064G)
■ Battery pack (PN# 1400-900055G)
■Carrying bag (PN#3210-900025G)
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI, VCCI, NCC, TELEC, BQB, TAA Compliant
What comes in the box
-
The standard package contents
■ MS852B LR Scanner with battery
■ Cradle
■ Interface cable
Warranty
- Hardware Warranty 36 months
- Statement This product is warranted against defects in workmanship and materials for a period of three years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
