MS852B Plus
High Performance Bluetooth 2D Imager Scanner
MS852B Plus is a 2D high-end wireless scanner that offers a long-range scanning capability up to 100m to improve operator efficiency, and it is available to read special OCR, Dot codes, and Digimarc barcodes.
-
2D
-
Wireless
-
IP42
-
2.1 m
-
Bluetooth
-
Retail
-
Logistics
-
Warehousing
-
Manufacturing
Delivering the superior barcode scanning performance and mobility wireless design, the new unitech MS852B Plus Bluetooth 2D barcode scanner is suitable for a wide range of markets and applications, from logistics, inventory management in retail warehousing to industrial purpose manufacturing scanning.
Features
• Megapixel barcode sensor that enhances the maximum compatibility
• Support OCR, most 1D / 2D barcode on mobile screens, even damaged or poorly printed barcodes
• Support OCR, Dot codes, and Digimarc barcodes
• Support Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1)
• Wireless transmission range up to 100m in the line of open sight.
• Long battery life up to 25 hours per a fully charged battery
• Durable design: IP42 and 2.1m drop spec
• Auto Bluetooth pairing / auto switch between trigger & presentation mode with cradle
Increase Productivity with Superior Industrial Barcode Scanner
Specially built for challenging work environment, the MS852B Plus is built in megapixel barcode sensor that enhances the maximum compatibility to capture most 1D / 2D barcodes on mobile screens, even damaged or poorly printed barcodes and special barcode symbologies such as OCR on passport, Dot codes on tires or cigarette package, and Digimarc barcode on special retail packages. MS852B Plus also can automatically populate electronic forms in a single scan from US driver’s licenses or ID card (*optional). With its advanced barcode technology and durable design, the MS852B Plus handheld scanner is a highly reliable tool to increase productivity and efficiency.
(*Note: An additional license purchase is required for the enhanced features of EASYDL 2.0. To access this functionality,
please contact us at info@hq.ute.com.)
Wireless for Flexibility
Moreover, the MS852B Plus supports Bluetooth® dual mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1) to give you the freedom and bring your business the flexibility. It is compatible with any smartphone, tablet, or computer–the MS852BPlus pairs easily to any mobile device or PC. Besides, it allows users to transmit data to the host from up to 100 meters from the base.
User-Friendly with Cradle Accessory
This MS852B Plus wireless scanner has a cradle accessory that supports auto Bluetooth® pairing and it has the ability to switch between trigger or presentation mode automatically. When it is out of range reading in Auto Mode, the scanned data will be saved into the MS852B Plus memory buffer automatically and transmit to the host when back to the wireless coverage. Moreover, MS852BPlus can be set to batch mode reading, all the scanned data will be stored in a memory buffer and upload to your devices at your own convenience.
Compact but Durable
While sustaining a 2.1-meter drop to concrete, MS852BPlus incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for the best reliability. |
IP42 Certification |
2.1m Drop Protection |
||
Various Applications
This scanner can be used in the most practical way depending on the scanning task in various solutions in retail, warehousing, manufacturing, logistics.
TAA Compliant Barcode Scanners
TAA refers to the Trade Agreements Act, which is a law that was passed for the purpose of making international trade more open and fair. One of the main requirements of the TAA is products purchased by the United States government can only be made in the U.S. or by a designated country such as Taiwan.
Founded in 1979 in Taiwan, Unitech is a global provider of AIDC technologies with over 40 years of experience. Our factories were built in Taiwan, and all the SMT and assembly are done in Taiwan as well. We offer a series of quality barcode scanner products to comply with the Trade Agreements Act (TAA) for U.S. government GSA (General Services Administration) Schedule contracts
Specification
System
- Memory 7.5MB (590,000 barcodes)
- Key Trigger Key
Optical & Performance
- Sensor 1280 X 800 global shutter
- Aiming Element Red laser or 528 nm visible green LED
- Illumination White or Red LED
- Ambient Light 100,000 Lux (Sunlight)
- Skew Angle ±60°
- Pitch Angle Sensor ±60°
- Roll Angle 0 - 360°
- Optical Resolution 1D 3mil/ 0.075mm
- Printing Contrast Scale Minimum 20%
-
Depth of Field
(DOF PCS=80%)
-------------------------------------------------------SYMBOLOGY / X-DIM TYPICAL RANGE* Near Far
13 mil UPC 1.34 in / 3.4 cm 22.5 in / 57.3 cm
5 mil Code 39 2.76 in / 7 cm 11.85 in / 30.1 cm
10 mil Code 39 1.14 in / 2.9 cm 20.3 in / 51.7 cm
20 mil Code 39 1.38 in / 3.5 cm 31.5 in / 80 cm
15 mil Code 128 1.34 in / 3.4 cm 25.6 in / 65 cm
10 mil DM 2.84 in / 7.2 cm 11.7 in / 29.7 cm
6,7 mil PDF417 3.3 in / 8.4 cm 9.6 in / 24.4 cm
15 mil QR Code 1.3 in / 3.3 cm 15.35 in / 39 cm
Communication
-
Radio
Bluetooth LE® V4.2
& Bluetooth® 2.1+EDR, Class 1
Dual mode - Wireless Coverage 100m ( line of sight)
- Protocol Serial Port and HID profiles
- Host Interface supported USB, RS232
- Memory Buffer 7MB for batch mode/ 20KB for auto mode
Mechanical
- Dimension 87.8 L x 71.6 W x 177.7 H (mm)
- Weight 213g (without cradle)
- Trigger Switch Life 10 million times
- Cradle Dimension 120.6 L x 88.7 W x 86.0 H (mm)
Symbologies
-
1D Barcodes
Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar,
UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar, TLC39
-
2D Barcodes
2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code
Postal:Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet - Special Barcodes Support OCR, DotCode, and Digimarc barcodes
- Data Formatting Prefix, Suffix, Code ID, Reformatting Date
Electrical
- Indicator LED & Beeper & Vibrator
- Battery Type Rechargeable and replaceable battery pack.
- Battery Capacity 2850mAh
- Battery Charging time <6.5 hours
-
Operating Time
>25 hours
Up to 60,000 scans at 1 scan/per second
Environmental
- ESD Protection Functional after 8K Contact and 15K Air
- Mechanical Shock 2.1M onto concrete (scanner only)
- Operating Temperature -10°C to 50°C (14°F to 122°F)
- Storage Temperature -40°C to +70°C (-40°F to +158°F)
- Relative Humidity 95% non-condensing
- IP Rating IP42
Accessories
-
Items
■ USB cable (PN# 1550-905890G)
■ RS232 cable (PN# 1550-905891G)
■ USB type C cable (PN# 1550-905892G)

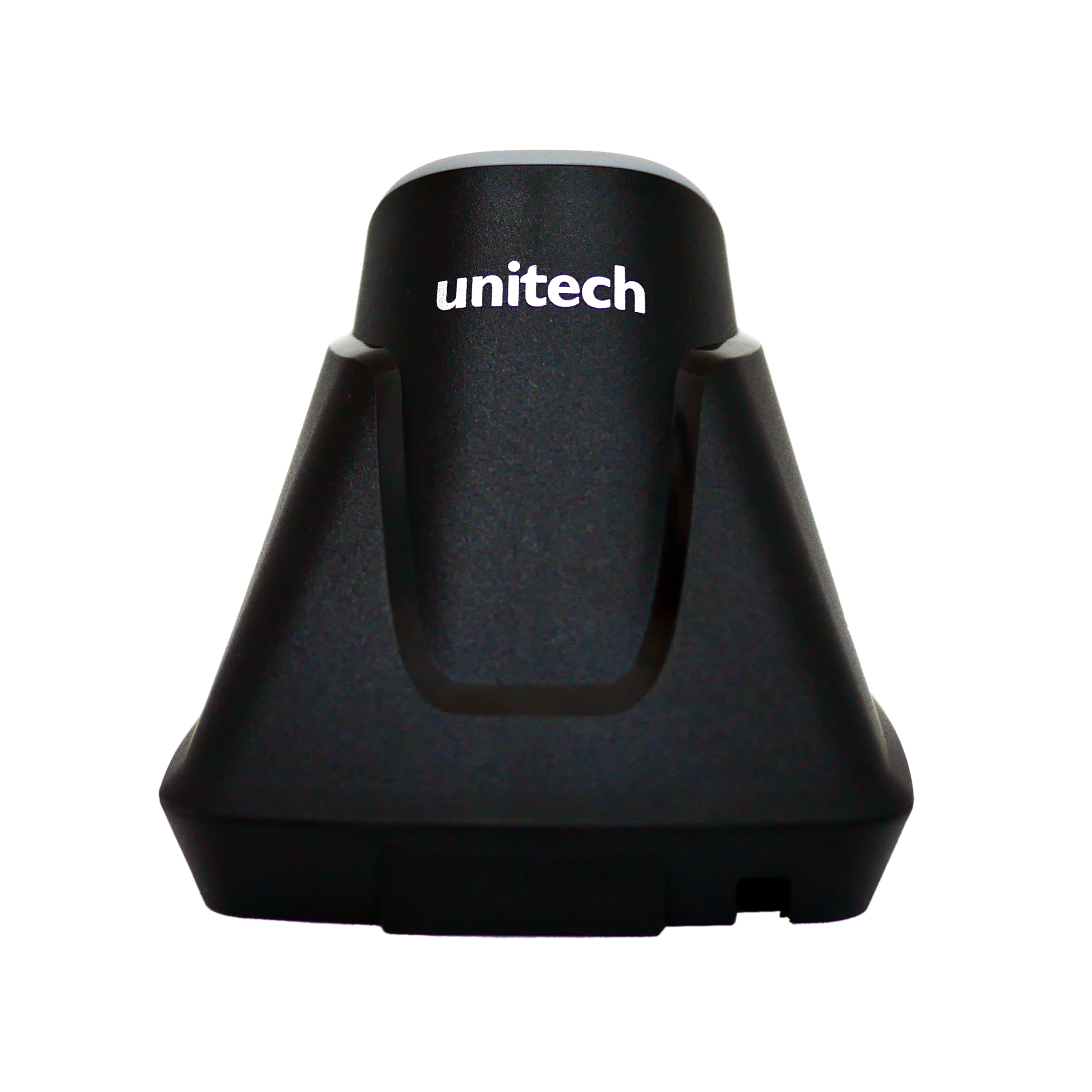

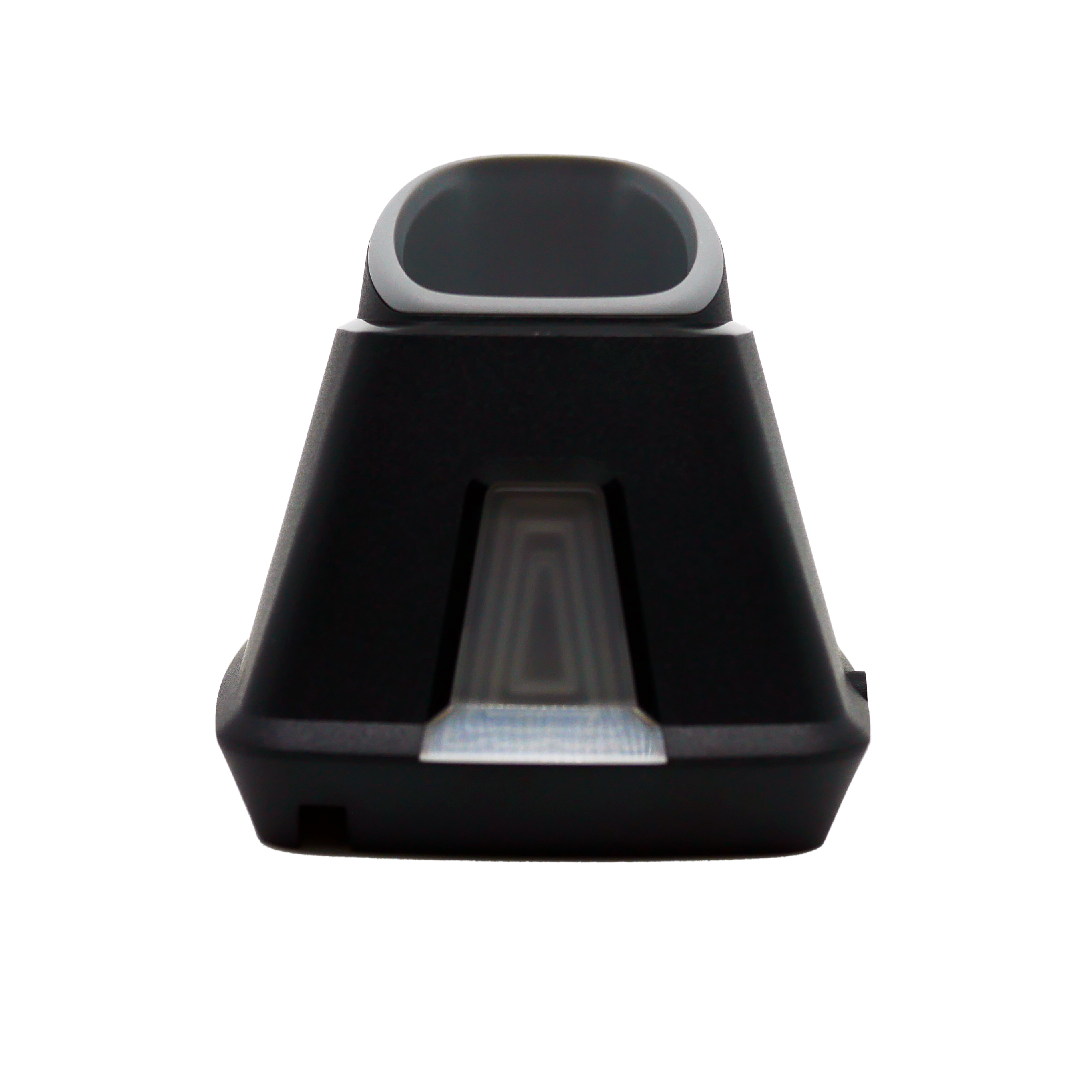

■ 1-slot charging cradle (PN#5 000-900064G)
■ Battery pack (PN# 1400-900055G)

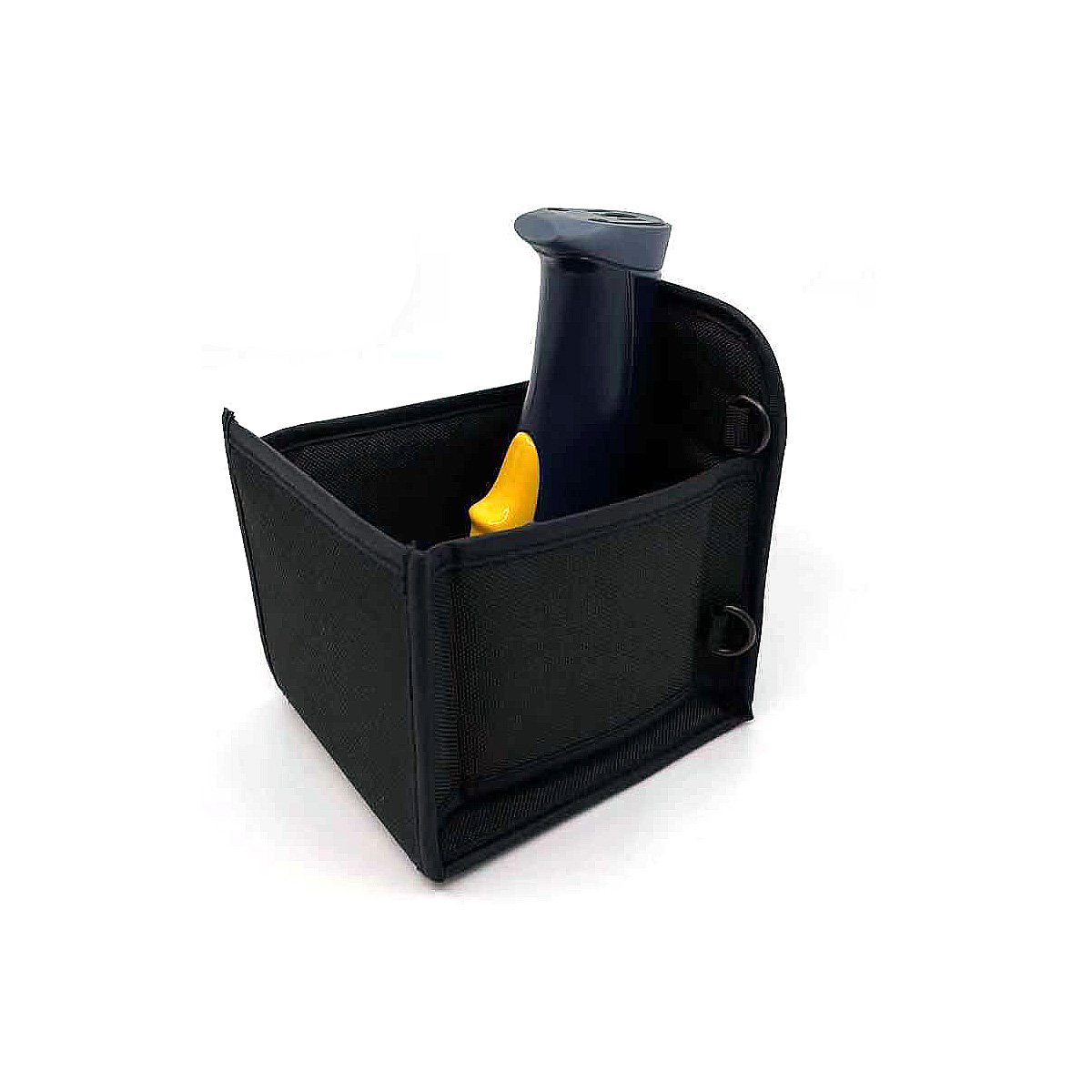

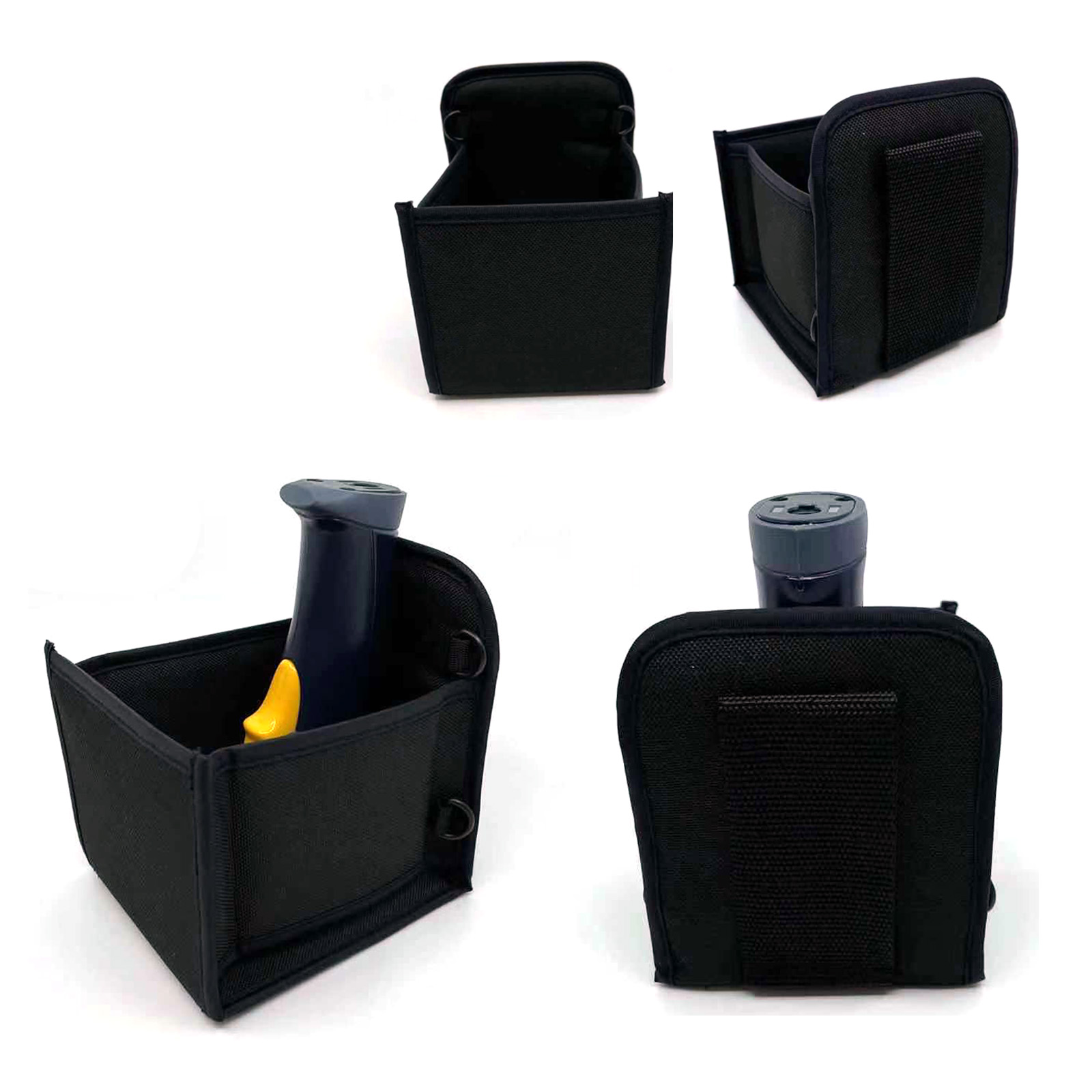

■ Carrying bag (PN#3210-900025G)
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI, VCCI, NCC, TELEC, BQB, TAA Compliant
What comes in the box
-
The standard package contents
■ MS852B Plus Scanner with battery
■ Cradle
■ Interface cable
Warranty
- Hardware Warranty 36 months
- Statement This product is warranted against defects in workmanship and materials for a period of three year from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
