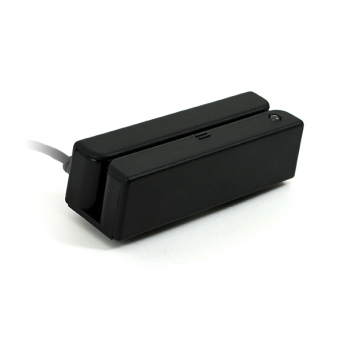

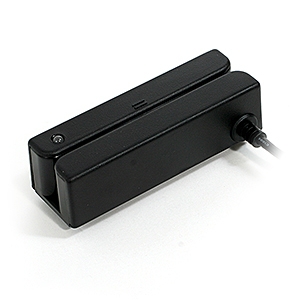

MSR120

Magnetic Stripe Reader

The MSR120 is a unique mag stripe reader with RS232 emulation with a USB cable, allowing greater compatibility to older back-end systems.

• Space saving design fits neatly on keyboards or in small spaces

• Ability to edit data to suit the needs of your business

• Cards can be used bi-directionally allowing more versatility

The MS246 magnetic stripe reader is a handy and compact data collection solution easy to integrate into any gym, retail store, restaurant, library, or office.



Features

• Compact design
• Reads up to 3 tracks of information
• Bi-directional card swiping
• RS232 emulation on USB interface
• Reliable for over 1,000,000 card swipes
• Velcro pads for easy mounting
• Windows compatible
• Data Editing capabilities
• 1-year warranty





Reliable

The MSR120—easy to mount on any keyboard, POS system, or flat surface—has a minimum lifespan of 1,000,000 swipes. The expertly crafted MSR120 can withstand the heavy use of customer-facing environments.

Compatible with Windows computers, the MSR120 easily decodes ISO cards, driver’s licenses, credit cards, and more. The information will appear on the screen after a swipe in either direction.

Simple to Use

The MSR120 is a plug-and-play device, with no installation or software required. The MSR120’s streamlined design does not require external power to start decoding your mag stripe cards.

An LED indicator provides visual confirmation of each successful or unsuccessful scan.

Specification

Model Numbers

  • SKUs MSR120B-33UE:
    MSR120, USB (with RS232 Emulation), Black

Environmental

  • Operating Temperature 32ºF to 131ºF
  • Storage Temperature -22ºF to 158ºF
  • Humidity Maximum - 95% non-condensing

Reliability

  • Magnetic Head Life 1,000,000 passes minimum
  • Electronics MTBF 125,000 POH
  • Read Rate Less than one error in 100,000 bits on cards conforming to ISO 7811 1-5 (not caused by operator error)

Mechanical

  • Magnetic Stripe Formats ISO 7811, AAMVA, & CA DMV
  • Swipe Speed 3 to 55 inches per second, bi-directional
  • Card Thickness 0.010 to 0.050 inches
  • Interface Unitech standard decoding with advanced output data editing
  • Dimensions Length: 3.94 inches
    Width: 1.38 inches
    Height: 1.18 inches
  • Weight Approximately 9 oz. with cable

Warranty

  • Warranty 12 months
