Powered by the Android 7.1 OS, the PA730 is a 5" rugged mobile computer.

Android 7.1
2D
5"
Pogo pins
1.8 m
4G LTE
Logistics
Warehousing
Field Service
IP67
IP65

PA730 supports dual bands, 2.4GHz and 5GHz, of WLAN with fast roaming that gives users blazing fast connectivity. It is a powerful and versatile data collection tool in warehousing, facilitate hospitality, event ticketing, and various mobile processes.

Features

• A fully rugged mobile computer featuring a 5" Full HD resolution, 1920 x 1080(1080P)
• Integrate 1D/2D barcode scanner with high speed engine
• 16MP PDAF camera at the rear along with a 5 MP front camera
• Built-in LTE dual antenna for best connectivity
• Support multiple WLAN : Dual bands with fast roaming
• Equipped with NFC / Bluetooth^® 4.2 communication
• WWAN: 2G/3G/4G LTE with full bands, US bands with Verizon LTE certified

★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/MobileComputers/TouchComputers

Rugged Mobile Computer with FHD resolution

• A fully rugged mobile computer featuring a 5" Full HD resolution, 1920 x 1080(1080P)
• High Performance 64-bit octa-core CPU
• Stronger Gorilla Glass® III display yields greater touch sensitivity for an easy user experience.

Wide Range of Wireless Technology

• Built-in LTE dual antenna for best connectivity
• Support multiple WLAN : Dual bands with fast roaming
• Equipped with NFC / Bluetooth® 4.2 communication
• WWAN: 2G/3G/4G LTE with full bands, US bands with Verizon LTE certified

High Resolution Scanning and High-End Camera

• Integrate 1D/2D barcode scanner with high speed engine
• A handheld computer comes with a 16MP PDAF camera at the rear along with a 5 MP front camera

Compact and Rugged Design

• Compact and narrow frame design for easy holding
• 1.8M drop-resistant housing
• IP65 & IP67 heavy-duty protection against water and dust

Quick Charge™ Technology

• Built-in a 4000mAh/5920mAh battery with fast charging technology
• Decrease the amount of time you spend tethered to an socket
• Refill the battery of enabled devices up to 4 times faster than with conventional charging
• Hot swappable batteries ensure continuous operation (within 0.5 hours) when batteries are being replaced

Operation System

OS Android 7.1
CPU Qualcomm Snapdragon 617 Octa core Processor, 64bits
1.5GHz Quad core and 1.2GHz Quad core
Memory 2GB RAM / 16GB Flash
Languages support English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Others Input Chinese/ English
Supports handwriting and soft keyboard

Display

Screen Size 5.0” TFT-Full HD LCD (1920X1080, 500cd/m2) color screen
Touch Panel Gorilla Glass 3 with 5-point Capacitive Touch Panel, compatible with gloves and supports wet resistance

Buttons / Keypad

Buttons / Keypad 6 Keys, Scan key left and right, volume key up and down, power key,
camera key,function key

Camera

Camera 5 MP Front camera
16 MP Rear with LED flash and auto-focus function

Indicator Type

Type LEDs, Vibrator

Symbologies

1D Barcodes 1D : All major codes
2D Barcodes 2D : PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code,
Aztec, MaxiCode, Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX)

RFID

HF RFID Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443-4 (Type A, Type B), ISO15693
Mifare, Felica(ISO/IEC18092)

I/O Interfaces

USB Micro USB
OTG Yes, over Micro USB
POGO PIN POGO PIN connector for Cradle
SIM Slot Micro SIM slot
Expansion Slot MicroSD x 1, up to 128 GB
Audio Dual speaker*2
One receiver and dual noise-cancelling Microphone*2

Power Source

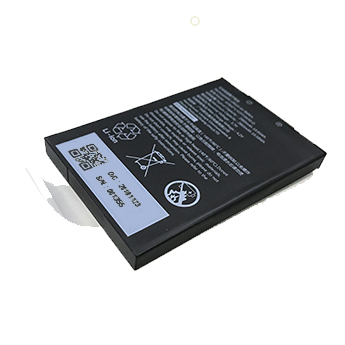

Main battery Rechargable 3.7V 4000mAh Li-Ion battery
Extended battery 3.7V 5920mAh (optional)
Hot Swap Yes

Communication

Bluetooth® Bluetooth® 4.2
WLAN IEEE 802.11 a/b/g/n/ac/d/h/i/r, support fast roaming
WWAN EU :
FDD LTE: B1(2100)/ B3(1800)/ B5(850)/ B7(2600)/ B8(900)/ B20(800) TDD LTE: B38
(2600)/B40(2300)/B41(2500)
WCDMA: B1(2100)/B5(850)/B8(900)
GSM: 900/1800MHz
US (Verizon) :
FDD LTE: B4 (1700/2100)/ Band 13(700)
GPS GPS/GLONASS (Only for WAN model)
Sensors Accelerometer, Light sensor, Proximity sensor, Gyroscope, E-compass

Software

MDM Software MoboLink, SOTI, Airwatch, 42Gears, StageGo, 12Solution
Azure Azure Certified

Enclosure

Dimensions ( W x H x D ) 158 X 77 X 16.9 mm
Weight 324g (with standard battery)

Durability

Drop Specification 1.8m with bumper to concrete
Sealing IP67 & IP65
Tumble test MIL-STD 810G, 514.4 Process II
Tumble 600 times (1.6 ft./0.5 m)

Environmental

Operating temperature 4°F to 122°F (-20°C to 50°C)
Storage temperature -22°F to 140°F (-30°C to 60°C)
Relative Humidity 10% ~ 90% (Non-Condensing)

Accessories

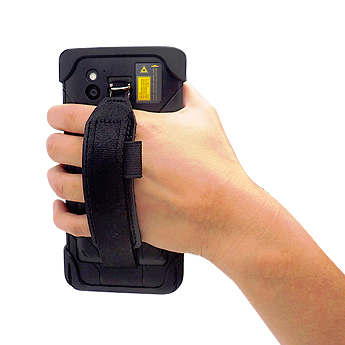

Accessories ■ Handstrap
■ 3.7V 5920mAh Extended Battery
■ USB Communication Cable
■ Stylus

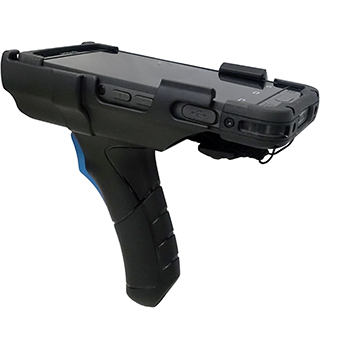

■ Gun Grip

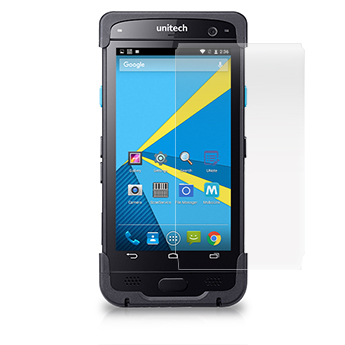

■ Glass Screen Protector
■ Single Slot USB Cradle with Single Slot Battery Charger
■ Single Slot Ethernet /USB Client Cradle with Single Slot Battery Charger

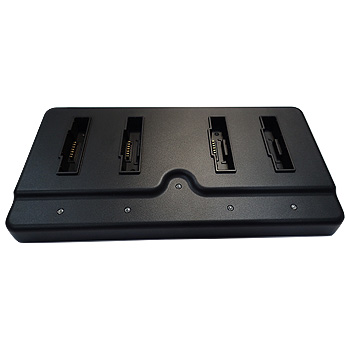

■ 4-Slot Terminal Charging Cradle

What comes in the box

The standard package contents ■ PA730 Terminal
■ Battery
■ Hand Strap
■ USB Cable

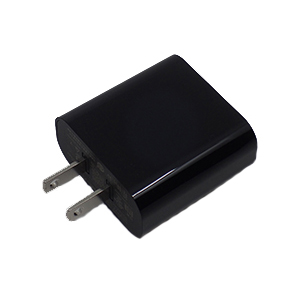

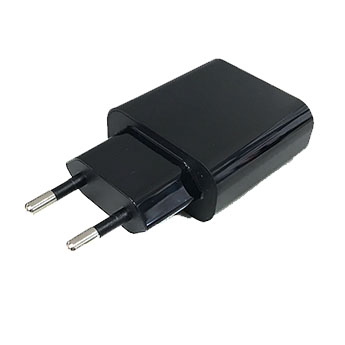

■ Adaptor (EU or US )
The basic package contents ■ PA730 Terminal
■ Battery
■ Hand Strap
