EA530 (3rd Gen)

Rugged Smartphone

IP65 & IP68 + 1.5m Drop | Warm-Swappable 4250mAh Quick-Release Battery | Optional UHF RFID (up to 1.8m)

  • Android 15

  • 2D

  • NFC

  • 6"

  • 4G LTE

  • Wi-Fi 6E

  • 16MP

  • IP68

  • IP65

  • 1.8 m

  • 1.5 m

  • GMS certified

  • Bluetooth

  • Retail

  • Hospitality

  • Logistics

The EA530 is a 6-inch rugged smartphone with 4G connectivity and Wi-Fi 6E, built for demanding retail, hospitality, and logistics environments. It also supports optional UHF RFID powered by the Impinj E310, making it ideal for data-intensive field and enterprise applications. Its compact, durable design and warm-swappable battery enable seamless battery replacement without powering down the device, maximizing uptime in the field.



Features

• Android 15 OS with GMS Certification

• Wireless Communication: 4G & Wi-Fi 6E

• All-In-One functionality: 2D Imager, NFC, 8MP front camera, and 16MP rear camera

• Rugged Design: Corning® Gorilla® Glass touch display, IP65 & IP68 rated, and 1.5m drop (1.8m with boot case)

• Warm-swappable 4250mAh quick-release battery (4G & Wi-Fi model)

• Optional UHF RFID powered by Impinj E310 (reading distance up to 1.8m)

• Support Gen2X (Coming Soon)

• Compatible with RP300 long-range RFID mobile reader for up to 25m reading distance

• Support unitech software solutions, SDKs, MoboLink, TagAccess and MDM solutions

Powered by Android 15 OS with GMS Certified

The EA530 is a 6-inch Android 15 rugged smartphone equipped with an advanced 2.2 GHz octa-core processor for smooth and efficient multitasking. Designed to handle demanding tasks with ease, it ensures stable performance in fast-paced business environments. With Google Mobile Service (GMS) certification, the EA530 provides secure, reliable connectivity for enhanced productivity across industries and efficient business environments.

Android 13 with GMS & AER
Android 15
Operation System
GMS
Certification
Octa-Core
CPU
6 GB RAM
64 GB Flash

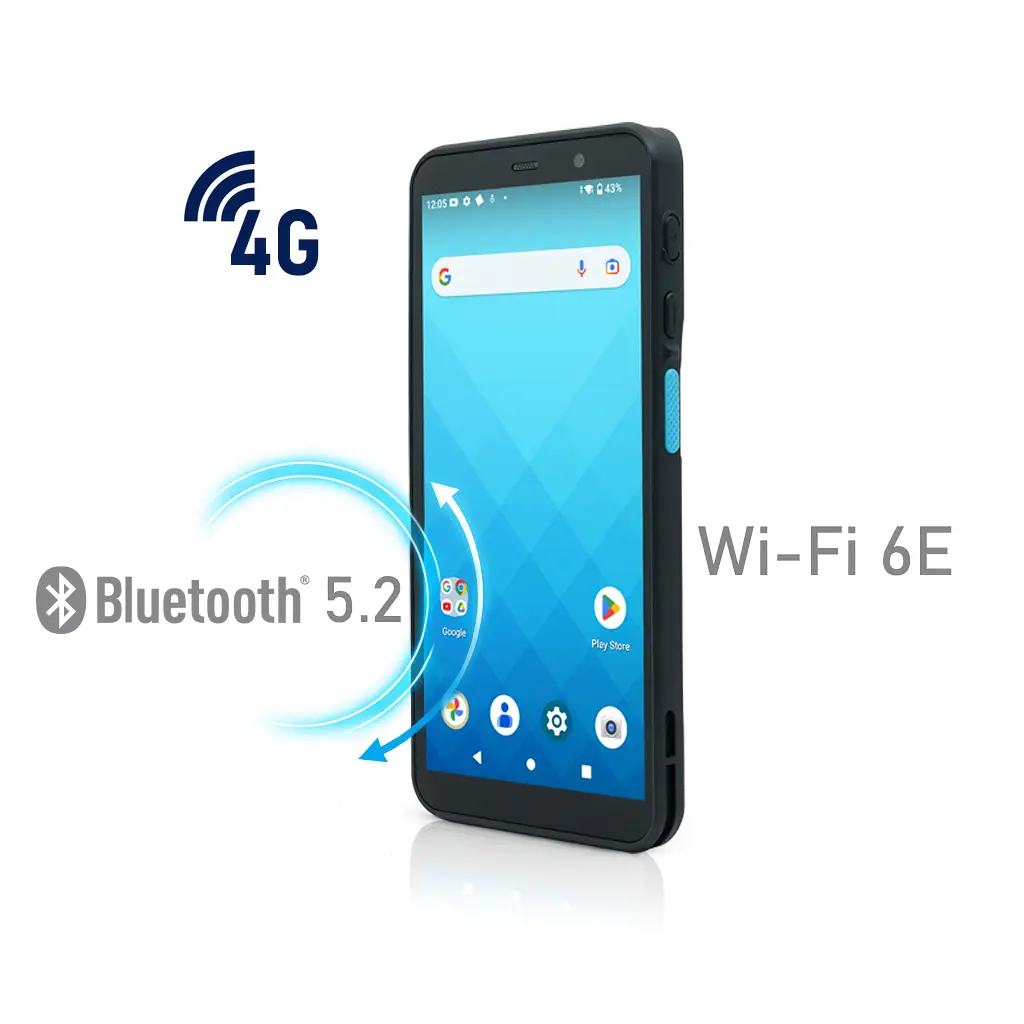

Seamless Connectivity with Wireless Communication

Featuring reliable 4G LTE connectivity and enhanced by the latest Wi-Fi 6E technology, the EA530 delivers wide coverage and high-speed connections across 2.4GHz, 5GHz, and 6GHz bands. With fast roaming, Bluetooth® 5.2 for real-time data collection, and DBS (Dual-Band Simultaneous) technology supporting simultaneous transmissions on multiple bands, it ensures consistent and efficient network performance, keeping users seamlessly connected at all times.

EA530 Wireless Connectivity
4G
Communications
Wi-Fi 6E
Wireless
Bluetooth® 5.2

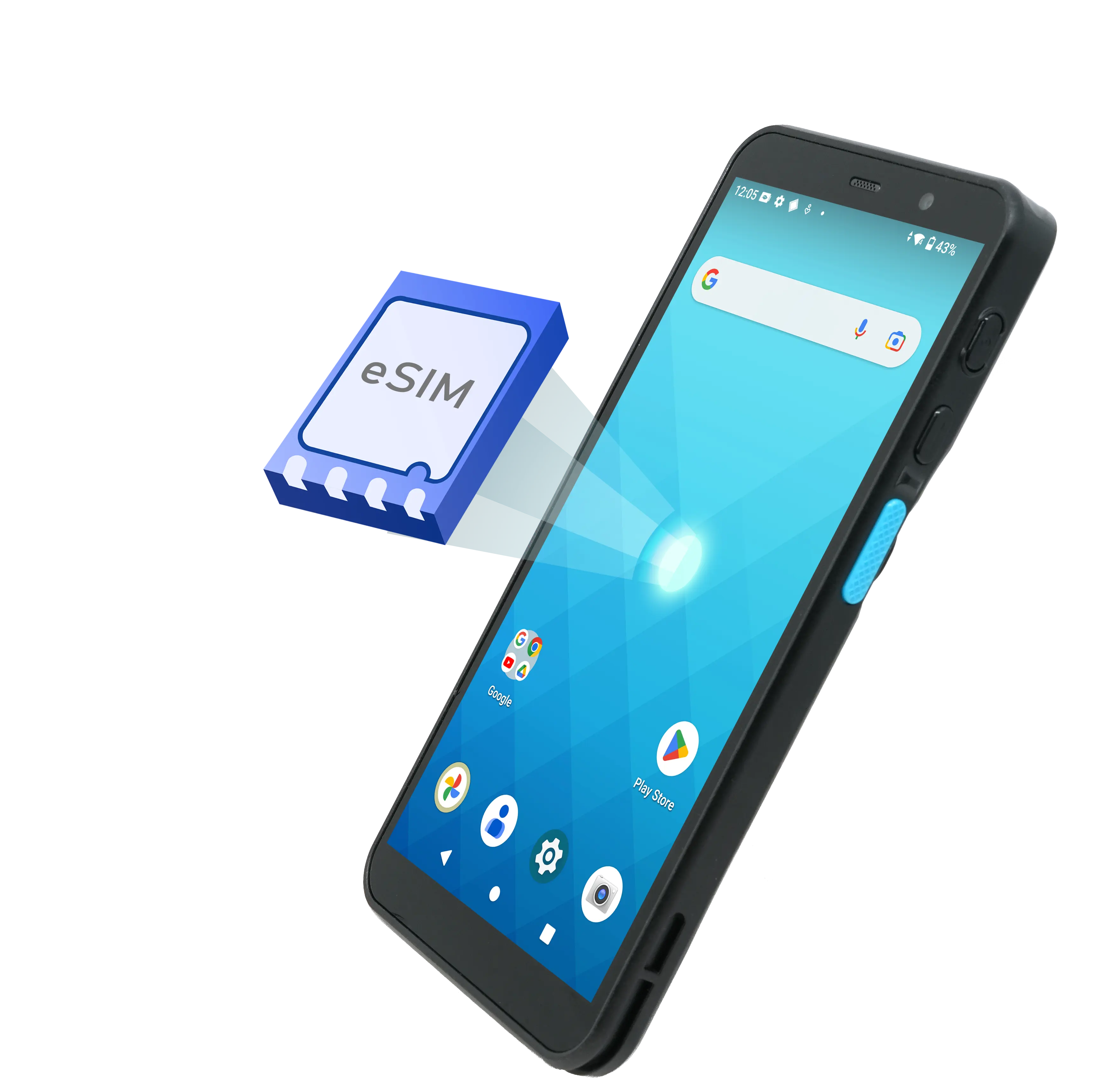

Streamlined Workflow with eSIM Technology

The EA530's eSIM technology revolutionizes connectivity by removing the need for physical SIM cards, ensuring convenience across various industries. Embedded securely within the device, the eSIM eliminates the risk of loss or damage while enhancing security by preventing unauthorized removal. Network switching is effortless—simply connect to Wi-Fi, scan a QR code, or enter an activation code. Optimized for efficiency, the EA530 delivers seamless, reliable connectivity, perfectly suited to the dynamic demands of retail, logistics, and beyond.

EA530 eSIM
eSIM Technology
Support
Hassle-Free Setup and Activation
Flexible Access Options

Premier Barcode Reading Performance

Featuring powerful 1D/2D scanning capability, it also supports DPM codes (10mil) and ensures read reliability for mobile phone screens and paper in any orientation. Powered by a removable 4250mAh quick-release battery, it integrates HF/NFC RFID reader/writer and UHF RFID (optional), along with GPS and a high-resolution 16MP camera in a compact device. The EA530 gives your workforce the technology it needs to take your business to the next level.

EA530 in retail and logistics scenario
1D/2D
Support
NFC
Reader / Writer
16MP
Camera

Long-Lasting Battery Life

The EA530 features a high-capacity 4,250mAh warm-swappable, quick-release battery. This design eliminates downtime, enabling uninterrupted workflows even during battery replacements.

EA530 Battery
Warm-Swappable
Battery
4250 mAh
Battery

Reliable at Its Best

The EA530 delivers outstanding industrial durability with simultaneous IP65 and IP68 ratings. The IP65 rating ensures protection against dust and low-pressure water jets, while the IP68 rating guarantees dustproofing and the ability to withstand continuous immersion in water for up to 60 minutes at a depth of 1M. Additionally, the device is drop-resistant from 1.5m (1.8m with a boot case), ensuring reliable performance in challenging environments. Perfectly suited for retail, transportation, logistics, and more, the EA530 is designed to enhance data collection, management, and traceability with maximum efficiency.

IP65 & IP68
Certification
1.5m
Drop Protection
1.8m
Drop with Boot case

Optional RFID for Expanded Functionality

The EA530 offers optional RFID functionality that can be seamlessly integrated with the standard gun grip. Users can perform both convenient barcode scanning and RFID scanning in one device, with RFID reading distances of up to 1.8 meters, making it an ideal solution for efficient inventory tracking and asset management. The EA530 is also compatible with the RP300 long-range RFID mobile reader, enabling reading distances of up to 25 meters. This high-performance capability is ideal for real-world applications, helping retailers and warehouse operators efficiently manage high shelves, storage areas, and inventory workflows across retail, logistics, and field service environments.

EA530 RFID
1.8 m
RFID Reading Distance
25 m
RP300 Long Range
Barcode + RFID
Dual Scanning

SmartPA: Better Audio Output

SmartPA (Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit / temperature damage, providing seamless communication between coworkers to achieve productivity.

EA660 SmartPA
Power Amplifier
Better Audio Output
Built-in Algorithm
Lessen Circuit / Temperature Damage

Software Solution

MoboLink

Android Enterprise ready EMM for monitoring device health and managing apps, configs and files.


StageGO

Barcode-based device staging utility offering hundreds of script commands for you to work with.

OEMConfig

If you are using a third party EMM, OEMConfig will allow  those EMM solutions to configure unitech specific settings on the device.
Load More

Specification

Operation System

  • OS Android 15 (upgradable to A17)
  • GMS certified GMS certified
  • CPU Octa-core 2.2GHz Processor
  • Memory RAM 6GB
    Flash 64GB
  • Languages support English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and
    multiple languages
  • Others Input Chinese/ English
    Supports handwriting and soft keyboard

Display

  • Screen Size 6”, HD (720x1440) color screen, backlight 500nits
  • Touch Panel Multi-Touch Capacitive Touch Panel, support stylus, glove, wet-finger Compatibility

Buttons / Keypad

  • Buttons / Keypad 6 keys- Programmable function button; dual dedicated scan buttons; volume up & down buttons; on/off button

Camera

  • Camera 8MP front camera
    16M rear camera with auto-focus function and Flash Light

Indicator Type

  • Type LED, Speaker, Vibrator

Symbologies

  • 1D Barcodes UPC/EAN, GS1-128 , Code128, Code 39, Code 93, , Code 11, Interleaved 2 of 5, Matrix 2 of 5, Codabar, MSI, GS1 DataBar
  • 2D Barcodes PDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GS1 Composite
  • Postal US Postnet, US Planet, UK Postal, Japanese Postal, Australian Postal, Netherlands (KIX)/ Dutch Postal, USPS 4CB/ One Code/ Intelligent Mail/ UPU FICS Postal
  • OCR OCR-A, OCR-B, E13B (MICR)

RFID

  • UHF RFID (option) Up to 1.8m
    865~868MHz (EU), 902~928MHz (US)
  • HF RFID Frequency 13.56MHz, support NFC(Power:1dBm)
    Compliance w/ ISO14443A/B, ISO15693, Mifare, Felica(ISO/IEC18092)

I/O Interfaces

  • USB USB 2.0 (type-C)
  • OTG Yes, over USB Type-C
  • POGO PIN PogoPin backside: Support Gun-grip
    PogoPin bottom: Charging via cradle
  • SIM Slot 1 eSIM +1 nano SIM
  • Expansion Slot MicroSD, up to 1TB
  • Audio One speaker (95dB @ 10cm), One receiver, Dual noise-cancelling microphones

Power Source

  • Main battery Warm Swappable 4250mAh Li-Polymer battery / battery with cover in one piece

Communication

  • Bluetooth® Bluetooth® 5.2, BLE
  • WLAN Wi-Fi 6E, 2.4GHz & 5GHz & 6GHz
    IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/u/w/v/ax, Support DBS
    Security: WPA3, WPA2, WPA & WEP
  • WWAN 4G LTE (FDD): B1/2/3/4/5/7/8/12/17/19/20/28a&b/66
    3G WCDMA: B1(2100MHz), B2(1900MHz), B4(1700MHz), B5(850MHz), B8(900MHz)
    2G GSM: B2(1900MHz),B3(1800MHz), B5(850MHz), B8(900MHz)
  • GPS GPS, Beidou, Glonass, Galileo, A-GPS
  • Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor

Software

  • MDM Software SOTI, VMware, MoboLink and TagAccess

Enclosure

  • Dimensions ( W x H x D ) 161mm x 76.8mm x 14.15mm
  • Weight 242g ± 1% (with battery)

Durability

  • Drop Specification 1.5m, 1.8m with boot case
  • Sealing IP65 & IP68
  • Tumble test 0.5m tumbles for 300 cycles / 600 drops

Environmental

  • Operating temperature -20°C to 55°C
  • Storage temperature -30°C to 70°C (without battery)
  • Charging temperature 0°C to 45°C
  • Relative Humidity 5% ~ 95% (Non-Condensing)

Accessories

  • Accessories ■ Standard Battery 3.85V 4250mAh (PN#1400-900081G)
    ■ USB 3.0 type-C cable(Support Quick Charge) (PN#1550-905908G)
    ■ Quick charge adaptor via USB type-C cable (PN#1010-900073G US plug/ #1010-900074G EU plug)
    ■ Glass Screen Protector w/ packing, 10pcs/ box
    ■ Boot Case
    ■ Hand Strap with fixed arm- individual package (PN#5400-900052G)
    ■ Stylus (8mm: PN#384896G / 5.5mm: PN#386534G)
    ■ Coiled Strap (PN#383642G)
    ■ Single Slot Charging Cradle*
    ■ Single Slot USB Cradle*
    ■ Single Slot Ethernet Cradle*
    ■ 5-slot Terminal Charging Cradle

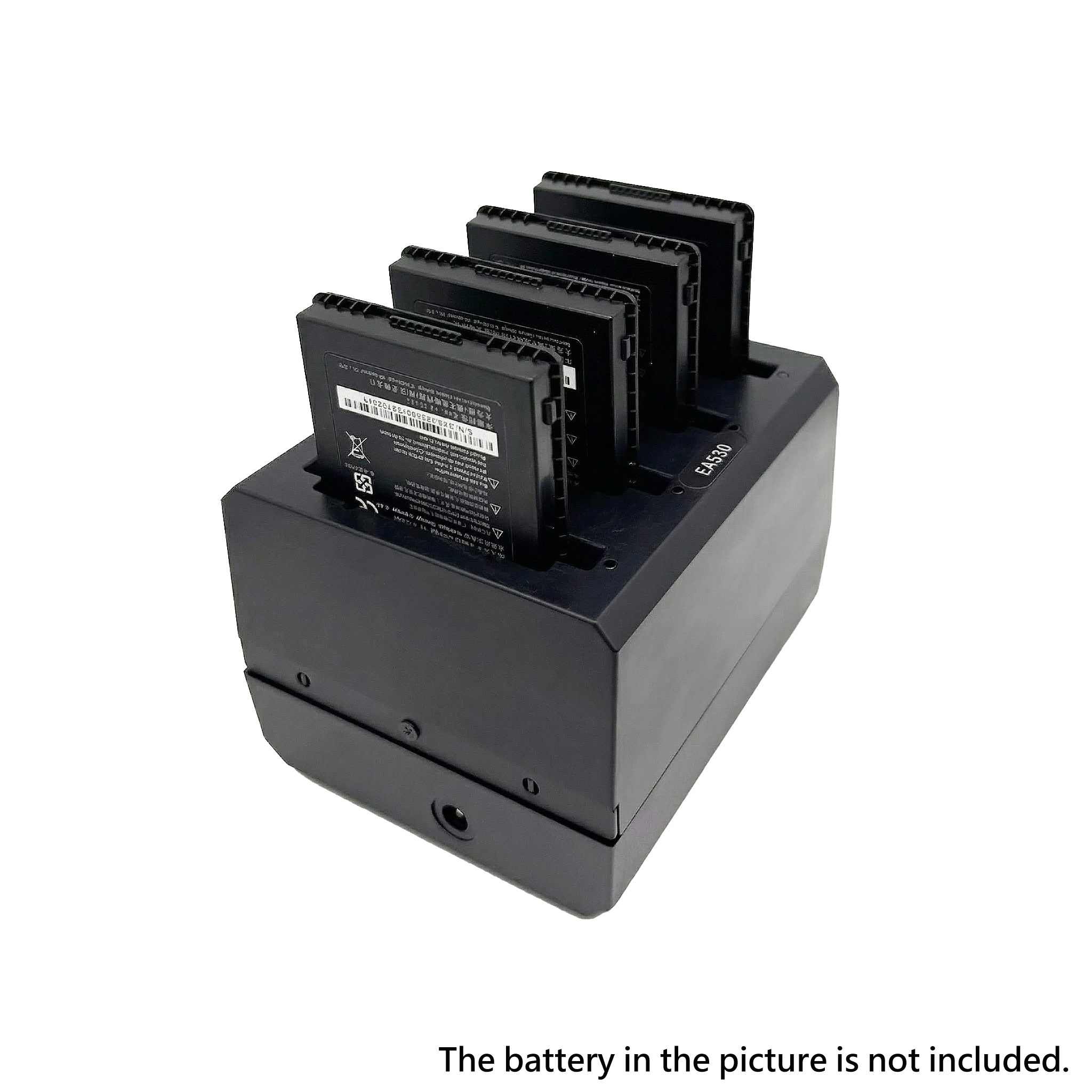

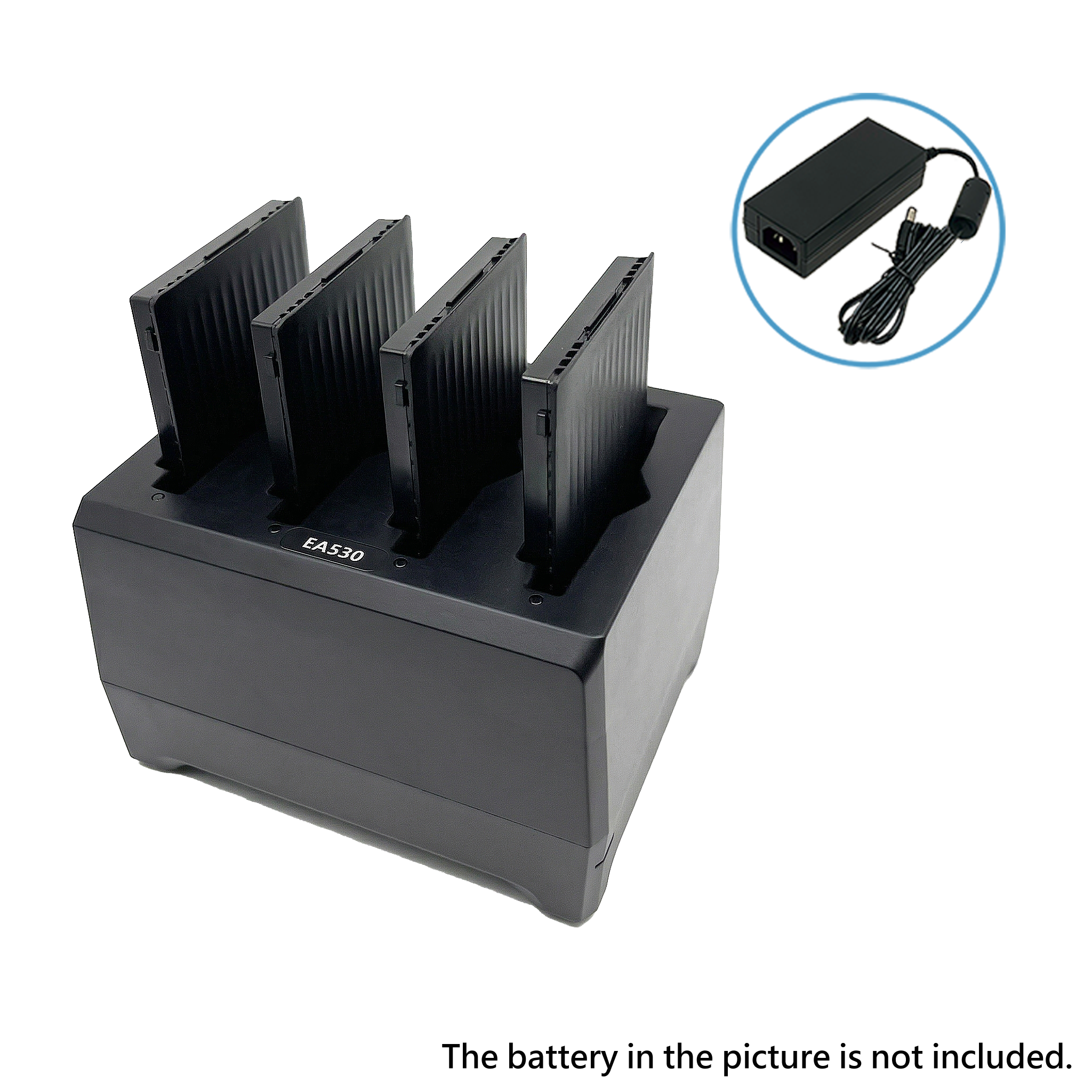

    ■ 4-Slot Battery Charging Cradle
    ■ 12V/5A Power Supply in the Multi-slot Cradle (PN#1010-900068G)
    ■ 3-Pin Power Cord(US) (PN#1010-601551G)
    ■ 3-Pin Power Cord(EU) (PN#1550-602333G)
    ■ 3-Pin Power Cord (UK) (PN#1550-602689G)
    ■ Gun Grip
    ■ RP902 Bluetooth UHF RFID Pocket Reader
    (PN#RP902-33E8S0G(EU),PN#RP902-43A8S0G(US),PN#RP902-43F8S0G (JP))
    ■ Soft Belt Holster with Belt Clip (PN#DT3669)
    ■ Belt Holster (PN#381852)
    * Use USB Cable & Power Adapter from EA530

What comes in the box

  • The standard package contents ■ EA530 Terminal
    ■ USB 3.0 Cable (Type C)
    ■ Adaptor (US)
  • The basic package contents ■ EA530 Terminal
    ■ USB 3.0 Cable (Type C)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, NCC, VCCI, TELEC, CCC, SRRC, BQB, N-Mark, RoHS 2.0

Warranty

  • Hardware Warranty 12 months
  • Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.

Download

Marketing Material

Technical Material
