EA530 Wi-Fi Ver. (3rd Gen)
Rugged Smartphone
IP65 & IP68 + 1.5m Drop | Warm-Swappable 4250mAh Quick-Release Battery | Optional UHF RFID (up to 1.8m)
-
Android 15
-
2D
-
.svg)
NFC
-
6"
-
Wi-Fi 6E
-
.svg)
16MP
-
IP68
-
IP65
-
1.8 m
-
1.5 m
-
GMS certified
-
Bluetooth
-
Retail
-
Hospitality
-
Logistics

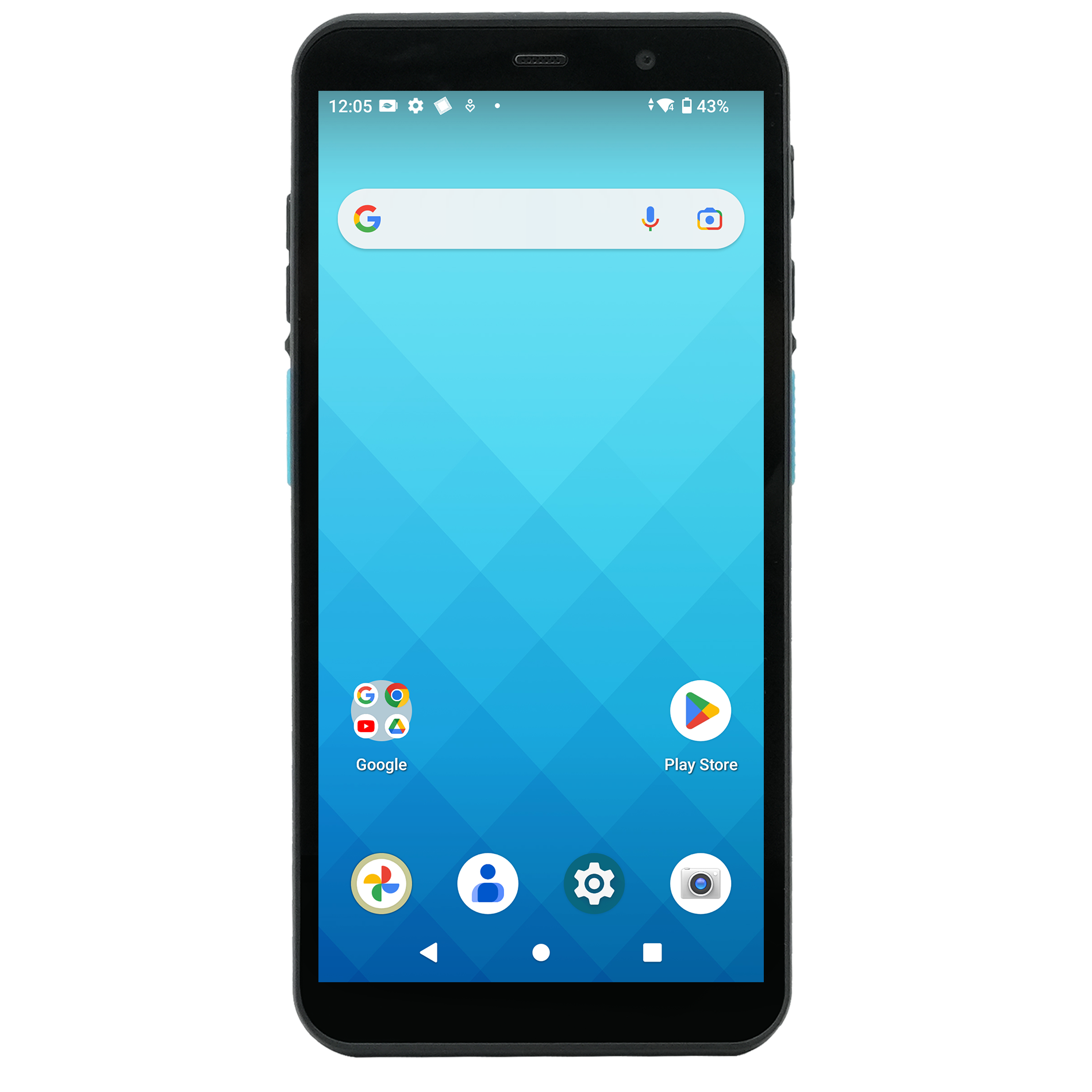

The EA530 is a 6-inch rugged smartphone with Wi-Fi 6E, built for demanding retail, hospitality, and logistics environments. It also supports optional UHF RFID powered by the Impinj E310, making it ideal for data-intensive field and enterprise applications. Its compact, durable design and warm-swappable battery enable seamless battery replacement without powering down the device, maximizing uptime in the field.
Features
• Android 15 OS with GMS Certification
• Wireless Communication: Wi-Fi 6E
• All-In-One functionality: 2D Imager, NFC, 8MP front camera, and 16MP rear camera
• Rugged Design: Corning® Gorilla® Glass touch display, IP65 & IP68 rated, and 1.5m drop (1.8m with boot case)
• Warm-swappable 4250mAh quick-release battery (Wi-Fi model)
• Optional UHF RFID powered by Impinj E310 (reading distance up to 1.8m)
• Support Gen2X (Coming Soon)
• Compatible with RP300 long-range RFID mobile reader for up to 25m reading distance
• Support unitech software solutions, SDKs, MoboLink, TagAccess and MDM solutions
Powered by Android 15 OS with GMS Certified
The EA530 is a 6-inch Android 15 rugged smartphone equipped with an advanced 2.2 GHz octa-core processor for smooth and efficient multitasking. Designed to handle demanding tasks with ease, it ensures stable performance in fast-paced business environments. With Google Mobile Service (GMS) certification, the EA530 provides secure, reliable connectivity for enhanced productivity across industries and efficient business environments.
.webp)
64 GB Flash

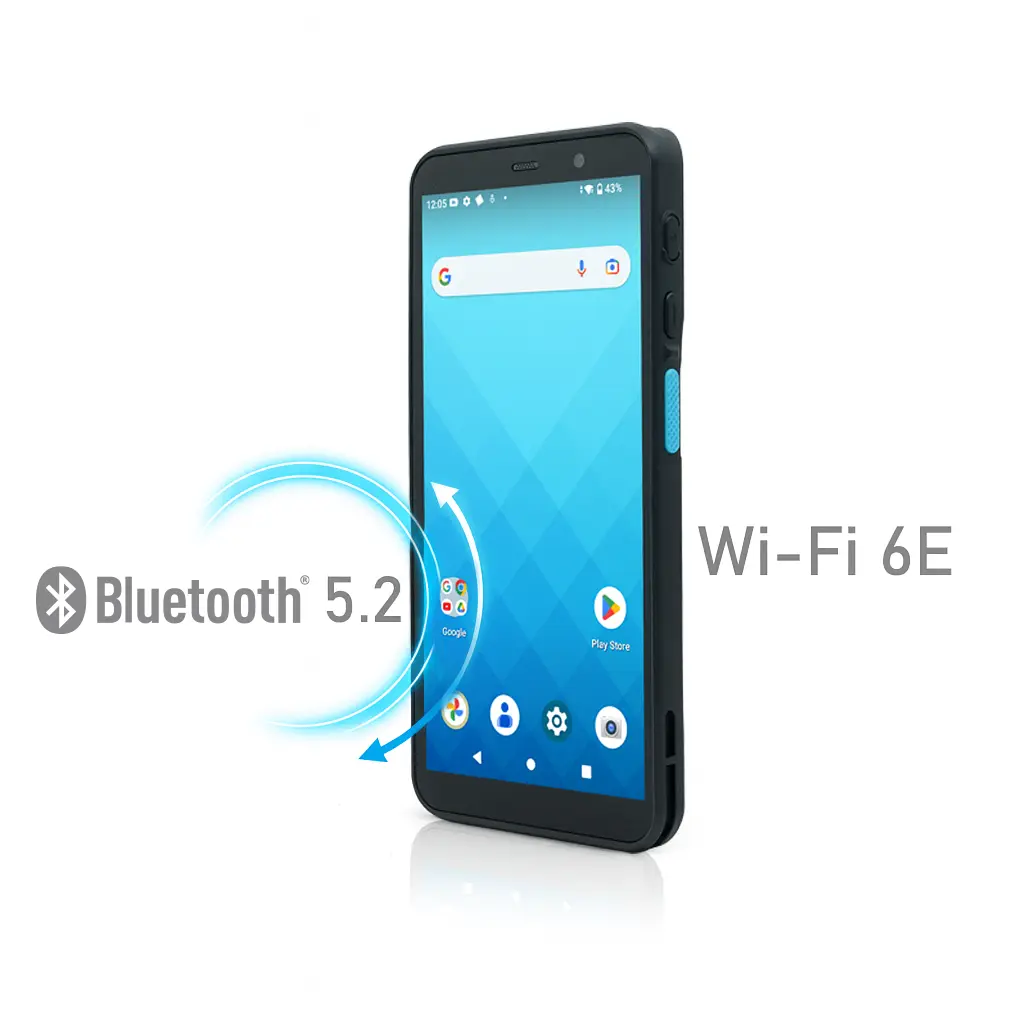

Seamless Connectivity with Wireless Communication
Enhanced by the latest Wi-Fi 6E technology,, the EA530 delivers wide coverage and high-speed connections across 2.4GHz, 5GHz, and 6GHz bands. With fast roaming, Bluetooth® 5.2 for real-time data collection, and DBS (Dual-Band Simultaneous) technology supporting simultaneous transmissions on multiple bands, it ensures consistent and efficient network performance, keeping users seamlessly connected at all times.
Premier Barcode Reading Performance

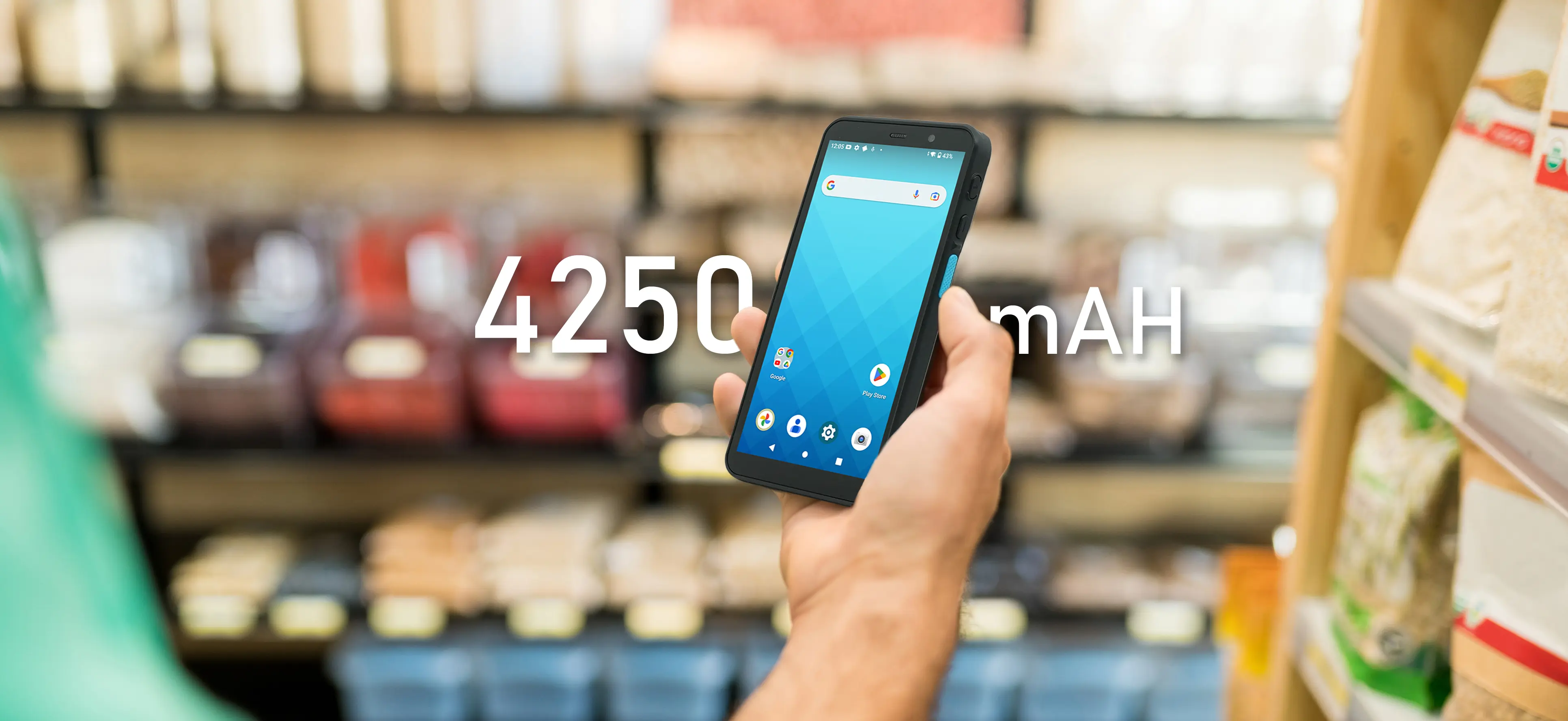

Long-Lasting Battery Life
The EA530 features a high-capacity 4,250mAh warm-swappable, quick-release battery. This design eliminates downtime, enabling uninterrupted workflows even during battery replacements.
.webp)

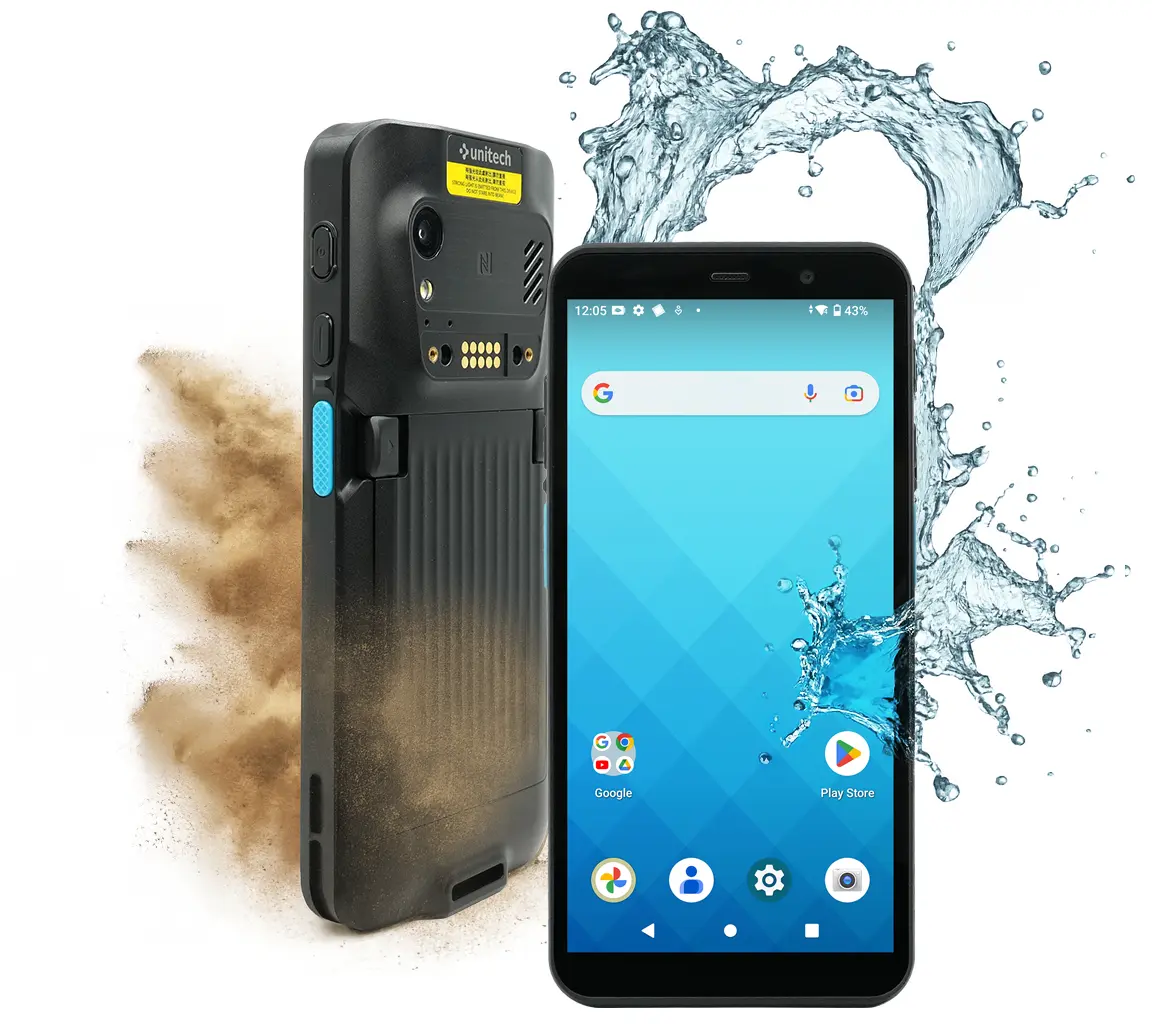

Reliable at Its Best
The EA530 delivers outstanding industrial durability with simultaneous IP65 and IP68 ratings. The IP65 rating ensures protection against dust and low-pressure water jets, while the IP68 rating guarantees dustproofing and the ability to withstand continuous immersion in water for up to 60 minutes at a depth of 1M. Additionally, the device is drop-resistant from 1.5m (1.8m with a boot case), ensuring reliable performance in challenging environments. Perfectly suited for retail, transportation, logistics, and more, the EA530 is designed to enhance data collection, management, and traceability with maximum efficiency.
Optional RFID for Expanded Functionality
The EA530 offers optional RFID functionality that can be seamlessly integrated with the standard gun grip. Users can perform both convenient barcode scanning and RFID scanning in one device, with RFID reading distances of up to 1.8 meters, making it an ideal solution for efficient inventory tracking and asset management. The EA530 is also compatible with the RP300 long-range RFID mobile reader, enabling reading distances of up to 25 meters. This high-performance capability is ideal for real-world applications, helping retailers and warehouse operators efficiently manage high shelves, storage areas, and inventory workflows across retail, logistics, and field service environments.
SmartPA: Better Audio Output
SmartPA (Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit / temperature damage, providing seamless communication between coworkers to achieve productivity.
Software Solution
MoboLinkAndroid Enterprise ready EMM for monitoring device health and managing apps, configs and files. |
StageGOBarcode-based device staging utility offering hundreds of script commands for you to work with. |
OEMConfigIf you are using a third party EMM, OEMConfig will allow those EMM solutions to configure unitech specific settings on the device. |
.png)
.png)
.png)
Specification
Operation System
- OS Android 15 (upgradable to A17)
- GMS certified GMS certified
- CPU Octa-core 2.2GHz Processor
-
Memory
RAM 6GB
Flash 64GB -
Languages support
English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and
multiple languages -
Others
Input Chinese/ English
Supports handwriting and soft keyboard
Display
- Screen Size 6”, HD (720x1440) color screen, backlight 500nits
- Touch Panel Multi-Touch Capacitive Touch Panel, support stylus, glove, wet-finger Compatibility
Buttons / Keypad
- Buttons / Keypad 6 keys- Programmable function button; dual dedicated scan buttons; volume up & down buttons; on/off button
Camera
-
Camera
8MP front camera
16M rear camera with auto-focus function and Flash Light
Indicator Type
- Type LED, Speaker, Vibrator
Symbologies
- 1D Barcodes UPC/EAN, GS1-128 , Code128, Code 39, Code 93, , Code 11, Interleaved 2 of 5, Matrix 2 of 5, Codabar, MSI, GS1 DataBar
-
2D Barcodes
PDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GS1 Composite
- Postal US Postnet, US Planet, UK Postal, Japanese Postal, Australian Postal, Netherlands (KIX)/ Dutch Postal, USPS 4CB/ One Code/ Intelligent Mail/ UPU FICS Postal
- OCR OCR-A, OCR-B, E13B (MICR)
RFID
-
UHF RFID
(option) Up to 1.8m
865~868MHz (EU), 902~928MHz (US) -
HF RFID
Frequency 13.56MHz, support NFC(Power:1dBm)
Compliance w/ ISO14443A/B, ISO15693, Mifare, Felica(ISO/IEC18092)
I/O Interfaces
- USB USB 2.0 (type-C)
- OTG Yes, over USB Type-C
-
POGO PIN
PogoPin backside: Support Gun-grip
PogoPin bottom: Charging via cradle - Expansion Slot MicroSD, up to 1TB
- Audio One speaker (95dB @ 10cm), One receiver, Dual noise-cancelling microphones
Power Source
- Main battery Warm Swappable 4250mAh Li-Polymer battery / battery with cover in one piece
Communication
- Bluetooth® Bluetooth® 5.2, BLE
-
WLAN
Wi-Fi 6E, 2.4GHz & 5GHz & 6GHz
IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/u/w/v/ax, Support DBS
Security: WPA3, WPA2, WPA & WEP - Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor
Software
- MDM Software SOTI, VMware, MoboLink and TagAccess
Enclosure
- Dimensions ( W x H x D ) 161mm x 76.8mm x 14.15mm
- Weight 242g ± 1% (with battery)
Durability
- Drop Specification 1.5m, 1.8m with boot case
- Sealing IP65 & IP68
- Tumble test 0.5m tumbles for 300 cycles / 600 drops
Environmental
-
Operating temperature
-20°C to 55°C
- Storage temperature -30°C to 70°C (without battery)
- Charging temperature 0°C to 45°C
- Relative Humidity 5% ~ 95% (Non-Condensing)
Accessories
-
Accessories
■ Standard Battery 3.85V 4250mAh (PN#1400-900081G)
■ USB 3.0 type-C cable(Support Quick Charge) (PN#1550-905908G)
■ Quick charge adaptor via USB type-C cable (PN#1010-900073G US plug/ #1010-900074G EU plug)

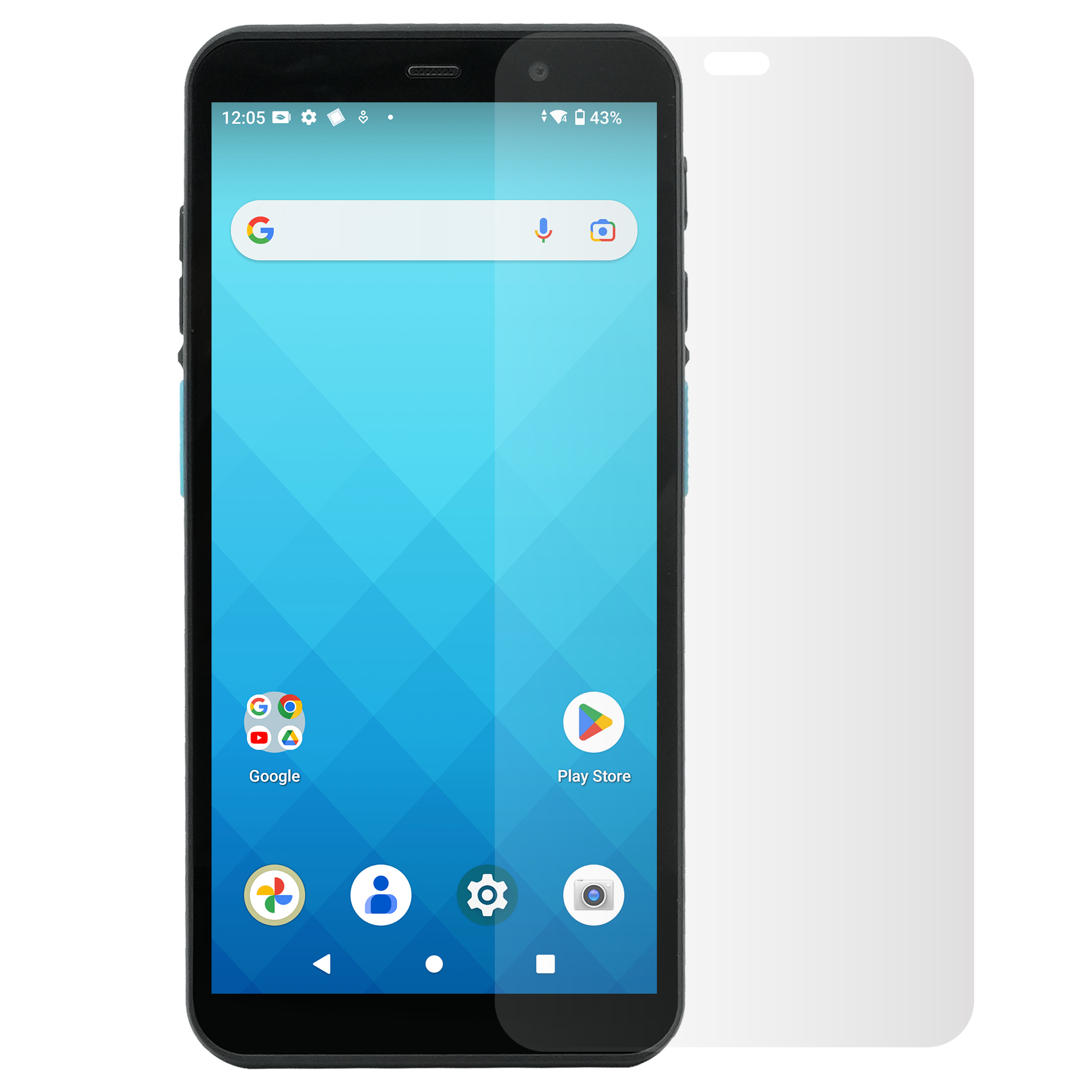

■ Glass Screen Protector w/ packing, 10pcs/ box
■ Boot Case
■ Hand Strap with fixed arm- individual package (PN#5400-900052G)
■ Stylus (8mm: PN#384896G / 5.5mm: PN#386534G)
■ Coiled Strap (PN#383642G)
■ Single Slot Charging Cradle*
■ Single Slot USB Cradle*
■ Single Slot Ethernet Cradle*
■ 5-slot Terminal Charging Cradle
■ 4-Slot Battery Charging Cradle
■ 12V/5A Power Supply in the Multi-slot Cradle (PN#1010-900068G)
■ 3-Pin Power Cord(US) (PN#1010-601551G)
■ 3-Pin Power Cord(EU) (PN#1550-602333G)
■ 3-Pin Power Cord (UK) (PN#1550-602689G)
■ Gun Grip
■ RP902 Bluetooth UHF RFID Pocket Reader
(PN#RP902-33E8S0G(EU),PN#RP902-43A8S0G(US),PN#RP902-43F8S0G (JP))
■ Soft Belt Holster with Belt Clip (PN#DT3669)
■ Belt Holster (PN#381852)
* Use USB Cable & Power Adapter from EA530
What comes in the box
-
The standard package contents
■ EA530 Terminal
■ USB 3.0 Cable (Type C)
■ Adaptor (US) -
The basic package contents
■ EA530 Terminal
■ USB 3.0 Cable (Type C)
Regulatory Approvals
- Regulatory Approvals CE, FCC, NCC, VCCI, TELEC, CCC, SRRC, BQB, N-Mark, RoHS 2.0
Warranty
- Hardware Warranty 12 months
- Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
