PA768 (6th Gen)
5G Rugged AI Touch Computer
5G & Wi-Fi 6E|Longevity 6490 Processor | 10m Reading Distance|Hot Swappable 5100mAh UL certified Battery
-
Android 12
-
AER certified
-
AI
-
2D
-
DPM Code (7mil)
-
NFC
-
6.3
-
Wi-Fi 6E
-
5G
-
16MP
-
IP68
-
1.8 m
-
Retail
-
Hospitality
-
Logistics
-
Warehousing
-
Field Service
-
Government
Unitech introduced its first 5G rugged mobile computer, PA768, which aims to boost the operation experience with speedy wireless communication, outdoor durability for various professions in field service, transportation and logistics applications.
Features
• Android 12 OS with GMS & AER certified
• Leading 5G dual SIM card enterprise handheld computer
• Support Wi-Fi 6E : 2.4 and 5 GHz frequency as well as the 6GHz band
• Multi-Scan function: Available to read 10 barcodes at one time
• Premier barcode reading distance : up to 10 m
• Superior barcode engine : 1D/ 2D/ DPM (7mil) / DOT code/ barcodes on screens/ OCR
• 1.5M drop-resistant housing (1.8M with bumper)
• IP65 & IP68 heavy-duty protection against water and dust
• True Hot-swap UL certified battery design without downtime
• Support MDM Software Solutions and utilities such as Airwatch, SOTI, Ivanti Wavelink, and MoboLink.
Real User Testimonials - Genuine Feedback from UK Hospitality.
"The Unitech PA768 has proven to be a robust and reliable device, effectively meeting the rigorous demands of our operations. It has been particularly beneficial in the busy and dynamic environments of UK racecourses, where quick and efficient service is paramount. The device’s performance has consistently exceeded our expectations, offering seamless integration with our systems, excellent battery life, and the durability required to handle the challenges of a hospitality setting. I am happy with the overall performance of the Unitech PA768 and would highly recommend it to other organizations requiring a reliable and efficient solution for their operational needs."
Real User Testimonials - Genuine Feedback from a Customer in Germany
"The appreciation for the device spans across users with various hand sizes, thanks to its adaptable size and handy strap. Its performance is equally impressive, with the 5100mAh battery providing unparalleled endurance. Throughout rigorous tests conducted across the Germany., it consistently topped the charts, also standing out on an international scale, sparing users the hassle of frequent switches throughout the day."
Real User Testimonials - Genuine Feedback from a Customer in Jordan
"Our team required a rugged device with IP68 protection, 2D scanning, Wi-Fi, and 5G for field inspections. We chose Unitech's solution for its exceptional quality and reliable support. The device has consistently performed well in demanding conditions, and we are highly satisfied."
Powered by Android 12 OS with GMS & AER Certified
• 6.3 inch (20:9) Android 12 rugged mobile computer with Split Screen function
• Advanced 64-bit Octa Cores CPU up to 2.7 GHz
• Google Certification: Google Mobile Service(GMS)/ Android Enterprise Recommended (AER)
Android 12 Operation System |
GMS & AER Certification |
Octa-Core CPU |
6 GB RAM
|
Note: Learn more about Android Security bulletin information |
Outstanding Long Range Barcode Reading Technology
Utilizing a premier 2D barcode scanning technologies, the PA768 rugged touch computer enables barcode reading at distances up to 10m* with 5G and Wi-Fi6E connectivity. It delivers a perfect solution for the warehousing environment that users can enjoy the high performance of barcode reading even from a short or a long distance and optimize work efficiency.
*Optional Middle range engine support read range up to 10 meters.
Support ARCore Technology
The PA768 rugged touch computer supports ARCore technology that allows developers to create augmented reality apps to sense its environments and interact with information. The PA768 enhances the CPU and built in the quality of both the camera and the motion sensors, it gives users stable performance to handle everything.
The ARCore technology transforms the way people work that helps to locate and identify the elements in warehouse management, allows training for the user while executing the production processes, and precise details of the areas at risk allow for increased vigilance limiting accidents in field service applications.
Reliable at its best
The PA768 also comes with the GMS certified that makes your toughest workdays easier. Reaching IP65 & IP68 enterprise protection and withstanding 1.8M drop makes PA768 a perfect tool to maximize data collection, management, and traceability in nearly every practice of transportation & logistics, field service, manufacturing, and more!
|
|||||
IP65 & IP68 Certification |
1.5m Drop Protection |
1.8m Drop with Bumper |
|||
User-Friendly Functionality
• True Hot-swap battery design without downtime.
• Ergonomic handle design for long time use with a durable trigger key.
• Workers can run more smooth operations while wearing gloves (thickness ≤ 4mm) or wet-fingers.
• Various Accessories for customer needs.
• Support MDM Software Solutions and utilities such as Airwatch, SOTI, Ivanti Wavelink and MoboLink.
SmartPA: Better Audio Output
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.
Power Amplifier Better Audio Output |
Built-in Algorithm Lessen Circuit / Temperature Damage |
Optical Character Recognition (OCR)
• Easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips.
• Minimize the typing mistakes when entering the numbers.
• Streamline your tedious typing process.
Airline | Manufacturing | Logistics |
✔ The Airline Ground Services|Read ID numbers from passports
✔ Manufacturing|Read vehicle registration numbers and electronic chips
✔ Logistics&Retail|Read lot numbers printed on the package
Effortlessly Process Payments with Softpay
The Unitech PA768 offers support for the Softpay softPOS application, providing a unique mobile point-of-sale solution. This empowers store staff to assist customers on the shop floor and process payments anywhere within the store, eliminating the need for traditional cashier counters. By simply downloading the Softpay solution onto your existing PA768 device, it transforms into a versatile contactless payment terminal. Over time, this innovation allows users to reduce the number of conventional checkout counters in their stores, resulting in a more streamlined and seamless customer experience.
* Learn more about Softpay: https://softpay.io/
Passed Apple Value-Added Services (VAS)
AppleVAS, developed by Apple, simplifies the transfer of tickets and passes (like event tickets, membership cards, and discount coupons) from the Apple Wallet on iOS devices to compatible NFC terminals. This means users can present their passes effortlessly, without physical cards, directly from their Apple Wallet. Experience streamlined access to events, membership benefits, or coupon redemptions with the AppleVAS protocol, making interactions quicker, more secure, and completely hassle-free. With the PA768 and your iOS device, forget about digging through your wallet. Simply unlock your device using Face ID, Touch ID, or a password, and bring it close to the PA768. This method marries convenience with security—the data transmission is encrypted and secure, safeguarding your information. Enjoy swift, secure pass reading without physical contact or traditional methods.
TAA Compliant Mobile Computers
Software Solution
MoboLinkAndroid Enterprise ready EMM for monitoring device health and managing apps, configs and files. |
StageGOBarcode-based device staging utility offering hundreds of script commands for you to work with. |
OEMConfigIf you are using a third party EMM, OEMConfig will allow those EMM solutions to configure unitech specific settings on the device. |
Specification
Operation System
-
OS
Android 12 (upgradable to Android 14 & 16)
Support Google ARcore - GMS certified GMS certified
- Android Enterprise AER certified
- CPU Qualcomm Snapdragon™ 6490 Processor, 64bits, Octa Cores up to 2.7GHz
- AI 6th Gen Qualcomm AI Engine
-
Memory
RAM 6GB
Flash 64GB UFS Flash (128GB option)
- Security Supports Secure Boot and Verified Boot
- Languages support English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
-
Others
Input Chinese/ English
Supports handwriting and soft keyboard
Display
-
Screen Size
6.3”, 20:9 Full-HD+ (2340X1080), High Resolution color Display
High sunlight visibility- LCD backlight up to 500nits -
Touch Panel
Gorilla Glass with Multi-Touch Capacitive Touch Panel, support stylus, glove (thickness ≤ 4mm), wet-finger Compatibility
Buttons / Keypad
- Buttons / Keypad 6 keys- Programmable function button; dual dedicated scan buttons; volume up & volume down buttons; on/off button
Camera
-
Camera
5 MP Front camera,
16 MP Rear Camera with LED flash and auto-focus function,
Support Google ARcore
Indicator Type
- Type LED, Speaker, Vibrator
Symbologies
-
1D Barcodes
Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation, GS1 Data Bar
- 2D Barcodes Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code
- Postal Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
- OCR OCR-A, OCR-B, E13B (MICR)
RFID
-
UHF RFID
UHF gun grip (see RG768)
-
HF RFID
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693, Mifare,
Felica(ISO/IEC18092) -
Apple VAS
Apple VAS certified*
*available only for specific SKU
I/O Interfaces
-
USB
USB 3.1 Type-C, support fast charging
Support Display Port Mode by dongle or USB-C of Ethernet cradle - OTG Yes, over USB Type-C
- POGO PIN Bottom pogo pin for cradles, rear pogo pin for gun grips
- SIM Slot Dual nano SIM Slot
- Expansion Slot MicroSD, up to 1 TB
- Audio One 1.5W output speaker with SmartPA (100 dB at 10cm), One receiver, Dual-Microphone support noise cancellation
Power Source
- Main battery Hot Swappable 5100mAh UL certified smart battery / battery with cover in one piece
- Extended battery 7700mAh / UL certified battery with cover in one piece (optional)
- Hot Swap Keeps applications active up to 1 minute
Communication
- Bluetooth® Bluetooth® 5.2 , BLE 5, Class 1.5
-
WLAN
Wi-Fi 6E, 2.4GHz & 5GHz & 6GHz, support Dual-Band Simultaneous (DBS)
IEEE 802.11a/b/g/n/ac/ax/d/e/h/i/k/r/v (2x2 MU-MIMO)
Security WPA3, WPA2, WPA & WEP -
WWAN
5G NR Sub 6GHz: n1/ n2/ n3/ n5/ n28/ n41/ n48/n71/n77/n78/n79, DL 4x4 MIMO(n77/n78/n79)
4G LTE(FDD):B1/B2/B3/B4/B5/B7/B8/B17/B20/ B28/B48
LTE(TDD): B38/B39/B40/B41
3G: B1/B2/B5/B8
2G: 850/900/1800/1900 MHz
*Support Dual Sim Dual 5G
*Support 4G LTE Advanced / Up to CAT12 LTE downlink/uplink
*n48 & B48 for CBRS -
GPS
GPS, GLONASS, Gallileo, Beidou, QZSS, SBAS,
supports L1+L5, a-GPS, XTRA
- Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor
Software
- MDM Software SOTI, VMware, 42Gears, and MoboLink
Enclosure
- Dimensions ( W x H x D ) 167mm x 75.5mm x 17mm
- Weight 297 g (with bumper & standard battery)
Durability
- Drop Specification 1.8m drops with bumper to plywood over concrete at room temperature of 25°C per MIL-STD 810H
- Sealing IP65 & IP68 per IEC 60529
- Tumble test 0.5m tumbles for 300 cycles / 600 drops
Environmental
- Operating temperature -20°C to 55°C (-4°F to 131°F)
- Storage temperature -40°C to 70°C (-40°F to 158°F), without battery
- Charging temperature 0°C to 45°C (32°F to 113°F)
- Relative Humidity 5% ~ 95% (Non-Condensing)
Accessories
-
Accessories
■ USB 3.0 Type-C Cable(Support Fast Charge) (PN#1550-905908G)

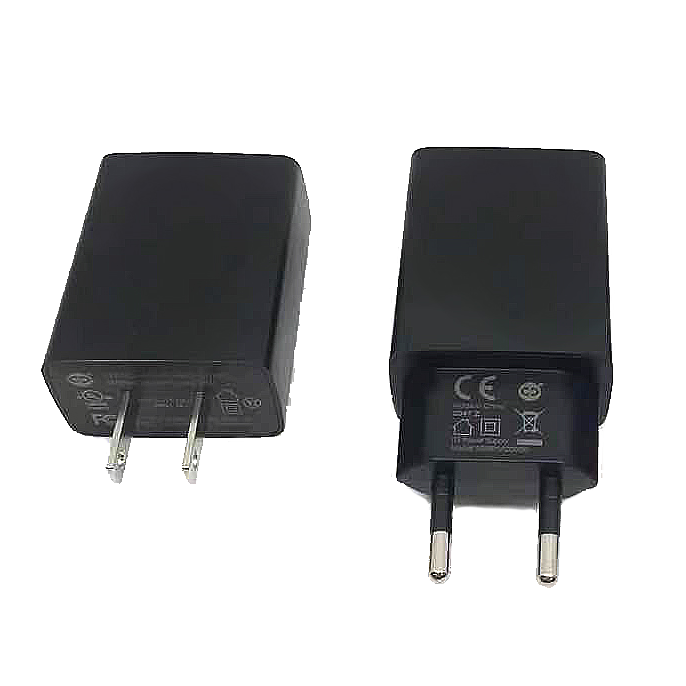

■ Fast Charge Adaptor via USB Type-C Cable (PN#1010-900061G US Plug/ #1010-900062G EU Plug)
■ Hand Strap (PN# 5400-900052G)
■ 9H Glass Screen Protector (PN#5400-900053G 10pcs with Packing)
■ Stylus (5.5mm PN#386534G)
■ Coiled Strap (PN# 383642G)
■ Bumper (PN#5400-900059G, 1 Set with Package)
■ Single Slot Charging Cradle*(PN# 5000-900105G, PSU Only)
■ Single Slot USB Cradle*(PN# 55000-900106G, PSU Only)
■ Single Slot Ethernet Cradle*(PN# 5000-900107G, PSU Only)
■ Power Supply in the 1-slot Cradle (PN#1010-900043G)
■ 4-Terminal+ 4-battery Charging Cradle (PN#5000-900109G , PSU Only)
■ 5-Slot Terminal Charging Cradle (PN#5000-900110G, PSU Only)
■ 5-Slot Terminal Ethernet Cradle (PN#5000-900111G, PSU Only)
■ 4-Slot Battery Charger (PN#5100-900034G, PSU Only)
■ Power Supply in the Multi-slot Cradle (PN#1010-900068G)
■ 3-Pin Power Cord(US) (PN#1010-601551G)
■ 3-Pin Power Cord(EU) (PN#1550-602333G)
■ 3-Pin Power Cord (UK) (PN#1550-602689G)
■ Power Adapter 5V/3A (EU,UK,US,AU) (PN#1010-085001G)
■ Standard Gun Grip (PN#5500-900102G)
■ RG768 UHF RFID Gun Grip (PN# 5500-900103G (US) & PA768 with bumper / PN#5500-900104G (EU) & PA768 with bumper)
■ Standard Battery 5100mAh (PN#1400-900069G)
■ Extend Battery 7700mAh (PN#1400-900072G)

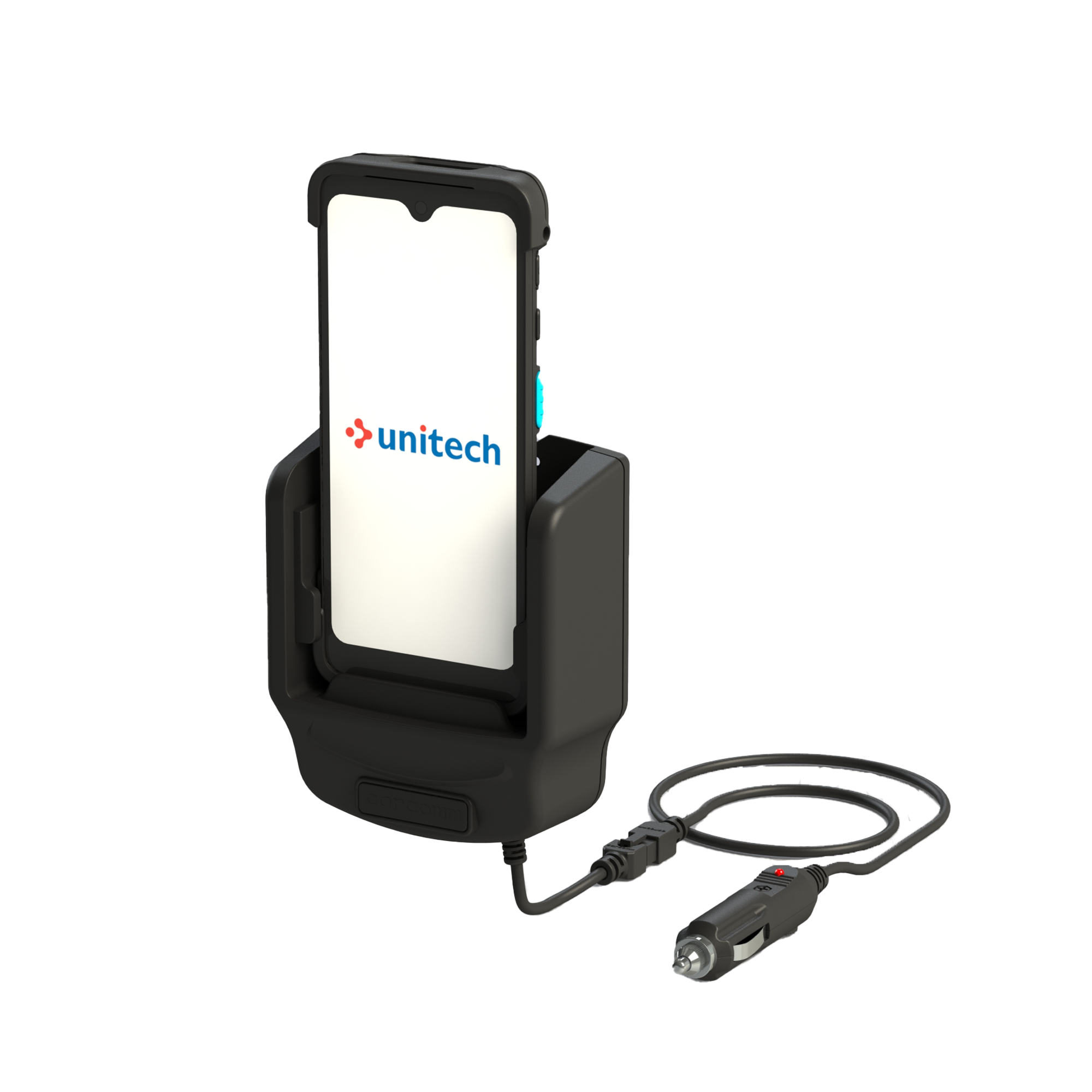

■ Vehicle Cradle (PN# 5000-768001G)
What comes in the box
-
The standard package contents
■ PA768 Terminal w/ bumper
■ Battery
■ Hand Strap
■ USB 3.0 type C cable
■ Adaptor (US or EU plug) -
The basic package contents
■ PA768 Terminal w/ bumper
■ Battery
■ Hand Strap
■ USB 3.0 type C cable
Regulatory Approvals
- Regulatory Approvals CE, FCC, NCC, VCCI, TELEC, CCC, SRRC, BQB, N-Mark, RoHS 2.0
Warranty
- Hardware Warranty 12 months
- Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
