PA768 (WLAN only) 6.3-inch Rugged Touch Computer │ Unitech

Copied to clipboard

WLAN 6E｜Longevity QCS6490 Processor | 10m Reading Distance｜Hot Swappable 5100mAh Battery

Android 12
2D
Pogo pins
16MP
IP67
IP65
1.8 m
WLAN 6E
GMS certified
AER certified
Retail
Hospitality
Logistics
Warehousing
Field Service
Government
6.3
AI

Unitech is thrilled to present its latest innovation, the PA768 rugged mobile computer (WLAN version), designed to provide dependable and efficient mobile computing for indoor warehousing operations. Boasting high-speed and low-latency data transfer capabilities with WLAN 6E technology, the PA768 ensures fast and reliable information access for maximum user benefit. With its durable and ergonomic design, the PA768 is the ideal solution for streamlining warehouse operations and increasing productivity.

Features

• Android 12 OS with GMS & AER certified
• Support WLAN 6E : 2.4 and 5 GHz frequency as well as the 6GHz band
• Multi-Scan function: Available to read 10 barcodes at one time
• Premier barcode reading distance : up to 10 m
• Superior barcode engine : 1D/ 2D/ DPM/ DOT code/ barcodes on screens/ OCR
• 1.5M drop-resistant housing (1.8M with bumper)
• IP65 & IP67 heavy-duty protection against water and dust
• True Hot-swap battery design without downtime
• Support MDM Software Solutions and utilities such as Airwatch, SOTI, Ivanti Wavelink, and MoboLink.

Powered by Android 12 OS with GMS & AER Certified

• 6.3 inch (20:9) Android 12 rugged mobile computer with Split Screen function
• Advanced 64-bit Octa Cores CPU up to 2.7 GHz
• Google Certification: Google Mobile Service（GMS）/ Android Enterprise Recommended (AER)

Android 12 Operation System	GMS & AER Certification	Octa-Core CPU	6 GB RAM 64 GB Flash
Note: Learn more about Android Security bulletin information

Outstanding Long Range Barcode Reading Technology

Utilizing a premier 2D barcode scanning technologies, the PA768 rugged touch computer enables barcode reading at distances up to 10m* with WLAN6E connectivity. It delivers a perfect solution for the warehousing environment that users can enjoy the high performance of barcode reading even from a short or a long distance and optimize work efficiency.

*Optional Middle range engine support read range up to 10 meters.

Support ARCore Technology

The PA768 rugged touch computer supports ARCore technology that allows developers to create augmented reality apps to sense its environments and interact with information. The PA768 enhances the CPU and built in the quality of both the camera and the motion sensors, it gives users stable performance to handle everything.

The ARCore technology transforms the way people work that helps to locate and identify the elements in warehouse management, allows training for the user while executing the production processes, and precise details of the areas at risk allow for increased vigilance limiting accidents in field service applications.

Reliable at its best

The PA768 also comes with the GMS certified that makes your toughest workdays easier. Reaching IP65 & IP67 enterprise protection and withstanding 1.8M drop makes PA768 a perfect tool to maximize data collection, management, and traceability in nearly every practice of transportation & logistics, field service, manufacturing, and more!

IP65 & IP67
Certification

1.5m
Drop Protection

1.8m
Drop with Bumper

User-Friendly Functionality

• True Hot-swap battery design without downtime.
• Ergonomic handle design for long time use with a durable trigger key.
• Workers can run more smooth operations while wearing gloves (thickness ≤ 4mm) or wet-fingers.
• Various Accessories for customer needs.
• Support MDM Software Solutions and utilities such as Airwatch, SOTI, Ivanti Wavelink and MoboLink.

SmartPA: Better Audio Output

SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.

Power Amplifier
Better Audio Output

Built-in Algorithm
Lessen Circuit / Temperature Damage

Optical Character Recognition (OCR)

• Easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips.
• Minimize the typing mistakes when entering the numbers.
• Streamline your tedious typing process.

Airline

Manufacturing

Logistics

✔The Airline Ground Services｜Read ID numbers from passports

✔Manufacturing｜Read vehicle registration numbers and electronic chips

✔ Logistics&Retail｜Read lot numbers printed on the package

Effortlessly Process Payments with Softpay

The Unitech PA768 offers support for the Softpay softPOS application, providing a unique mobile point-of-sale solution. This empowers store staff to assist customers on the shop floor and process payments anywhere within the store, eliminating the need for traditional cashier counters. By simply downloading the Softpay solution onto your existing PA768 device, it transforms into a versatile contactless payment terminal. Over time, this innovation allows users to reduce the number of conventional checkout counters in their stores, resulting in a more streamlined and seamless customer experience.

* Learn more about Softpay: https://softpay.io/

TAA Compliant Mobile Computers

MoboLink Android Enterprise ready EMM for monitoring device health and managing apps, configs and files. Learn More	StageGO Barcode-based device staging utility offering hundreds of script commands for you to work with. Learn More	OEMConfig If you are using a third party EMM, OEMConfig will allow those EMM solutions to configure unitech specific settings on the device. Learn More
Battery info Monitor advanced Battery health and manage the battery replacement cycle. Use with MoboLink to get real-time attery health alerts delivered to your phone.	Enterprise Launcher Secure your devices by kiosking them with Enterprise Launcher. Block access to the Android system and only allow limited number of apps to be run. Learn More	Software Update Check and install software updates online. To let a device always stay up-to-date, setup the device to automatically check and install for updates on boot up.
System Update Center Check and install firmware updates via FOTA. You can update the firmware via online FOTA server, or by using a OTA ZIP file placed in the internal storage.	Unitech Scanner Utility An Android application which helps users connect, configure and use a supported Unitech Bluetooth scanner. Learn More	USS Configure all scanner settings with friendly user interface and enable the service to make scanning data as keypad input.
USS Camera Capture barcode data using the device camera and send the data to your applications as keyboard inputs.	KeyRemap Reprogram physical buttons to act as another key or to launch an app. Learn More	WLAN Advanced Configure advanced WLAN settings such as power saving mode and roaming parameters.
NTP Server Settings Customize the NTP server setting to keep your device date and time synchronized.	UNote A simple text viewer and editor for use in your work flows.	Startup Auto-run apps when device boots up.
TagAccess For versatile functions of RFID command via integrating with Unitech RFID Readers. Learn More	Logger An easy and fast way to get logs from a device. Learn More	Enterprise Keyboard Enterprise Keyboard gives various methods for user to input data to enhance efficiency and productivity. Learn More
Mobile SDK Develop apps that work with uniech Android based devices. Apps can configure unitech-specific settings and get advanced access to manage apps, file system or system info, etc.	Scanner SDK Develop apps that work with unitech scanners when customization of scanner settings and data processing workflow are required.	RFID SDK Develop apps that work with unitech RFID mobile and fixed readers if customization of the inventory collection workflow or tag data processing are required.

Operation System

OS Android 12
GMS certified GMS certified
Android Enterprise AER certified
CPU Qualcomm Snapdragon™ 6490 Processor, 64bits, Octa Cores up to 2.7GHz
AI 6th Gen Qualcomm AI Engine
Memory 6GB RAM / 64GB UFS Flash (128GB option)
Languages support Multiple languages

Display

Screen Size 6.3” Color LCD 1080 X 2340 (FHD+) High Resolution Display
High sunlight visibility- LCD backlight up to 500nits
Touch Panel Gorilla Glass with Multi-Touch Capacitive Touch Panel, support stylus, glove (thickness ≤ 4mm), wet-finger Compatibility

Buttons / Keypad

Buttons / Keypad Programmable key, Volume up/down key, Left/right scan key, Power key

Camera

Camera 5 MP Front camera
16 MP Rear Camera with LED flash and auto-focus function,
Support Google ARcore

Indicator Type

Type LED, Speaker, Vibrator

Symbologies

1D Barcodes Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of
5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32 (PARAF),
EAN-UCC Emulation, GS1 Data Bar
2D Barcodes Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code
Postal Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet

RFID

UHF RFID UHF gun grip (see RG768)
HF RFID Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693, Mifare,
Felica(ISO/IEC18092)

I/O Interfaces

USB USB 3.1 Type-C, support fast charging
Support Display Port Mode by dongle or USB-C of Ethernet cradle
OTG Yes, over USB Type-C
POGO PIN Bottom pogo pin for cradles, rear pogo pin for gun grips
Expansion Slot Micro SD x 1, up to 1 TB
Audio 1.5W output, One speaker with SmartPA (100 dB at 10cm)
Dual-Microphone support noise cancellation

Power Source

Main battery Hot Swappable 5100mAh Li-Polymer battery / battery with cover in one piece
Extended battery 7700mAh / battery with cover in one piece (optional)
Hot Swap Keeps applications active up to 1 minute

Communication

Bluetooth® Bluetooth® 5.2 , BLE 5, Class 1.5
WLAN WLAN 6E, 2.4GHz & 5GHz & 6GHz, support Dual-Band Simultaneous (DBS)
IEEE 802.11a/b/g/n/ac/d/h/i/k/r/v/ac/ax (2x2 MU-MIMO)
Security WPA3, WPA2, WPA & WEP
Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor

Software

MDM Software SOTI, AirWatch, 42Gears, and MoboLink

Enclosure

Dimensions ( W x H x D ) 167mm x 75.5mm x 17mm
Weight 270 g (with standard battery)

Durability

Drop Specification 1.8m drops with bumper to plywood over concrete at room temperature of 25°C per MIL-STD 810H
Sealing IP65 & IP67 per IEC 60529
Tumble test 600 tumbles @ 0.5 m

Environmental

Operating temperature -20°C to 55°C (-4°F to 131°F)
Storage temperature -40°C to 70°C (-40°F to 158°F), without battery
Charging temperature 0°C to 45°C (32°F to 113°F)
Relative Humidity 5% ~ 95% (Non-Condensing)

Accessories

Accessories ■ USB 3.0 Type-C Cable(Support Fast Charge) (PN#1550-905908G)
■ Fast Charge Adaptor via USB Type-C Cable (PN#1010-900061G US Plug/ #1010-900062G EU Plug)

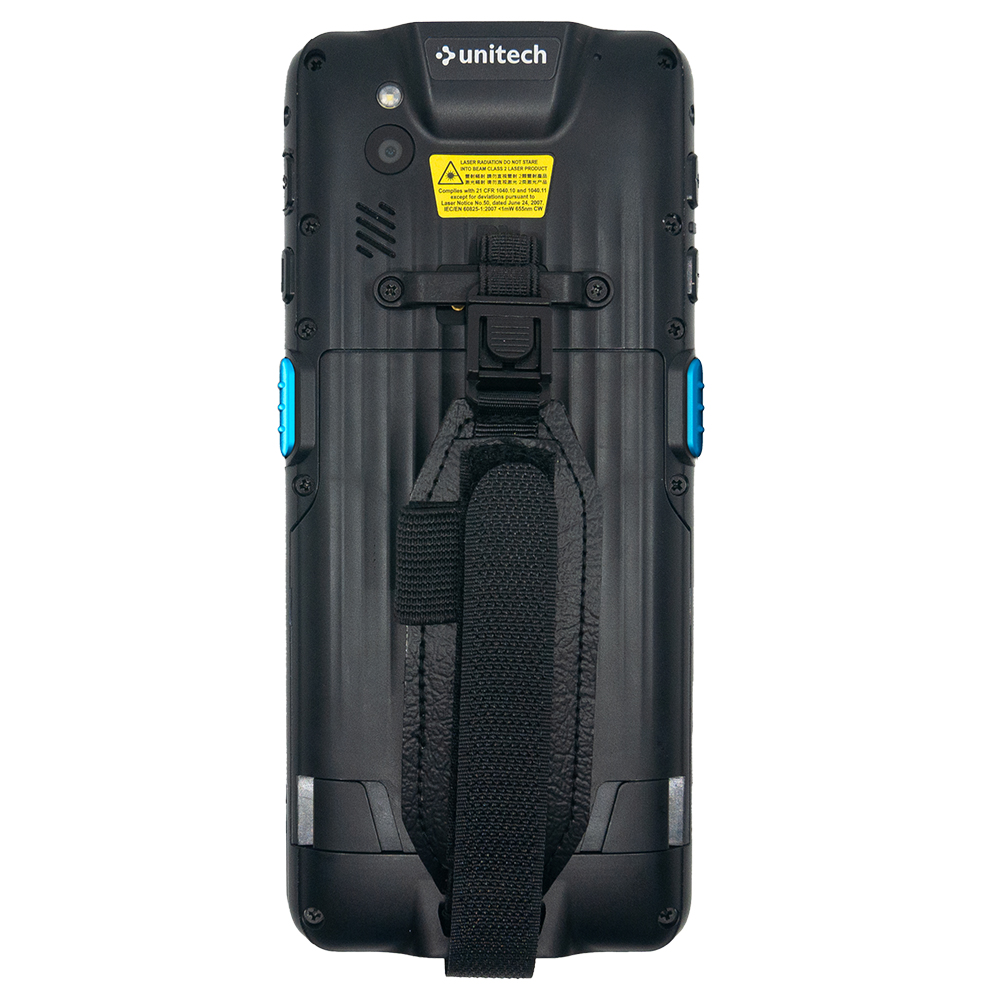

■ Hand Strap (PN# 5400-900052G)

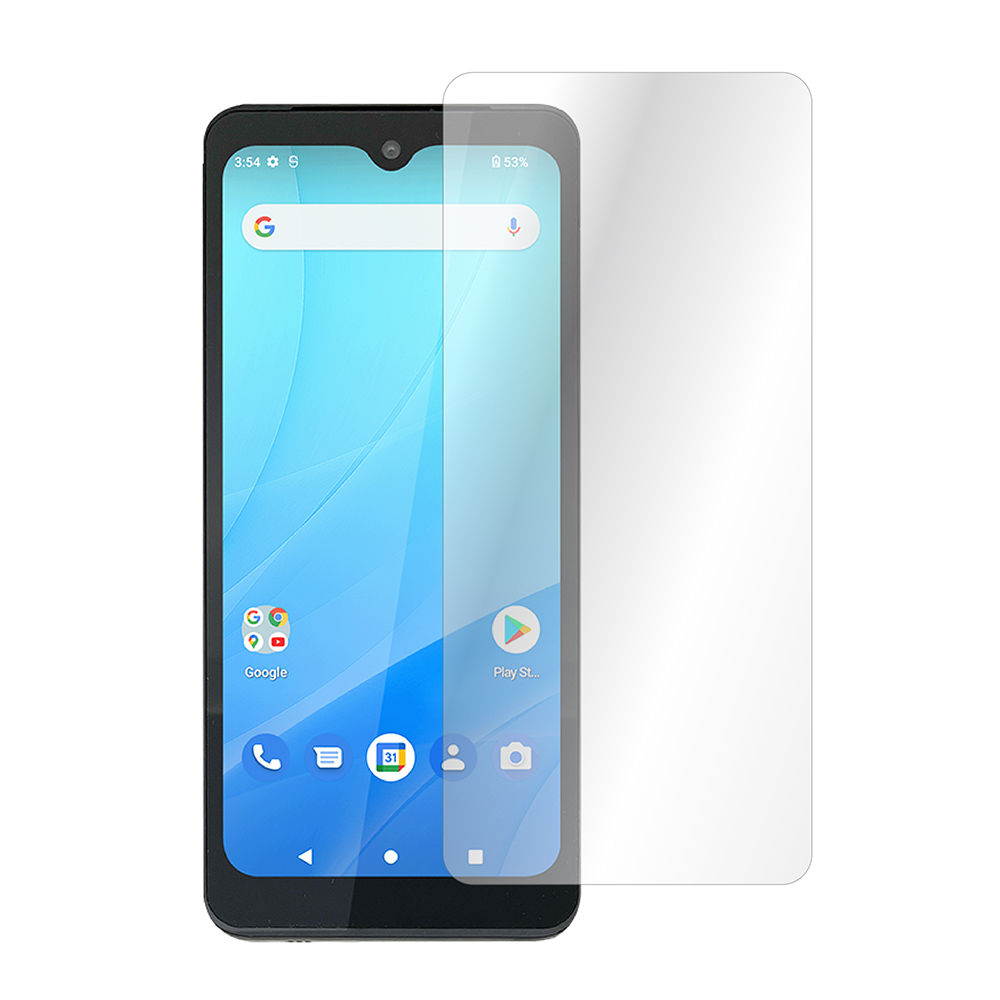

■ 9H Glass Screen Protector (PN#401661G/ #5400-900053G 10pcs with Packing)
■ Stylus (5.5mm PN#386534G)
■ Coiled Strap (PN# 383642G)

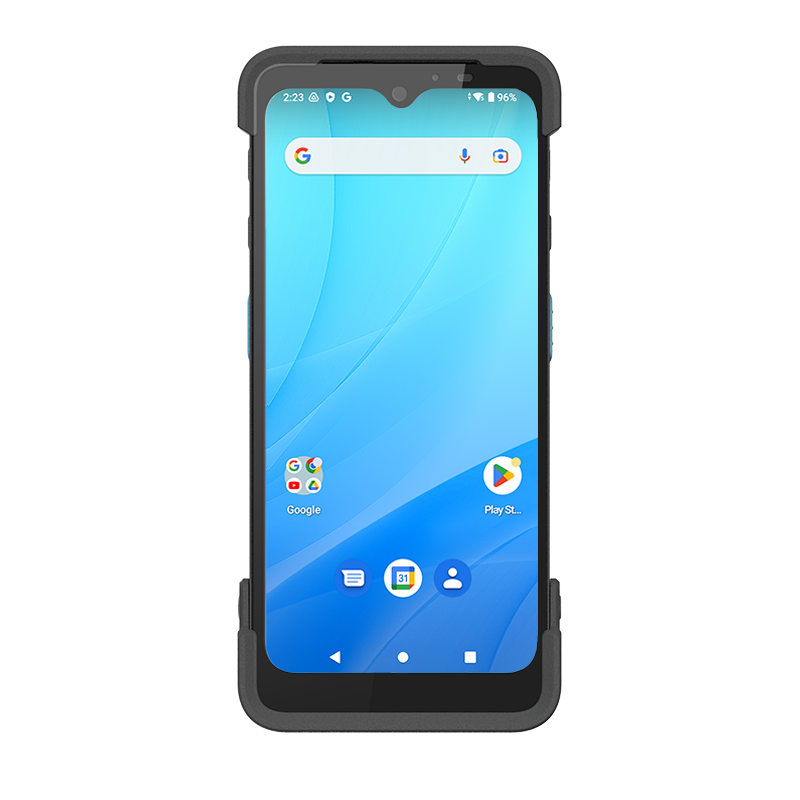

■ Bumper (PN#5400-900059G, 1 Set with Package)

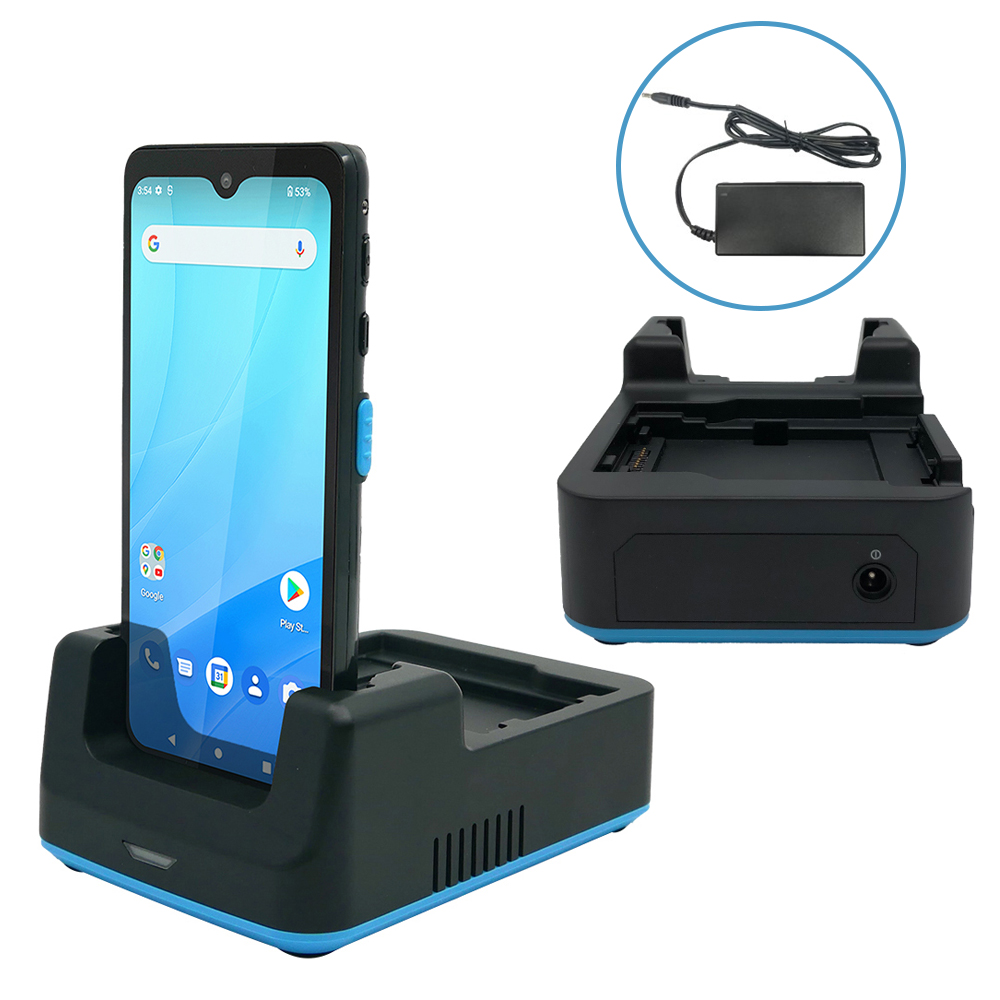

■ Single Slot Charging Cradle*(PN# 5000-900105G, PSU Only)

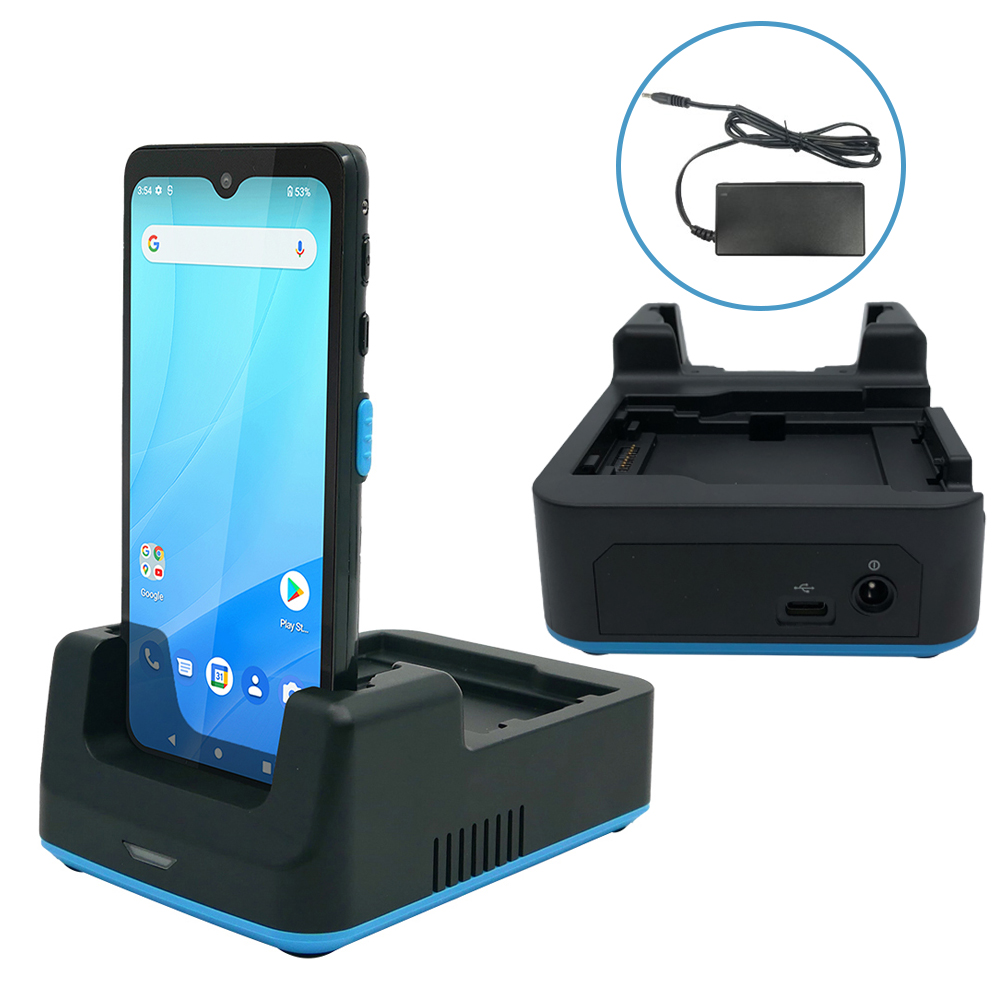

■ Single Slot USB Cradle*(PN# 55000-900106G, PSU Only)

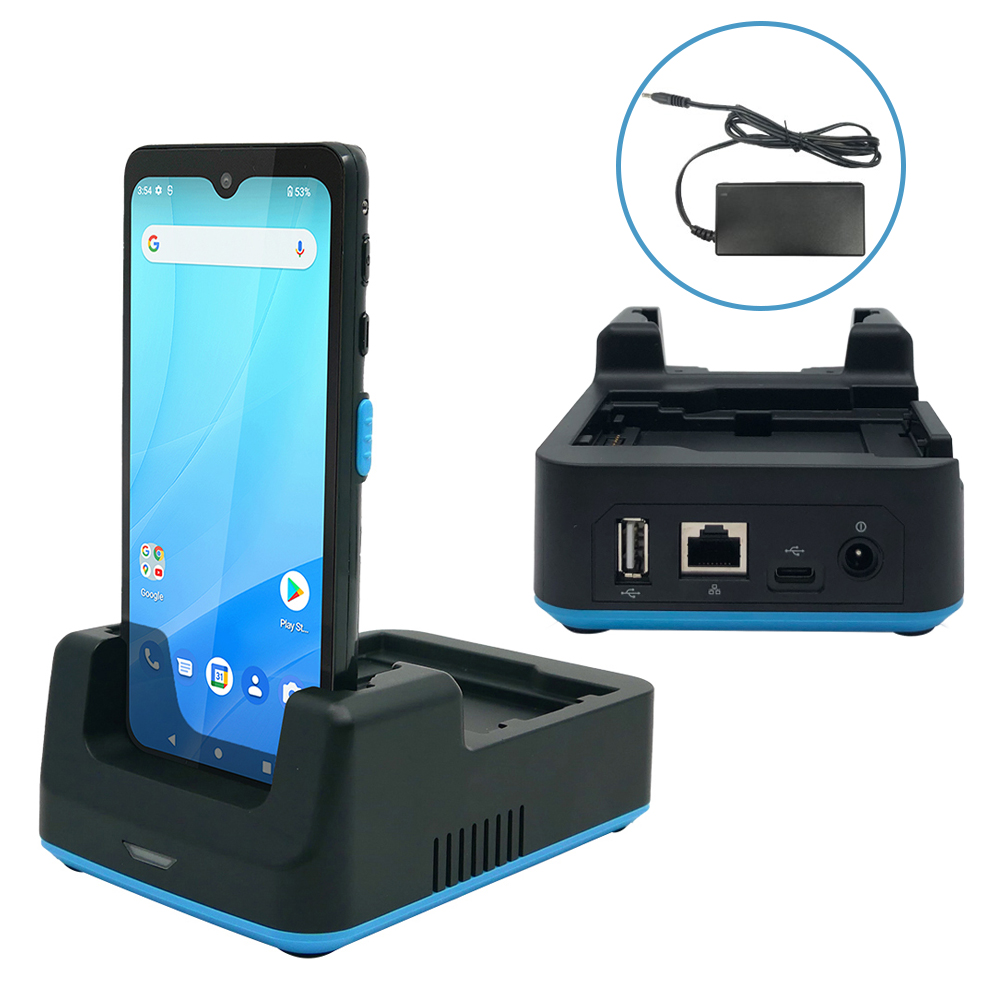

■ Single Slot Ethernet Cradle*(PN# 5000-900107G, PSU Only)
■ Power Supply in the 1-slot Cradle (PN#1010-900043G)

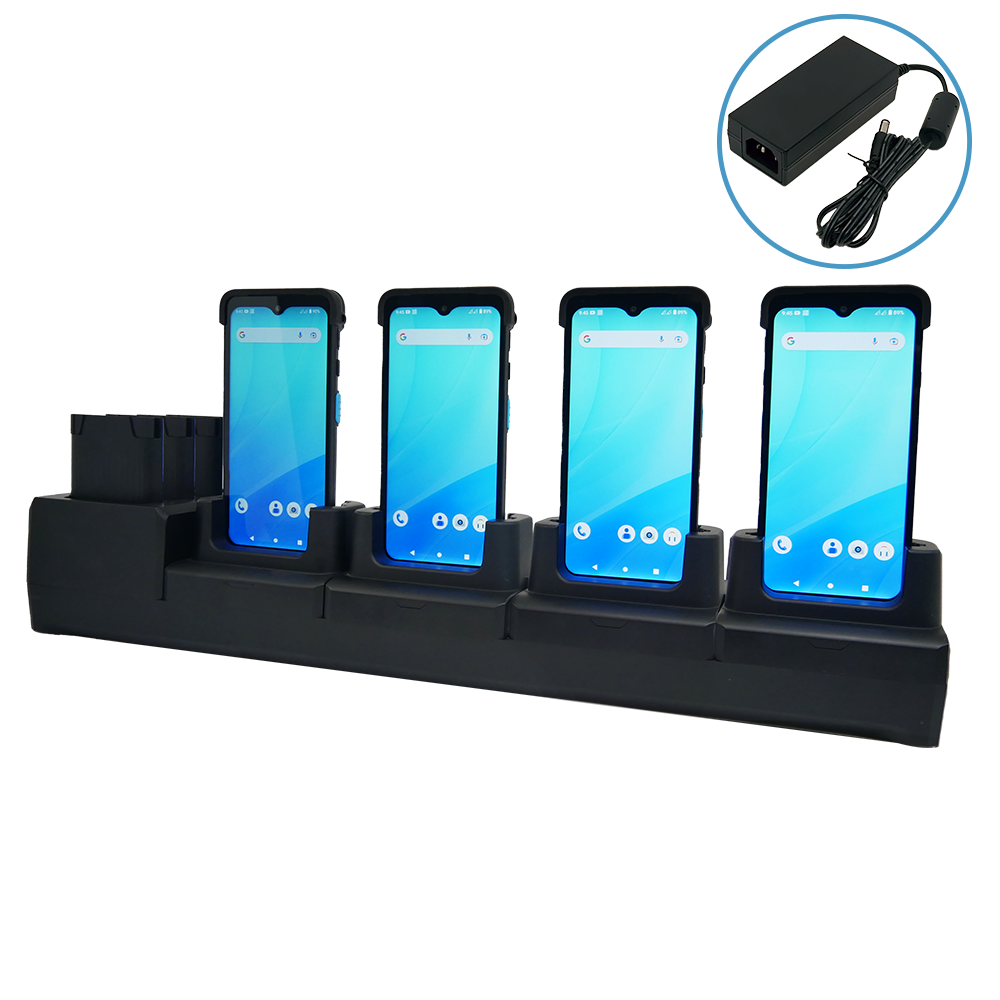

■ 4-Terminal+ 4-battery Charging Cradle (PN#5000-900109G , PSU Only)

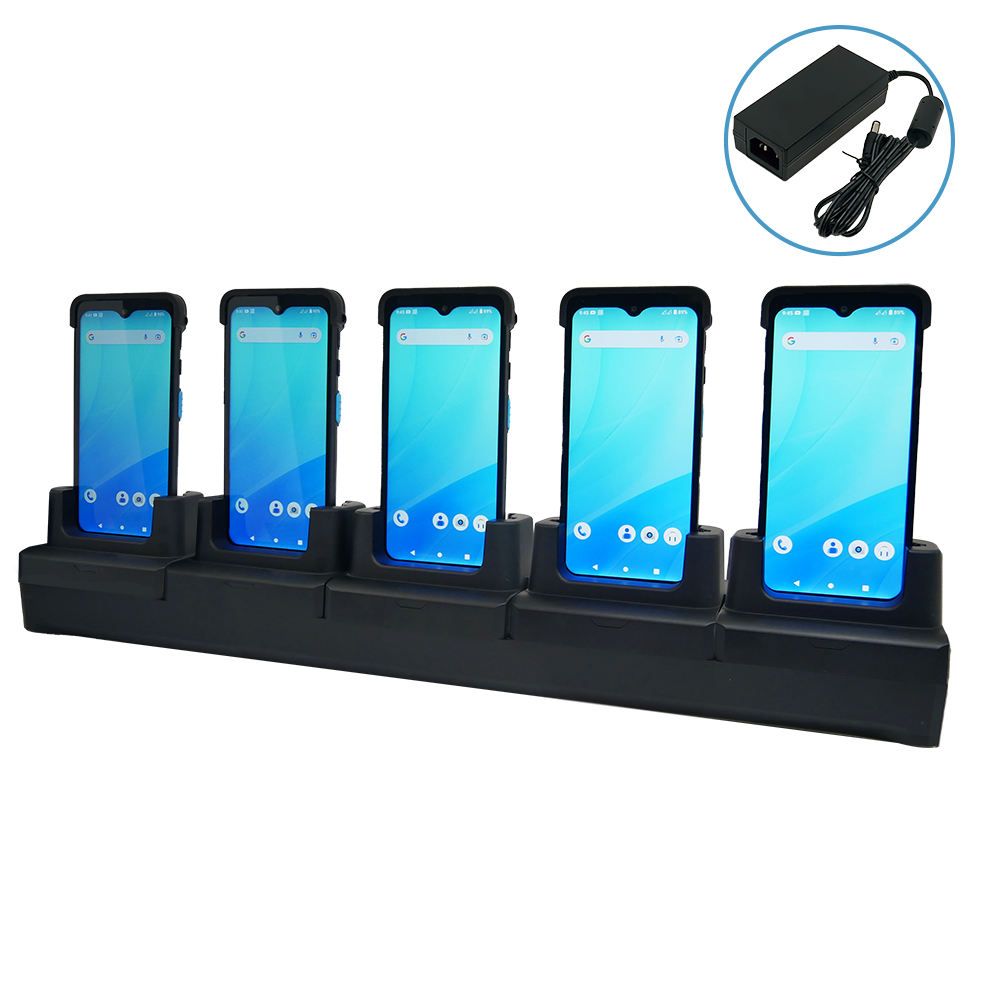

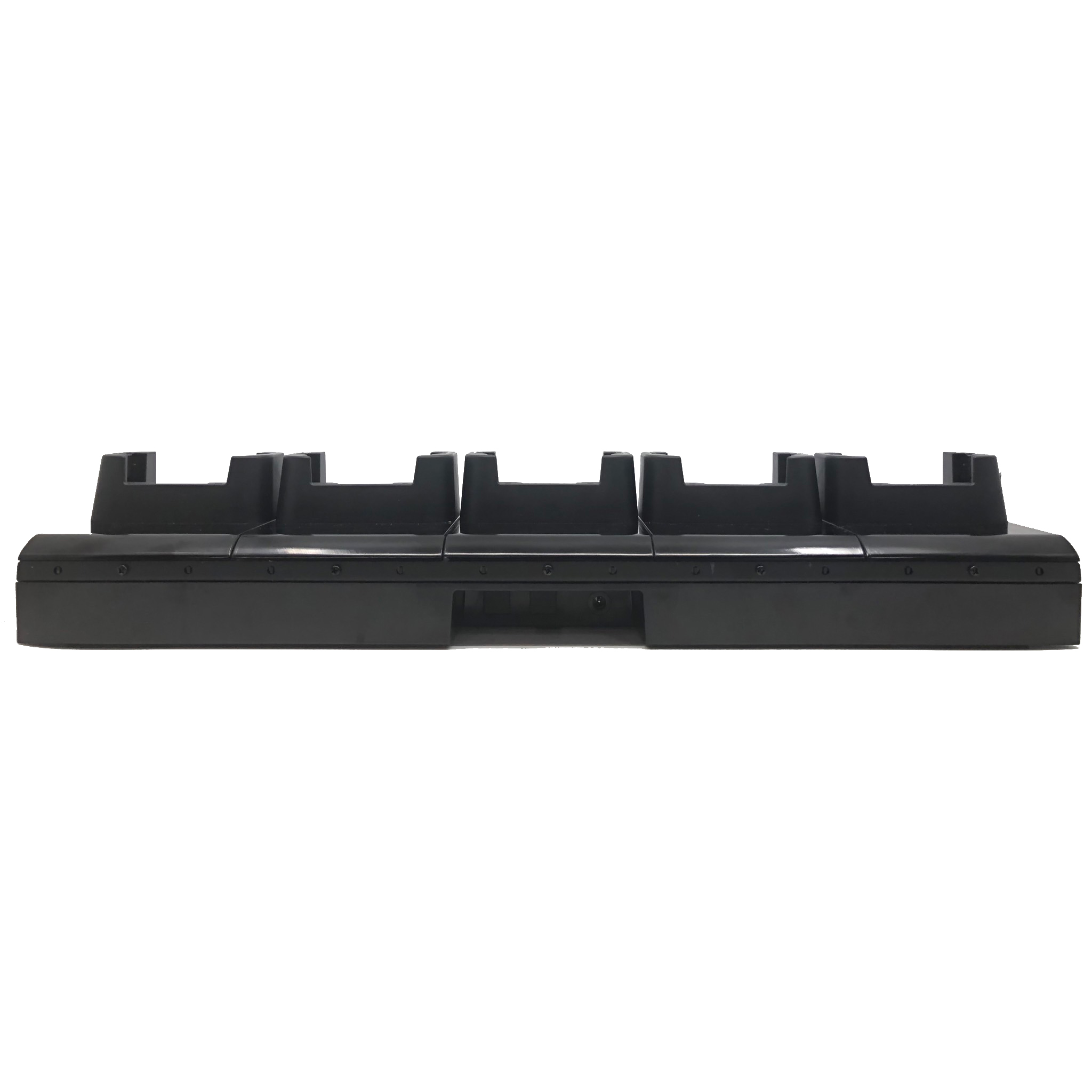

■ 5-Slot Terminal Charging Cradle (PN#5000-900110G, PSU Only)
■ 5-Slot Terminal Ethernet Cradle (PN#5000-900111G, PSU Only)

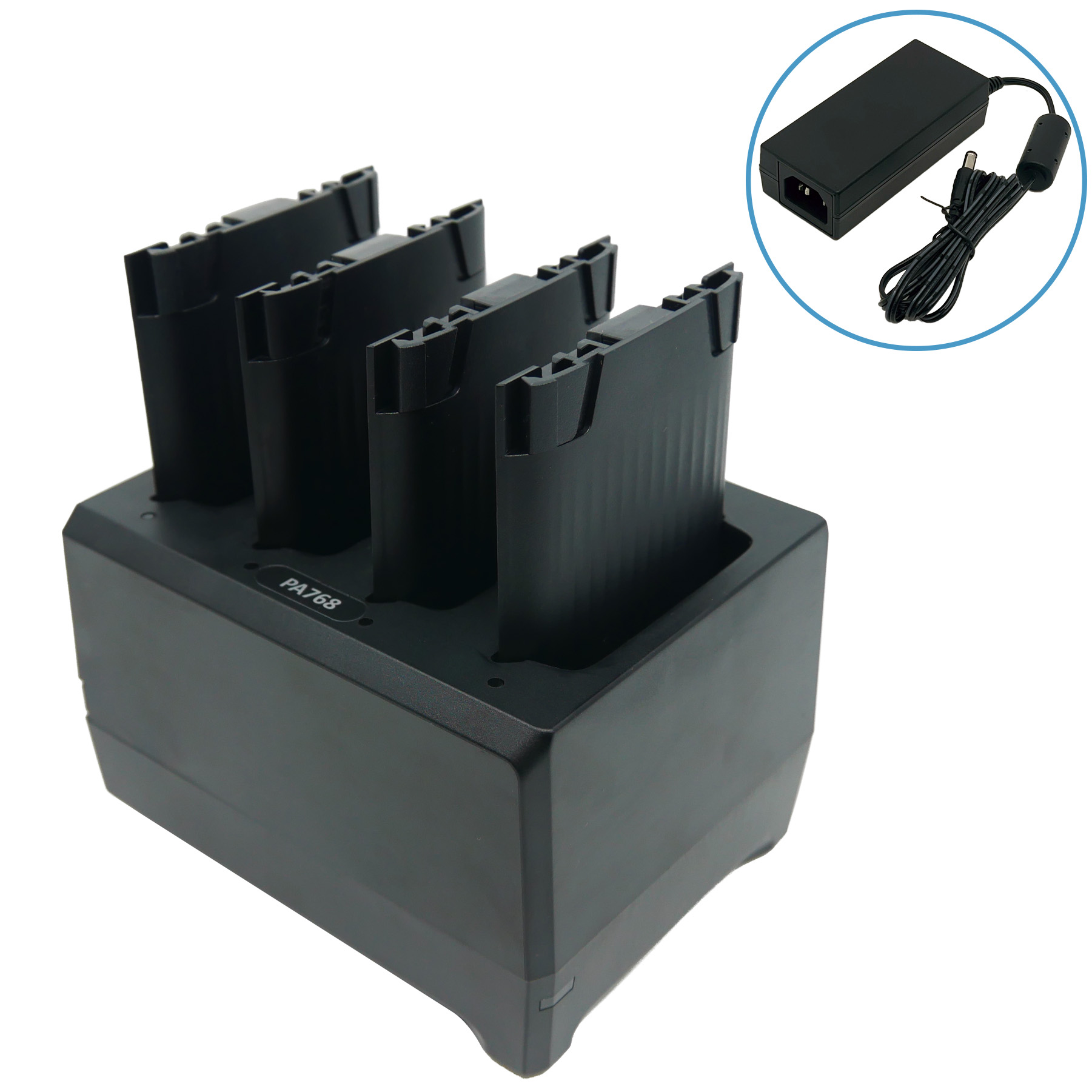

■ 4-Slot Battery Charger (PN#5100-900034G, PSU Only)
■ Power Supply in the Multi-slot Cradle (PN#1010-900068G)
■ 3-Pin Power Cord(US) (PN#1010-601551G)
■ 3-Pin Power Cord(EU) (PN#1550-602333G)
■ 3-Pin Power Cord (UK) (PN#1550-602689G)
■ Power Adapter 5V/3A (EU,UK,US,AU) (PN#1010-085001G)

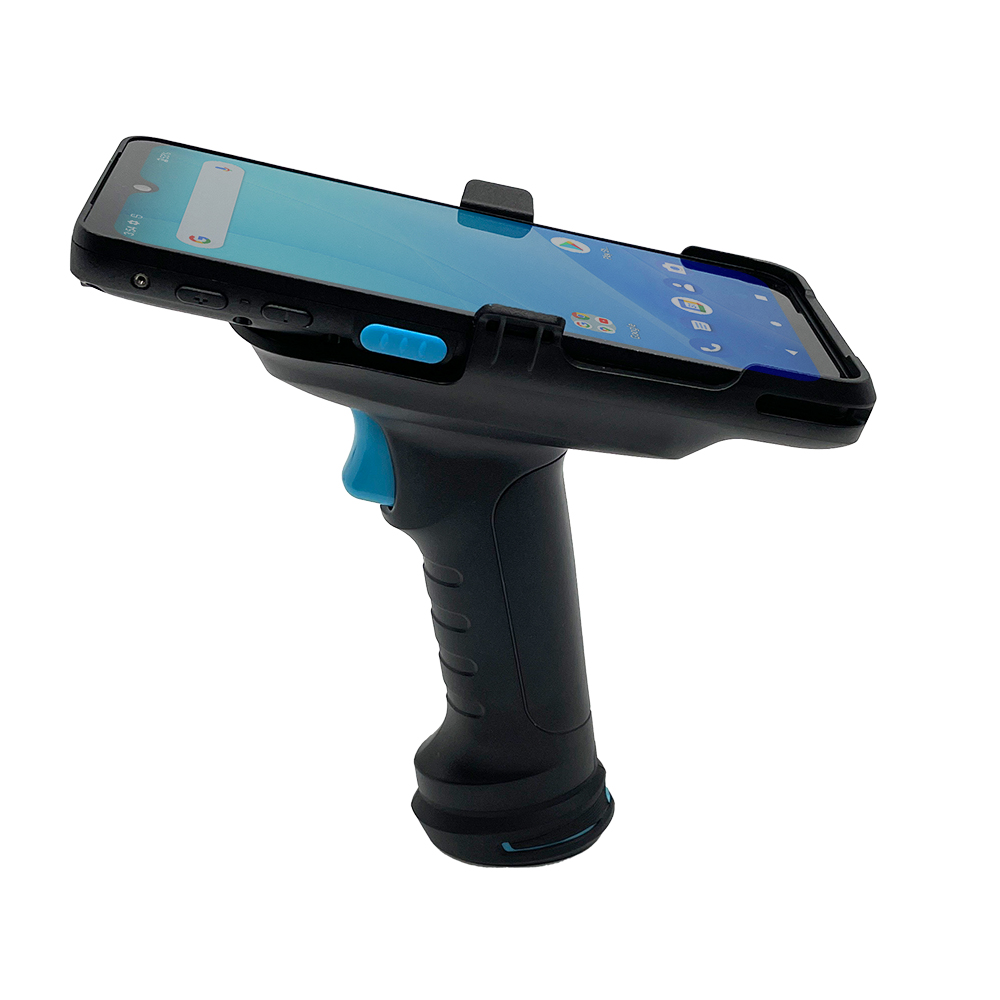

■ Standard Gun Grip (PN#5500-900102G)
■ RG768 UHF RFID Gun Grip (PN# 5500-900103G (US) & PA768 with bumper / PN#5500-900104G (EU) & PA768 with bumper)

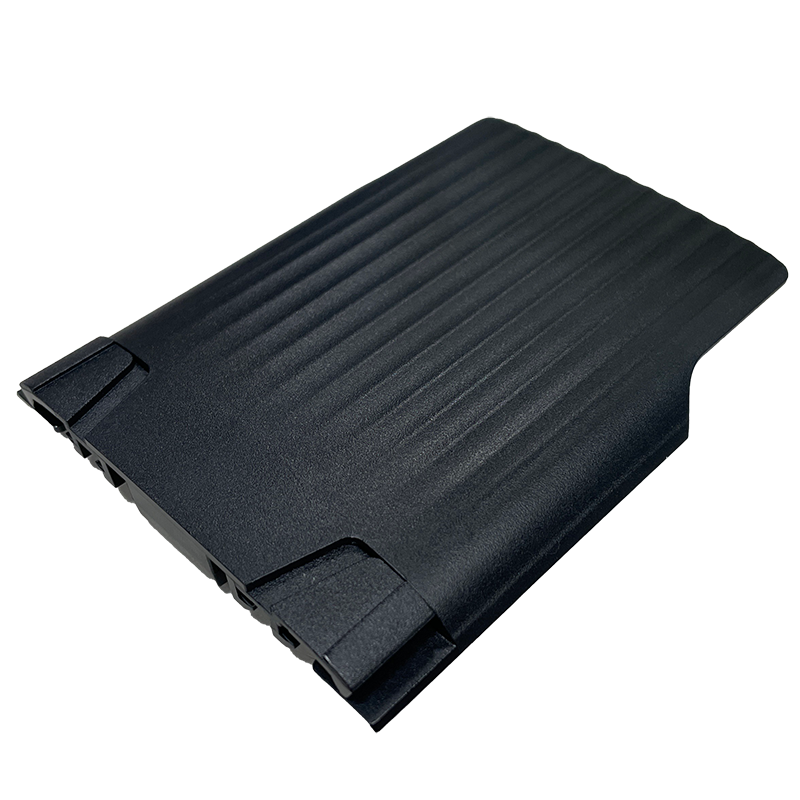

■ Standard Battery 5100mAh (PN#1400-900069G)
■ Extend Battery 7700mAh (PN#1400-900072G)

What comes in the box

The standard package contents ■ PA768 Terminal
■ Battery
■ Hand Strap
■ USB 3.0 type C cable
■ Adaptor (US or EU plug)
The basic package contents ■ PA768 Terminal
■ Battery
■ Hand Strap
■ USB 3.0 type C cable

Regulatory Approvals

Regulatory Approvals CE, FCC, NCC, VCCI, TELEC, CCC, SRRC, BQB, N-Mark, RoHS 2.0

Warranty

Hardware 1 year
Statement This product is warranted against defects in workmanship and materials for a period of one year from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
