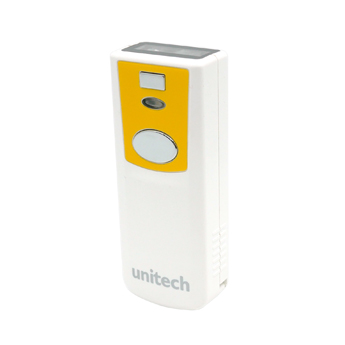

MS925 HC

Bluetooth 2D Pocket Scanner

The MS925 HC is a 2D pocket scanner with 1.5 drop spec and IP41 protection.

  • 2D

  • Pocket Size

  • 1.5 m

  • Wireless

  • Bluetooth

  • Retail

  • Hospitality

  • Field Service

  • Healthcare

  • IP41

Featuring a compact design, the MS925 HC Bluetooth 2D pocket scanner is the ultimate workhorse companion for any mobile workers. It allows users to simply scan and transmit all major 1D or 2D barcodes that it’s easily integrated into field sales, supply chain operations, healthcare, and retail applications.



Features

‧User-friendly operation with a pocket-sized enclosure
‧Built with anti-microbial technology in housing for healthcare applications
‧Reliable barcode engine: Read all standard 1D, 2D barcodes
‧Great motion tolerance at 28 cm/sec which benefits users who are always on the move.
‧Enterprise durability: 1.5 m drop protection and IP41 sealing for ingress protection
‧Support Bluetooth® 2.1+EDR, Class 2



★This product has reached its End of Sale.
To explore our latest products, please visit:
https://www.ute.com/en/products/category/Scanner/PocketScanner



Ergonomic Pocket-Sized Enclosure



The MS925 HC weighs in at just 29.5g and features a tiny enclosure, while also supporting various mobile devices running on Windows, Android, or iOS. It doesn’t take up too much space and give users an easy way to carry around. It also supports Bluetooth® 2.1+EDR wireless technology which makes barcode data collection simple with 10 meters operating range, reliable for all users. Above that, the MS925 features a flash memory storage capacity of 2MB, making data loss extremely unlikely, even when it is out of range of the wireless signal. This allows users to complete long tasks without interruption.

Reliable Barcode Scanning Performance

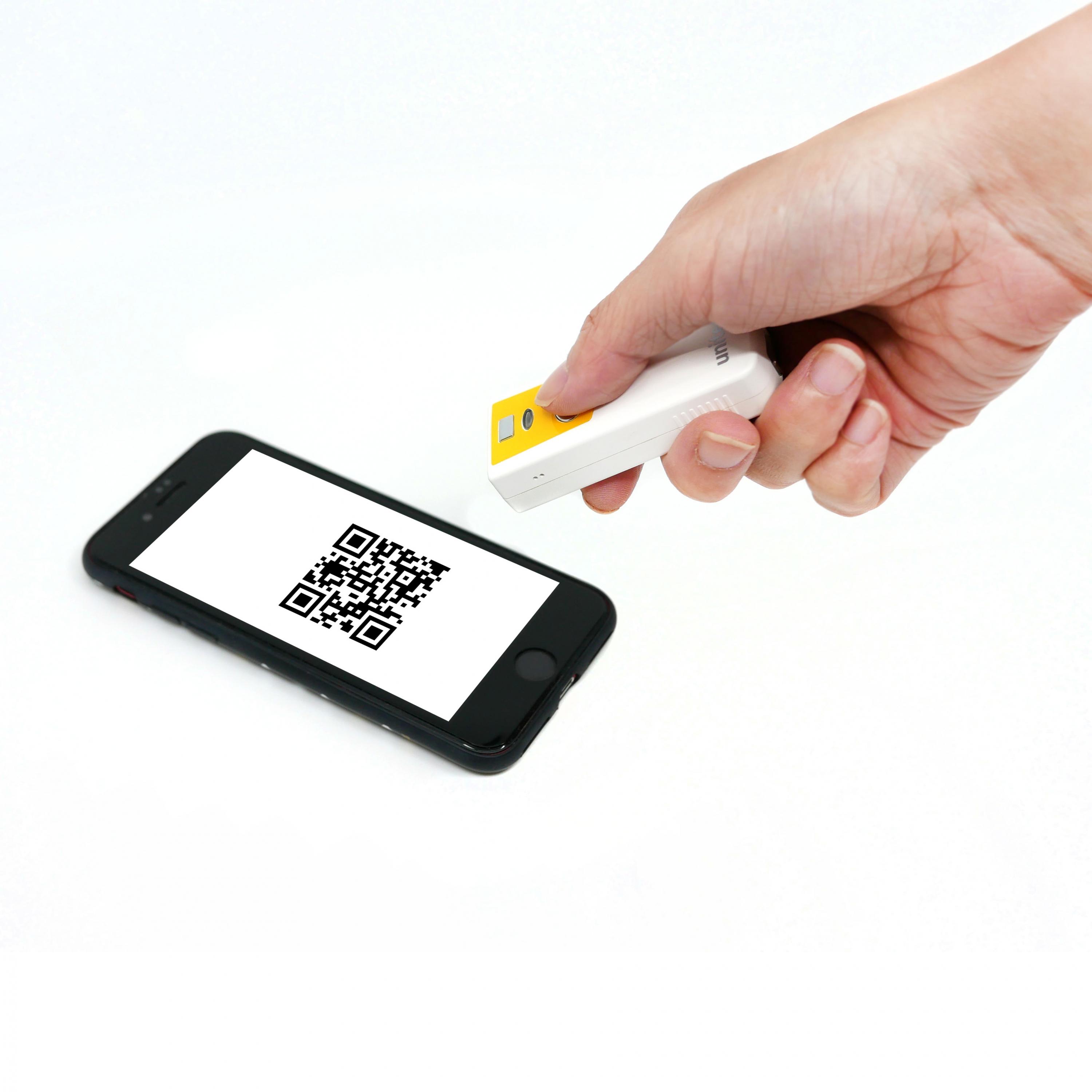

The 28 cm per second (IPS) motion tolerance and the reliable 2D scanning engine offer fast and accurate scanning results that MS925 HC is available to transmit 1D or 2D barcodes including PDF417, Data Matrix, QR Code, Micro QR Code, and Aztec. It also has the capability to scan barcodes on the screen of mobile phone and automatically capture barcodes within its field of view in any lighting conditions from darkness to direct sunlight (100,000 lux).



Improve Workflow in Various Applications



Featuring anti-microbial housing design, the MS925 HC is special to be used friendly in healthcare environments following high hygienic regulations. In addition, it includes a single-button scanning design makes it easy to collect data accurately without complex setting. The barcode scanning solution significantly reduces human error and helps users to improve workflow efficiency. The MS925 HC is a versatile tool that is easily integrated into field sales, hospitality, supply chain operations, and retail applications.



Durable Design


The MS925 HC not only incorporates rugged design with IP41 environmental sealing against moisture and dust, while also surviving a 1.5M drop to concrete.

TAA Compliant Barcode Scanners



Learn more about Unitech TAA Compliant Product List :


Wired Barcode Scanners

- MS852

- MS852+

- MS851

- MS852 N
- MS852 LR

- MS282e

- MS340

- MS250


Wireless Barcode Scanners

- MS851B

- MS852B

- MS852B+

- MS852B LR

- MS842P DPM

- MS842P

- MS840P



Wearable Scanners

- MS622

- MS652+
- MS650



Pocket Scanners

- MS925HC

- MS926
- MS916

- MS912+

- MS910+



ESD Safe Barcode Scanners

- MS852+ ESD

- MS851 ESD

- MS851B ESD

- MS852B+ ESD

- MS842P ESD

- MS840P ESD


Anti-microbial 2D barcode scanner

- MS852B+ HC

- MS852+ HC

- MS925 HC

Specification

System

  • Memory 2MB (20,000 barcodes)
  • Key Trigger Key

Optical & Performance

  • Sensor Array Image Sensor
  • Aiming Element 625nm visible red LED linear aimer
  • Illumination 3000K CCT white LED
  • Ambient Light 100,000 Lux (Sunlight)
  • Scan Rate 60 Frames/Sec
  • Skew Angle ±30°
  • Pitch Angle Sensor ±60°
  • Roll Angle 360°
  • Optical Resolution  4mil/ 0.1mm (Code 39)
    8mil/ 0.2mm (QR Code)
  • Printing Contrast Scale 30%
  • Depth of Field (DOF PCS=80%)
    Decode Range | Near | Far
    4 Mil Code 39 : 65 ~ 143mm
    5 Mil Code 39 : 62 ~ 174mm
    10 Mil Code 39 : 32 ~ 280mm
    15 Mil Code 39 : 40 ~ 358mm
    13 Mil UPC/EAN : 38 ~ 281mm
    10 Mil QR Code : 47 ~ 193mm
    15 Mil QR Code: 37 ~ 257mm
    40 Mil QR Code: 72 ~ 424mm
    6.67 Mil PDF417 : 64 ~ 131mm
    10 Mil PDF417: 40 ~ 182mm
    10 Mil Data Matrix : 53 ~ 171mm
    20 Mil Data Matrix: 34 ~ 278mm

Communication

  • Radio Bluetooth® 2.1+EDR, Class 2
  • Wireless Coverage 33 ft/ 10m (line of sight)
  • Protocol  BT HID
    BT SPP
    USB HID
    USB VCP
    Memory
  • Host Interface supported USB

Mechanical

  • Dimension  W27.5 x L68.4 x H16.2 mm
  • Weight 29.5g

Functionality

  • Operation Mode Trigger Mode, Presentation Mode, Buffer mode

Symbologies

  • 1D Barcodes UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar
  • 2D Barcodes PDF417, DataMatrix, QR Code, Micro QR Code, Aztec
  • Data Formatting Prefix, Suffix, Code ID, Reformatting Date

Electrical

  • Operation Voltage 3.7 VDC ± 5%
  • Current Consumption < 330mA
  • Indicator LED, Buzzer
  • Battery Type 3.7V, 400mAh, Li-Polymer Battery
  • Battery Capacity 400mAh
  • Battery Charging time < 3 hours
  • Operating Time  4000 scans

Environmental

  • ESD Protection Functional after 4KV contact, 8KV Air discharge
  • Mechanical Shock 1.5M
  • Operating Temperature -10 ~ 50˚C
  • Storage Temperature -20 ~ 60˚C
  • Relative Humidity 0% ~ 95%RH (Non-condensing)
  • IP Rating IP41

Accessories

  • Items ■ Micro USB Cable (PN# 1550-900104G)
    ■ Neck Lanyard (PN# 3210-900019G)
    ■ Silicone Protective Cover (PN# 3210-900020G)
    ■ Power Adaptor with universal plugs (PN# 1010-900026G)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI, ISO 22196 (JIS Z 2801), TAA Compliant

What comes in the box

  • The standard package contents ■ MS925 HC Scanner
    ■ MicroUSB cable
    ■ Neck Lanyard

Warranty

  • Hardware Warranty 15 months
  • Statement The warranty covers natural failures due to regular usage. Damages caused by drops or other incidents are not covered. And different regions may have varying warranty terms. Please contact your local representative for further extended information.

Accessories

MS925HC Micro USB Cable

PN# 1550-900104G

Neck Lanyard

PN# 3210-900019G

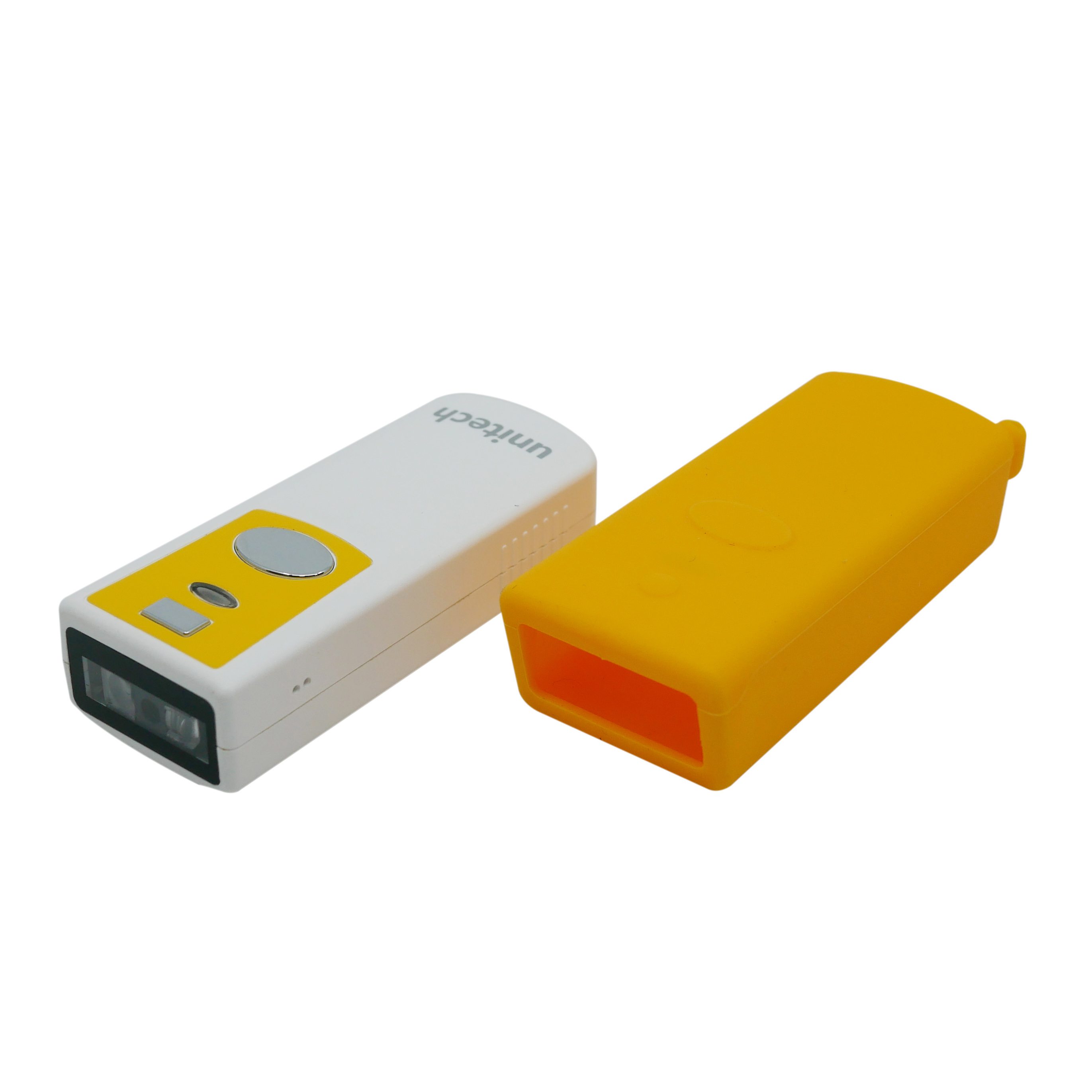

Silicone Protective Cover

PN# 3210-900020G

Power Adaptor with universal plugs

PN # 1010-900026G
